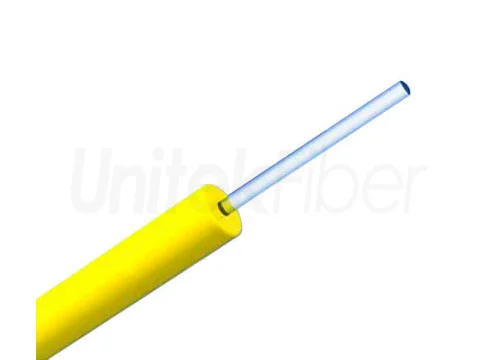

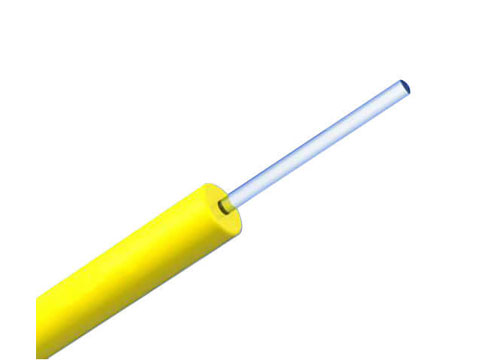

Indoor Tight-buffered Fiber Optic Cable GJFJV 12 Colors 0.9mm G.657A1 Corning LSZH|PVC

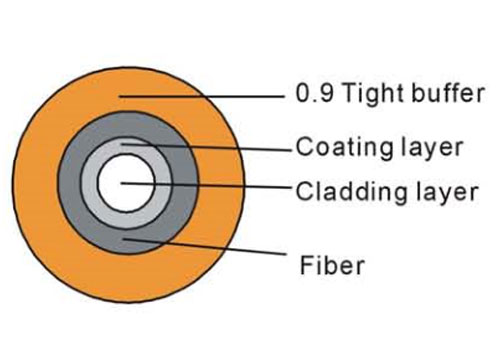

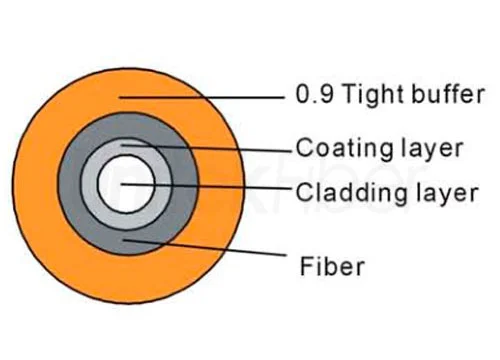

Tight-buffered 0.9mm fiber cable is consist of a colored bare fiber and extruded with PVC or LSZH sheath around the bare fiber with vacuum-pumping technology. There are 12 colors for 0.9mm fiber cable.This cable is mainly used for termination assembling.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Indoor Tight-buffered fiber Optic Cable GJFJV 12 Colors 0.9mm G.657A1 Corning LSZH|PV

The cable is usually cut at different length and terminated with SC,LC,FC or ST connectors at the one end to become a pigtail.


Features:


  • High strength Kevlar yarn member

  • High quality tight buffered or loose tube.

  • Soft and easy to strip

  • Round construction


Application:


  • Adopted to Indoor distribution

  • As patchcord of communication equipment

  • Suitable for communication equipment served

  • Can be installed conveniently and operated simply


Packaging & Shipping


Description of Indoor Tight-buffered fiber Optic Cable GJFJV 12 Colors 0.9mm G.657A1 Corning LSZH|PVC


Parameter of Indoor Tight-buffered fiber Optic Cable GJFJV 12 Colors 0.9mm G.657A1 Corning LSZH|PVC

No. of fiber1
Fiber ModelG.657A1(Corning)
Strength MemberMaterialAramid yarn
Tight bufferMaterialPVC
Diameter(±0.06)mm0.9
Thickness(±0.03)mm0.32
Outer SheathMaterialPVC
Thickness(±0.05)mm0.300.35
Cable Diameter(±0.1)mm2.03.0
Cable Weight(±2)kg/km46
Min. bending radiusWithout Tension10.0×Cable-φ
Under Maximum Tension20.0×Cable-φ
Temperature range


(℃)

Installation-20~+60
Transport&Storage-40~+70
Operation-40~+70

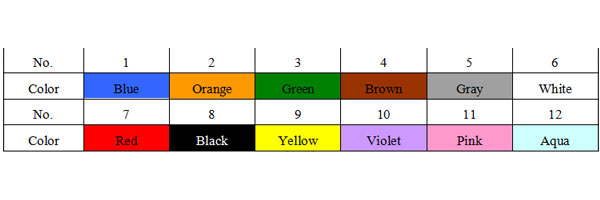

Cable Colors

Tight-buffered 0.9mm fiber Optic Cable LSZH GJFJV

Is indoor fiber optic cable 3.0mm?

If you are asking about the outer diameters, we have many types of cable diameter, such as 2.0mm and 3.0mm.

What is the fiber type of indoor fiber optic cable?

We have single mode and multi mode indoor fiber cables as per your requests.

What are the features of indoor fiber optic cable?

Good mechanical and environmental characteristics, soft, flexible, easy to lay and splice, and with big capacity data transmission.

What color is the outer sheath of the indoor optical cable?

Usually, single mode fiber optic cable is yellow, multi-mode is orange, pink. We can produce according to your design.

I want to ask how many fiber cores in the indoor fiber optic cable?

UnitekFiber provides 2-288 fiber cores for the indoor fiber optic cable.

Do you offer guarantee for the products?

Yes, we offer 25 years warranty to our formal products.
