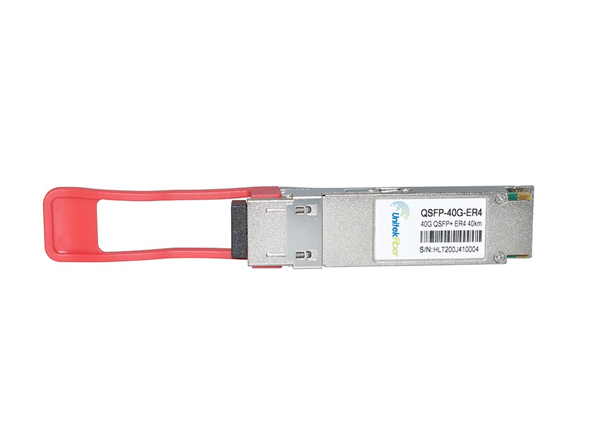

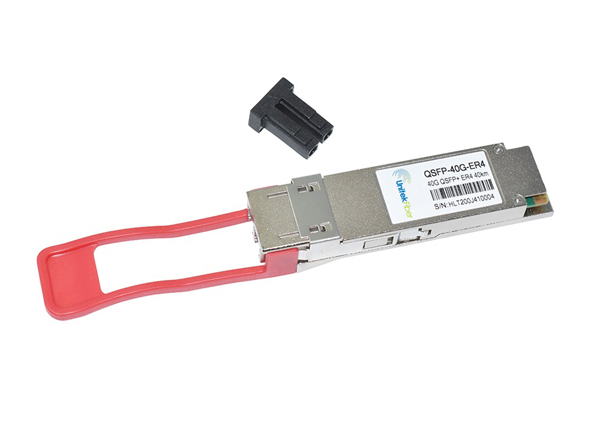

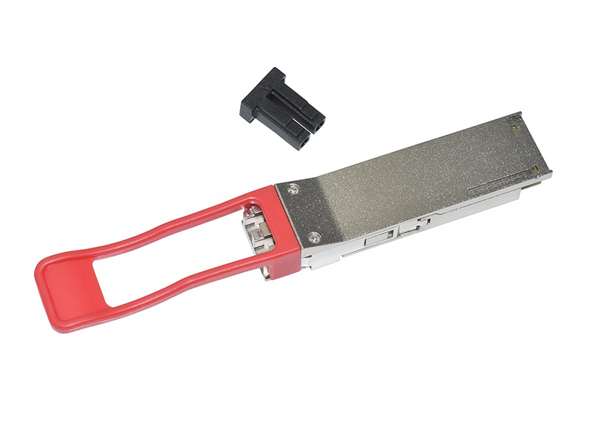

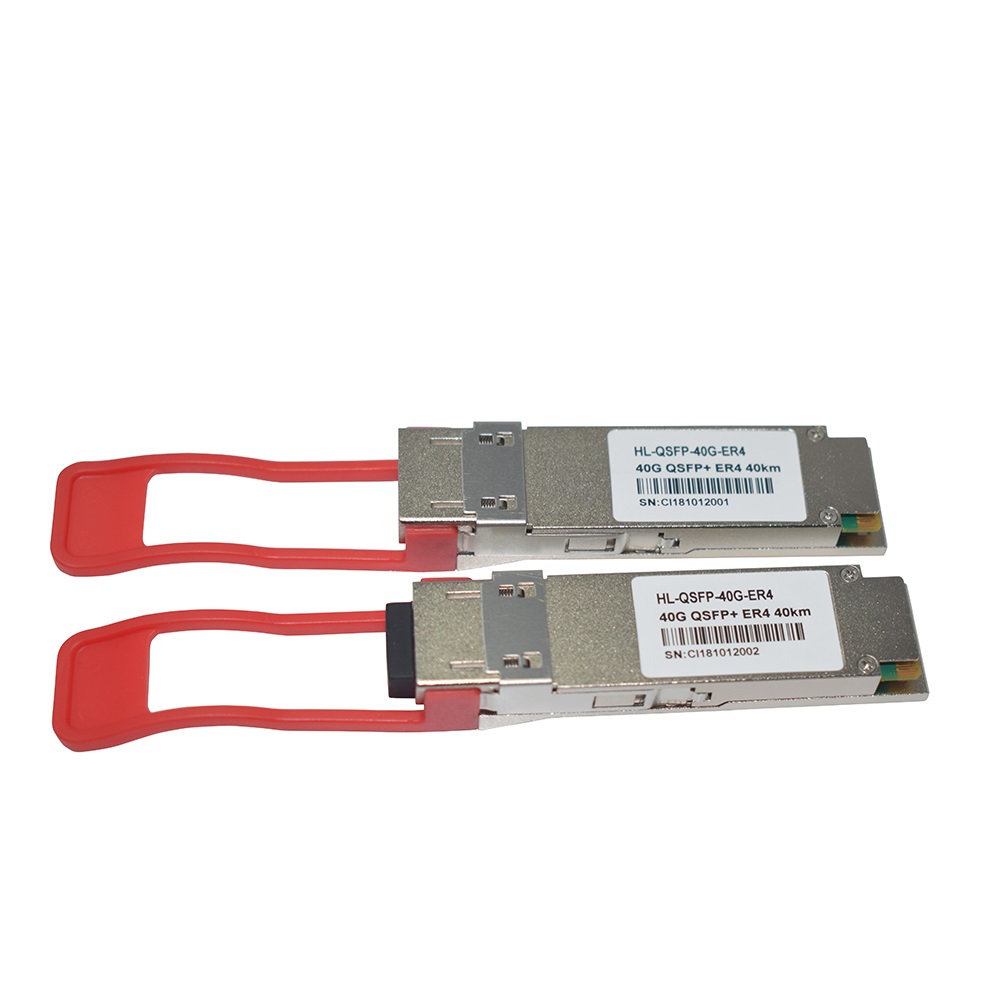

40G QSFP+ Optical Transceiver Up to 40km With Duplex LC Connector 1320nm DOM SMF

The center wavelength of QSFP+40G optic transceiver is 1271nm, 1291nm, 1311nm and 1331nm. It’s a single mode with duplex LC interface, supporting DDM. Its operating temperature is 0°C to 70°C, and the transmit optical power is -2.7 to +4.5dBm. Generally, it is used in data center and metro optical transmission network with single-mode patch cord OS2, and the transmission distance can reach up to 40KM.

Distance
SFP Types
Fiber Optic
Description
Parameter
FAQ
Download
Review
Video

Details of 40G QSFP+ Optical Transceiver Up to 40km With Duplex LC Connector 1320nm DOM SMF

40G QSFP+ Optical Transceiver Up to 40km With Duplex LC Connector 1320nm DOM SMF


This transceiver is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 and OTU3 C4S1-2D1 standard. The Cisco QSFP-40GE-LR4 Compatible QSFP+ Optical Transceiver Module is designed for use in 40GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.


Network Connectivity

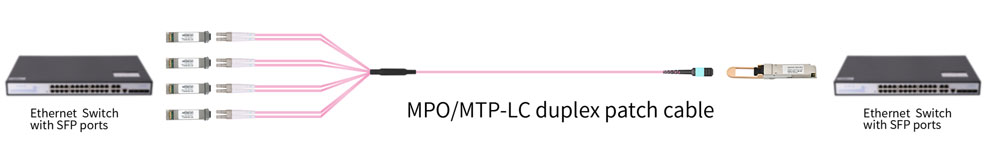

Direct Connection for 40G QSFP+ LR4 Transceivers


40G QSFP+ Optical Transceiver Up to 40km With Duplex LC Connector 1320nm DOM SMF

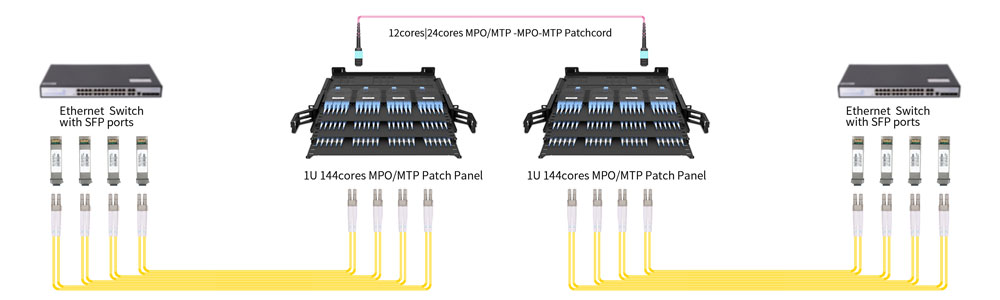

Connection for 40G QSFP+ LR4 Transceivers with Cassettes and Enclosures


40G QSFP+ Optical Transceiver Up to 40km With Duplex LC Connector 1320nm DOM SMF


Product Highlights

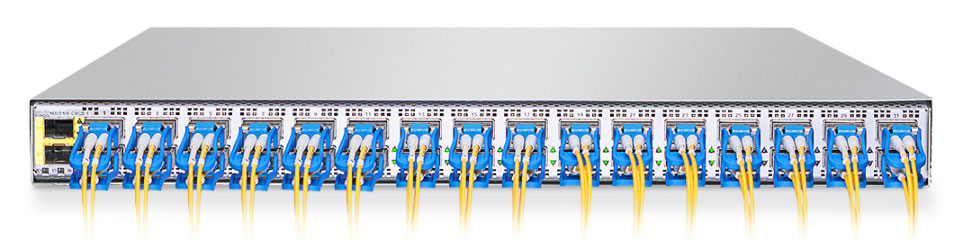

40G Connectivity for Data Center

40G QSFP+ optical module provides high-density and low-power 40G Ethernet connection transmission applications.


40G QSFP+ Optical Transceiver Up to 40km With Duplex LC Connector 1320nm DOM SMF

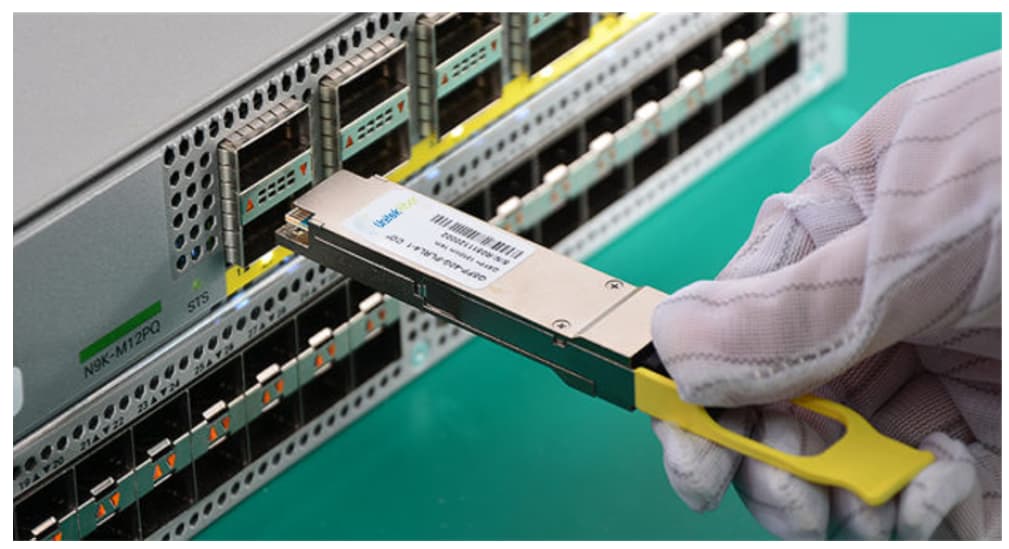

Tested in Host Devices for Proven Interoperability

40G SR4 QSFP+ optical module complies with 802.ba D3.2 (40GBASE-SR4) standard and can be connected to MPO/MTP fiber optic connectors for 40G transmission applications.


40G QSFP+ Optical Transceiver Up to 40km With Duplex LC Connector 1320nm DOM SMF


In data centers, high-performance computing networks, enterprise core layer and distribution layer application scenarios, 40G QSFP+ optical modules provide high-density and low-power 40G Ethernet connection transmission applications.

Parameter of 40G QSFP+ Optical Transceiver Up to 40km With Duplex LC Connector 1320nm DOM SMF

Part Number

Form Factor

Data Rate

Wavelength

Laser

Distance

Medium

Connector

Temperature

UFQP-40G-SR4

QSFP+

40G

850nm

VCSEL/PIN

100m

MMF

MPO

0℃~70℃

UFQP-40G-SR-BD

QSFP+

40G

850/900nm

VCSEL/PIN

100m

MMF

Duplex LC

0℃~70℃

UFQP-40G-LR4

QSFP+

40G

CWDM 1310nm

DFB/PIN

10km

SMF

Duplex LC

0℃~70℃

UFQP-40G-ER4

QSFP+

40G

CWDM 1310nm

DFB/APD

40km

SMF

Duplex LC

0℃~70℃


Why can I use both 12 fibers MTP trunk cables and 8 fibers MTP-LC cables with 40GBASE-SR4 transceivers? Shouldn't they be the same 12 fibers cables?

Actually, 40G-SR4 modules adopted MTP/MPO-12 Male connectors, but only 8 fiber strands are required, 4 fibers are idle in the connection, so you can use both 8 fibers and 12 fibers MTP cables.

Which fiber cable type is work with QSFP+ LR4 40G 10KM transceiver?

QSFP+ LR4 40G 10KM transceiver primarily enables high-bandwidth 40G optical links over duplex single mode fiber patch cable with LC connectors or MPO trunk cables.

What is the QSFP-ER4-40G transceiver max supported distances?

40km.

Once I place an order for my optic transceiver, how long will it take to receive them?

Unitekfiber supply a huge volume of optic transceiver modules, most of transceiver modules have a short lead time, 5-7days.

Can you confirm 40G QSFP+ Optical module is Cisco compatible?

Unitekfiber's optical modules are compatible with Fiberhome, Huawei, ZTE, Cisco, Ericsson, Nokia and other brands.
