Sliding Drawer Type Fiber Optical Patch Panel SC LC FC ST 12 Port Distribution Box

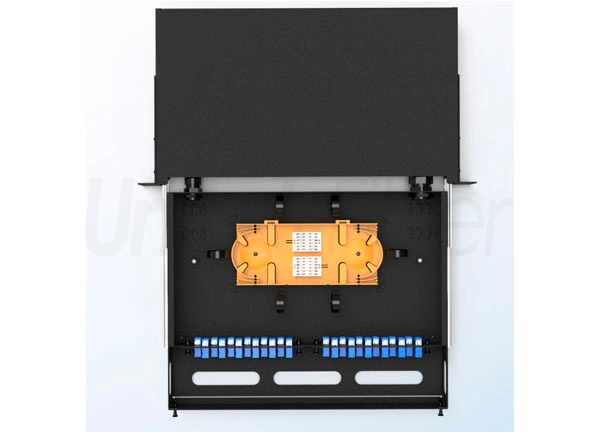

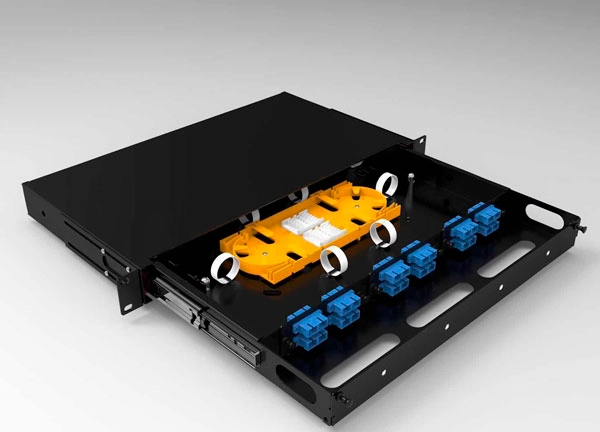

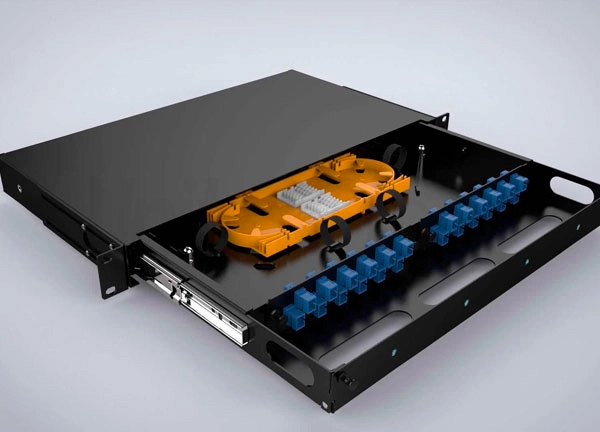

The sliding drawer type fiber optic patch panel is made of metal in 19" standard structure. There are 2pcs of stainless steel rails at the sides of the box.This design make the panel drawer easily pull out and push in. And two mounted ears is with moveable designed. The fiber box can be loaded with FC,SC,ST,LC adapters and pigtails. There are 4 fiber cable entries is at the back of the panel. And the splice cassette is loaded in the middle of the patch panel. It can be applied in branch connection of optical cable termination.


Fiber Optic
Details
Parameter

Details of Sliding Drawer Type Fiber Optical Patch Panel SC LC FC ST 12 port Distribution Box

Features:


  • Rack mounting 19" standard size, light weight

  • Suitable for ribbon and single fiber

  • Various panel plate to fit different adapter interface

  • 24C, 36C, 48C, 96C,144C optional, with or without fiber optic pigtails and adapters

  • Easy for management and operation

  • Sprayed surface treatment process

  • Customizble color and LOGO


Applications:


  • Telecommunications subscriber loop

  • Fiber to the home (FTTH)

  • LAN/WAN

  • CATV

Network Cabling

Network Cabling Solution



Packaging and Shipping:


Sliding Drawer Type Fiber Optical Patch Panel SC LC FC ST 12 Port Distribution Box


Production:


Sliding Drawer Type Fiber Optical Patch Panel SC LC FC ST 12 Port Distribution Box


Parameter of Sliding Drawer Type Fiber Optical Patch Panel SC LC FC ST 12 port Distribution Box

Packing information:

Type

Max capacity

Per carton/Qty

Inner carton diameter(cm)

Outer carton diameter(cm)

Weight(kg)

UF-SR-CLD-1U

48/LC

5

49*37*5

51*29*39

26

UF-SR-CLD-2U

96/LC

3

49*37*9.5

51*29*39

21.6
