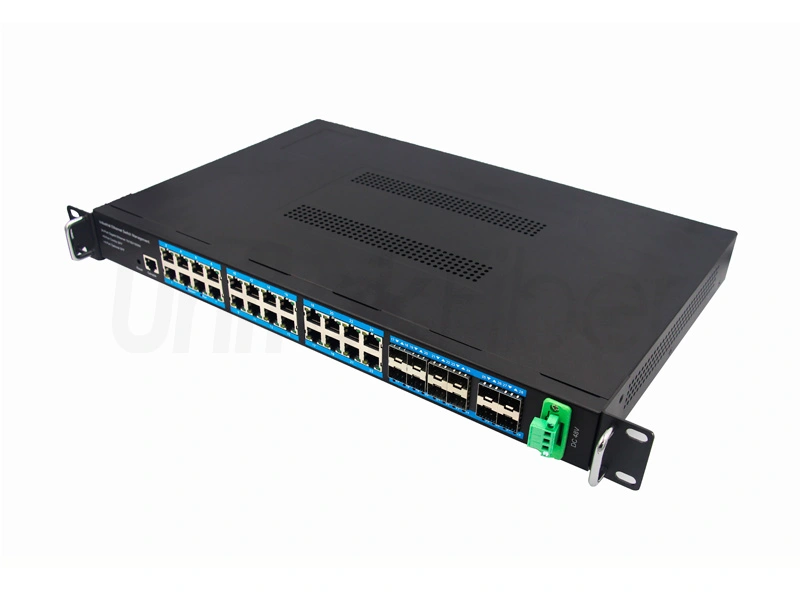

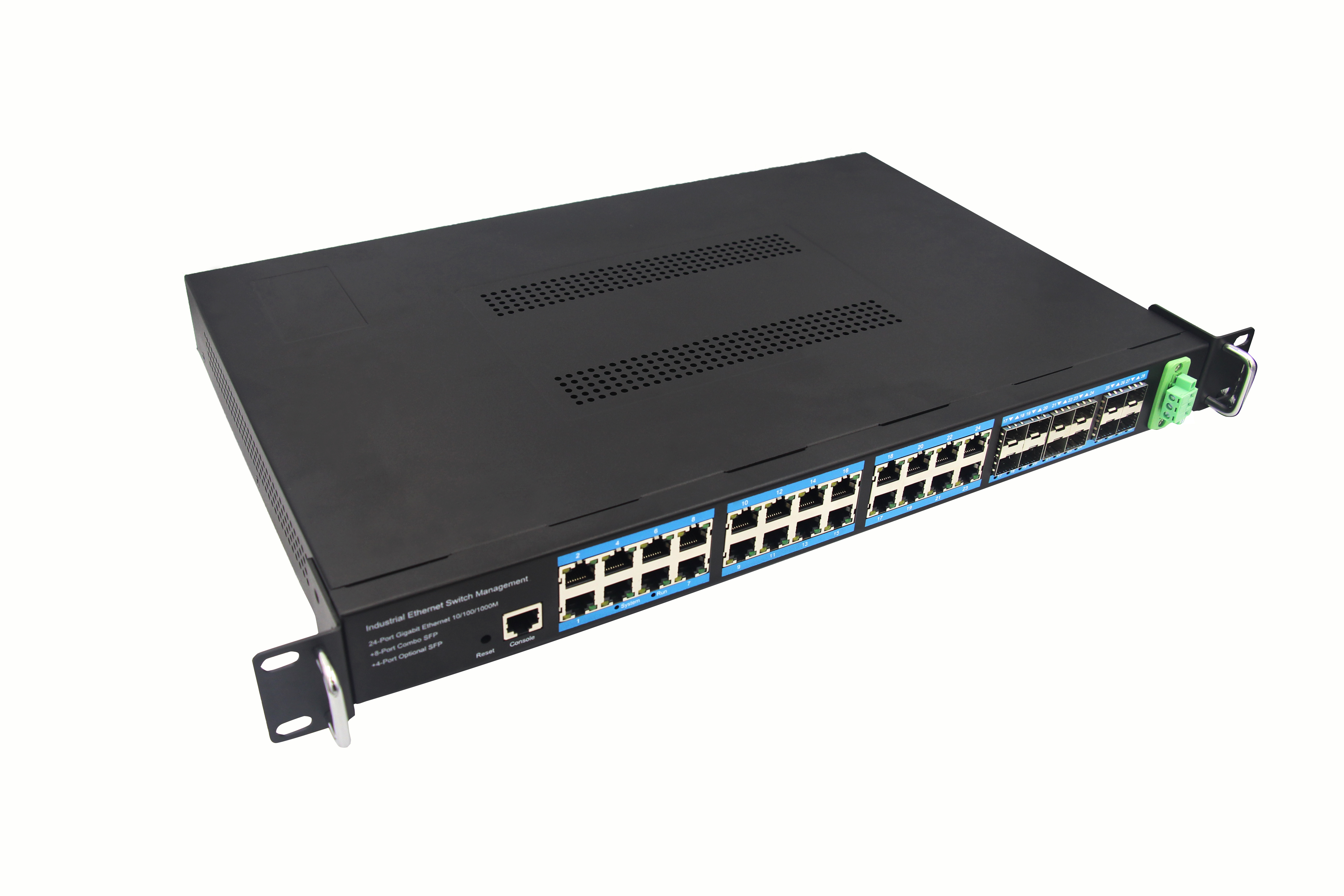

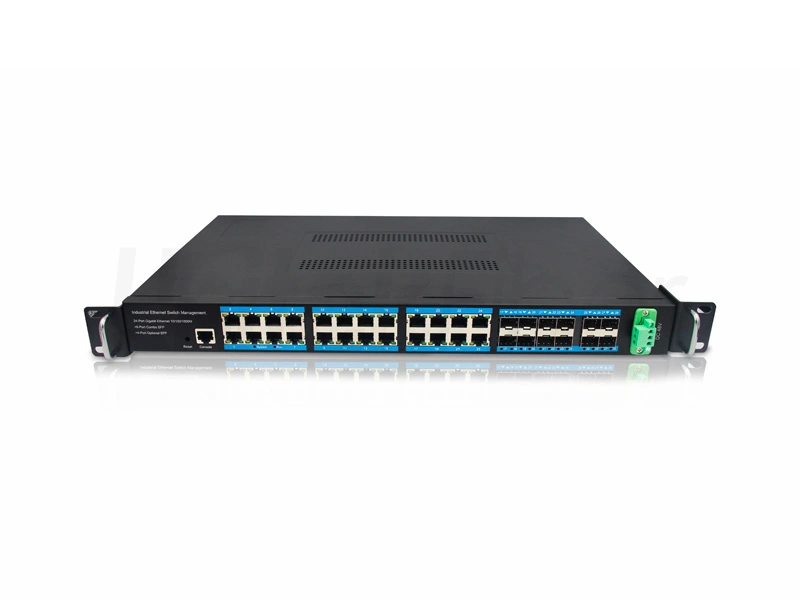

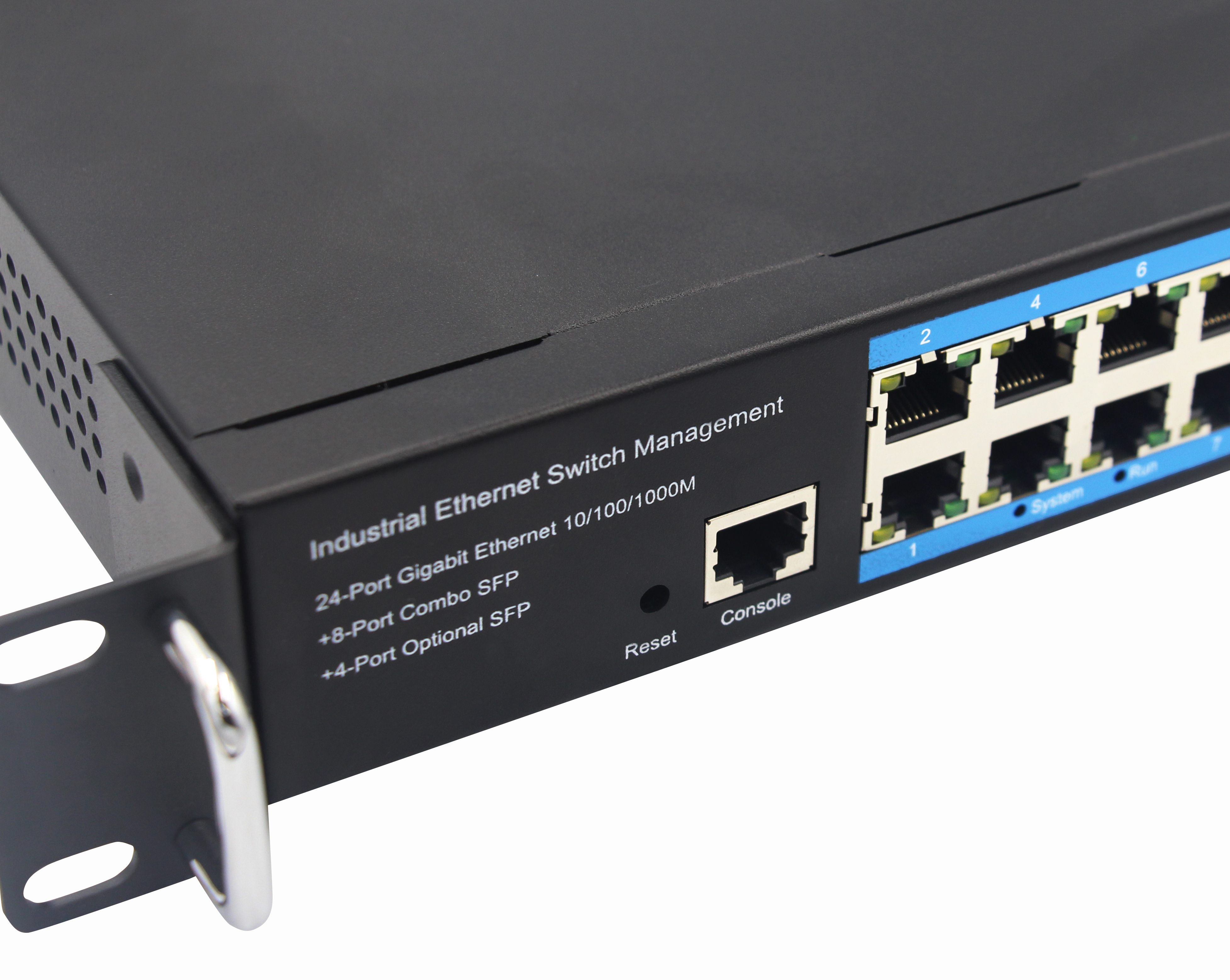

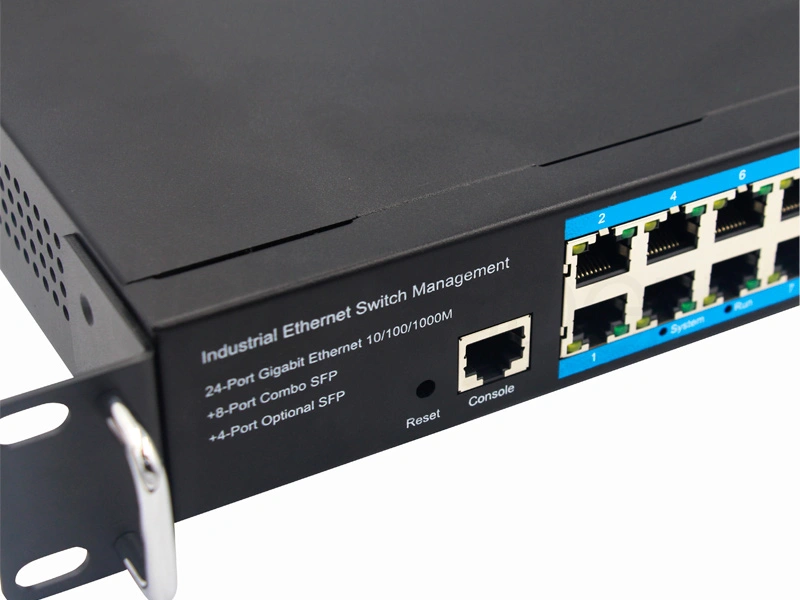

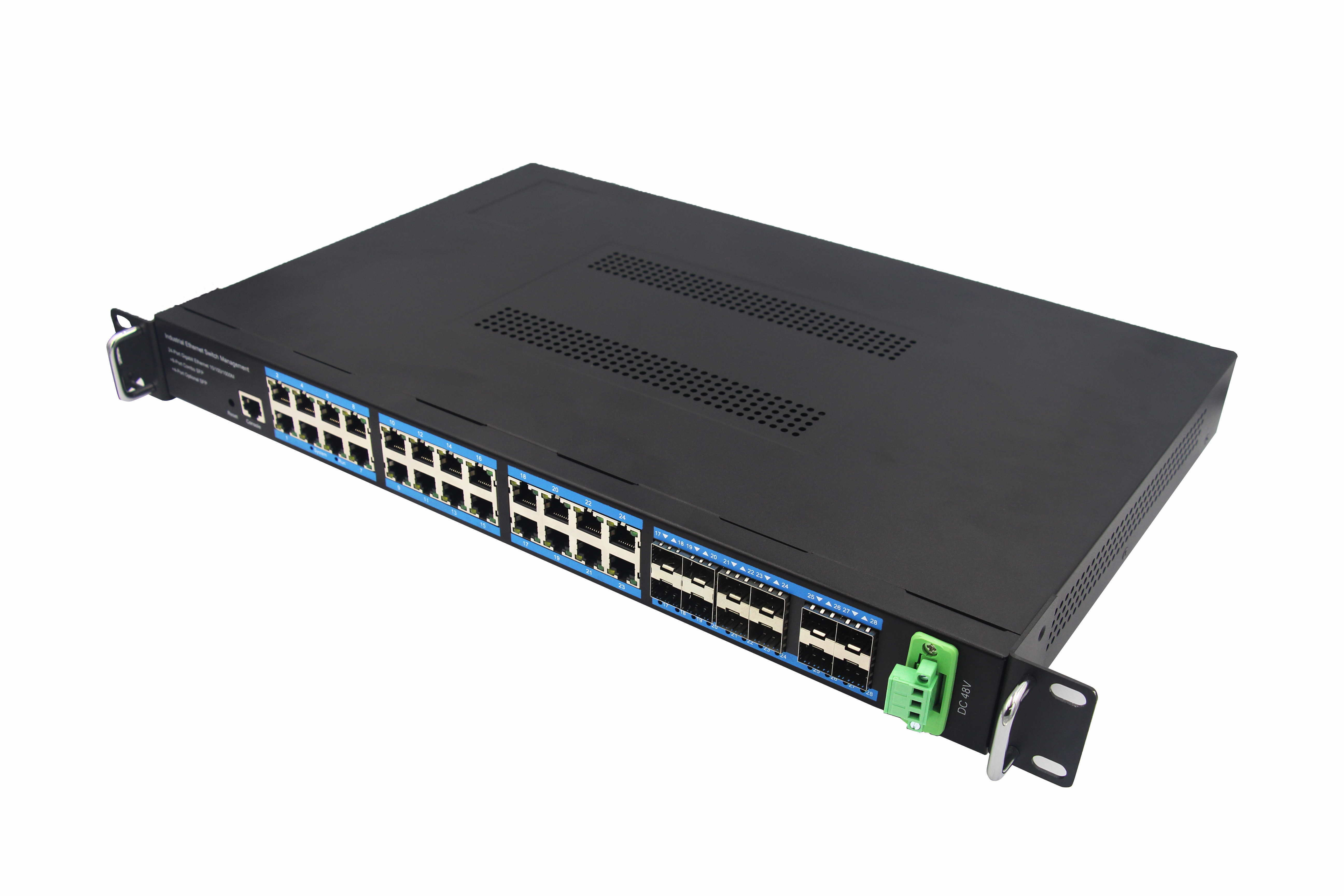

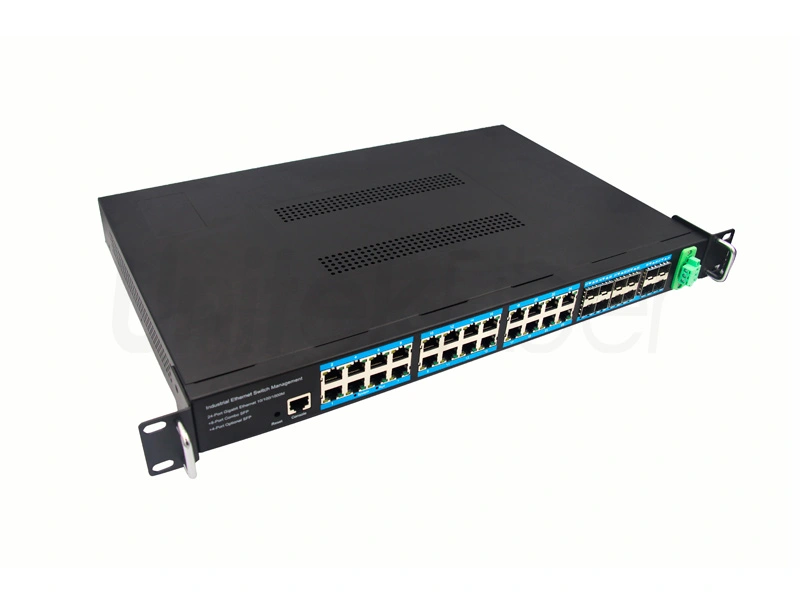

Wholesales Full Gigabit Managed Industrial Ethernet Switch 24 Ports RJ45 8 Combo Ports 4 Optional SFP Ports

The 24 RJ45 ports + 8 combo ports+4 sfp ports Industrial managed Ethernet switch, with super robustness, designed for network communications in harsh application environments. It provides 4 Gigabit optical ports, 8 Combo ports and 24 Gigabit electrical ports. Each product has passed 100% aging test to ensure quality. It supports a variety of useful switching functions, such as IGMP snooping, IEEE 802.1Q VLAN, QoS, ACL, port mirroring, SNMP, RMON, etc..


Fiber Optic
Details
Parameter

Details of Wholesales Full Gigabit Managed Industrial Ethernet Switch 24 Ports RJ45 8 Combo Ports 4

Features


  • 24 Port Gigabit Industrial Ethernet Switch/Industrial Media Converter/Industrial Switch POE/Industrial Fiber Switch/Industrial Switch/Inustrial POE Switch

  • 24 Port 10/100/1000Base POE ports + 4 (100/1000M) SFP Slots

  • Supports both IEEE 802.3af and 802.3at, and every port PoE configuration function

  • G.8032, support<50ms industrial quick ring protection

  • 52 VDC (10 ~58VDC), dual redundancy power input, 6-pin 5.08mm-gap plug-in terminal, ensure power working without stop. When one power shut down, the other keeps working.

  • DIN-Rail mounting or Wall-mounted install


Packaging and Shipping


Wholesales Full Gigabit Managed Industrial Ethernet Switch 24 Ports RJ45 8 Combo Ports 4 Optional SFP Ports


Production


Wholesales Full Gigabit Managed Industrial Ethernet Switch 24 Ports RJ45 8 Combo Ports 4 Optional SFP Ports


Parameter of Wholesales Full Gigabit Managed Industrial Ethernet Switch 24 Ports RJ45 8 Combo Ports

Product Description

1000M 24xRJ45 ports, 8 Gigabit optical (multiplexed) Ports, 4 Independent Optical Ports Managed Industrial Ethernet Switch

Network Protocols

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T; IEE802.3z 100Base-X; IEEE802.3x;

RJ45 Interface

10/100/1000BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive

Optic Fiber Interface

1000BaseFX port (SC/FC/ST/SFP optional)

Copper Cable

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)

Optic Fiber Cable

MM:850nm  0~550M

SM:1310nm  0~2KM, 1310nm  0~40KM,1550nm  0~120KM

Switch properties

Application level: Layer 2

Total backplane bandwidth: 360Gbps

MAC address table: 32K

Packet buffer: 3Mbits

VLAN data: 1~4094

Protection Level

IP40

LED indicator

Power indicator: PWR

Interface indicator: electrical port, optical port (Link/ACT)

Power Supply

Input voltage: DC110-240V (dual power supply redundant backup)

Access terminal: Phoenix terminal

Support dual power supply redundancy

Support built-in overcurrent 4.0A protection

Support reverse connection protection

Working Environment

Working temperature: -40~85℃ ;  Storage temperature: -40~85℃

Relative Humidity: 5%~95 %( no condensation)

Industrial Standard

MI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:

IEC(EN)61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge

IEC(EN)61000-4-3(RS): 10V/m(80~1000MHz)

IEC(EN)61000-4-4(EFT): Power cable: ±4kV; Data cable: ±2kV

IEC(EN)61000-4-5(Surge): Power cable: ±4kV CM/±2kV DM; Data cable: ±2kV

IEC(EN)61000-4-6 (Radio Frequency Conduction): 3V(10kHz~150kHz), 10V(150kHz~80MHz)

IEC(EN)61000-4-16 (common mode conduction): 30V cont. 300V, 1s

IEC(EN)61000-4-8

Shock: IEC 60068-2-27

Freefall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Mechanical properties

Shell: metal material

Installation: DIN rail type, wall-mounted installation

Weight: 5Kg

Size:  440×285×44.5mm

Installation method: standard 1U rack

Heat dissipation method: built-in heat sink, no fan

MTBF

300,000 hours

Warranty

5 years
