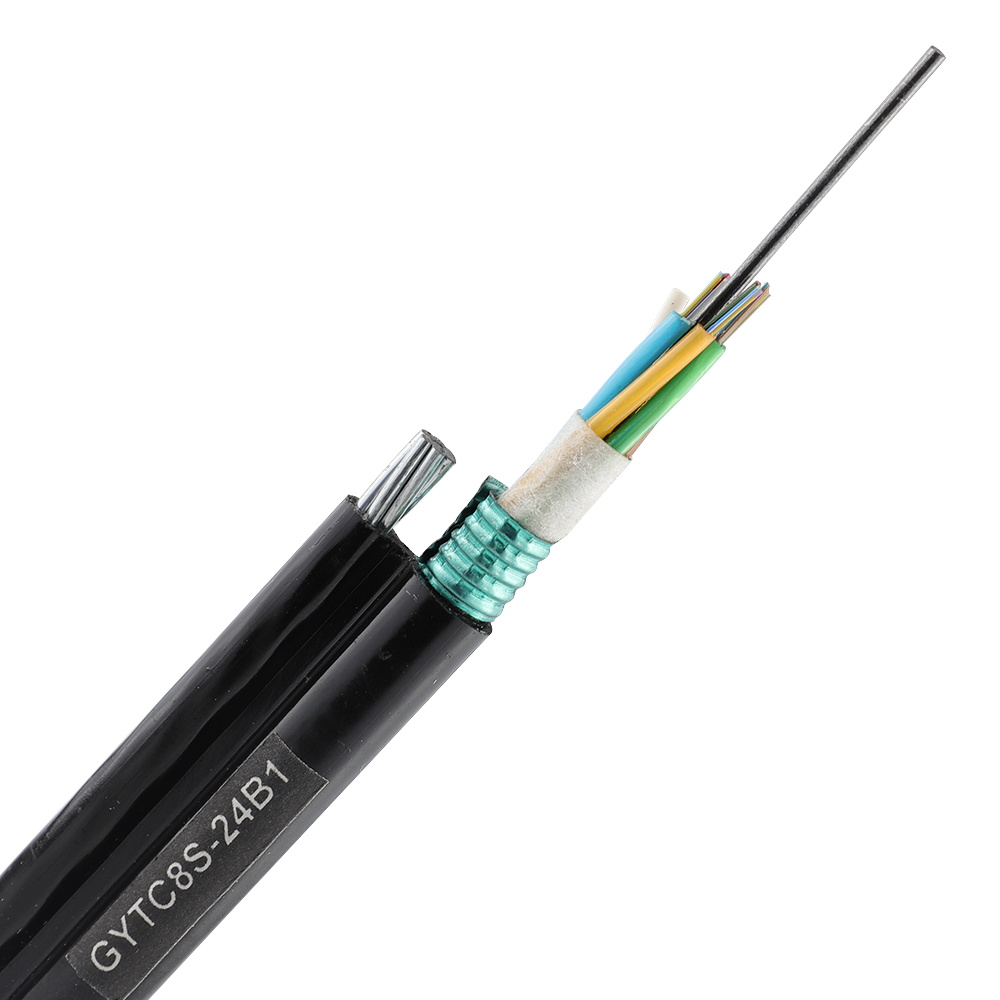

Figure 8 Fiber Optic Cable|Aerial Fiber GYTC8S 12 Core Singlemode Stranded Loose Tube Cable Jacket PE

The structure of the standard figure-eight self-supporting stranded optical cable is that single-mode or multi-mode optical fiber is sheathed in a loose tube made of high modulus plastic, and the tube is filled with water blocking compound. The center of the cable core is a metal reinforced core. For certain fiber optic cables, a layer of polyethylene needs to be squeezed outside the metal reinforced core. The loose tube (and filler rope) is twisted around the central reinforced core to form a compact and round cable core, the gap in the cable core is filled with water blocking filler. The cable core is longitudinally wrapped with steel-plastic composite tape, and placed in parallel with the steel strands while extruding a figure-eight sheath into a cable.


Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Figure 8 Fiber Optic Cable|Aerial Fiber GYTC8S 12 Core Singlemode Stranded Loose Tube

Optical Cable for Sale

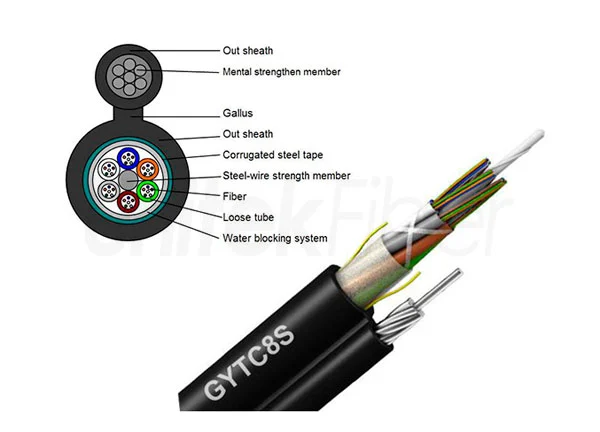

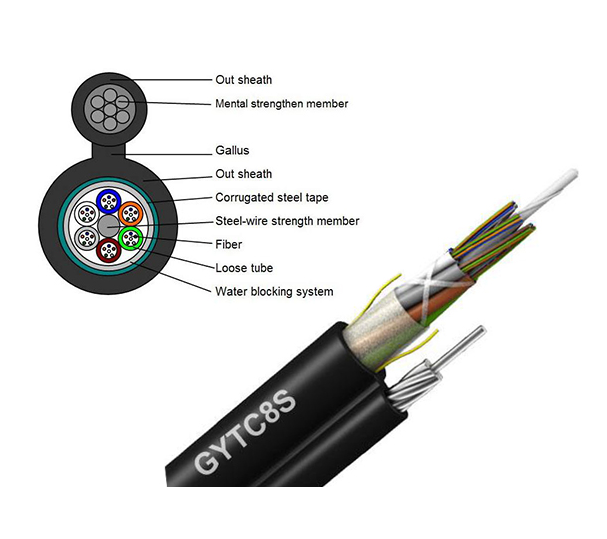

GYTC8S fiber optic cable is armord stranded loose tube steel wire strength self supporting Outdoor figure 8 cable, single-mode/multi mode fibers are positioned in the loose tubes, which are made of high modulus plastic, while the loose tubes strand together around metallic central strength member into a compact and circular cable core, and the water-blocking materials are distributed into interstices of it. After a PSP moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure. This kind of cable is specifically used for self supporting aerial installation.


Optical Cable Price


The Fiber Cores of GYTC8S Fiber Cable is from 2 cores to 288 cores


Features of GYTC8S Fiber optic Cable


Fo Cable Type

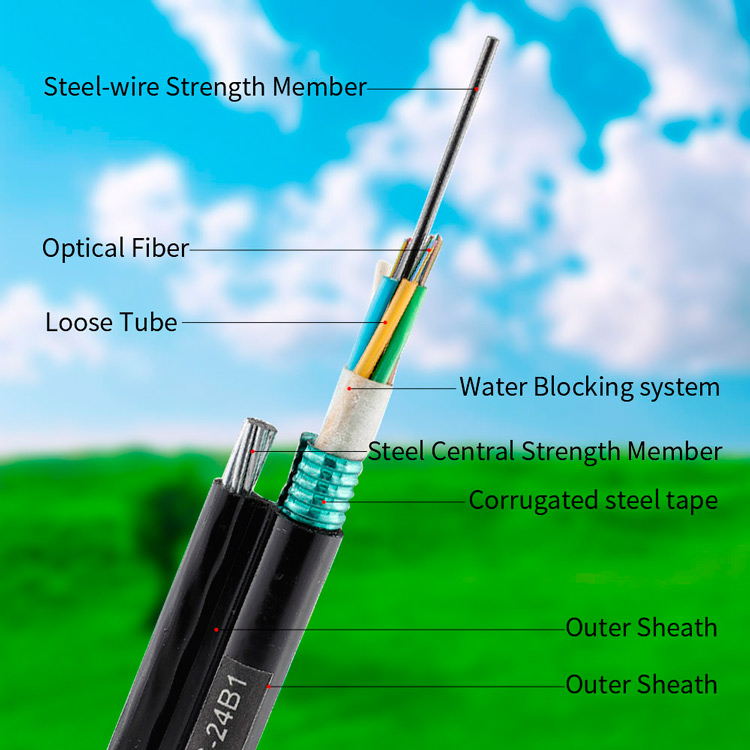

GYTC8S aerial fiber optic cable is excellent mechanical and environmental performance. Small cable diameter, self-supporting, easily to install. Corrugated steel tape armored and PE outer sheath providing crush resistance and gun shot resistance features. Stranded wires as self supporting member providing excellent strain performance and convenient installation. Steel-wire strength member provides good tensility, ensures tensile strength. Water blocking system to improve the water proof ability.


Applications of GYTC8S Fiber optic Cable


Fiber Optic Wire Cable


Outdoor GYTC8S is a typical self supporting outdoor fiber optic cable, suitable for aerial applications; The cable have nice moisture resistance performance and crush resistance performance suitable for duct and buried method.


Professional Assistant For GYTC8S Fiber Optic Cabling System


Fiber Optic Wire for Sale


Packaging & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre

Parameter of Figure 8 Fiber Optic Cable|Aerial Fiber GYTC8S 12 Core Singlemode Stranded Loose Tube C

No. of cable

12

24

Design(Fiber/Tube)

6 X 2

6 X 4

Loose Tube

Material

PBT

Diameter(±0.06)mm

1.8

Thickness(±0.03)mm

0.32

The Max.Core NO./Tube

6

Strength Member(Material)

Galvanized Steel/φ0.9×3

Armor layer(Material)

Steel Strip

Filler Rope    (Material/Diameter)  mm

 LDPE/1.8

Outer Sheath(1)

Material

MDPE

Thickness(±0.1)mm

1.8

Outer Sheath(2)

Material

MDPE

Thickness(±0.1)mm

1.5

Web

Material

MDPE

Size(±0.1)mm

2.5*3.0

Cable Diameter mm

9.5×17.8 steel wire

Cable Weight  KG/KM

160


Fibre & Loose Tube Colors

No.

1

2

3

4

5

6

Color

Blue

Orange

Green

Brown

Gray

White

No.

7

8

9

10

11

12

Color

Red

Black

Yellow

Violet

Pink

Aqua



Can you supply OEM products under our brand?

Yes, we are manufacturer, we accept OEM service, we can print your LOGO on fiber cable and fiber cable drums.

How many types of Aerial fiber optic cable you can provide?

The Figure 8 fiber optic cable, GYXTW fiber optic cable, ADSS cable are all strong outdoor fiber cables for Aerial Application.

Can your fiber optic cable be bent without damaging the fiber?

Our fiber cable can be bent with diameters of 2.5cm or less.

What are the main products in your company?

We provides fiber optic cables, ADSS Fiber optic cable, Aerial fiber optic cable of GYTA, GYTC8S, GYFTY, GYTS, underground fiber cable and so on.

Where is the aerial fiber optic cable used?

Mostly used in Local Area Network (LANs), high density data center, FTTH Telecommunication.

If the high temperature will damage the aerial fiber optic cable?

Don't worry, the aerial fiber optic cable can handles the most challenging telecommunications data transmission requests.
