Hot Aerial Fiber|GYTS Fiber Optic Cable 48 Core G652D Single Mode Stranded Loose Tube Jacket PE

The structure of the GYTS layer stranded armored cable is to insert a 250μm fiber glass into a loose tube made of a high modulus material, which the tube is filled with a water resistant compound.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Hot Aerial Fiber|GYTS Fiber Optic Cable 48 Core G652D Single Mode Stranded Loose Tube

Optical Cable for Sale

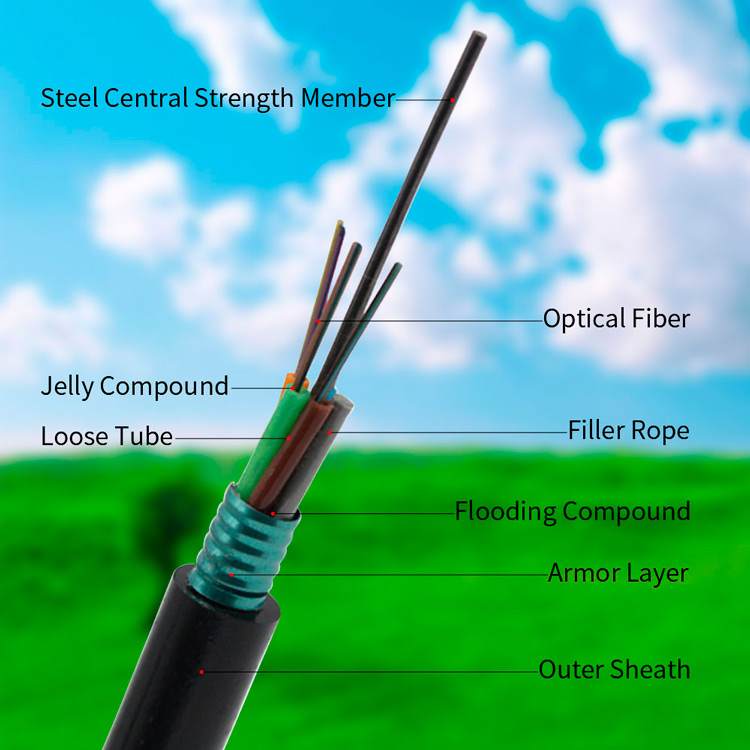

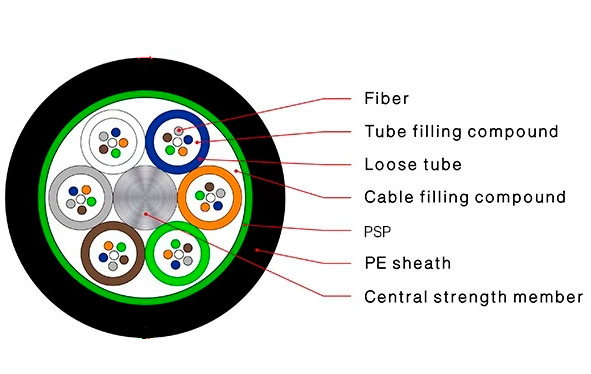

GYTS armored fiber optic cable is stranded loose tube outdoor cable with metal strengthening member, loose tube stranded and filled, steel-polyethylene bonded sheathed outdoor optical fiber cable for communication) The structure of the optical cable is to sheath single-mode or multi-mode optical fiber into the inner filling made of high modulus plastic Waterproof compound in loose tube. The center of the cable core is a metal reinforced core. For some fiber optic cable type, the metal reinforced core is also extruded with a layer of polyethylene (PE). The loose tube (and filling rope) is twisted around the central reinforcing core to form a compact and circular cable core, and the gaps in the cable core are filled with water blocking compounds. The steel-plastic composite tape is longitudinally wrapped and then extruded with a polyethylene sheath.


Optical Cable Price


The Fiber Cores of GYTS Fiber Cable is from 2 cores to 288 cores


Features of GYTS Fiber optic Cable

Fiber Optic Wire Cable

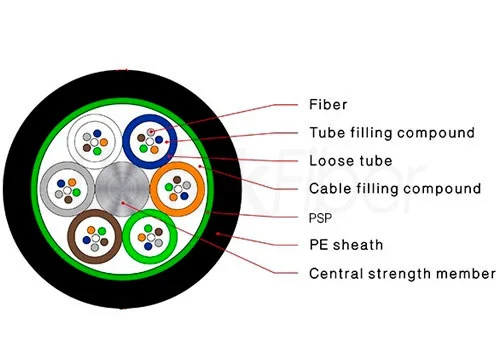

GYTS (metal strengthening member, loose tube stranded and filled, steel-polyethylene bonded sheathed outdoor optical fiber cable for communication) The structure of the optical cable is to sheath single-mode or multi-mode optical fiber into the inner filling made of high modulus plastic Waterproof compound in loose tube. The center of the cable core is a metal reinforced core. For some fiber optic cables, the metal reinforced core is also extruded with a layer of polyethylene (PE). The loose tube (and filling rope) is twisted around the central reinforcing core to form a compact and circular cable core, and the gaps in the cable core are filled with water blocking compounds. The aluminum-plastic composite tape is longitudinally wrapped and then extruded with a polyethylene sheath.


Applications of GYTS Fiber optic Cable

Fiber Optic Wire for Sale

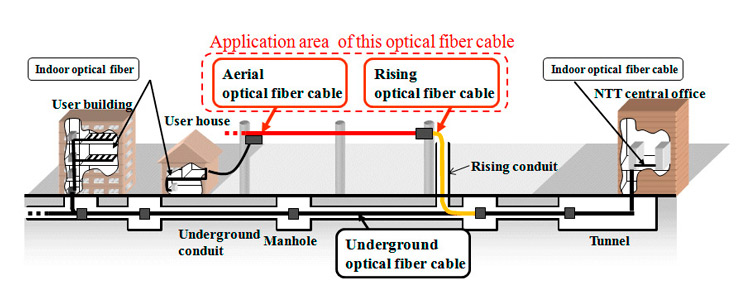

GYTS fiber optic cable is used for duct or aerial fields. These steel tape armored cables are suitable for installation for long haul communication and LANs, especially suitable for high requirements of moisture resistance environment.


Professional Assistant For GYTS Fiber Optic Cabling System


Fo Cable Type


Packaging & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre

Parameter of Hot Aerial Fiber|GYTS Fiber Optic Cable 48 Core G652D Single Mode Stranded Loose Tube J

No. of cable

2~30

32~60

62~72

74~96

Fiber Model

G.652D

Design(StrengthMember+Tube&Filler)

1+5

1+5

1+6

1+8

Central Strength Member

Material

Steel Wire

Diameter(±0.05)mm

1.5

1.5

2.1

2.1

Loose Tube

Material

PBT

Diameter(±0.06)mm

1.8

2.1

2.1

2.1

Thickness(±0.03)mm

0.32

0.35

0.35

0.35

The Max.Core NO./Tube

6

12

12

12

Filler Rope

Material

LDPE

Colour

White

Diameter(±0.06)mm

1.8

2.1

2.1

2.1

Water Blocking layer(Material)

Flooding Compound

Armoring

Material

Steel Strip

Thickness(±0.03)mm

0.25

Outer Sheath

Material

MDPE

Thickness(±0.2)mm

1.8

Cable Diameter

9.6

10.5

11.1

12.7

Cable Wetght

92

108

132

170

Min. bending radius

Without Tension

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70

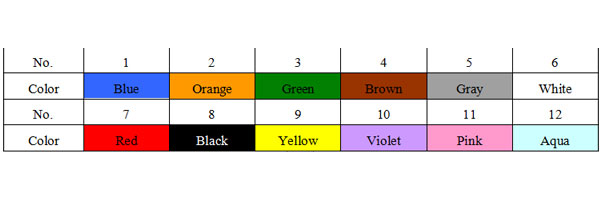

Fibre & Loose Tube Colors

Supply layer Stranded Loose Tube fiber Optic Cable(GYTS)


Can you supply OEM products under our brand?

Yes, we are manufacturer, we accept OEM service, we can print your LOGO on fiber cable and fiber cable drums.

How many types of Aerial fiber optic cable you can provide?

The Figure 8 fiber optic cable, GYXTW fiber optic cable, ADSS cable are all strong outdoor fiber cables for Aerial Application.

Can your fiber optic cable be bent without damaging the fiber?

Our fiber cable can be bent with diameters of 2.5cm or less.

What are the main products in your company?

We provides fiber optic cables, ADSS Fiber optic cable, Aerial fiber optic cable of GYTA, GYTC8S, GYFTY, GYTS, underground fiber cable and so on.

Where is the aerial fiber optic cable used?

Mostly used in Local Area Network (LANs), high density data center, FTTH Telecommunication.

If the high temperature will damage the aerial fiber optic cable?

Don't worry, the aerial fiber optic cable can handles the most challenging telecommunications data transmission requests.
