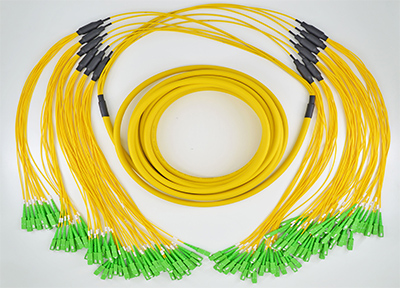

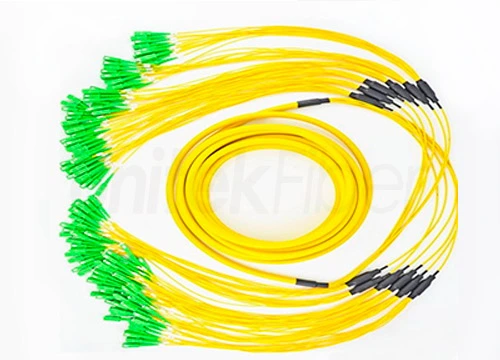

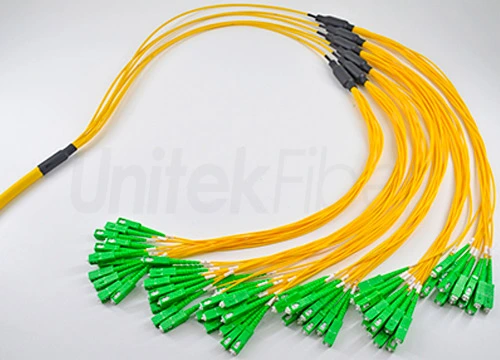

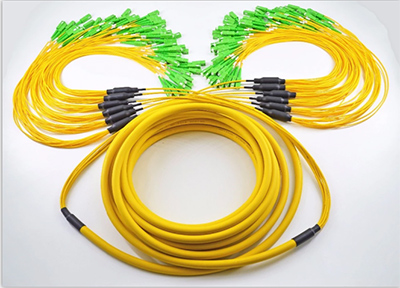

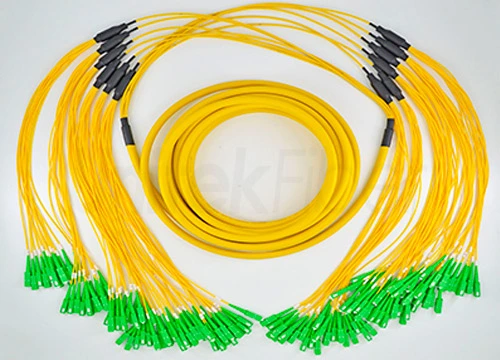

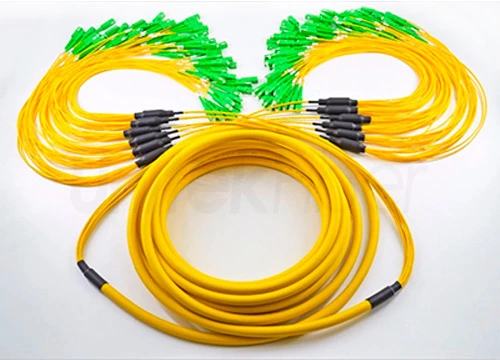

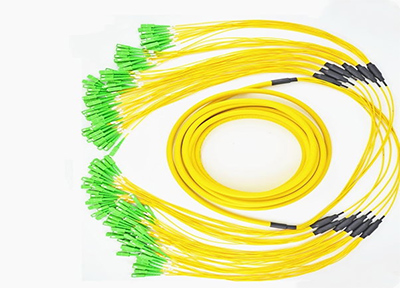

FTTH Cable LC SC APC Fiber Optical Trunk Cable 72 Cores Single Mode Yellow OFNP

UnitekFiber is producing Fiber Optical Trunk Cable for FTTH applications. Our trunk cable can be 4 to 144 cores. Our trunk cable can be PVC, OFNR, OFNP and LSZH jacket. There are single mode and multimode types. The cable terminated with LC, SC, FC and ST connectors. We also can meet customers’ specific requests to be your OEM factory.

Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of FTTH Cable LC SC APC Fiber Optical Trunk Cable 72 cores Single Mode Yellow OFNP

Applications:


  • Telecommunications networks

  • CATV, LAN, MAN and WAN application

  • Data processing networks

  • Cable television

  • Fibre-To-The-Home (FTTH)

  • Premises distribution


Features:


  • 100% pre-terminated and tested in factory to ensure transfer performance

  • Rapid configuration and networking, reduce installation time

  • Supports 40G and 100G network applications

  • Jacket material: LSZH, OFNR, OFNP available

  • Available in OM1, OM2, OM3, OM4, G652D, G657 fiber glass

  • Supports up to 4F, 8F, 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

  • OEM service is avaibable


Physical Information


LC Pigtail Fanout Drawing


LC Pigtail Fanout drawing


LC Pigtail Fanout Drawing


SC Pigtail Fanout drawing


SC Pigtail Fanout Drawing


ST Pigtail Fanout drawing


Quality Control


  • Connector attenuation comply with “Grade A” according to IEC 61753 and IEC 61300-3-34(0.12dB mean,

    <0.25db max for >97% of samples,Return Loss >55dB)

  • All products factoy tested

  • Geometrical Characteristics comply with IEC 61755-3-1

  • All materials comply with IEC and ROHS


Our test program including: end face test,3D interferometer test, singlemode IL&RL test, multimode IL&RL test.

Our Tests


High Quality MTP/MPO Cable Guarantee


High Quality MTP/MPO Cable Guarantee


Packaging & Shipping


Packaging & Shipping


Production


FTTH Cable Fiber Optical Trunk Cable 72 cores Single Mode Yellow OFNP

Parameter of FTTH Cable LC SC APC Fiber Optical Trunk Cable 72 cores Single Mode Yellow OFNP

Optical Specification

Connector

SC,FC,LC,ST,MU,E2000

Polishing

SM/UPC

MM/PC

SM/APC

Insertion Loss(max)

≤0.30dB

≤0.25dB

≤0.30dB

Return Loss(min)

≥50 dB

≥35 dB

≥60 dB

Tensile Strength

>300N

Durability

<0.20 dB typical change, 1000 matings

Repeatability

≤0.1dB

Storage , Operating Temperature [°C]

-40~+85


Geometric Specification (For special request)



PC End-face

APC End-face

Radius of Curvature

SC/FC/ST

10~25 mm

5~12 mm

LC/MU

7~25 mm

5~15 mm

Apex Offset


≤50 um

Fiber Spherical Height


+/- 50 nm

Angular Offset


     ——

8°±0.2°
