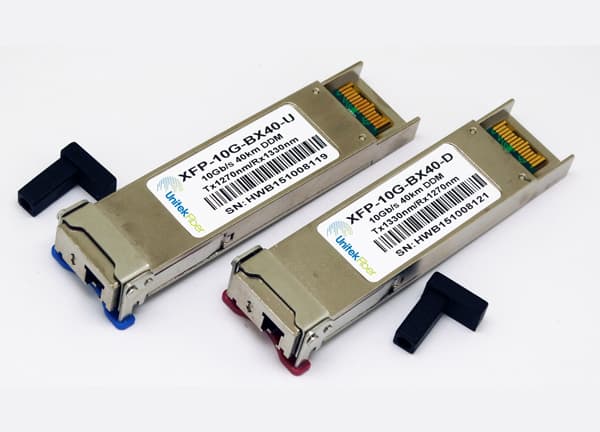

10G XFP Optical Transceiver Modules With BIDI LC Port Tx1270nm Rx1330nm 40KM

10G XFP optical transceiver modules have been widely used. The speed of XFP is 10G, and it is a standardized package of serial optical transceiver. It fully complies with the following standards: 10G Fiber Channel, 10G Ethernet, SONET/OC-192 and SDH/STM-64. Mainly used for optical fiber transmission of data communication and telecommunication transmission network.

Distance
SFP Types
Fiber Optic
Description
Parameter
FAQ
Download
Review
Video

Transceiver Module SFP+10G-ER 1550nm Dual Fiber SMF LC DDM Compatible Huawei|ZTE|Cisco

10G XFP Optical Transceiver Modules With BIDI LC Port Tx1270nm Rx1330nm 40KM


Unitekfiber Compatible SFP+ transceiver supports up to 10km over OS2 SMF via an LC duplex connector. This transceiver is compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR/LW, and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics monitoring is available via a 2-wire serial interface, as specified in SFF-8472. Featuring low power consumption, high speed, this 10G SFP+ transceiver is ideal for data center, 10G Ethernet and Fibre Channel etc.



Product Highlights

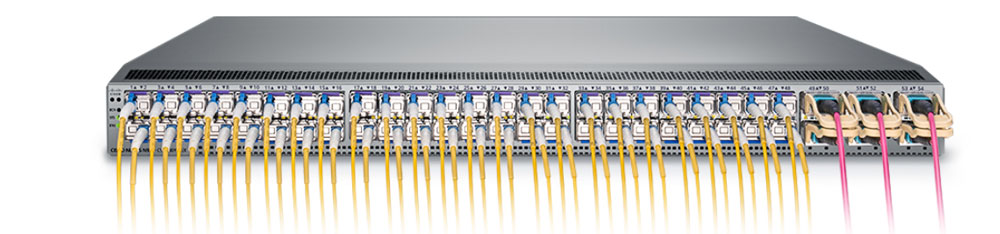

10G Connectivity for Data Center

10G optical modules are used as carriers for transmission between switches and devices, and are more efficient and safer than transceivers. As a photoelectric conversion device, 10G dual fiber optical module is an extremely important part of optical fiber communication.


10G XFP Optical Transceiver Modules With BIDI LC Port Tx1270nm Rx1330nm 40KM



Tested in Host Devices for Proven Interoperability

Support all brands of equipment to undergo strict quality control and real machine testing before leaving the warehouse to ensure that each 10G transceiver module can be perfectly compatible.



10G XFP Optical Transceiver Modules With BIDI LC Port Tx1270nm Rx1330nm 40KM


This SFP+ BiDi transceiver module also provides a unique enhanced digital diagnostic monitoring interface(DDMI), which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage. The transceiver module complies with SFP+ MSA specifications (SFF-8431, SFF-8432, SFF-8472), 10 Gigabit Ethernet specifications (10GBASE-LR/LW per IEEE 802.3ae ), and 10G Fibre Channel 1200-SM-LL-L. The transceiver is also a Class 1 laser product complies with FDA/CDRH and IEC-60825 standards.


10G XFP Optical Transceiver Modules With BIDI LC Port Tx1270nm Rx1330nm 40KM

Parameter of 10G XFP Optical Transceiver Modules With BIDI LC Port Tx1270nm Rx1330nm 40KM

PART NUMBER

FORM FACTOR

DATA RATE

WAVELENGTH

LASER

DISTANCE

MEDIUM

CONNECTOR

TEMPERATURE

UFSPP-10G-B10-23

XFP

9.95~11.3G

TX1270/RX1330nm

DFB/PIN

10km

SMF

Simplex LC

0℃~70℃

UFSPP-10G-B20-32

XFP

9.95~11.3G

TX1330/RX1270nm

DFB/PIN

20km

SMF

Simplex LC

0℃~70℃

UFSPP-10G-B40-23

XFP

9.95~11.3G

TX1270/RX1330nm

DFB/PIN

40km

SMF

Simplex LC

0℃~70℃

UFSPP-10G-B60-32

XFP

9.95~11.3G

TX1330/RX1270nm

DFB/APD

60km

SMF

Simplex LC

0℃~70℃

UFSPP-10G-B80-45

XFP

9.95~11.3G

TX1490/RX1550nm

EML/APD

80km

SMF

Simplex LC

0℃~70℃

UFSPP-10G-B80-54

XFP

9.95~11.3G

TX1550/RX1490nm

EML/APD

80km

SMF

Simplex LC

0℃~70℃


What is an XFP optical module?

XFP optical module is the abbreviation of 10 Gigabit Small Package Pluggable, which is a standard optical module for high-speed computer networks and telecommunication links that communicate through optical fibers.

Can XFP module connect with SFP+ transceiver?

XFP optical modules and SFP+ optical modules can be connected to each other with the same parameters. For example, a 10G XFP optical module with a wavelength of 1310nm and a 10G SFP+ optical module with a wavelength of 1310nm can be connected and used.

What is the difference between XFP transceiver module and SFP transceiver module?

"XFP" stands for "10 Gigabit Small Form Factor Pluggable" while "SFP" stands for "Small Form-factor Pluggable". Both modules can provide you greater signal strength in your computer network, and telecommunication links.

Both SFP+ optical modules and XFP optical modules are 10G optical modules. Can SFP+ replace XFP optical modules?

XFP optical modules and SFP+ optical modules have differences in size, structure, compatibility, etc., and the two cannot be replaced by each other.

What is the longest transmission distance of the XFP 10G optical module?

At present, we can produce max supported distances 120KM.
