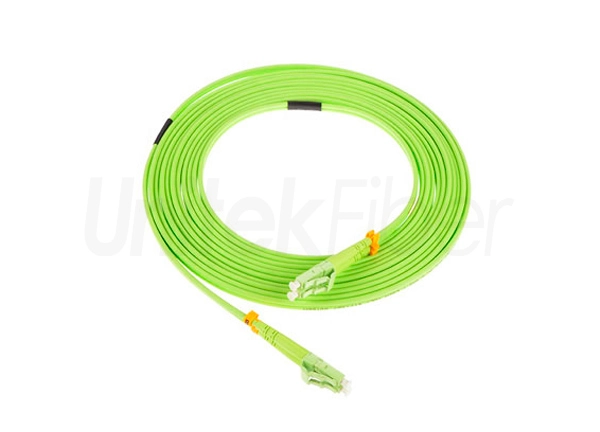

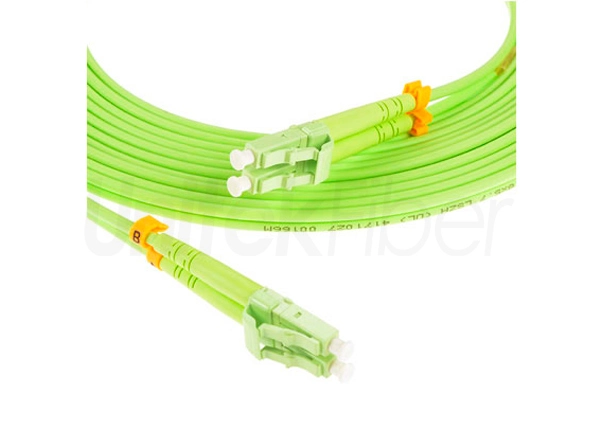

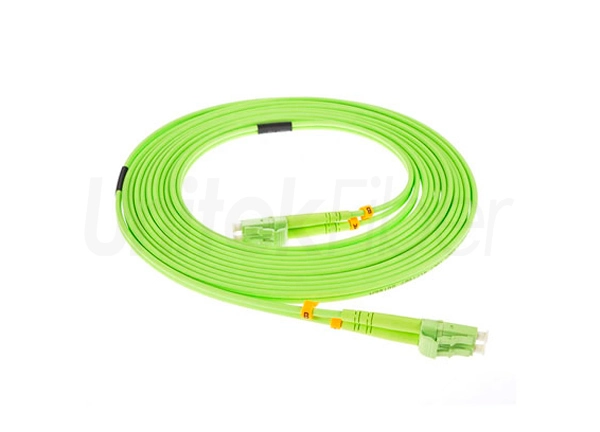

OM5 LC/PC-LC/PC OFNR Fiber Optic Patchcord 3mts
OM5 fiber patchcord is a multimode cable in green color. It is quite new to the industry and is specifically designed for high bandwidth and short to medium distance applications. OM5 patchcord is specifically designed for high-speed data center applications, which uses two fibers to transmit 40GB to 100GB of data, and is powered by Short Wavelength Division Multiplexing (SWDM).
High reliability;
CE & RoHS compliant;
100% connectors tested;
Repeatability: >1000 times;
Deliery 100% passed products;
Insertion Loss(SM): Typical<0.2dB, Max<0.3dB;
Return Loss: UPC>50dB, APC>60dB;
Telecommunications
Local Area Network (LAN)
Fiber to the home (FTTH)
Optical patch panels
Testing Instruments
CATV
Item | Unit | FC,SC,LC | ST,MU | MT-RJ, MPO | E2000 | ||||||||
SM | MM | SM | MM | SM | MM | SM | |||||||
PC | UPC | APC | PC | UPC | PC | PC | PC | UPC | PC | PC | UPC | ||
Insertion loss(typical) | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 |
Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
Exchengeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
Cable Diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | ||||||||
Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.
Normally about 7 days after confirmation.
Normally 7-20 days depends on products and order quantities.
Yes, we provide customized service and can do artworks including printing, logo, etc. for you.
YES, OEM is welcomed.
Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
Great fiber. Keep me regular. Worked as intended.
