MPO & MTP Optical Terminal Box, distribution box, Cassette Patch Panel Manufacturer

What is MPO & MTP Fiber Optic Patch Panel

MPO & MTP Fiber Optic Patch Panel are installed in 19" racks and cabinets and used for data center MDA, IDA or HAD cabling management which can be full-loaded with pre-terminated MPO & MTP cassette modules or MPO & MTP adapter front plates.MPO & MTP Optical Cable Terminal Boxes are installed in 19" racks and cabinets and used for data center MDA, IDA or HAD cabling management which can be full-loaded with pre-terminated MPO & MTP cassette modules or MPO & MTP fiber adapter panel plates.

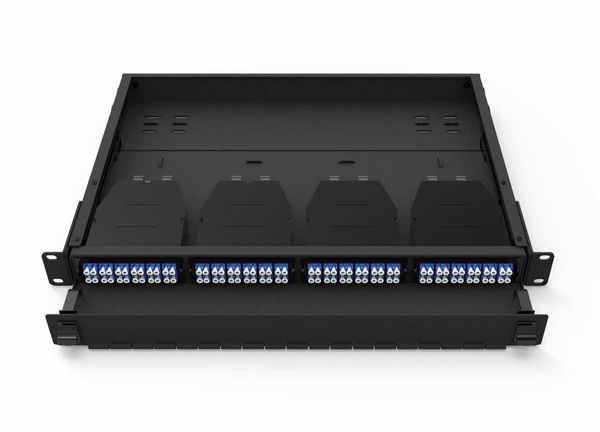

The MPO & MTP 1U Fiber Optic Patch Panel can be loaded with 4 pre-terminated MPO & MTP modules which equipped with duplex LC adapter ports. The maximum manageable fiber cores are 96 cores. If it is installed with MPO & MTP fiber adapter panel plate, the maximum manageable fiber cores are up to 288 cores.
MPO & MTP Fiber Optic Patch Panel can be 1u,2u and 3u.

Types of MPO/MTP Fiber Optic Patch Panel

MPO/MTP Patch PanelHigh Density 1U 96 Core 19 Inch Rack Mount ODF Fiber Loaded MPO LC SC Cassettes

MPO/MTP Patch PanelHigh Density 1U 96 Core 19 Inch Sliding ODF Fiber Loaded MPO LC SC Cassettes

MPO/MTP Patch PanelHigh Density 1U 144 Core 19 Inch Rack Mount ODF Fiber Loaded MPO LC SC Cassettes

MPO/MTP Patch PanelHigh Density 3U 288 Core 19 Inch Rack Mount Fiber Optic ODF Loaded MPO LC SC Cassettes

MPO/MTP Patch PanelHigh Density 4U 384 Core 19 Inch Rack Mount ODF Fiber Loaded MPO LC SC Cassettes

MPO/MTP Patch PanelHigh Density 4U 576 Core 19 Inch Rack Mount Fiber Optic ODF Loaded MPO LC SC Cassettes

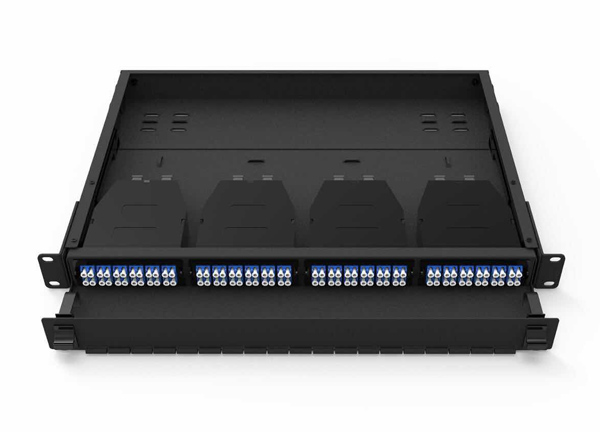

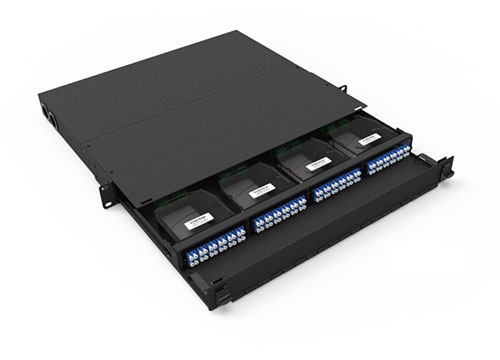

1U 19 Inch Fixed Type Jack Mounted MPO & MTP Fiber Optic Patch Panel 96 Cores

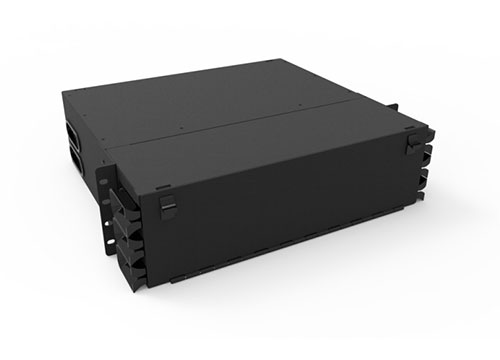

4U Jack Mounted Box MPO & MTP Fiber Optical Patch Panel 288 Cores

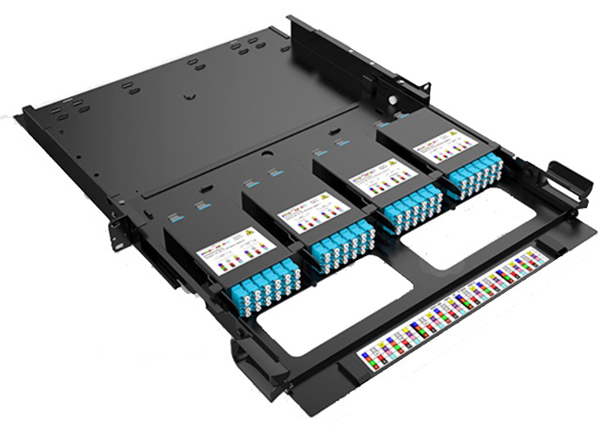

High Density MPO & MTP Fiber Optical Patch Panel 1U 144 Cores Terminal Box for Data Room

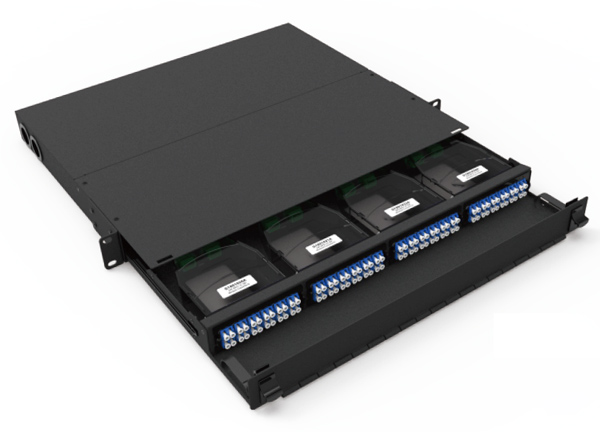

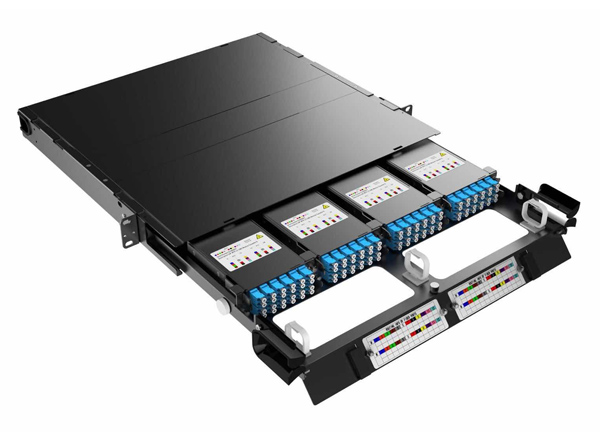

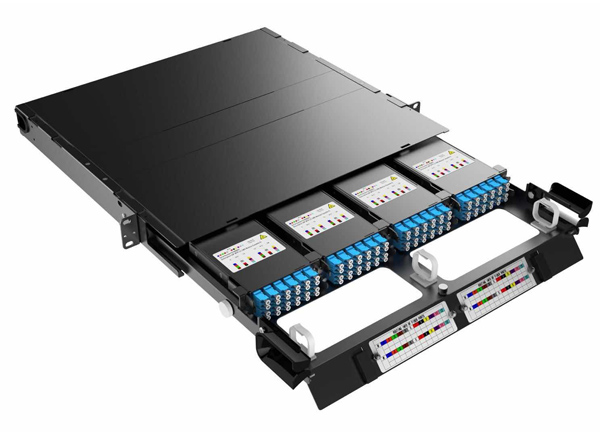

Sliding Type MPO & MTP Fiber Optical Patch Panel 96 Cores for Cabling Constructions

High Density Fiber Optic MPO & MTP Patch Panel 1U 19 Inch 96 Cores LC Connectors

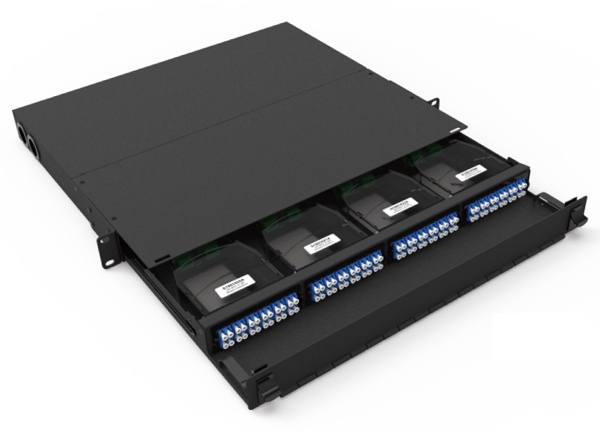

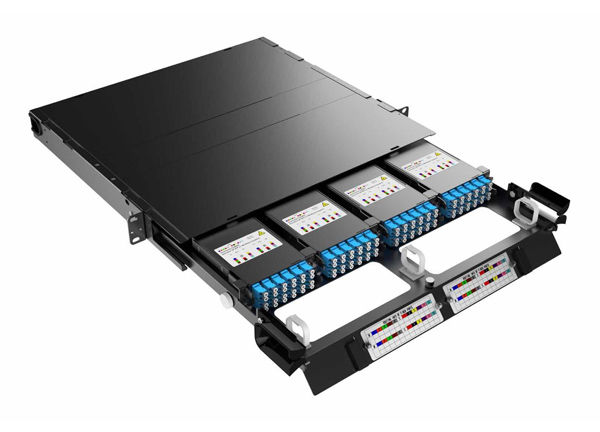

1U 19 Inch Sliding MPO & MTP Fiber Optic Patch Panel with Cabling Management Shelf

Understanding MPO/MTP Fiber Optic Patch Panels

MPO/MTP fiber optic patch panel refers to a MTP/MPO optical distribution frame (ODF). Typically, the MPO/MTP fiber optic patch panel can be 1U, 2U, 3U and 4U, and the size is standard 19 inches. They were installed in 19" racks or cabinets and used for data center MDA, IDA or HAD cabling management. MPO/MTP fiber optic patch panel can be full-loaded with pre-terminated MPO/MTP module cassette or adapter faceplates.

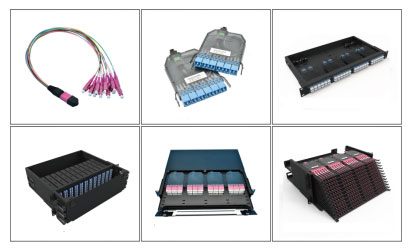

MPO/MTP Fiber Optic Patch Panel

Unleashing the Benefits of MPO/MTP Fiber Optic Patch Panels

High density: MPO/MTP fiber optic patch panel are designed to manage a large number of optical fiber. MPO/MTP fiber optic patch panel provide a high port density, allowing for more efficient utilization of rack or cabinet space. This is particularly advantageous in data centers or telecommunication facilities where space is limited, and a large number of fiber connections need to be managed.

Quick deployment: MPO/MTP fiber optic patch panel often come with pre-terminated MPO/MTP module cassette, which eliminate the need for field terminations. This significantly reduces installation time and labor costs, enabling faster network deployment. Additionally, the standardized MPO/MTP module cassette ensure consistent and reliable performance across the entire fiber optic network.

Easy troubleshooting: MPO/MTP fiber optic patch panel inside designed with the fiber optic cable management frame and the label strips, the frame is convenient to install and manage cables. By providing clear and organized connectivity, MPO/MTP fiber optic patch panel becomes easier to identify and locate specific fiber management or faulty components, minimizing downtime and facilitating faster resolution of issues.

We UnitekFiber as a professional manufacturer of fiber optic patch panel, can provides high quality rack mount fiber optic patch panel, wall mount fiber optic patch panel, sliding type ODF and fixed type ODF and so on. We are so glad to support you and to establish a business cooperation with you. Please contact us at Email sales@unitekfiber.com if you have any inquiry.
