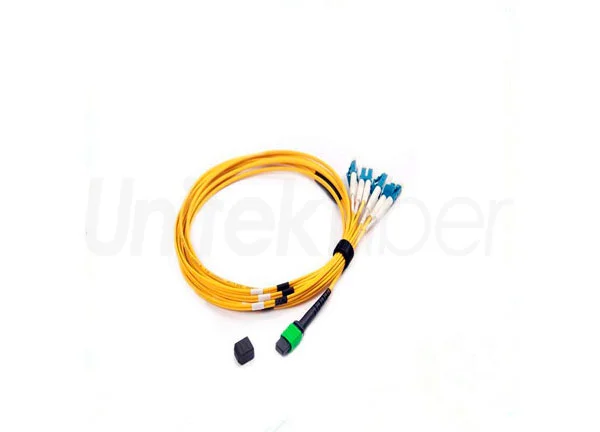

MTP MPO-LC Fiber Optic Jumper Method A Pigtail Trunk 12 to 144 Cores 3mm Single-mode G652D G657A2

Manufacturing MTP MPO fiber optical jumpers which are available in 12 to 144 core fiber connections.
MTP/MPO jumers are miniaturized with 12 or 24 pin connectors to minimize faults and reduce wiring space.
According to the different configuration requirements of users, multi-mode OM3, OM4 and single-mode G652D G657A2 and other fiber specifications can be selected.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Details of MTP MPO-LC Fiber Optic Jumper Method A Pigtail Trunk 12 to 144 Cores 3mm Single-mode G652

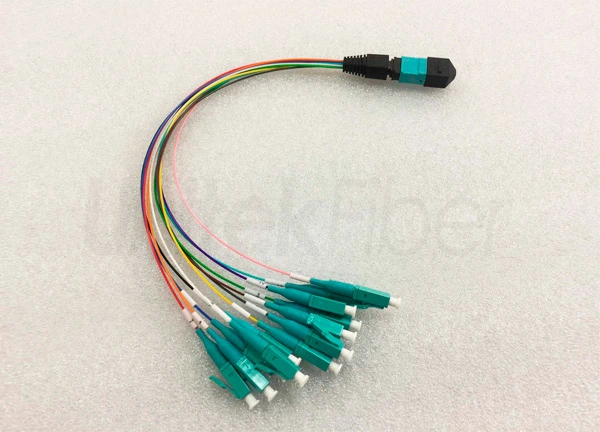

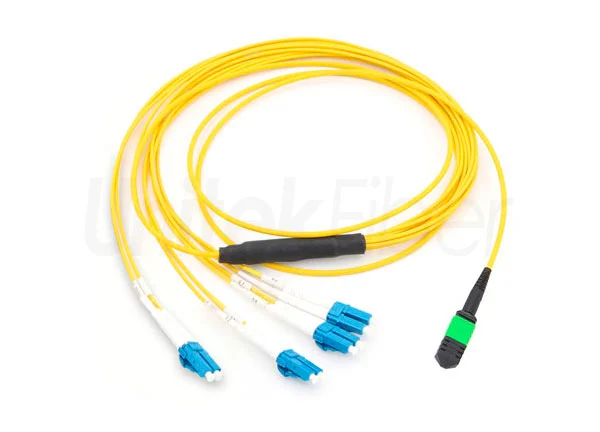

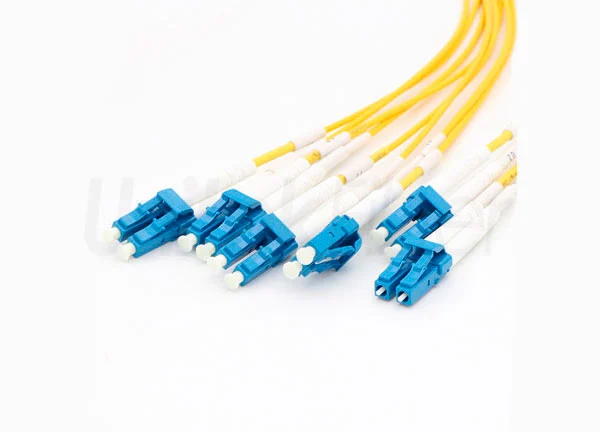

MPO/MTP Breakout fiber cable is comprised of 12 fibers or 6 duplex channels within each connector. These high density cables are perfect when you have limited space, making it possible to run a single cable that automatically terminates 12 fibers in one easy plug-in. The fan-out side has 12 LC connectors that are numbered according to the fiber position in the MPO Connector and duplexed together. The push-pull release mechanism for the MPO connector is easy to engage and disengage, its latch design also prevents the plug from snagging when jumper cables are being routed.

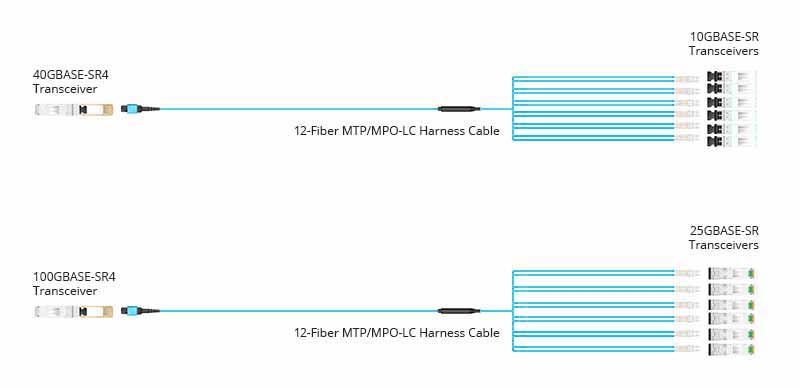

Network Connectivity


MTP MPO-LC Fiber Optic Jumper Method A Pigtail Trunk 12 to 144 Cores 3mm Single-mode G652D G657A2

Product Highlights



Perfect High-performance Fiber

Excellent bending and compression resistance make it an ideal choice for high density cabling



MTP MPO-LC Fiber Optic Jumper Method A Pigtail Trunk 12 to 144 Cores 3mm Single-mode G652D G657A2


MTP MPO-LC Fiber Optic Jumper Method A Pigtail Trunk 12 to 144 Cores 3mm Single-mode G652D G657A2



MTP MPO-LC Fiber Optic Jumper Method A Pigtail Trunk 12 to 144 Cores 3mm Single-mode G652D G657A2

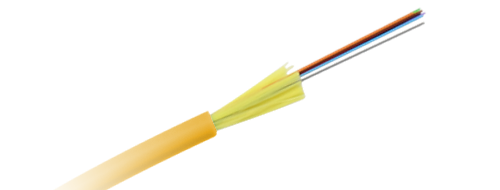

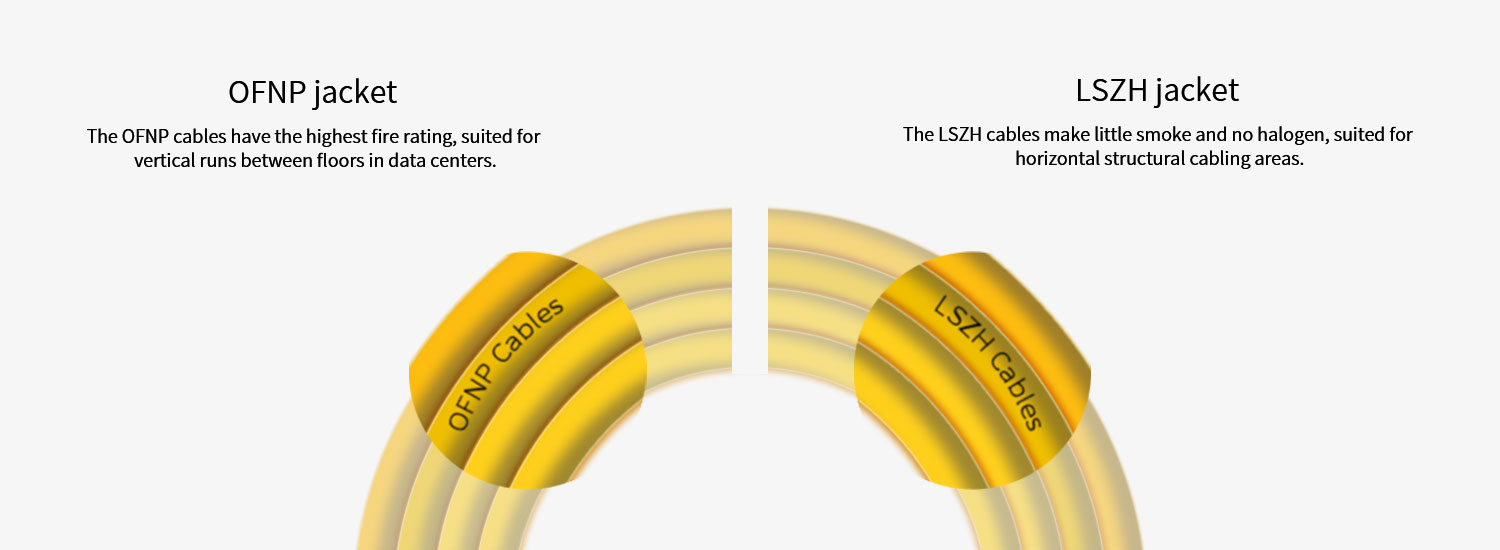

2  Custom Cable Jacket


MTP MPO-LC Fiber Optic Jumper Method A Pigtail Trunk 12 to 144 Cores 3mm Single-mode G652D G657A2

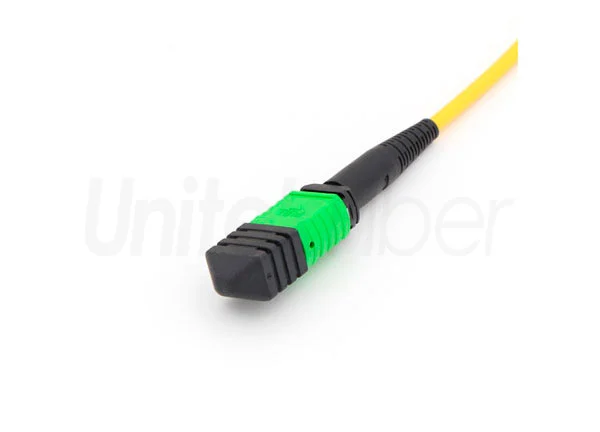

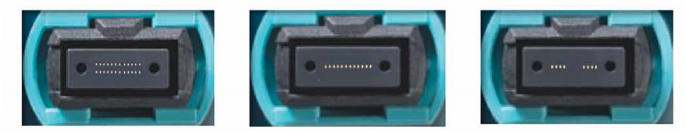

3 Custom MPO Connectors


MTP MPO-LC Fiber Optic Jumper Method A Pigtail Trunk 12 to 144 Cores 3mm Single-mode G652D G657A2


MTP MPO-LC Fiber Optic Jumper Method A Pigtail Trunk 12 to 144 Cores 3mm Single-mode G652D G657A2

Parameter of MTP MPO-LC Fiber Optic Jumper Method A Pigtail Trunk 12 to 144 Cores 3mm Single-mode G6

Model

SM

MM

Connector A:MPO/MTP

Connector Fiber Count

8,12,24,48 Core

Polish

PC,APC

PC

Insertion Loss

Standard

≤0.70dB

≤0.50dB

Elite Low Loss

≤0.35dB

≤0.30dB

Return Loss

PC≥50dB,APC≥60dB

≥30dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

Connector B:LC,LC Uniboot,SC,FC,ST

Polish

PC,APC

PC

Insertion Loss

≤0.2dB

≤0.2dB

Return Loss

PC≥50dB,APC≥60dB

≥35dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm


Fiber Color Code

Fiber Color Code


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

Reviews

Bartley
Jul 25, 2022

Economical, arrived fast, tested out with good numbers after installation. Stripping and polishing was normal.

Verified Purchase
Helpful 0
