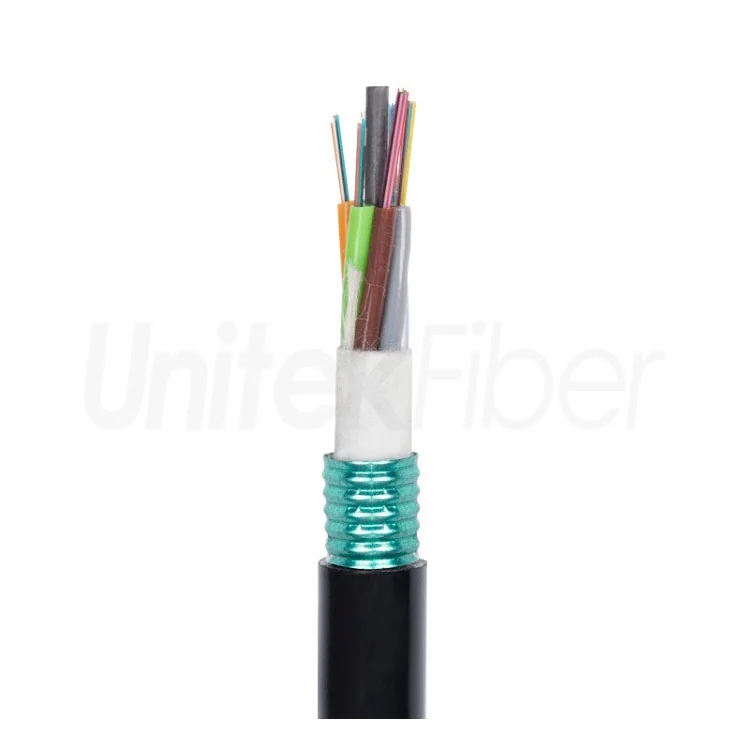

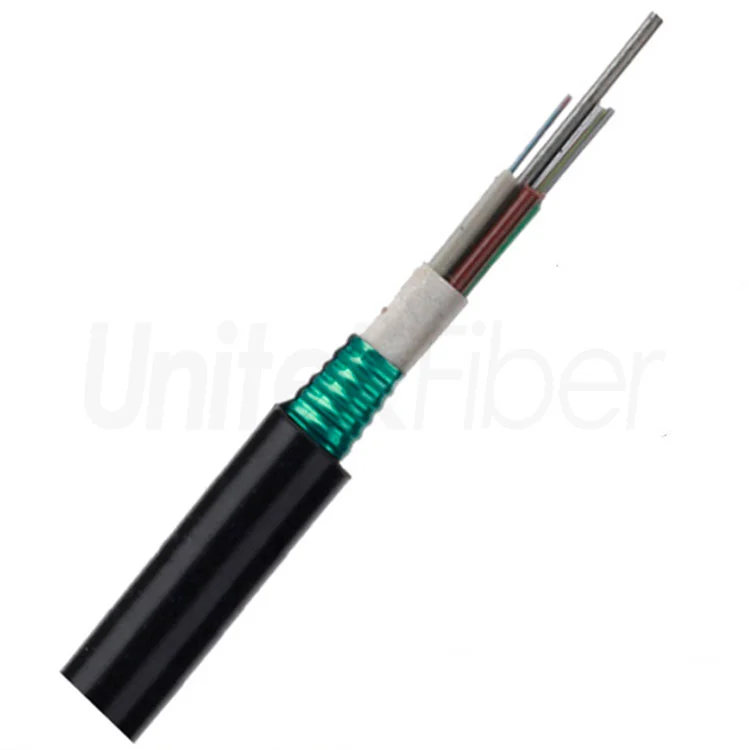

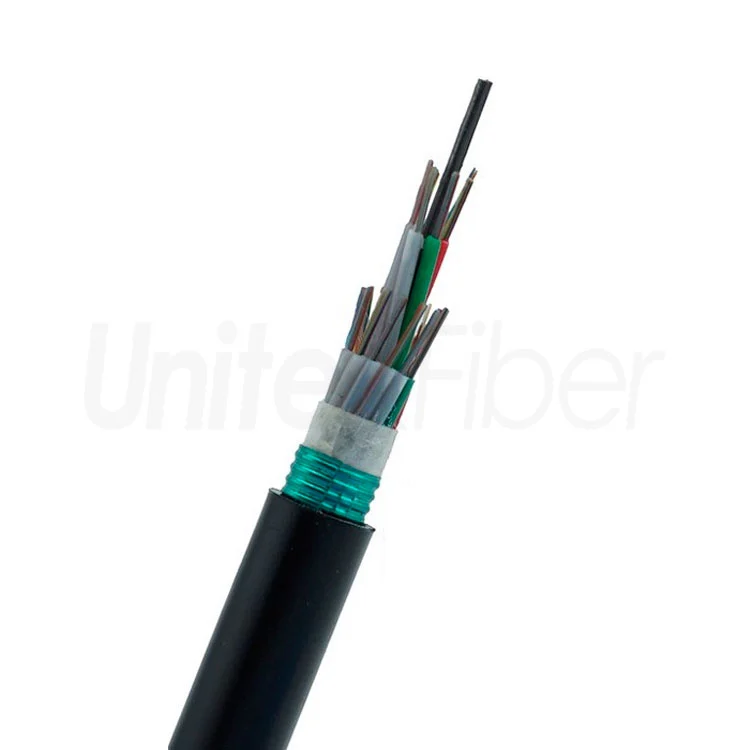

Duct Fiber Optic Cable GYTS Outdoor Armored Steel Tape Loose Tube 96 Cores SM G652D Jacket PE

GGYTS fiber optic cable is an outdoor duct steel armored optical cable. GY refers to outdoor optical cable, T refers to filling such as grease, and S refers to steel-plastic composite strip (rolled steel strip). The Fiber cores is 2-288 strands. The fiber cable drum can be 2-4km each.



Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Duct Fiber Optic Cable GYTS Outdoor Armored Steel Tape Loose Tube 96 cores SM G652D J

Optical Cable for Sale

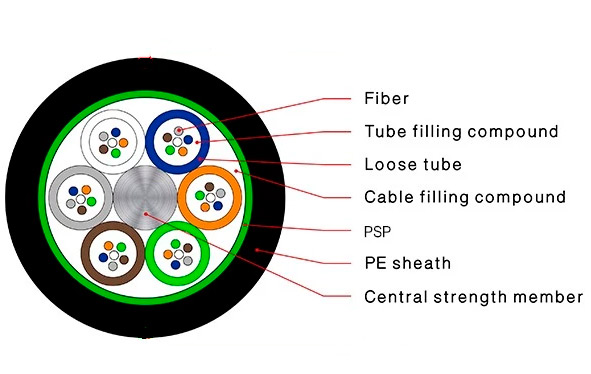

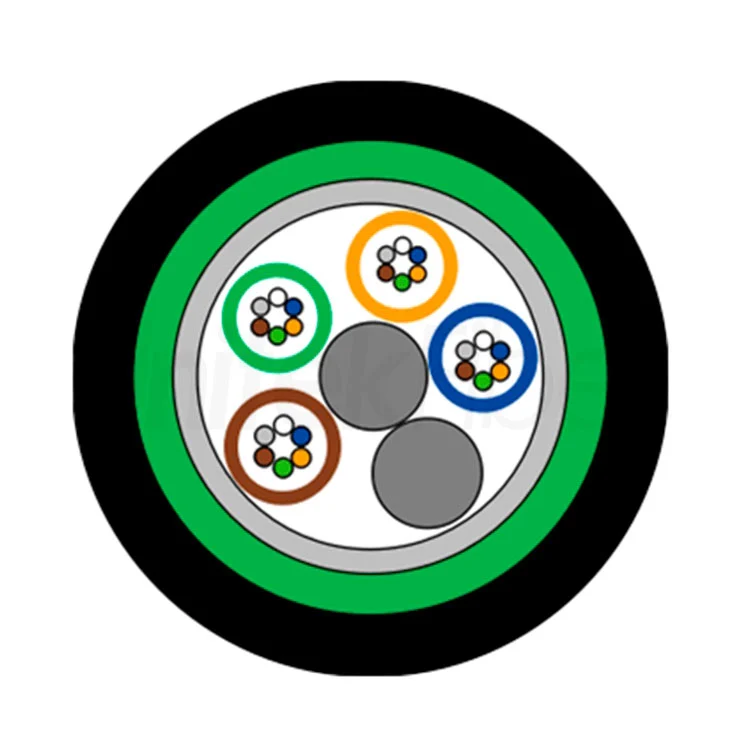

GYTS armored fiber optic cable is stranded loose tube outdoor cable with metal strengthening member, loose tube stranded and filled, steel-polyethylene bonded sheathed outdoor optical fiber cable for communication) The structure of the optical cable is to sheath single-mode or multi-mode optical fiber into the inner filling made of high modulus plastic Waterproof compound in loose tube. The center of the cable core is a metal reinforced core. For some fiber optic cable type, the metal reinforced core is also extruded with a layer of polyethylene (PE). The loose tube (and filling rope) is twisted around the central reinforcing core to form a compact and circular cable core, and the gaps in the cable core are filled with water blocking compounds. The steel-plastic composite tape is longitudinally wrapped and then extruded with a polyethylene sheath.


Optical Cable Price


The Fiber Cores of GYTS Fiber Cable is from 2 cores to 288 cores


Features of GYTS Fiber-optic Cable


Fiber Optic Wire Cable

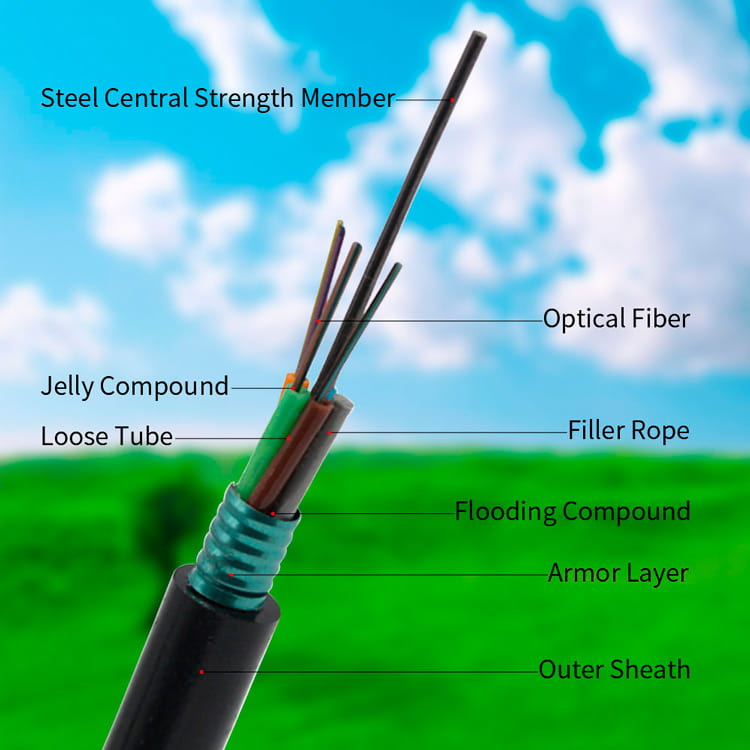

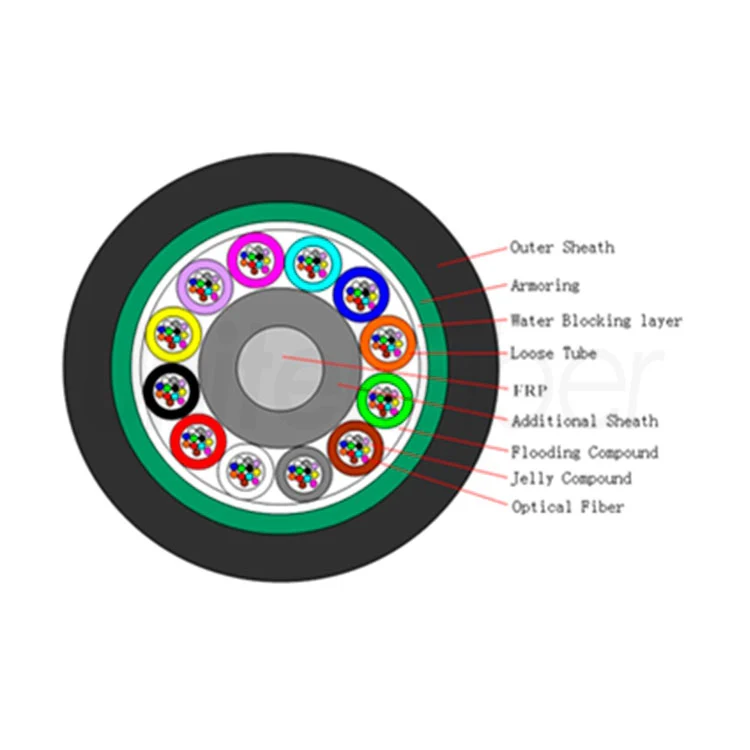

GYTS (metal strengthening member, loose tube stranded and filled, steel-polyethylene bonded sheathed outdoor optical fiber cable for communication) The structure of the optical cable is to sheath single-mode or multi-mode optical fiber into the inner filling made of high modulus plastic Waterproof compound in loose tube. The center of the cable core is a metal reinforced core. For some fiber optic cables, the metal reinforced core is also extruded with a layer of polyethylene (PE). The loose tube (and filling rope) is twisted around the central reinforcing core to form a compact and circular cable core, and the gaps in the cable core are filled with water blocking compounds. The aluminum-plastic composite tape is longitudinally wrapped and then extruded with a polyethylene sheath.


Applications of GYTS Fiber-optic Cable


Fiber Optic Wire for Sale


GYTS fiber optic cable is used for duct or aerial fields. These steel tape armored cables are suitable for installation for long haul communication and LANs, especially suitable for high requirements of moisture resistance environment.


Professional Assistant For GYTS Fiber Optic Cabling System

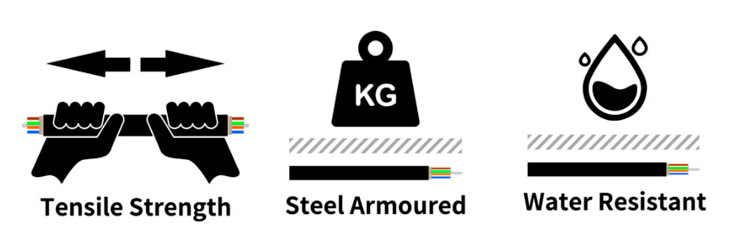

Fo Cable Type


Packaging & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre

Parameter of Duct Fiber Optic Cable GYTS Outdoor Armored Steel Tape Loose Tube 96 cores SM G652D Jac

No. of cable

2~30

32~60

62~72

74~96

Fiber Model

G.652D

Design(StrengthMember+Tube&Filler)

1+5

1+5

1+6

1+8

Central Strength Member

Material

Steel Wire

Diameter(±0.05)mm

1.5

1.5

2.1

2.1

Loose Tube

Material

PBT

Diameter(±0.06)mm

1.8

2.1

2.1

2.1

Thickness(±0.03)mm

0.32

0.35

0.35

0.35

The Max.Core NO./Tube

6

12

12

12

Filler Rope

Material

LDPE

Colour

White

Diameter(±0.06)mm

1.8

2.1

2.1

2.1

Water Blocking layer(Material)

Flooding Compound

Armoring

Material

Steel Strip

Thickness(±0.03)mm

0.25

Outer Sheath

Material

MDPE

Thickness(±0.2)mm

1.8

Cable Diameter

9.6

10.5

11.1

12.7

Cable Wetght

92

108

132

170

Min. bending radius

Without Tension

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70

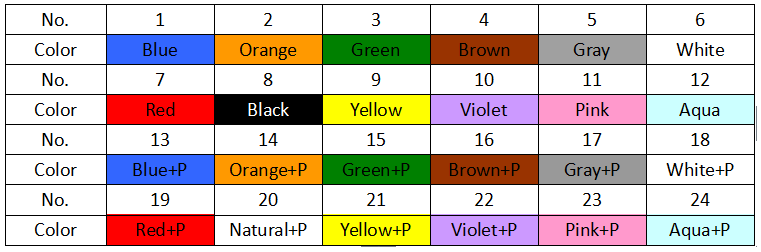

Fibre & Loose Tube Colors



Do you have certificate for raw material?

Yes, with qualified ISO9001, ROHS, UL raw material suppliers.

What is the cable structure for this duct fiber optic cable?

This duct fiber optical cable is usually in Stranded loose tube structure.

How many cores for the duct fiber optical cable?

2-288cores.

What's the MOQ for duct fiber optic cable?

The MOQ of duct fiber optic cable is 2km.

Can you supply customized products and logo?

Yes, we supply OEM&ODM service, please feel free to contact us.
