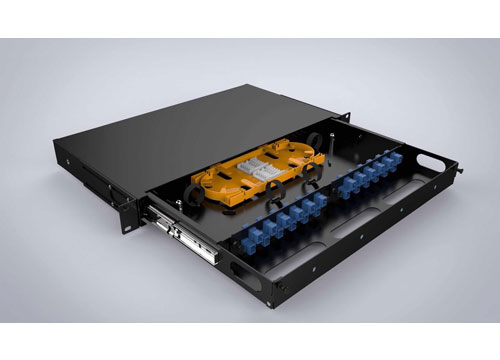

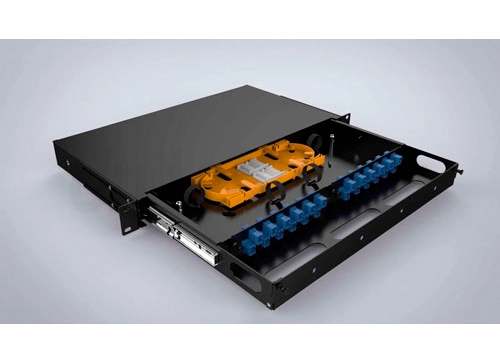

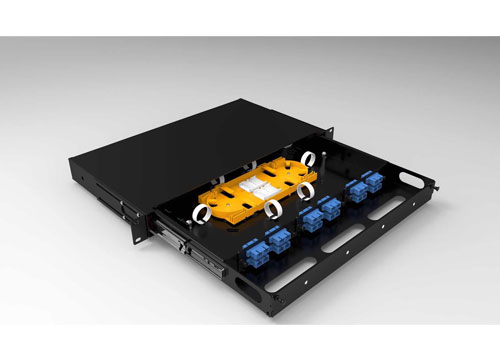

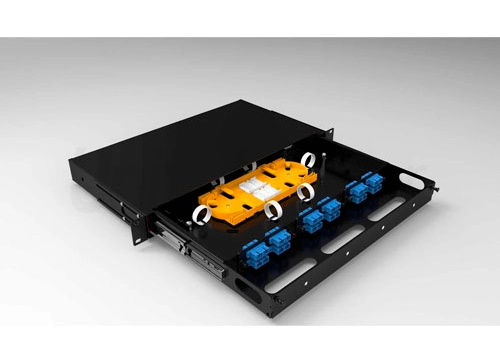

UF-SR-CLD-1U Optical Terminal Box Sliding Rack Mounted Fiber Optic Patch Panel

UF-SR-CLD-1U Sliding rack mounted optical fiber terminal box is made of metal in 19" standard structure. There are 2pcs of stainless steel rails at the sides of the box.

Fiber Optic
Details
Parameter

Details of UF-SR-CLD-1U Optical Terminal Box Sliding Rack Mounted Fiber Optic Patch Panel

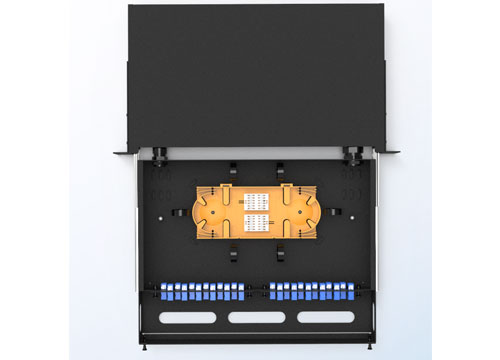

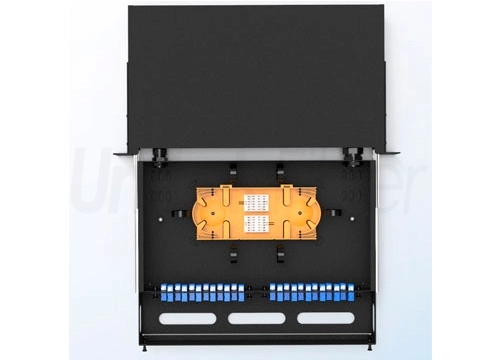

This design make the panel drawer easily pull out and push in.And two mounted ears is with moveable designed. The fiber box can be loaded with FC,SC,ST,LC adapters. There are 4 fiber cable entries is at the back of the panel. And the splice cassette can be loaded in the middle of the patch panel. It can be applied in branch connection of optical cable termination.


Features:


  • Rack mounting 19” standard size, light weight

  • Suitable for ribbon and single fiber

  • Various panel plate to fit different adapter interface

  • 24C, 36C, 48C, 96C,144C optional, with or without fiber optic pigtails and adapters

  • Easy for management and operation

  • Sprayed surface treatment process

  • Customizble color and LOGO


Applications:


  • Telecommunications subscriber loop

  • Fiber to the home (FTTH)

  • LAN/WAN

  • CATV


Packaging and Shipping


UF-SR-CLD-1U Optical Terminal Box Sliding Rack Mounted Fiber Optic Patch Panel

production


UF-SR-CLD-1U Optical Terminal Box Sliding Rack Mounted Fiber Optic Patch Panel



Parameter of UF-SR-CLD-1U Optical Terminal Box Sliding Rack Mounted Fiber Optic Patch Panel

Packing Information

Type

Max capacity

Per carton/Qty

Inner carton diameter(cm)

Outer carton diameter(cm)

Weight(kg)

UF-SR-CLD-1U

48/LC

5

49*37*5

51*29*39

26

UF-SR-CLD-2U

96/LC

3

49*37*9.5

51*29*39

21.6
