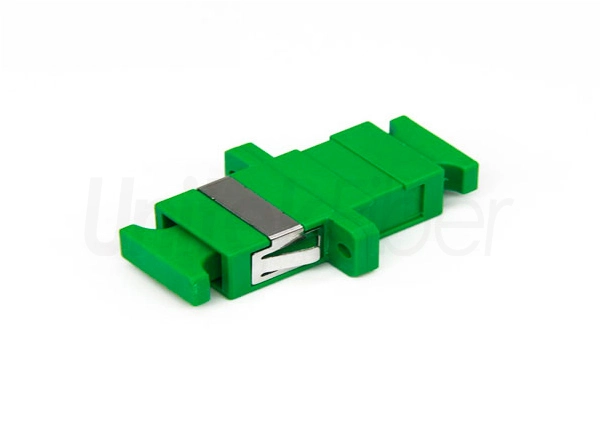

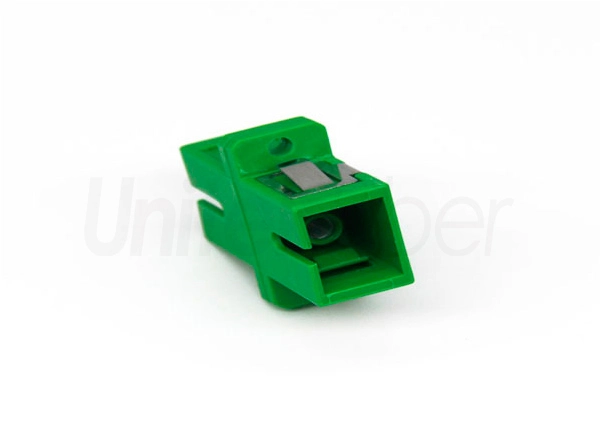

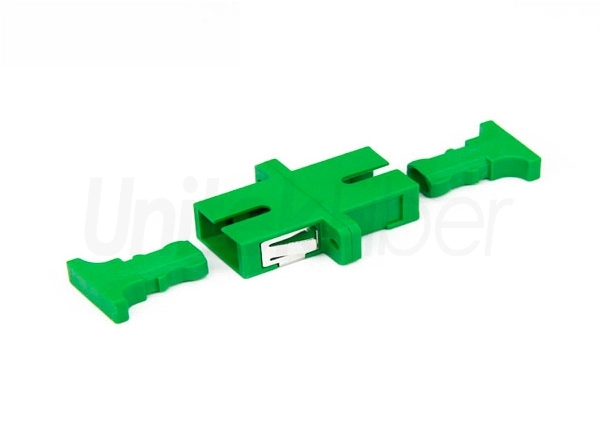

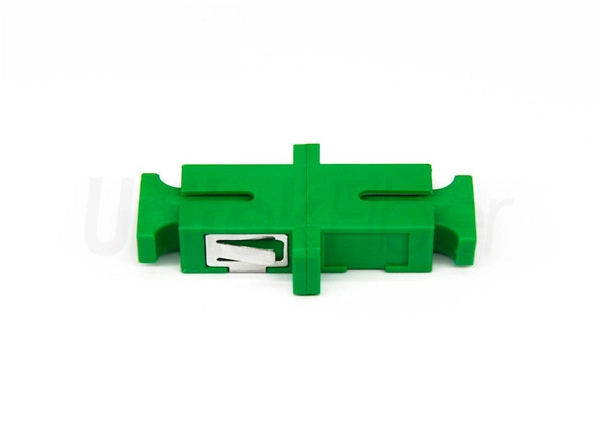

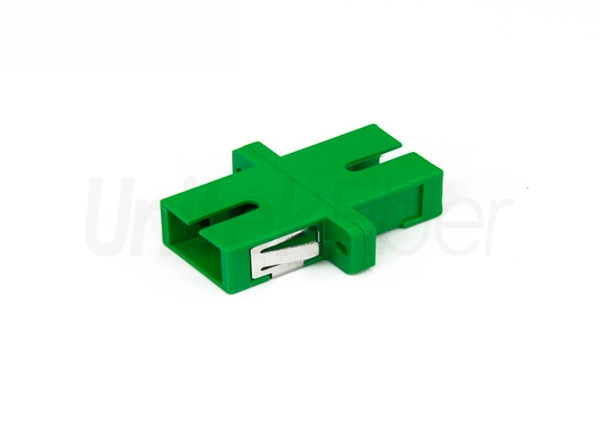

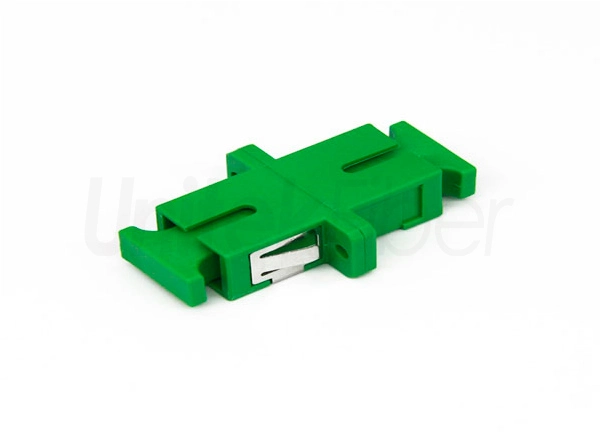

Flange Fiber Coupler SC/APC Female to SC/APC Female Optic Adapter Green

SC to SC fiber adapter / coupler Simplex SM 0.2dB
The design of the optical fiber adapter is very compact. It is a bridge between two fiber cables with the same interface or two fiber patch cords with different interfaces. There are flange type adapter and no-flange type adapters. The main function of the flange of the fiber optic adapter is to fix adapter on the adapter panel.


Fiber Optic
Details
Parameter

Details of Flange Fiber Coupler SC/APC Female to SC/APC Female Optic Adapter Green

Features


  • Low insertional loss and back reflection loss

  • High prcision alignment

  • Telcordia, ANSI, TIA/EIA, NTT and JIS compliance

  • Compact design

  • Plastic housing


Application


  • CATV

  • Telecommunication networks

  • Test equipment

  • Metro

  • Local Area Networks(LANs)

  • Data processing networks

  • Multimedia

  • Gigabit Ethernet

  • Active device/Transceiver


Components of Fiber Optic Adapter


Flange Fiber Coupler SC/APC Female to SC/APC Female Optic Adapter Green


The Application of Fiber Optic Adapter in Fiber Network Cabling


Optical adapters were developed for connecting and mating two identical or two different (hybrid) connector plugs. The main function of the adapters are for connection between various fiber optic connectors, fiber optic patch cords, fiber optic pigtails and fiber optic equipments, it offers the point-to-point connection in the fiber optic network.

The Application of Fiber Optic Adapter in Fiber Network Cabling


Fiber adapters are widely used in optical communications, optical sensors, and other optical fiber applications such as long-distance trunk networks, metropolitan area networks, access networks, optical fiber CATV networks, optical fiber data networks, and DWDM systems.

The Application of Fiber Optic Adapter in Fiber Network Cabling


Packaging and Shipping:


Flange Fiber Coupler SC/APC Female to SC/APC Female Optic Adapter Green


Production


Flange Fiber Coupler SC/APC Female to SC/APC Female Optic Adapter Green


Parameter of Flange Fiber Coupler SC/APC Female to SC/APC Female Optic Adapter Green

Specification


Data

Unit

Adapter Type

SC/LC/FC/ST


Insertion Lose

≤0.2

dB

Interchangeability

≤0.2

dB

Repeatability

≤0.1

dB

Temperature

-40~+85
