SFP28 25G Optical Transceiver With DOM Function 1270nm - 1370nm 10km 5G Fronthual Ethernet

The 25G Ethernet technology adopted by 25G optical transceiver is a new Ethernet standard with multiple advantages. It was proposed by the IEEE802.3 working group in July 2014 and was fully revised in June 2016. 25G Ethernet technology can maximize the bandwidth and port density of the data center, and can achieve 100Gb data transmission through the single-channel physical layer technology of 25Gb/s.

SFP28 25G optical transceivers are generally used with single-mode patch cord OS2 to be widely used in data center 25G Ethernet and 5G fronthaul CPRI/eCPRI networks, and the maximum transmission distance can reach 10KM.

Distance
SFP Types
Fiber Optic
Description
Parameter
FAQ
Download
Review
Video

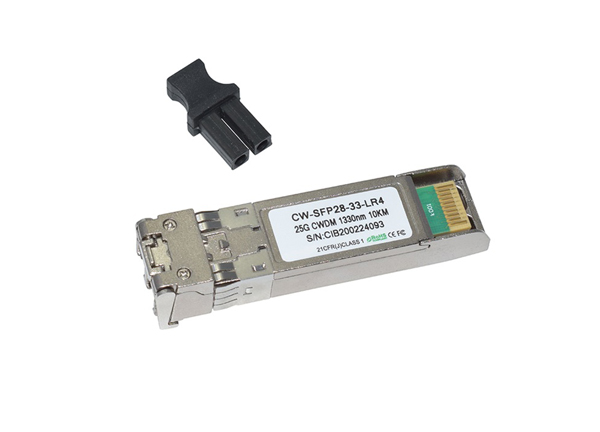

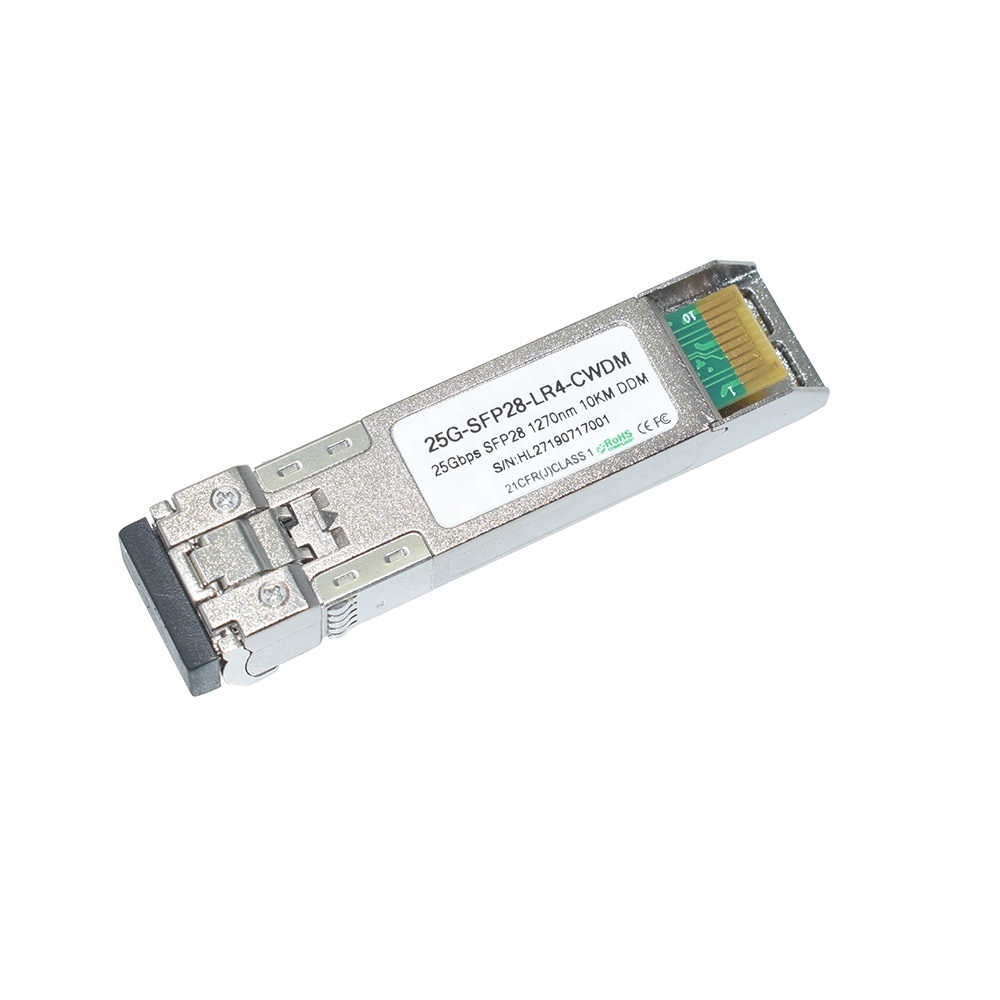

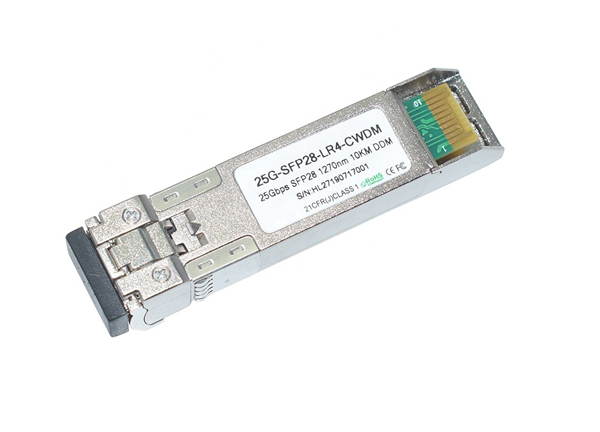

SFP28 25G Optical Transceiver With DOM Function 1270nm - 1370nm 10km 5G Fronthual Ethernet

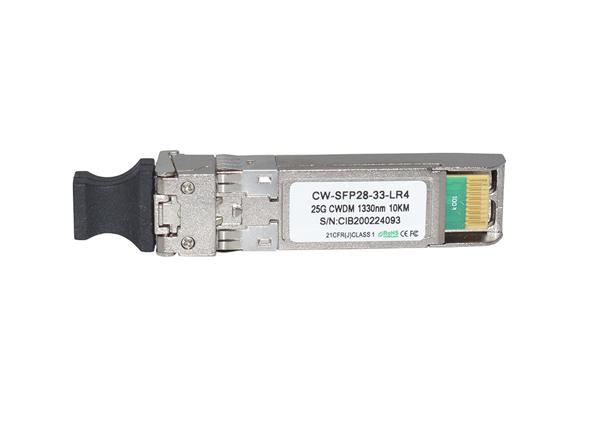

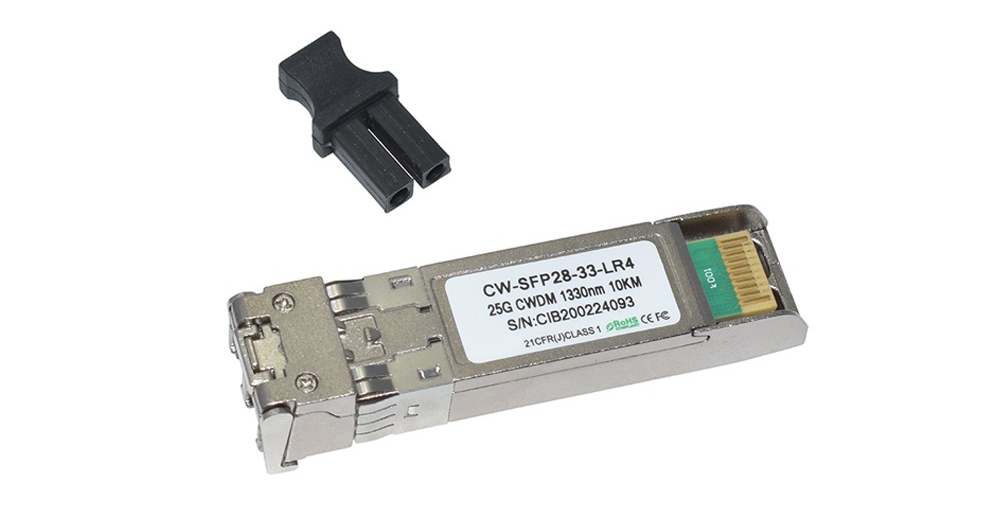

The Cisco SFP-25G-LR-S Compatible SFP28-SM-25G-31-10K is a single-Channel, Pluggable, Fiber-Optic SFP28 for 25 Gigabit Ethernet and Infiniband EDR Applications. SFP transceiver is a high performance module for short-range data communication and interconnect applications which operate at 25.78125 Gbps up to 10km using OS2 fiber. This optical module is designed to operate over singlemode fiber systems using a nominal wavelength of 1310nm.

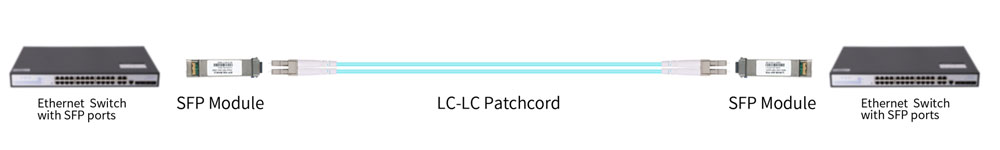

Network Connectivity



Direct connection with 25GBASE SFP28 LR Transceivers


SFP28 25G Optical Transceiver With DOM Function 1270nm - 1370nm 10km 5G Fronthual Ethernet

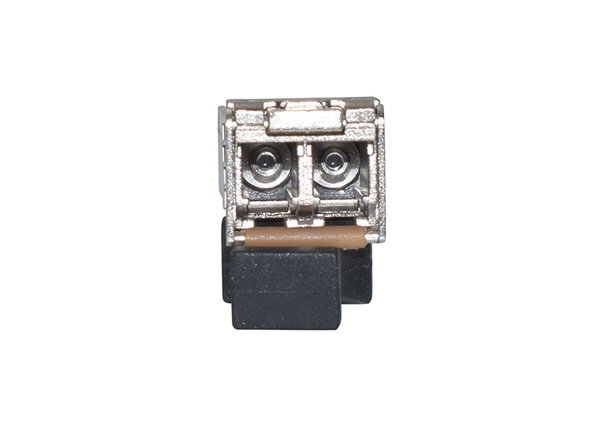

The optical interface uses a duplex LC connector. SFP28 optical modules provide reliable long life, high performance and consistent service. 25G optical modules will become the mainstream solution for 5G fronthaul.




Product Highlights



25G Connectivity for Data Center

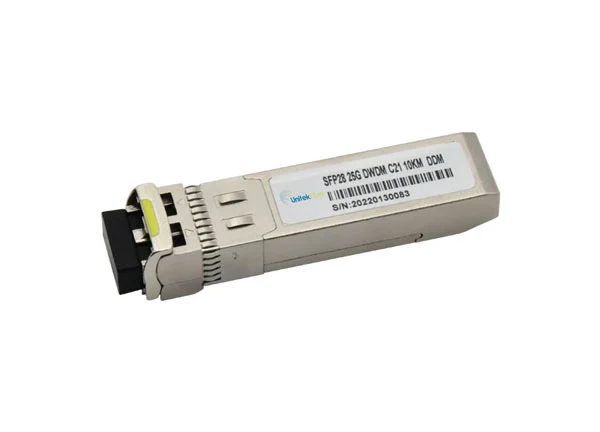

DWDM SFP28 optical modules are designed for carrier and large enterprise networks that require scalable, flexible and cost-effective systems.


SFP28 25G Optical Transceiver With DOM Function 1270nm - 1370nm 10km 5G Fronthual Ethernet

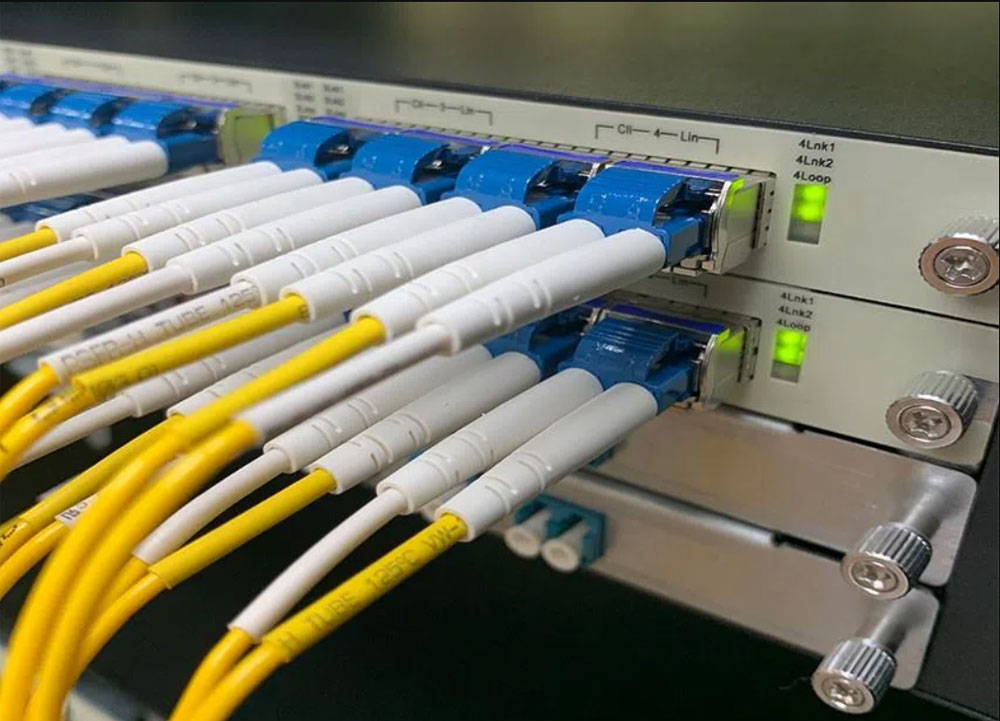

Tested in Host Devices for Proven Interoperability

Meet the needs of 5G fronthaul services, with a maximum transmission distance of up to 10 kilometers, suitable for 25G Ethernet and CPRI/eCPRI 5G fronthaul networks.

SFP28 25G Optical Transceiver With DOM Function 1270nm - 1370nm 10km 5G Fronthual Ethernet

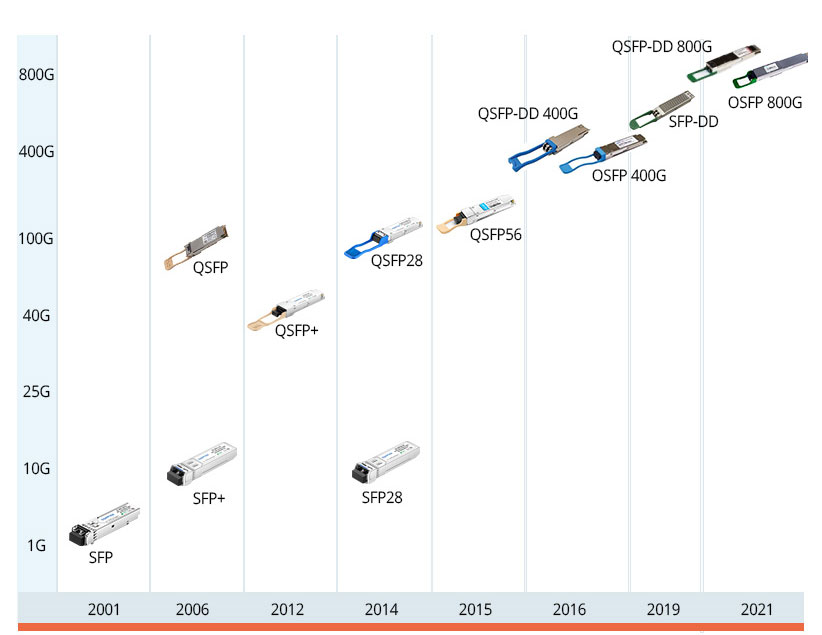

DWDM SFP28 transceiver modules are widely used in telecommunications, cable TV and data centers with large data traffic. With the rapid growth of network traffic, data centers are constantly upgraded and iterated, bringing huge opportunities to the optical module industry. As the core component of long-distance and large-capacity optical networks, fiber optic transceivers are developing towards small size, high speed, and low power consumption in order to meet the market development trend.


SFP28 25G Optical Transceiver With DOM Function 1270nm - 1370nm 10km 5G Fronthual Ethernet

Parameter of SFP28 25G Optical Transceiver With DOM Function 1270nm - 1370nm 10km 5G Fronthual Ether

PART NUMBER

FORM FACTOR

DATA RATE

WAVELENGTH

LASER

DISTANCE

MEDIUM

CONNECTOR

TEMPERATURE

UF-SFP28-25G-SR

SFP28

25G

850nm

VCSEL/PIN

100m

MMF

MPO

0℃~70℃

UF-SFP28-25G-LR

SFP28

25G

1310nm

DML/PIN

10km

SMF

Duplex LC

0℃~70℃

UF-SFP28-25G-ER

SFP28

25G

1310nm

EML/PIN

40km

SMF

Duplex LC

0℃~70℃

UF-SFP28-25G-CWDM-LR

SFP28

25G

1271nm/1291nm/1311nm /1331nm

DML/PIN

10km

SMF

Duplex LC

0℃~70℃

UF-SFP28-25G-CWDM-ER

SFP28

25G

1271NM/1291NM/1311NM

/1331NM/1351NM/ 1371NM

DML/PIN

40km

SMF

Duplex LC

0℃~70℃

UF-SFP28-25G-DWDM-LR/ER

SFP28

25G

C21-C60-40

DML/PIN

10KM/40KM

SMF

Duplex LC

0℃~70℃

UF-FP28-BIDI-25G-LR

SFP28

25G

1270/1330nm

DML/PIN

10KM

SMF

LC

0℃~70℃



What are the types of 25G optical modules?

25G optical modules are roughly divided into three types, 25G dual-fiber modules, 25G WDM modules, and 25G BIDI modules.

Is there any damage to the module if it is used for transmission over a short distance of 10m for an 25G optical module of 10km? Do I need to use attenuator?

We need to ensure that the receiving power of the module is not more than the receiver overload power to avoid the module being broken. So to get the 25G LR to work at 10m, you need to add about 3dB attenuation.

Are any of these modules compatible with Huawei Equipment?

Yes, Unitekfiber's optical modules are compatible with Fiberhome, Huawei, ZTE, Cisco, Ericsson, Nokia and other brands.

How much power does this 25G SFP transceiver draw?

The power consumption of this module <1w.

Can SFP28 ports be interconnected with QSFP28 ports?

100G SR4 multi-mode optical modules can be used for interconnection. Under the premise of equipment support, 100G QSFP28 ports can be configured as 4*25G mode, and then MPO-LC fiber jumpers are used to connect 100G SR4 optical modules and 25G SFP28 optical modules.

What is the maximum transmission distance of the 25G SFP28 optical module?

At present, 25G SFP28 optical modules can transmit up to 40 kilometers. There are 25G SFP28 ER, 25G SFP28 bidi, 25G SFP28 CWDM, and 25G SFP28 DWDM.

Allen
Aug 08, 2022

Very good service and quality.

The fiber cable was very easy to pull both indoor & outdoor. It's not stiff, went thru conduits nicely.

Verified Purchase
Helpful 0
