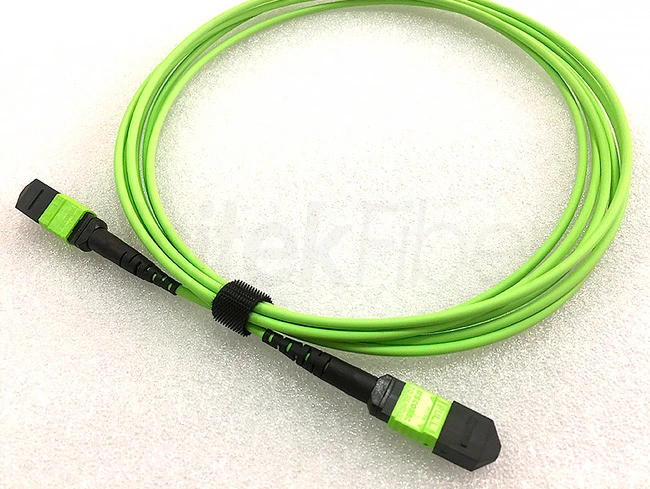

High Density MTP-MTP Trunk Patch Cable 12 24 Cores OM5 LSZH 3m for Data Center Cabling

12 cores MTP-MTP trunk patch cable is basically constructed with multimode fiber cable and high quality 2 MPT connectors on both side. The fiber cable is with high quality kevlar yarn and flame retardant LSZH sheath. The MTP connector is a multi-fiber connector and currently 12 cores and 24cores MTP connectors are most commonly used. The fiber cores with cable length can be customized as per customer request.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Details of High Density MTP-MTP Trunk Patch Cable 12 24 cores OM5 LSZH 3m for Data Center Cabling

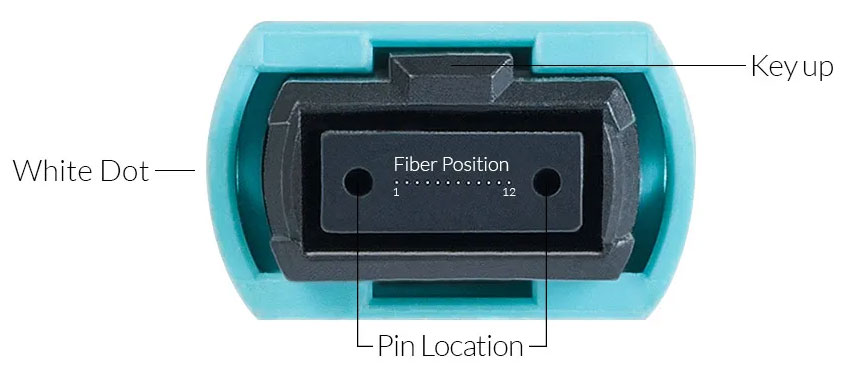

With our MTP/MPO, it's possible to run a single cable that automatically terminates twelve fibers in one easy plug-in. Plus, the small form factor of an MTP/MPO connector provides a higher port density. With its push-pull release mechanism, the MTP/MPO connector is easy to engage and disengage. Plus, its latch design prevents the plug from snagging when jumper cables are being routed. Straight-through pinning; immune to electrical interference.

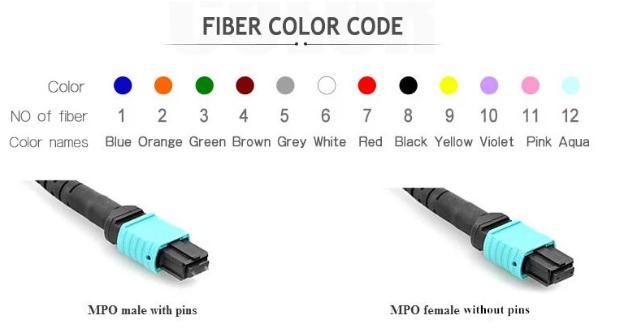

Fiber Color Code


Network Connectivity

High Density MTP-MTP Trunk Patch Cable 12 24 Cores OM5 LSZH 3m for Data Center Cabling

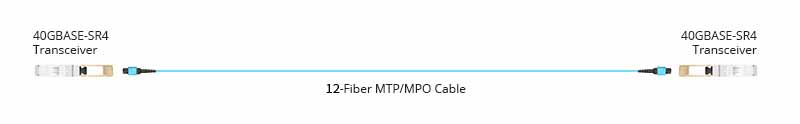

The easiest parallel fiber optic transmission link of Base-8 MTP/MPO cabling is to directly connect two QSFP+ transceivers like 40GBASE-LR4 with an 8-fiber MTP/MPO cable. This type of direct connectivity is only suggested for short distances within a given row of racks or cabinets.



Product Highlights



Superior Workmanship Guarantees Stable Transmission


High Density MTP-MTP Trunk Patch Cable 12 24 Cores OM5 LSZH 3m for Data Center Cabling


MPO connectors are the proven and trusted MPO style format,MTP/MPO cable offering state-of-the-art multi-fiber and mechanical performance.

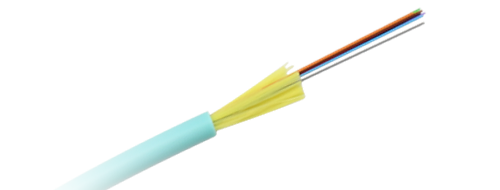

Perfect High-performance Fiber

Excellent bending and compression resistance make it an ideal choice for high density cabling


High Density MTP-MTP Trunk Patch Cable 12 24 Cores OM5 LSZH 3m for Data Center Cabling


High Density MTP-MTP Trunk Patch Cable 12 24 Cores OM5 LSZH 3m for Data Center Cabling


High Density MTP-MTP Trunk Patch Cable 12 24 Cores OM5 LSZH 3m for Data Center Cabling

Parameter of High Density MTP-MTP Trunk Patch Cable 12 24 cores OM5 LSZH 3m for Data Center Cabling

Model

SM

MM

Connector A:MPO/MTP

Connector Fiber Count

8,12,24,48 Core

Polish

PC,APC

PC

Insertion Loss

Standard

≤0.70dB

≤0.50dB

Elite Low Loss

≤0.35dB

≤0.30dB

Return Loss

PC≥50dB,APC≥60dB

≥30dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

Connector B:LC,LC Uniboot,SC,FC,ST

Polish

PC,APC

PC

Insertion Loss

≤0.2dB

≤0.2dB

Return Loss

PC≥50dB,APC≥60dB

≥35dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm


Fiber Color Code

Fiber Color Code


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
