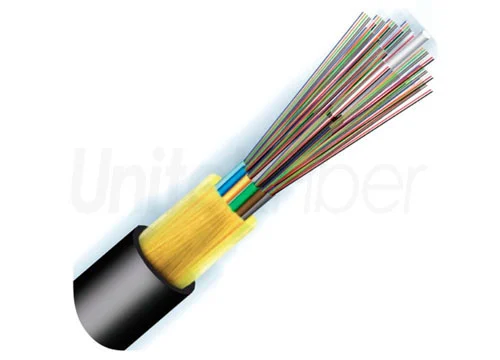

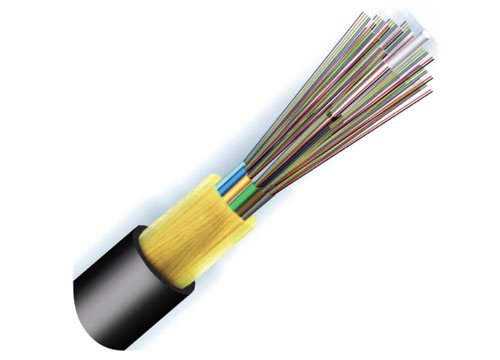

Aerial Fiber Optic Cable|Outdoor GYFTY Fiber Cables Non-armored Loose Tube 12 Core G652D PE Jacket

GYFTY fiber cable is all dielectric loose tube fiber cable. The fiber glass is located in a loose tube made of high modulus plastic of PBT (polybutylene terephthalate). The tube is filled with a waterproof filling compound.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Aerial Fiber Optic Cable|Outdoor GYFTY Fiber Cables Non-armored Loose Tube 12 core G6

Optical Cable for Sale

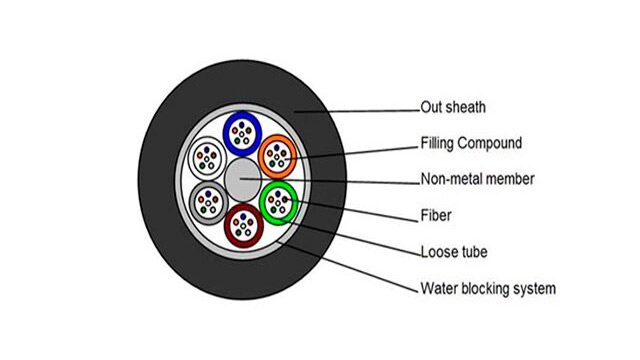

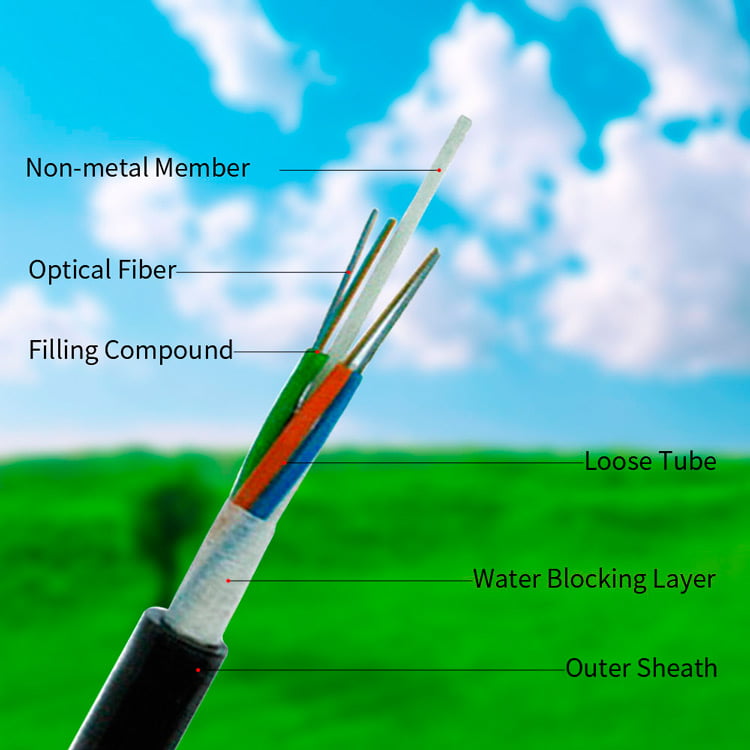

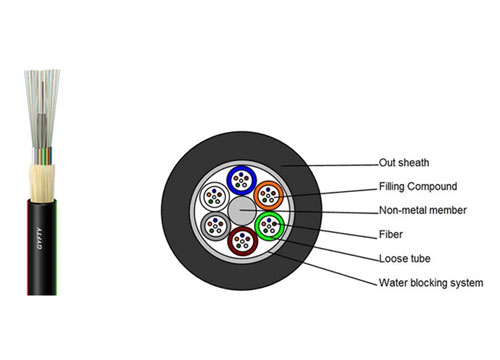

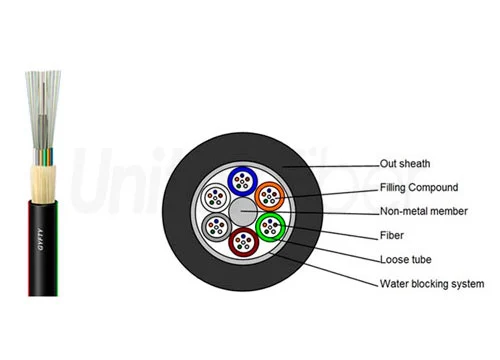

GYFTY fiber optic cable is a stranded non-metallic structure. Optical fibers are protected in loose tubes filled with Gel jelly. FRP locates in the center of cores as a non-metallic strength member. These loose tubes are stranded around a central strength member. The optical fiber cable core is waterproof with water-blocking material, GYFTY fiber optic cable is completed with a PE sheath for mechanical protection.


Optical Cable Price


The Fiber Cores of GYFTY Fiber Cable is from 2 cores to 288 cores


Features of GYFTY Fiber optic Cable

Fiber Optic Wire Cable

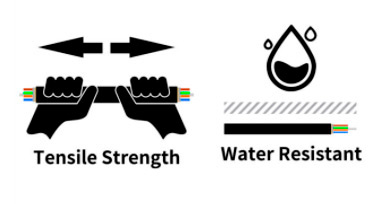

GYFTY fiber optic cable is used precise control of the excess length of the optical fiber ensures that the optical cable has good tensile performance and temperature characteristics.PBT loose tube material has good hydrolysis resistance, and the tube is filled with special grease to protect the cable optic fiber. GYFTY fiber optical cable has excellent flexibility and bending resistance. Optical cables are all non-metallic structures, light in weight, easy to lay, and excellent in electromagnetic resistance. Smooth outer sheath enables the optical cable to have a smaller coefficient of friction during installation.PE sheath has good resistance to solar radiation.


Applications of GYFTY Fiber optic Cable


Ftth Splicing


GYFTY Fiber Optic Cable Aerial and Duct is a non-metallic cable used for power transmission system, excessive thunder areas and high electromagnetic interface. Its mainly application is for aerial or duct installation applications.


Professional Assistant For GYFTY Fiber Optic Cabling System


Fo Cable Type


Packaging & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre

Parameter of Aerial Fiber Optic Cable|Outdoor GYFTY Fiber Cables Non-armored Loose Tube 12 core G652

No. of cable

12

24

Fiber Model

G.652D

Design(StrengthMember+Tube&Filler)

1+5

Central Strength Member

Material

FRP

Diameter(±0.05)mm

1.5

Loose Tube

Material

PBT

Diameter(±0.06)mm

1.8

Thickness(±0.03)mm

0.32

The Max.Core NO./Tube

6

Filler Rope

Material

LDPE

Colour

White

Diameter(±0.06)mm

1.8

Water Blocking layer(1)(Material)

Flooding Compound

Water Blocking layer(2)(Material)

Water blocking tape

Outer Sheath

Material

MDPE

Thickness(±0.2)mm

1.8

Cable Diameter

9.1

Cable Wetght


Min. bending radius

Without Tension

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70

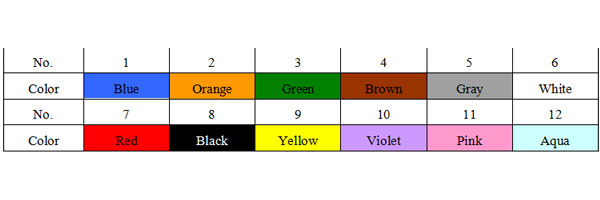

Fibre & Loose Tube Colors

Fibre & Loose Tube Colors


Can you supply OEM products under our brand?

Yes, we are manufacturer, we accept OEM service, we can print your LOGO on fiber cable and fiber cable drums.

How many types of Aerial fiber optic cable you can provide?

The Figure 8 fiber optic cable, GYXTW fiber optic cable, ADSS cable are all strong outdoor fiber cables for Aerial Application.

Can your fiber optic cable be bent without damaging the fiber?

Our fiber cable can be bent with diameters of 2.5cm or less.

What are the main products in your company?

We provides fiber optic cables, ADSS Fiber optic cable, Aerial fiber optic cable of GYTA, GYTC8S, GYFTY, GYTS, underground fiber cable and so on.

Where is the aerial fiber optic cable used?

Mostly used in Local Area Network (LANs), high density data center, FTTH Telecommunication.

If the high temperature will damage the aerial fiber optic cable?

Don't worry, the aerial fiber optic cable can handles the most challenging telecommunications data transmission requests.
