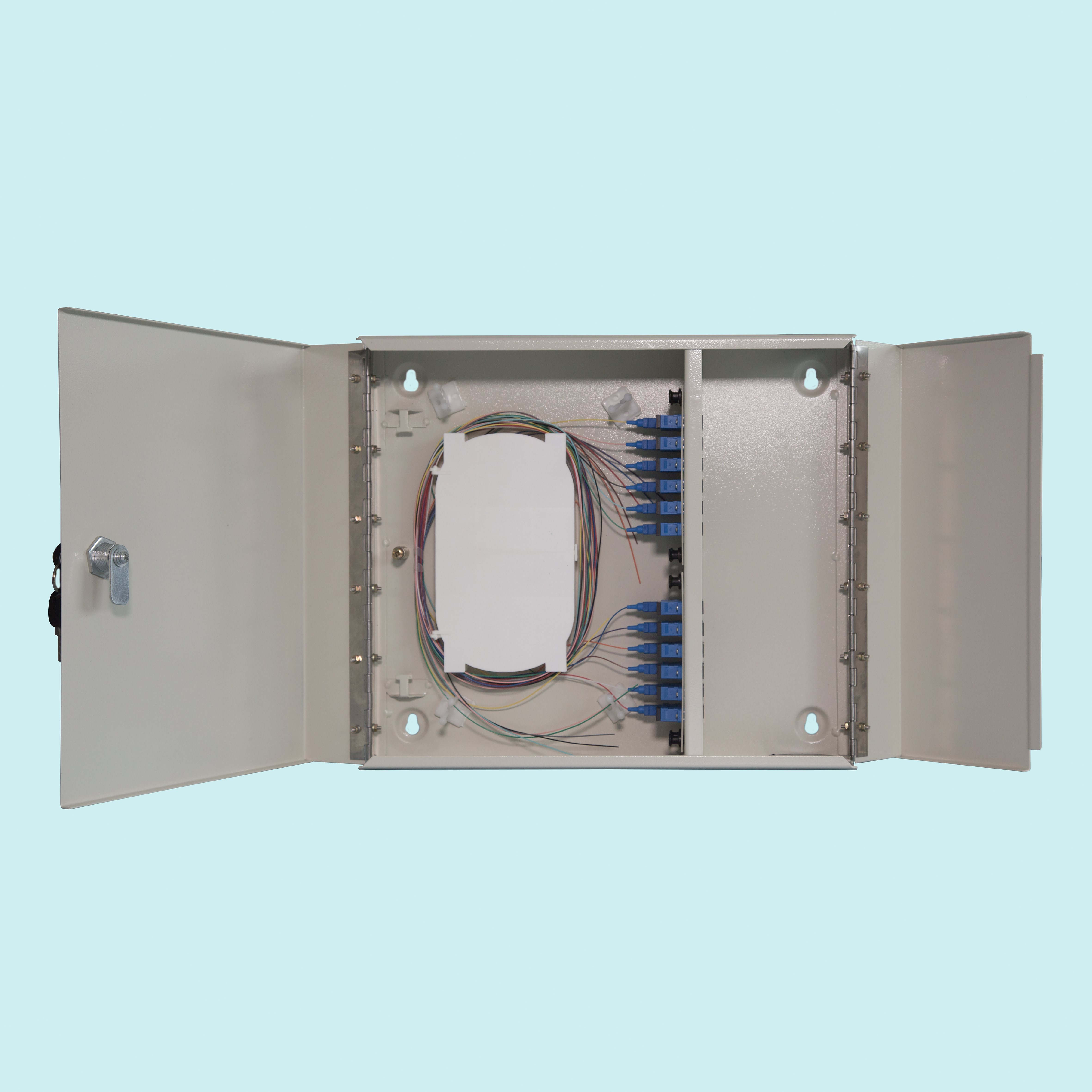

WMC05 Dual Doors Wall Mount Fiber Enclosure SC 12 Port SM|MM Optical Fibers

Wall Mount Fiber Enclosure applies to the connection and termination of fibers and serve as protector for fiber fusion and storage. It is made of metal material and a compact type and easy to operate for fiber optical applications. The fiber Enclosure can be mounted with 12ports LC, SC, FC and ST fiber optic adapter and fiber optic pigtails.



Fiber Optic
Details
Parameter

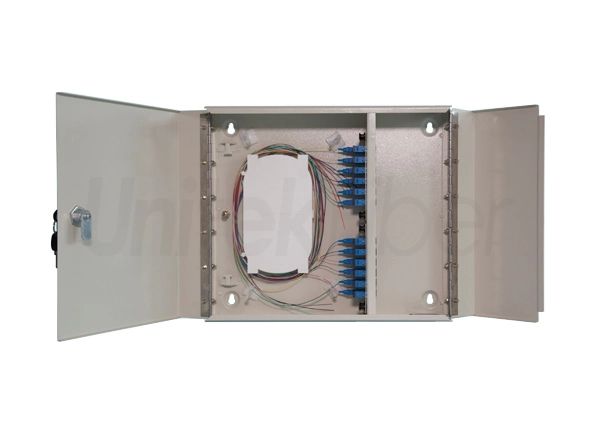

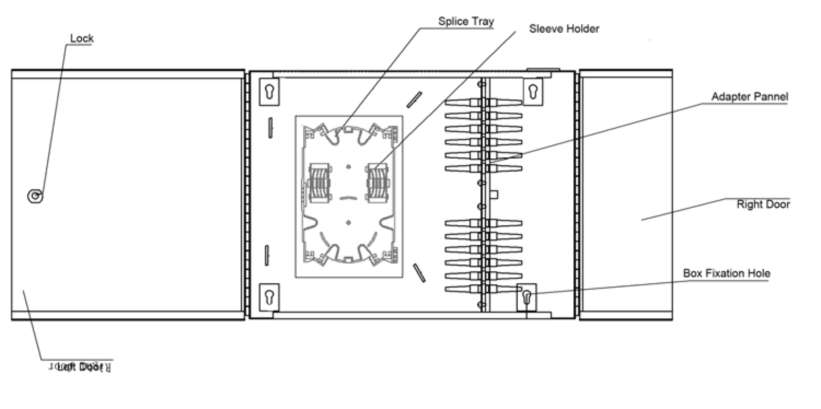

Details of WMC05 Dual Doors Wall Mount Fiber Enclosure SC 12 port SM|MM Optical Fibers

Applications


• Local Area Network

• Wide Area Network

• CATV Network

• FTTX System

• Test Instruments


Features


• Splice & distribution in one unit

• Easy installation and operation of the components inside

• Adapters covered with plastic covers and easily removed and mounted

• Excellent seal performance for outdoor application

• Material: cold rolled steel.


Installation Instruction


a) Check the structures and types of fiber cables before installation;

different fiber cables could not be spliced together.

b) Seal well the connective components to reduce additional loss to fibers

caused by dampness; don’t apply any pressure on the connective

components.

c) Keep a dry and dustless working environment; don’t apply any external

force to the cables; don’t bend or entwine cables.

d) Appropriate tools should be used for cable splicing according to the

local standards during the whole installation process.



Transportation and Storage


This product should be stored in warehouse that is dry and without mordant air around;

This product can be transported by car, train, airplane and ship etc.

During transportation, impact, falling off or pouring raid of rain, snow as well as direct exposure

under the sun should be avoided.


Packaging & Shipping


WMC05 Dual Doors Wall Mount Fiber Enclosure SC 12 Port SM|MM Optical Fibers


Production


WMC05 Dual Doors Wall Mount Fiber Enclosure SC 12 Port SM|MM Optical Fibers


Parameter of WMC05 Dual Doors Wall Mount Fiber Enclosure SC 12 port SM|MM Optical Fibers

Specification

Parameters

Specifications

Dimension

350x300x80mm

Max capacity

12cores for SC/ST/FC/LC

Lateral pressure-resistance

500N

Relative Humidity (%)

≤85 (30°C)

Temperature range

-40℃~+60℃

Fiber length left in tray

≥1.6m

Shock resistance

750N

Fiber Movable Connector

Up to GB/T 12507 standard

Fiber Cable

Up to GB/T 11819 & GB/T 7424 standards


Contact UnitekFiber
Contact UnitekFiber

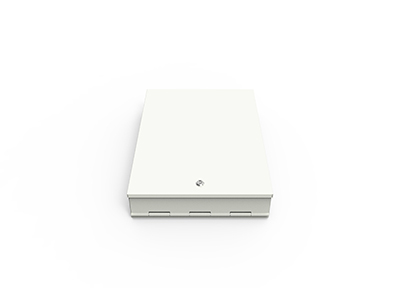

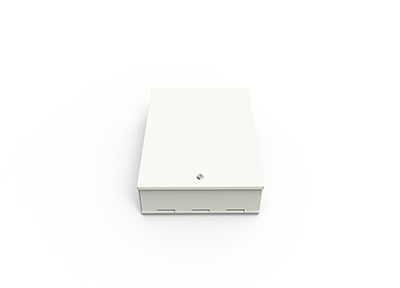

Other Wall Mount Fiber Enclosure Products
