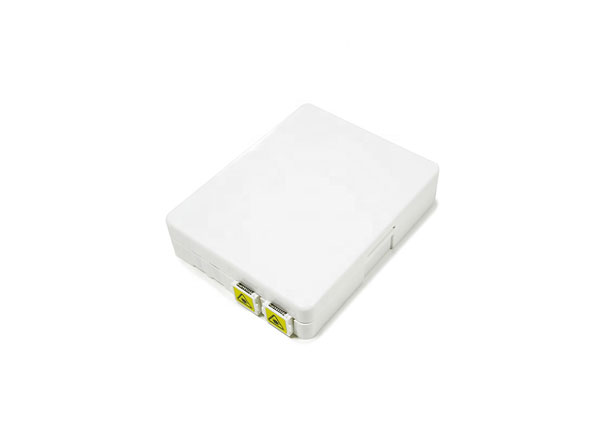

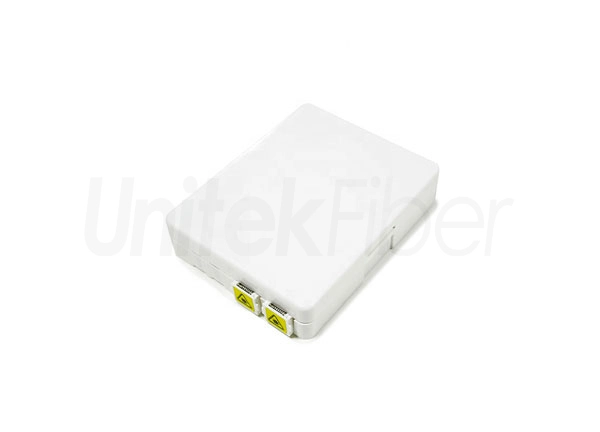

FTTH Mini Faceplate Fiber Optical Terminal Box 2 Ports

UnitekFiber provides FTTH mini faceplate terminal box with 2 and 4 ports. It is a dest mounted or wall mounted terminal box for end user and it is installed easily in different installation environments.


Fiber Optic
Details
Parameter

Details of FTTH Mini Faceplate Fiber Optical Terminal Box 2 Ports

Application:


  •  A user end product to realize optical fiber to desktop solution.

  •  It can be used in home or working area to accomplish double-core fiber access and port output.

  •  Used in the end termination of residential buildings and villas, to fix and splice with pigtails.

  •  Used in FTTH indoor application, home or work area

  •  Provide users with optical access or data access

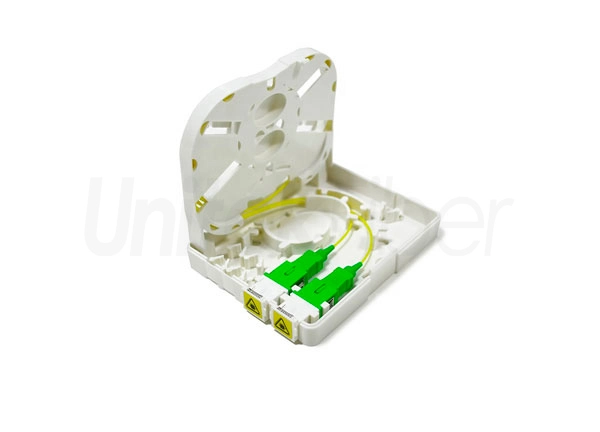

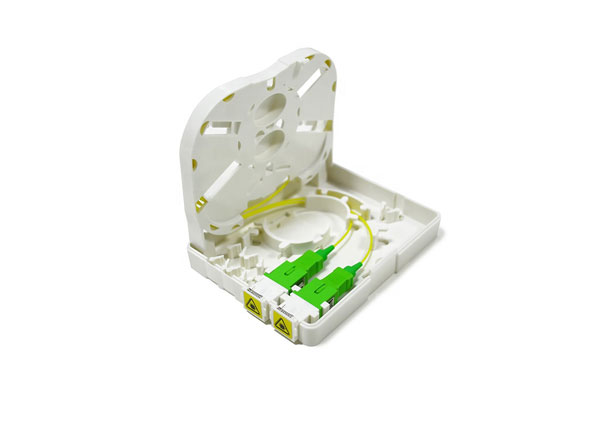

  •  Suitable for 2 pcs SC adapters

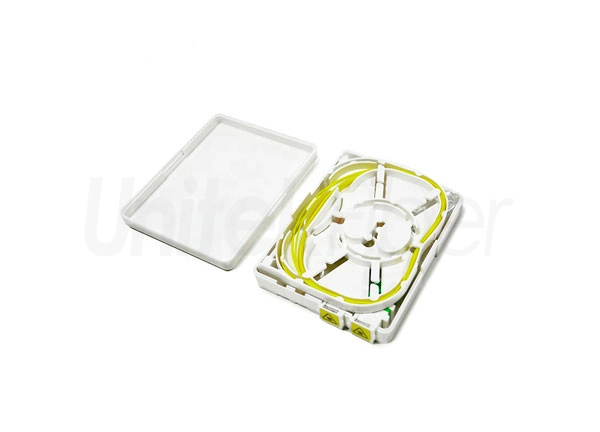

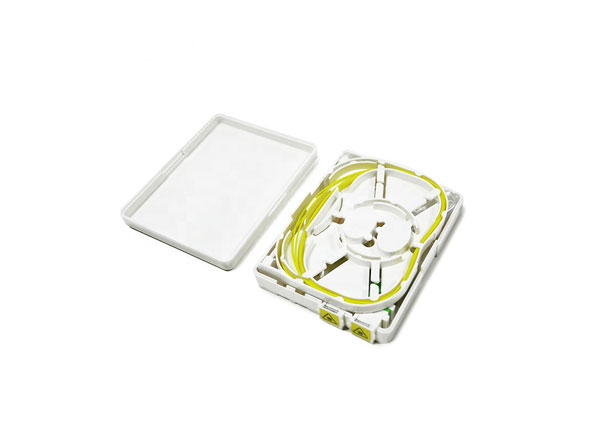

  •  May store surplus fiber inside, easy for operation


Features:


  • 1.reasonable inner space design

  • 2.sutable bending radius

  • 3.protect optical fiber

  • 4.realize FTTD(fiber to the desktop)system

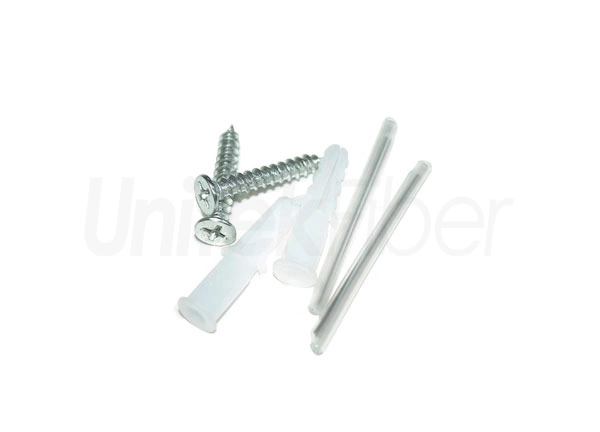

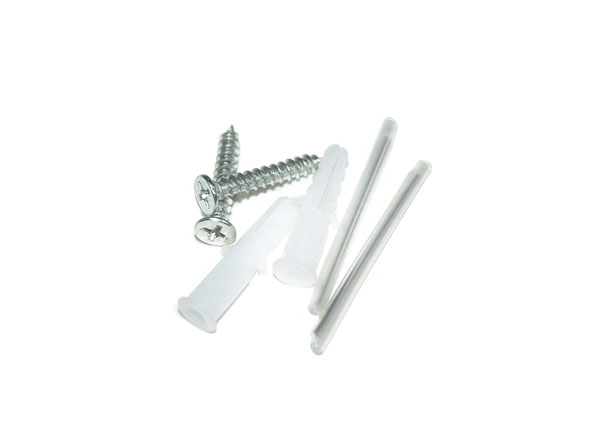

Packaging & Shipping


FTTH Mini Faceplate Fiber Optical Terminal Box 2 Ports


Production


FTTH Mini Faceplate Fiber Optical Terminal Box 2 Ports


Parameter of FTTH Mini Faceplate Fiber Optical Terminal Box 2 Ports

Item

Parameters

Scope of application

3*2mm drop cable or indoor cable

Fiber cladding diameter

125um(G652 & G657)

Fiber diameter

250um & 900um

Fiber type

SM & MM

Operating temperature

-40 ~ +85℃

Connect adapter

LC, SC, FC, ST


Configuration

Material

Size

Max Capacity

Mounting Way

Weight

Color

ABS

100*80*22mm

SC 2 ports

LC 4 ports

Desk Mounting

Wall Mounting

0.1kg

White
