Customized Fan-Out Fiber Optic Pigtail Cable Single Mode 6 12 Cores 9/125um SC LSZH

UnitekFiber provides Corning 12 colorful bulk fiber pigtails. The fiber pigtail is ususally using 0.9mm fiber cable. The cable can be 12 colors.

Installed LC, SC, FC or ST connector at the one end of the cable, the become a pigtail. Our colorful bulk pigtails is with low insertion loss, IEC, TIA/EIA, Telcordia compliant.

We offer customized fiber optic cable lengths and jacket colors.

Length
Products
Description
FAQ
Specification
Reviews
Video

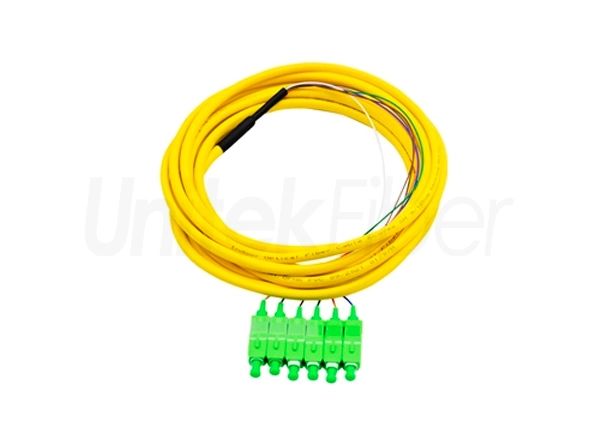

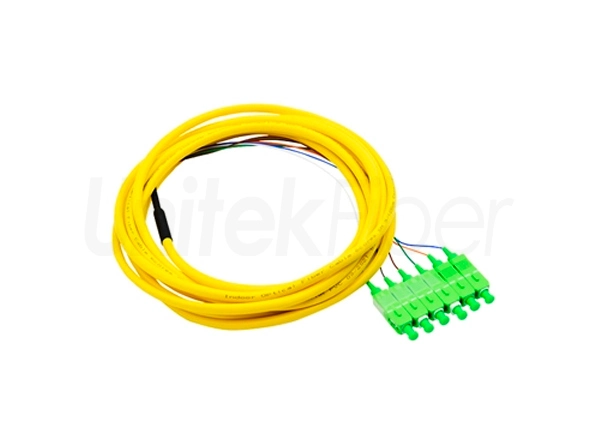

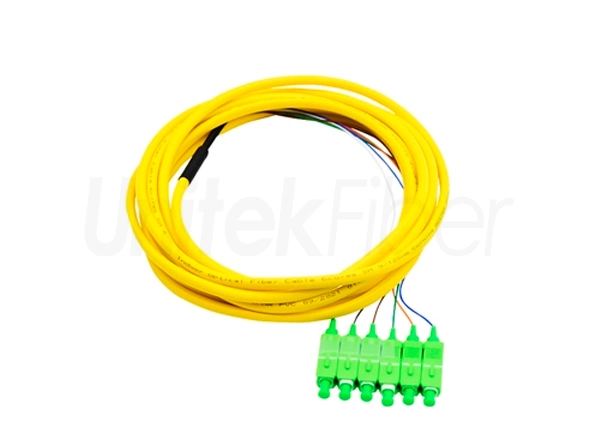

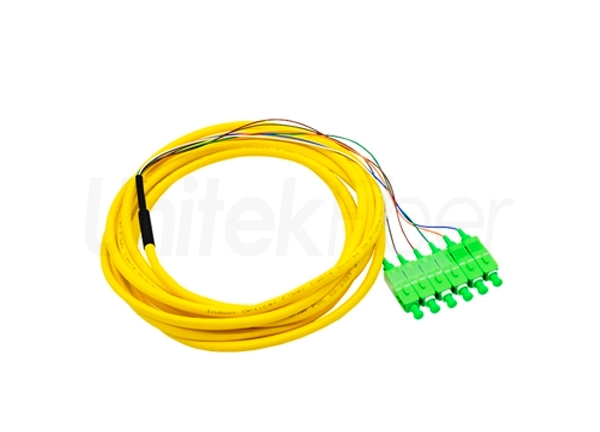

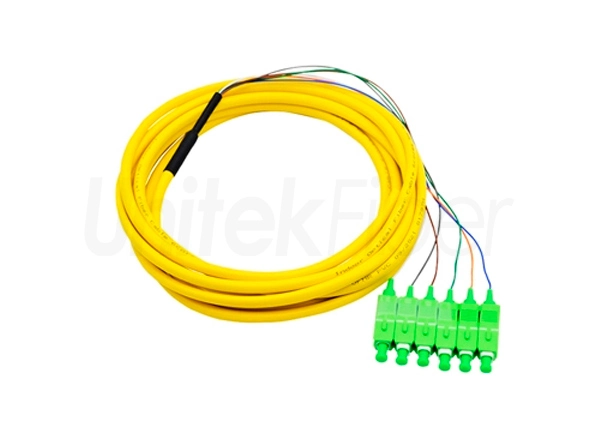

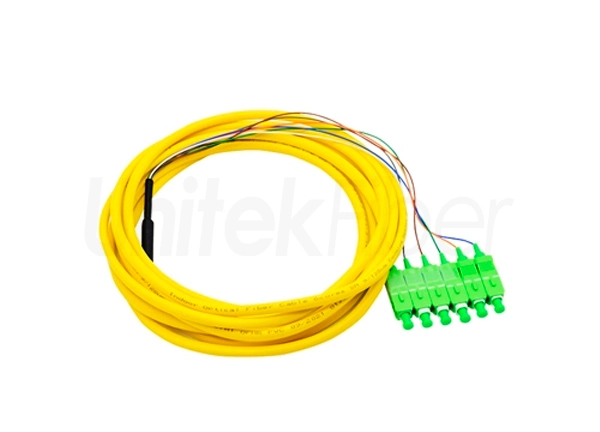

Customized Fan-Out Pigtail Cable Single Mode 6 12 Cores 9/125um Lc Lszh

Ribbon Bare Fiber Pigtail is produced by 12 colors 250um ribbon bare fiber whic is assembled SC/UPC at the one end.


Fiber optic pigtails are divided into single-mode and multi-mode fibers. The wavelength of the multi-mode pigtail is 850 wavelengths, and the transmission distance is 500m. The color of the single-mode pigtail is yellow, and the wavelength is 1310m and 1550m, and the transmission distance is 10km and 40km.


The application of fiber pigtails

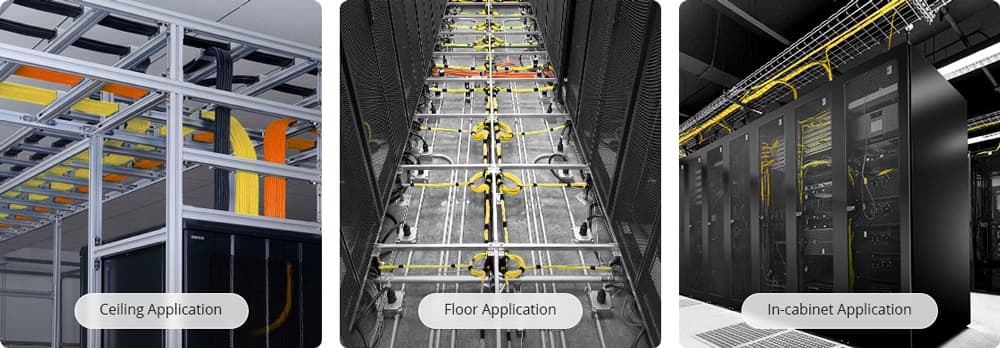

The connector of the bulk fiber optic cable is a device for detachable connection between the optical fiber and the optical fiber. It precisely butts the two end faces of the optical fiber so that the optical signal output by the transmitting optical fiber can be coupled to the receiving optical fiber to the maximum extent. And reduce its intervention in the optical link and minimize the impact on the system, which is the basic requirement of the bulk fiber optic cable connector. Bulk fiber optic cable are widely used in FTTH access network, telecommunication network, local area network, fiber optic CATV and many test equipment manufacturers. It is realized by providing manageability, flexibility and scalability. Data center management at the physical layer.



Customized Fan-Out Pigtail Cable Single Mode 6 12 Cores 9/125um Lc Lszh


Characteristics:


lUsing high precision ceramic ferrule

lLow insertion loss and high return loss

lExcellent stability and high repetition

l100% Optic test (Insertion Loss & Return Loss)


Application:


lTelecommunication Network

lFiber Broad Band Network

lCATV system

lLAN and WAN system

lFTTP

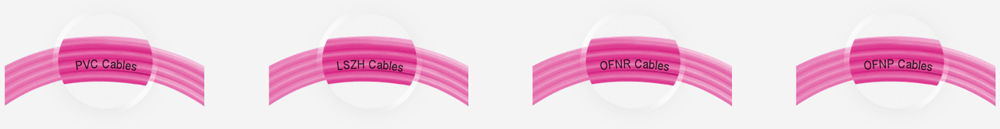

Different outer sheath materials meet your different wiring requirements


The main difference between these materials is their fire-retardant properties, with LSZH offering the highest level of fire protection and OFNR being suitable for indoor riser applications. Additionally, LSZH has lower smoke emission and toxicity in case of burning compared to PVC, making it a preferred choice for sensitive environments like data centers and hospitals.


Customized Fan-Out Pigtail Cable Single Mode 6 12 Cores 9/125um Lc Lszh


Packing & Delivery


Customized Fan-Out Pigtail Cable Single Mode 6 12 Cores 9/125um Lc Lszh


Once I place an order for my optic transceiver , how long will it take to receive them?

Unitekfiber supply a huge volume of fiber optic cable,most of fiber cable have a short lead time,7-10days.

I wonder what's the difference between OFNP and LSZH cable jacket?

OFNP have the highest rated fire retardant where it emits little smoke during combustion, LSZH cable jacket is composed of thermoset compounds that emit limited smoke and no halogen when exposed to high sources of heat.

Can you accept OEM/ODM transceiver module order?

Yes, please send inquiry to us or email us sales@unitekfiber.com.

Will the numbering be on the connector part of distribution fiber pigtail?

Yes, each connector has a number label, which displays"1,2,3...".

How many fiber cores for your bulk fiber pigtail?

It can be 6 12 cores.

Jordan
May 05, 2023

These just work! What a great value unit.

Verified Purchase
Helpful 0
Lemon
May 05, 2023

Amazing fiber pigtail , amazing quality.

Verified Purchase
Helpful 0
Steve
May 05, 2023

I received the optical pigtail very quickly. And it can be used well.

Verified Purchase
Helpful 0
Bill
May 05, 2023

Excellent fiber pigtail - works as advertised.

Verified Purchase
Helpful 0
Jack
May 05, 2023

Good service, on time deliveries. Excellent cable and good price.

Verified Purchase
Helpful 2
