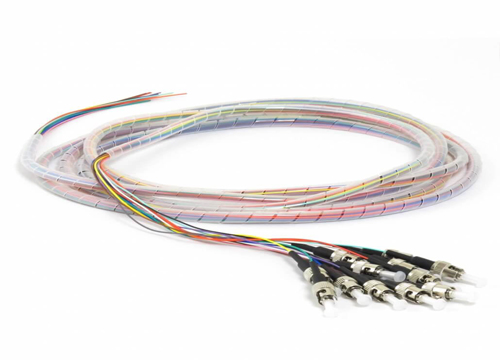

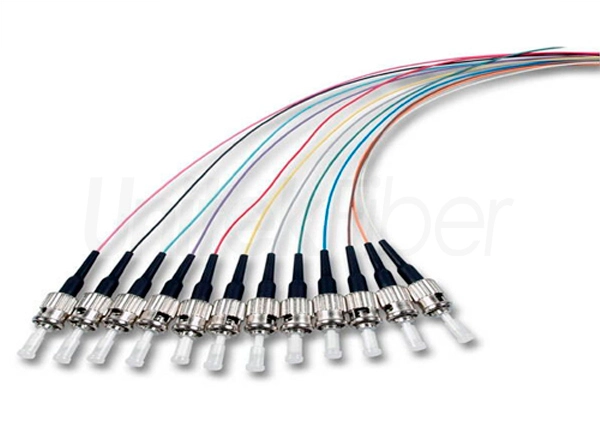

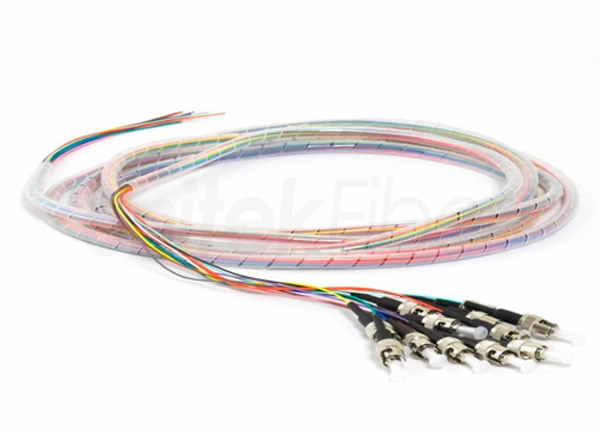

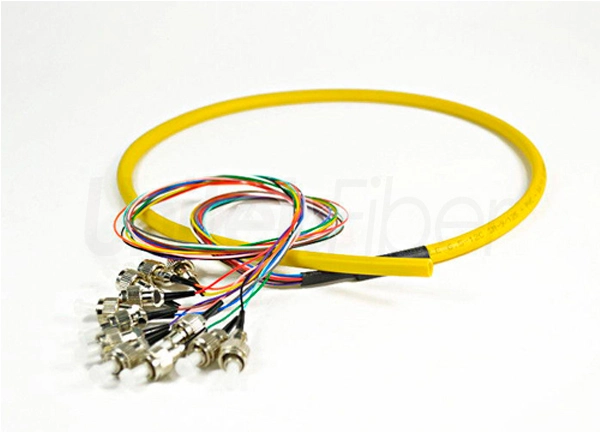

Fiber Optic Pigtail ST 12 Colored Tight Buffered Pigtails UPC APC 0.9mm G657A

UnitekFiber produces 12 colored fiber pigtails. ST 12 colored fiber pigtails mean that there are 12 cores of the fiber cable in 0.9mm diameter connect with ST termination at one end.

Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Fiber Optic Pigtail ST 12 Colored Tight Buffered Pigtails UPC APC 0.9mm G657A

The pigtail cables can be 0.5m, 1m.3m and 5m long according to the customers' requests. The 12 colored pigtails is used in fiber terminal box, fiber closure etc. to connect the outside coming fiber cable.


Characteristics:


  • Low Insertion loss

  • High return loss

  • Good Repeatability

  • Good Interchange

  • Excellent Environmental Adaptability


Application:


  • Communication rooms

  • FTTH (Fiber to The Home)

  • LAN (Local Area Network)

  • FOS (fiber optic sensor)

  • Fiber Optic Communication System

  • Optical fiber connected and transmitted equipment

  • Defense combat readiness


Packaging and Shipping


Fiber Optic Pigtail ST 12 Colored Tight Buffered Pigtails UPC APC 0.9mm G657A

Production


Fiber Optic Pigtail ST 12 Colored Tight Buffered Pigtails UPC APC 0.9mm G657A

Parameter of Fiber Optic Pigtail ST 12 Colored Tight Buffered Pigtails UPC APC 0.9mm G657A

Parameter

Unit

Mode Type

PC

UPC

APC

Insertion Loss

dB

SM

≤0.3

≤0.3

≤0.3

MM

≤0.3

≤0.3

-----

Return Loss

dB

SM

≥50

≥50

≥60

MM

≥35

≥35

-----

Fiber cable

Diamete

PVC, LSZH

Material

PVC, LSZH

Connector type


SC, LC. ST. FC

Repeatability

dB

Additional loss<0.1db,return loss< 5 dB

Interchangeability

dB

Additional loss<0.1db,return loss< 5 dB

Connection times

times

>1000

Operating Temperature

-40℃- +75℃

Storage Temperature

-40℃- +85℃





Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
