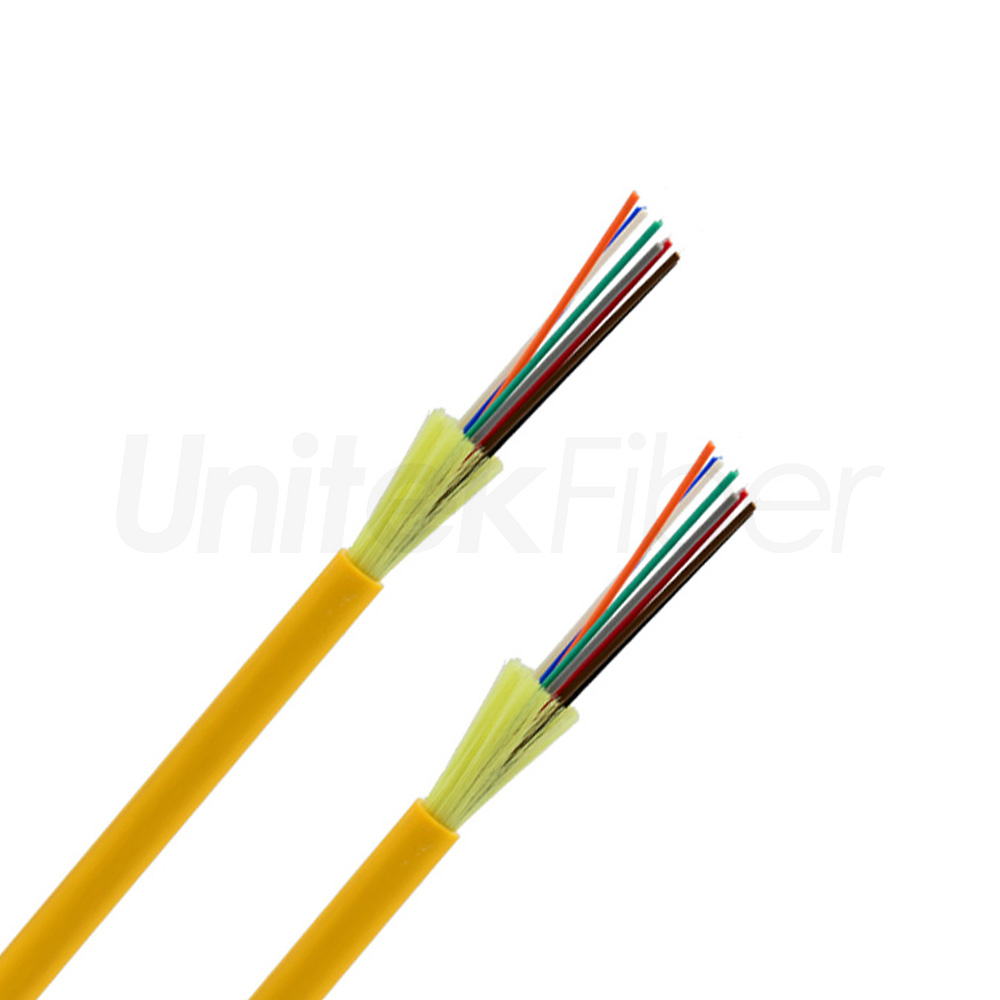

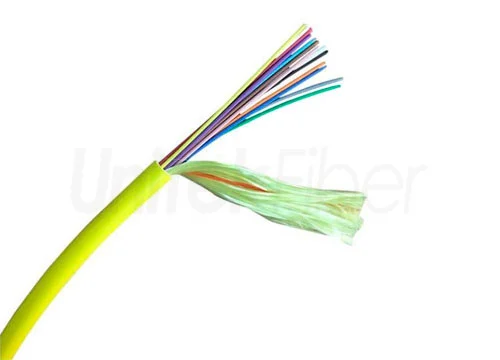

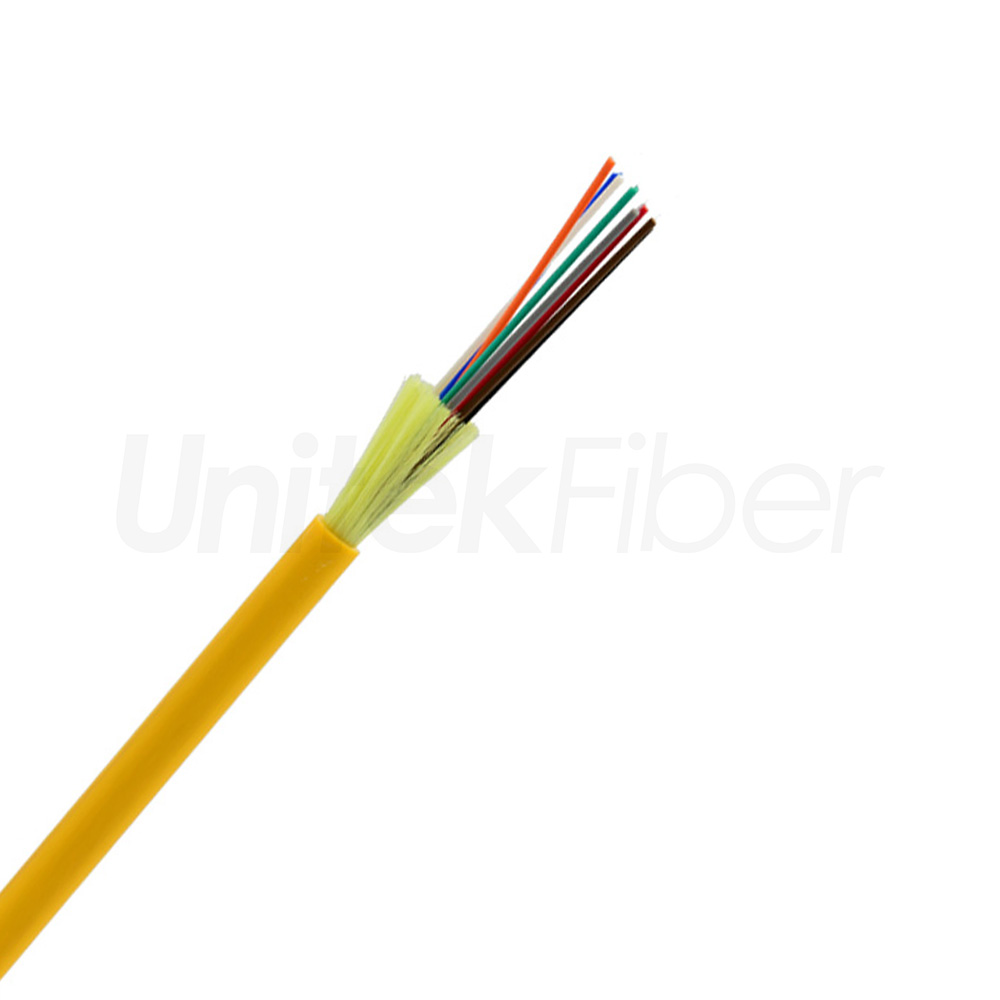

Indoor Distribution Fiber Optic Cable GJFJV 2-24 Cores Central Tube 0.9mm 0.6mm Aramid Yarn LSZH

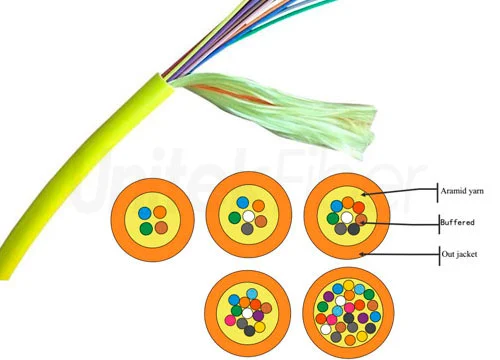

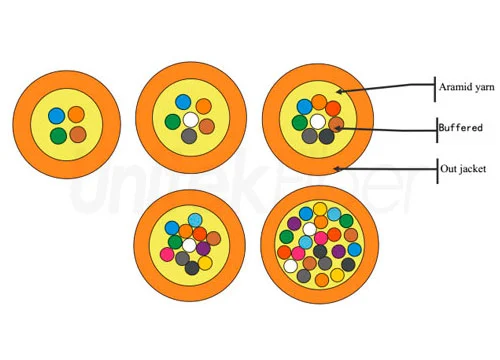

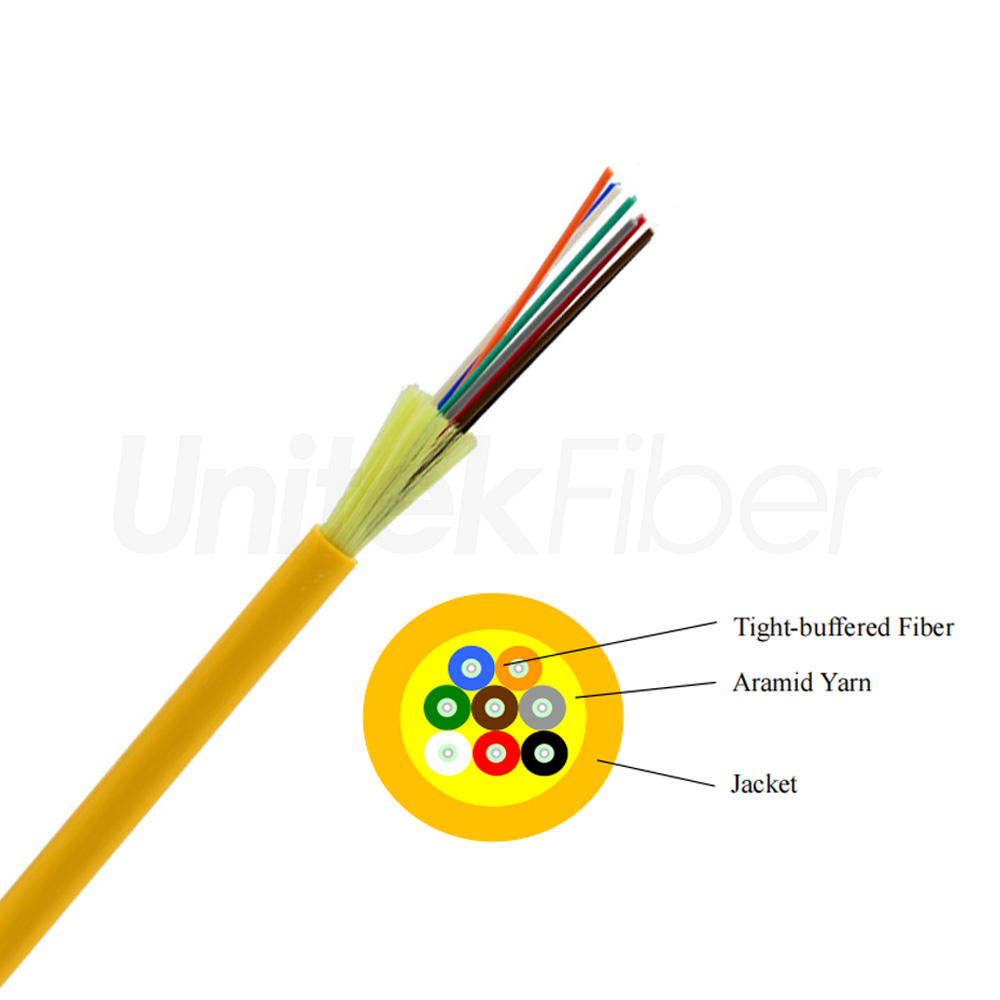

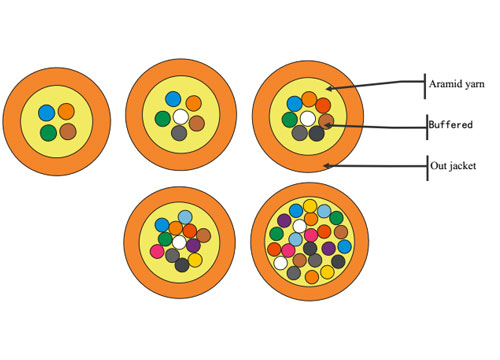

The structure of central tube distribution fiber optic cable is inside with 2~24 cores of 0.9mm or 0.6mm tight buffered fiber cables. And the tight buffer fiber cables is wrapped with a layer of Kevlar yarn as strength member.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Indoor Distribution Fiber Optic Cable GJFJV 2-24 cores Central Tube 0.9mm 0.6mm Arami

The cable outer jacket is completed with PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) material.


Features:


  • High strength Kevlar yarn member

  • Tight buffered design

  • Round construction


Application:


  • Adopted to Indoor distribution

  • As patchcord and pigtail of communication equipment

  • Suitable for communication equipment served

  • Can be installed conveniently and operated simply


Packaging & Shipping


Indoor Distribution Fiber Optic Cable GJFJV 2-24 Cores Central Tube 0.9mm 0.6mm Aramid Yarn LSZH


Parameter of Indoor Distribution Fiber Optic Cable GJFJV 2-24 cores Central Tube 0.9mm 0.6mm Aramid

No. of Cable

24

Fiber Model

G.652D

Strength Member

Material

Aramid yarn

Tight lines

Material

PVC

Diameter(±0.06)mm

0.9

Thickness(±0.03)mm

0.30

Outer Sheath

Material

PVC

Thickness(±0.1)mm

1.2

Cable Diameter(±0.2)mm

8.5

Cable Weight(±5)kg/km

73

Min. bending radius

Without Tension

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70

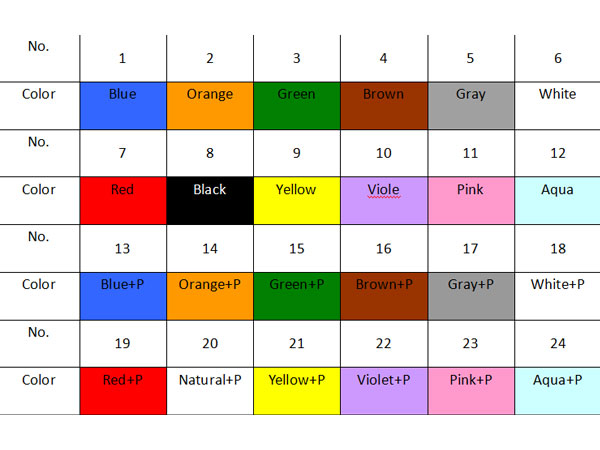

Fiber Color

Central Tube Distribution Fiber Optic Cable for Indoor GJFJV


How many cores are in the breakout indoor fiber optic cable?

Breakout fiber optic cable consist of two or more simplex cables bundled with a strength member and central member covered with an outer jacket.

What material is the outer sheath of breakout indoor fiber optic cable?

The sheath material of breakout indoor fiber optic cable is LSZH, PVC, and OFNP.

Can you tell me the advantage of indoor breakout fiber optic cable?

It has the features of corrosion resistance, waterproof, ultraviolet protection, flame retardant, environmental protection.

Why does breakout indoor fiber cable need aramid yarn?

The indoor optical cable uses aramid yarn as a reinforcing member to protect the optical fiber.

How many fiber cores for breakout indoor fiber optic cable?

2-288cores.

Download

Reviews

Bradley
Jul 14, 2022

Great fiber. Keep me regular. Worked as intended.

Verified Purchase
Helpful 0

Video
Contact UnitekFiber
Contact UnitekFiber

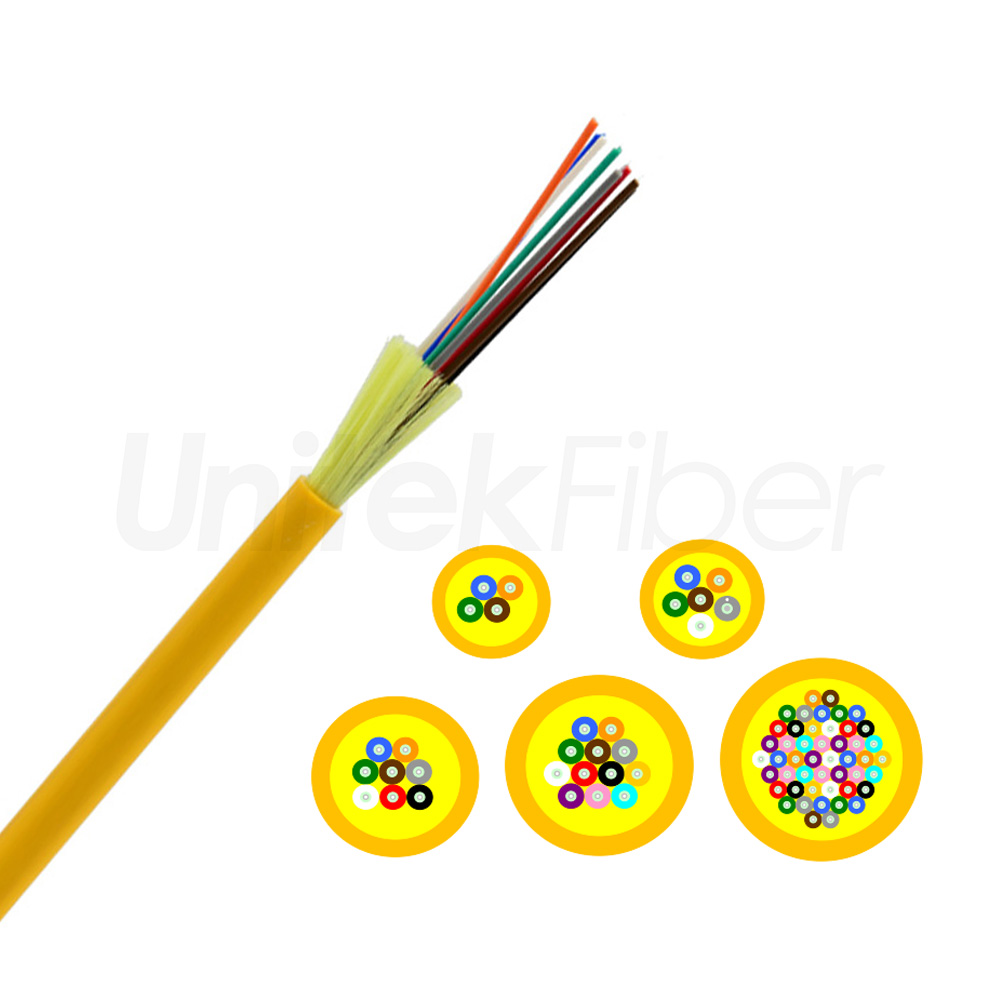

Other Breakout Indoor Fiber Optic Cable Products
