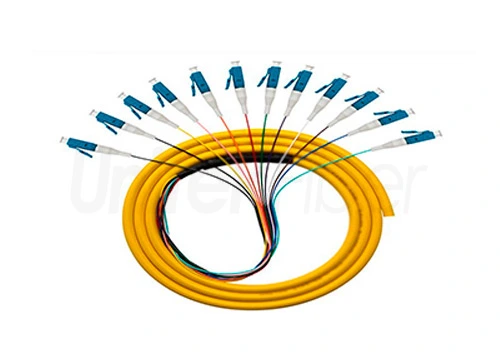

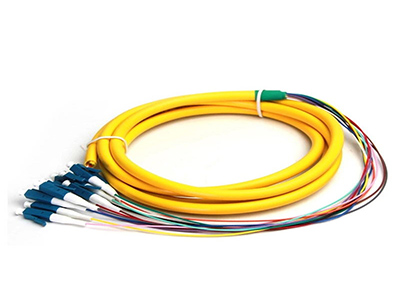

Bulk Fiber Optic Distribution Pigtail 12 Fibers LC SM G652D G657 3M Corning OFNR

UnitekFiber bulk fiber distribution pigtails are designed to realize simplex or duplex multimode fiber's interactive connections. The pigtails support network speed updating transmission and transportation area signal transfer. Our pigtails are available in OM1, OM2, OM3, OM4, G652D, G657 fiber glass.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

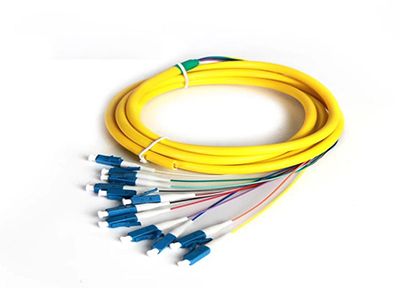

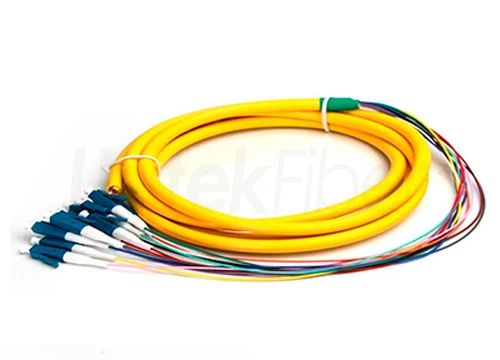

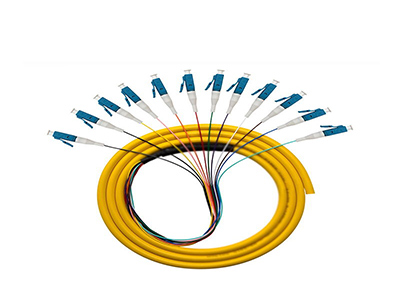

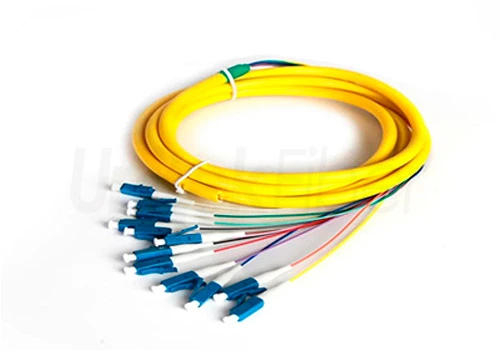

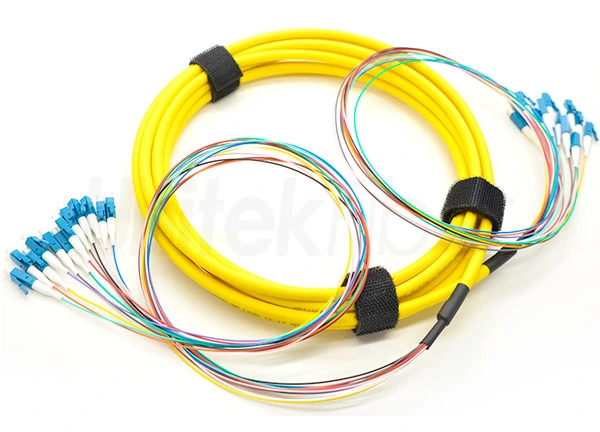

Description of Bulk Fiber Optic Distribution Pigtail 12 Fibers LC SM G652D G657 3M Corning OFNR

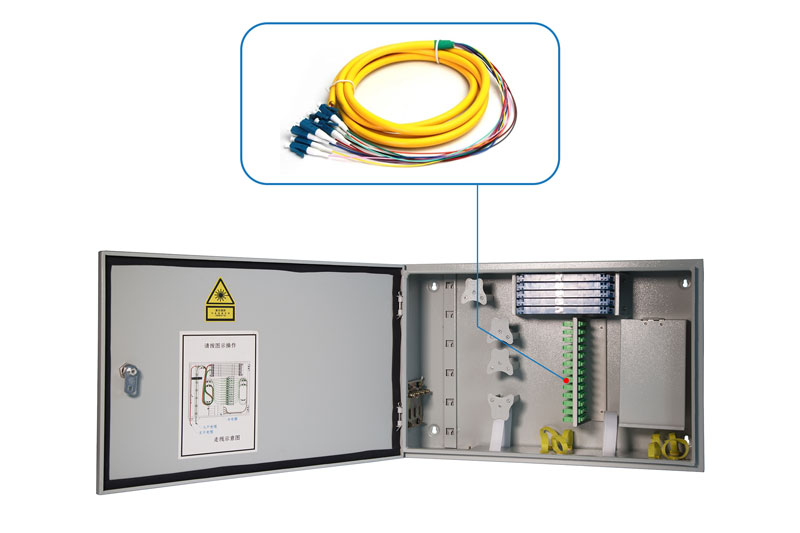

Applications:


  • Telecommunications networks

  • CATV, LAN, MAN and WAN application

  • Data processing networks

  • Cable television

  • Fibre-To-The-Home (FTTH)

  • Premises distribution


Features:


  • 100% pre-terminated and tested in factory to ensure transfer performance

  • Rapid configuration and networking, reduce installation time

  • Supports 40G and 100G network applications

  • Jacket material: LSZH, OFNR, OFNP available

  • Available in OM1, OM2, OM3, OM4, G652D, G657 fiber glass

  • Supports up to 4F, 8F, 12F, 24F, customized products are available

  • OEM service is avaibable


Physical Information

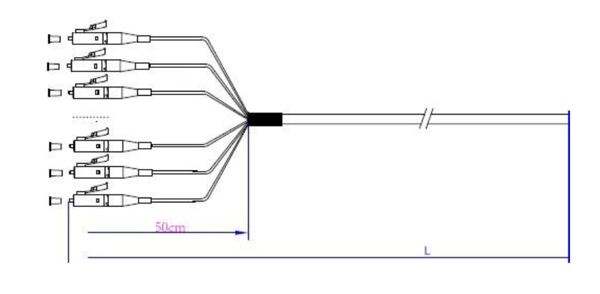

LC Pigtail Fanout Drawing


LC Pigtail Fanout drawing


FC Pigtail Fanout Drawing


FC Pigtail Fanout drawing


SC Pigtail Fanout Drawing


SC Pigtail Fanout drawing



ST Pigtail Fanout Drawing


ST Pigtail Fanout drawing


Quality Control


  • Connector attenuation comply with “Grade A” according to IEC 61753 and IEC 61300-3-34(0.12dB mean,

    <0.25db max for >97% of samples,Return Loss >55dB)

  • All products factoy tested

  • Geometrical Characteristics comply with IEC 61755-3-1

  • All materials comply with IEC and ROHS


Our test program including: end face test,3D interferometer test, singlemode IL&RL test, multimode IL&RL test.

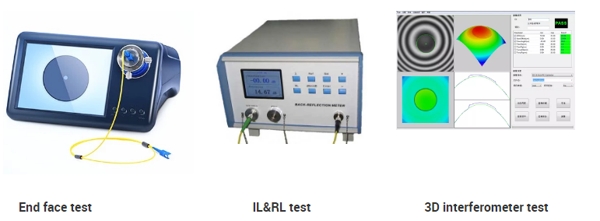

Our Tests


High Quality MTP/MPO Cable Guarantee


High Quality MTP/MPO Cable Guarantee

Packaging & Shipping


Packaging & Shipping


Production


Bulk Fiber Optic Distribution Pigtail 12 Fibers LC SM G652D G657 3M Corning OFNR


Parameter of Bulk Fiber Optic Distribution Pigtail 12 Fibers LC SM G652D G657 3M Corning OFNR

Optical Specification

Connector

SC,FC,LC,ST,MU,E2000

Polishing

SM/UPC

MM/PC

SM/APC

Insertion Loss(max)

≤0.30dB

≤0.25dB

≤0.30dB

Return Loss(min)

≥50 dB

≥35 dB

≥60 dB

Tensile Strength

>300N

Durability

<0.20 dB typical change, 1000 matings

Repeatability

≤0.1dB

Storage , Operating Temperature [°C]

-40~+85


Geometric Specification (For special request)



PC End-face

APC End-face

Radius of Curvature

SC/FC/ST

10~25 mm

5~12 mm

LC/MU

7~25 mm

5~15 mm

Apex Offset


≤50 um

Fiber Spherical Height


+/- 50 nm

Angular Offset


     ——

8°±0.2°
