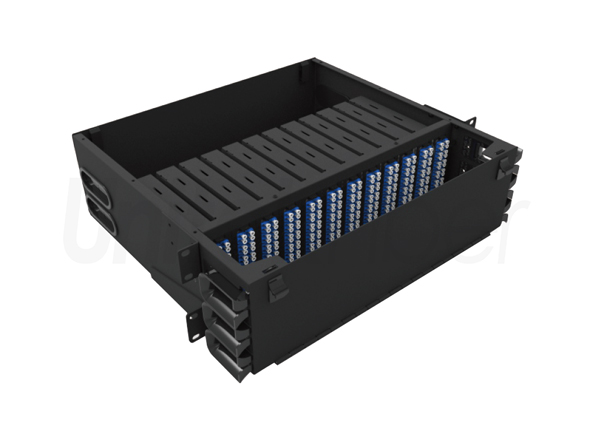

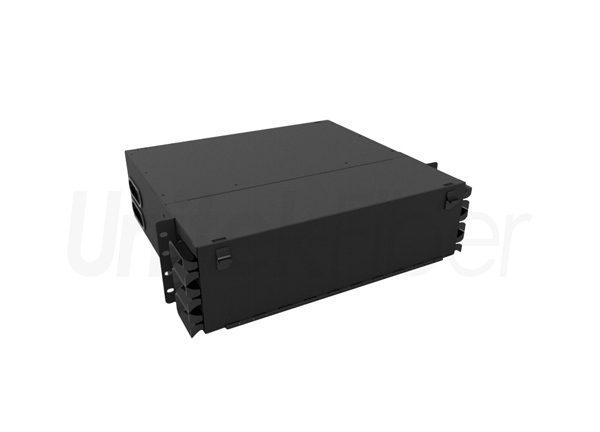

MPO/MTP Patch PanelHigh Density 3U 288 Core 19 Inch Rack Mount Fiber Optic ODF Loaded MPO LC SC Cassettes

The 3U 19 inch rack mount MTP/MPO patch panel with 288 cores is a compact and efficient solution for managing optical fiber cables in data centers or telecom networks. This fiber optic ODF is designed to accommodate up to 288 fiber cores and is specifically built for managing and distributing high-density fiber optic patch cable. The fiber patch panel is compatible with MTP/MPO connectors, enabling quick and reliable connections. It features easy cable management options, both front and rear connectivity, and a modular design for scalability. UnitekFiber manufactures MPO/MTP patch panels with clear labels for easy identification, simplifying installation, maintenance and troubleshooting. Overall, MPO/MTP patch panel cabling provides a reliable and space-saving solution for high-density optical fiber cable management.


Products
Description
FAQ
Specification
Reviews
Video

MPO/MTP Patch Panel|High Density 3U 288 Core 19 Inch Rack Mount Fiber Optic ODF Loaded MPO LC SC Cas

Characteristics of the Rack Mount MTP/MPO Patch Panel

1. High density wiring application condition

2. Standard 19''

3. High-density, 3U 288 fibers

4. Sliding drawer, easily installed

5. Can be loaded ABS MPO module cassette or LC/SC/FC fiber adapters panel

6. Sprayed surface treatment process

7. Customizable color and LOGO

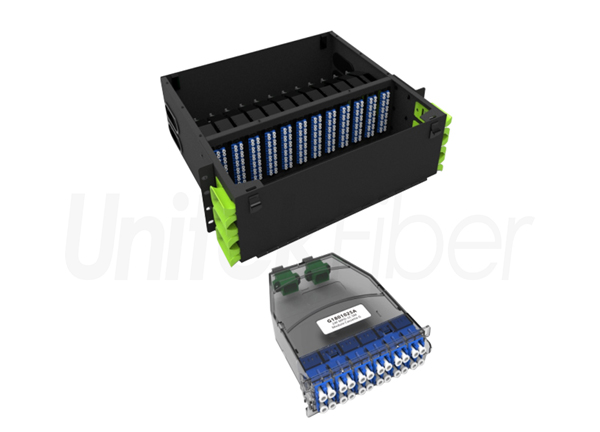

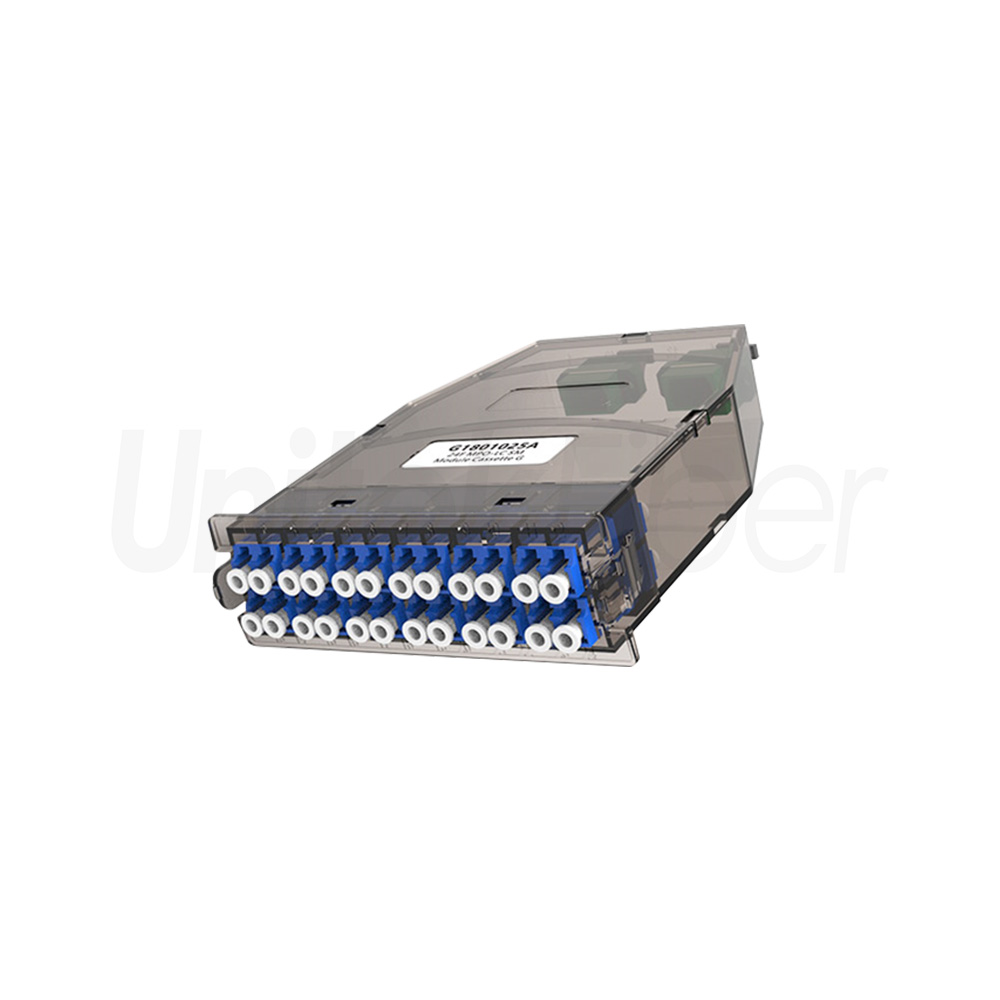

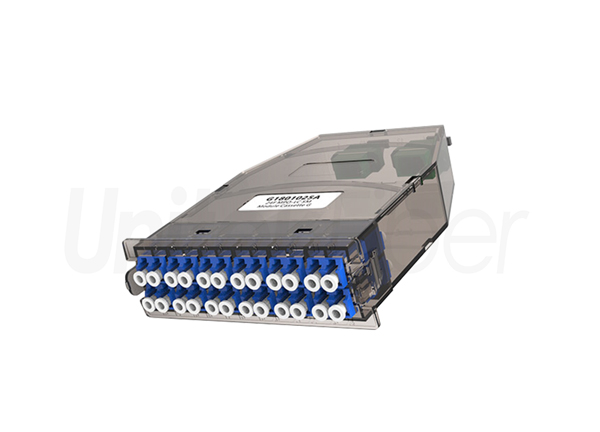

What is MTP/MPO module Cassette?

The MTP/MPO module cassette is an enclosed unit that usually include fiber optic connectors such as SC fiber optic connector and LC connector plugged into fiber optic adapters on the front side of the MTP/MPO module cassette and MPO/MTP connector plugged into the rear. This MPO/MTP patch panel can install 12pcs MPO module cassettes vertically. Using MTP/MPO fiber cassette ensures adaptability for the ever-changing data center and network environment. When requirements for fiber optic connectors change in the future, all you have to do is simply swap out the MTP/MPO fiber cassette all while leaving the existing backbone infrastructure intact.

odf fiber panel

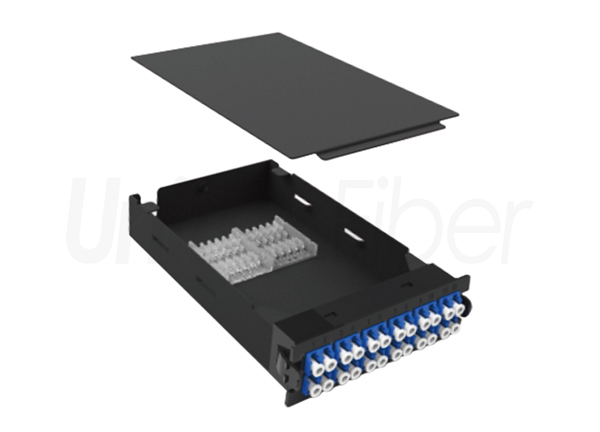

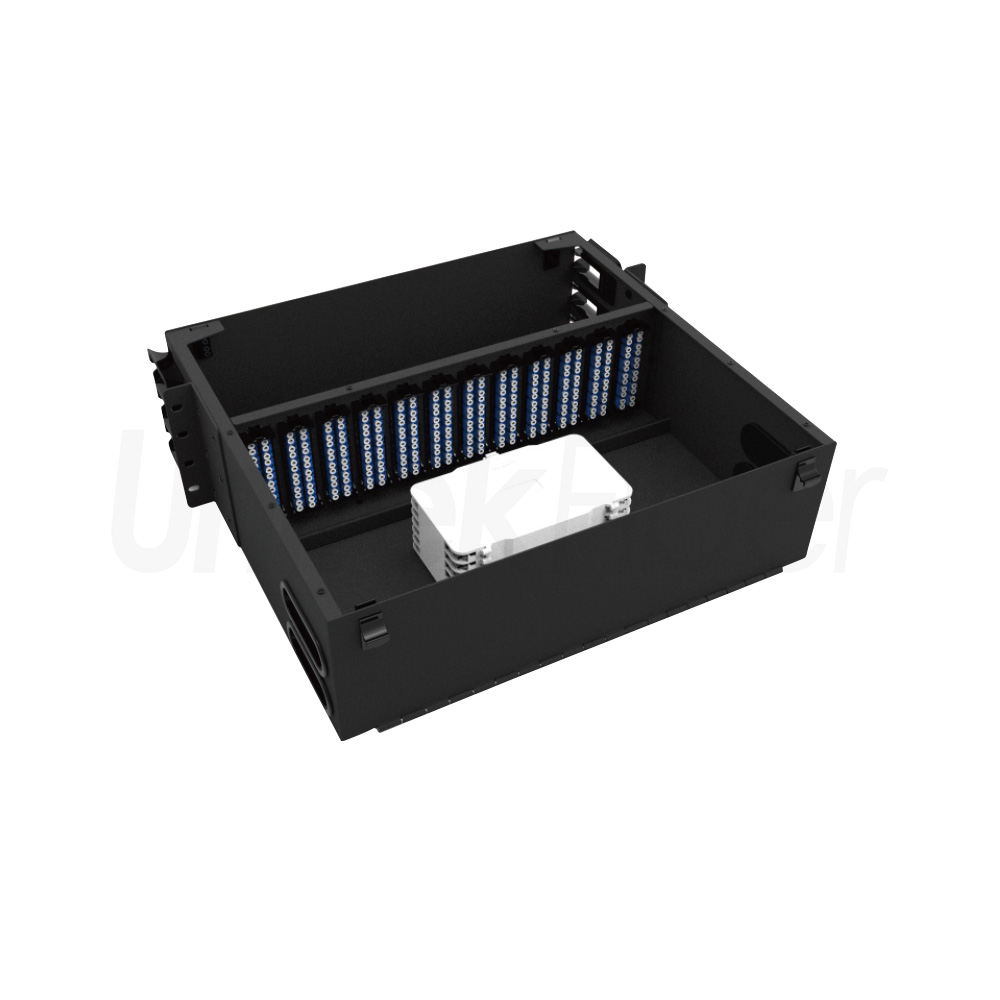

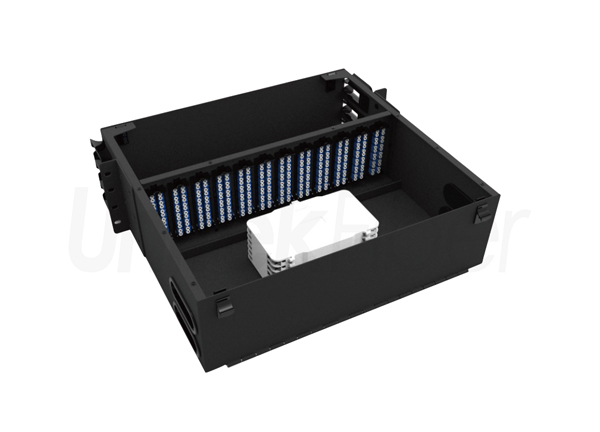

Adapter Panel and Splice Tray Functions

MPO/MTP patch panels are an important component of optical fiber cable infrastructure, not only housing MPO/MTP module cassettes, but also splicing optical fibers using LC/SC fiber optic adapter panels and fiber optic splicing trays. This flexibility enables fiber optic ODF to support a variety of fiber optic cable configurations, making them ideal for use in a variety of environments requiring high-density fiber management. Whether you are operating a data center or building a fiber optic cable management network, MPO/MTP patch panels are an excellent choice for managing and distributing fiber optic patch cable.

corning 12 strand lc single mode pigtail


Boost Network Efficiency with High-Density MTP/MPO Patch Panels

High density MTP/MPO patch panels feature a compact design that allows for a significantly higher port density compared to traditional fiber patch panels. By utilizing MTP/MPO patch panels, organizations can maximize their network efficiency by increasing the number of available optical fiber cable management. This translates into higher data throughput, reduced latency, and improved overall network performance. With their easily to managing fiber optic patch cable and support high-speed data transmission, these MTP/MPO patch panels empower to keep up with the ever-growing demands of modern networking environments.

direct buried optical cable

What is the purpose of a MTP/MPO patch panel?

The MTP/MPO patch panel acts as a centralized termination point for fiber patch cable and provides a secure and organized interface for connecting and managing high-density fiber optic management.


What is the capacity of this MTP/MPO patch panel?

This type of MTP/MPO patch panel has a capacity of 288 optical fibers.


Can I mix single mode and multimode optical fibers in a MTP/MPO patch panel?

Yes, you can mix different optical fiber types in the MTP/MPO patch panel.


How can I get a sample to check your quality?

If you need sample to test, please contact our sales team or email us sales@unitekfiber.com.


How do I manage the cable routing in a MTP/MPO patch panel?

Optical cable management accessories such as optical cable ties, or fiber splicing trays are commonly used to organize and route the fiber patch cord within the rack.


The MPO patch panel exceeded my expectations! The high-density design allowed me to efficiently manage a large number of fiber connections.


The MPO patch panel provided seamless connectivity and easy installation, making it a reliable choice for our fiber optic network.


The fiber optic ODF has greatly improved our network performance.


The fiber modular cassette design made installation and management a breeze.


The price of the MPO patch panel is very favorable. Not only that, the delivery speed is amazingly fast.
