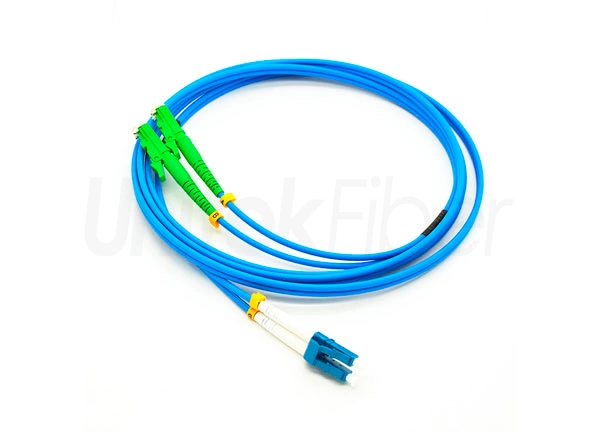

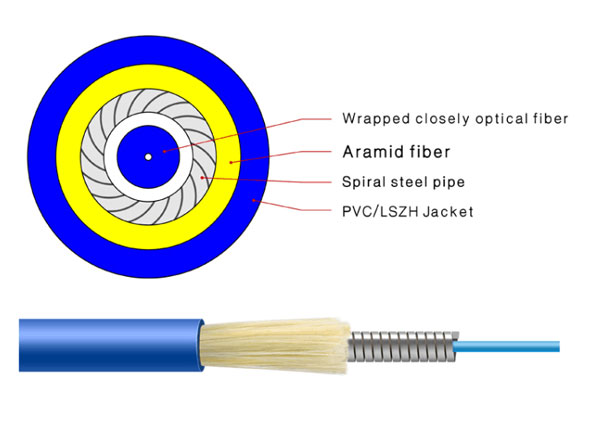

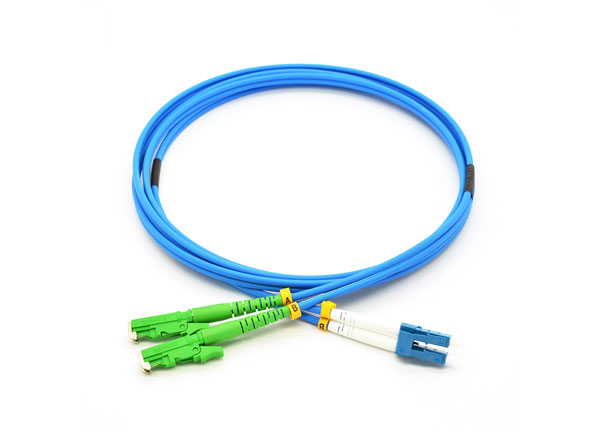

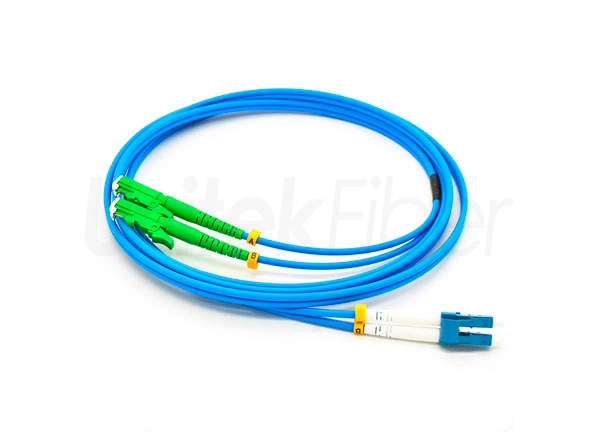

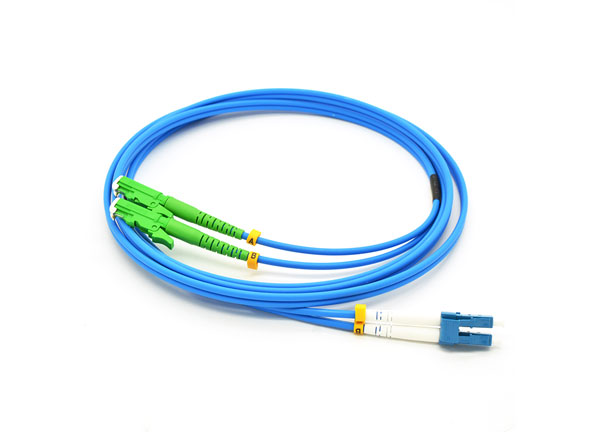

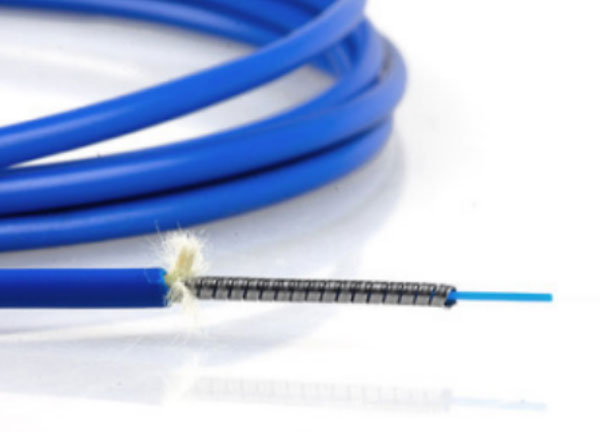

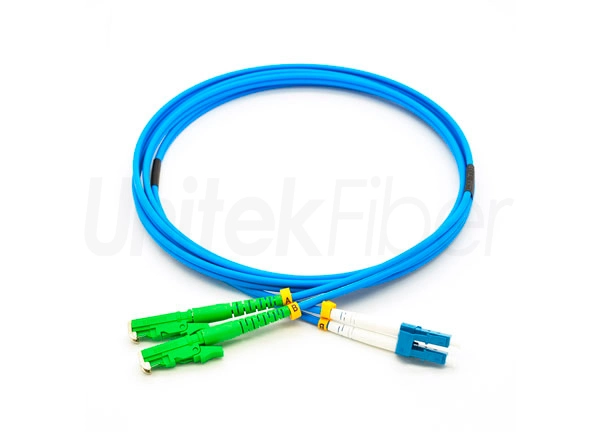

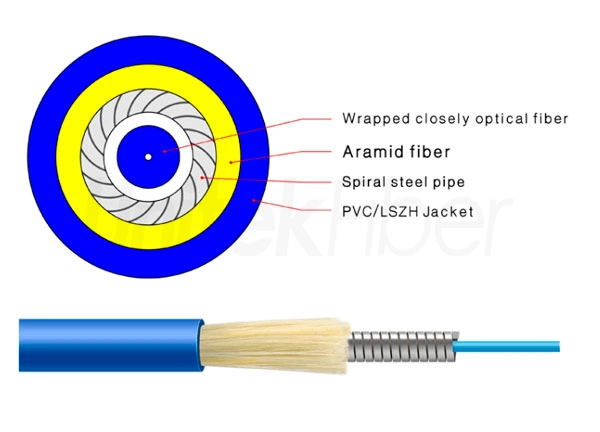

The armored optical fiber patchcord(jumper) is a new type of fiber optic jumper. It is specially designed with a layer of stainless steel sleeve to protect the optical fiber. It has the advantages and functions of standard fiber optic jumper and has the durability of armor.
High reliability;
CE & RoHS compliant;
100% connectors tested;
Repeatability: >1000 times;
Deliery 100% passed products;
Insertion Loss(SM): Typical<0.2dB, Max<0.3dB;
Return Loss: UPC>50dB, APC>60dB;
Telecommunications
Local Area Network (LAN)
Fiber to the home (FTTH)
Optical patch panels
Testing Instruments
CATV
Item | Unit | FC,SC,LC | ST,MU | MT-RJ, MPO | E2000 | ||||||||
SM | MM | SM | MM | SM | MM | SM | |||||||
PC | UPC | APC | PC | UPC | PC | PC | PC | UPC | PC | PC | UPC | ||
Insertion loss(typical) | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 |
Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
Exchengeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
Cable Diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | ||||||||
Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.
Normally about 7 days after confirmation.
Normally 7-20 days depends on products and order quantities.
Yes, we provide customized service and can do artworks including printing, logo, etc. for you.
YES, OEM is welcomed.
Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
Very good service and quality.
The fiber cable was very easy to pull both indoor & outdoor. It's not stiff, went thru conduits nicely.
