GYXFTY All Dielectric Self Supporting Cable is a round structure fiber cable which applied for outdoors, overhead, and through the pipe. GYXFTY fiber cable features small diameter, light weight, low price and wasy to installation.The optical fibers can be single mode G652D and G657, also can be multimode OM1, OM2, OM3 etc.

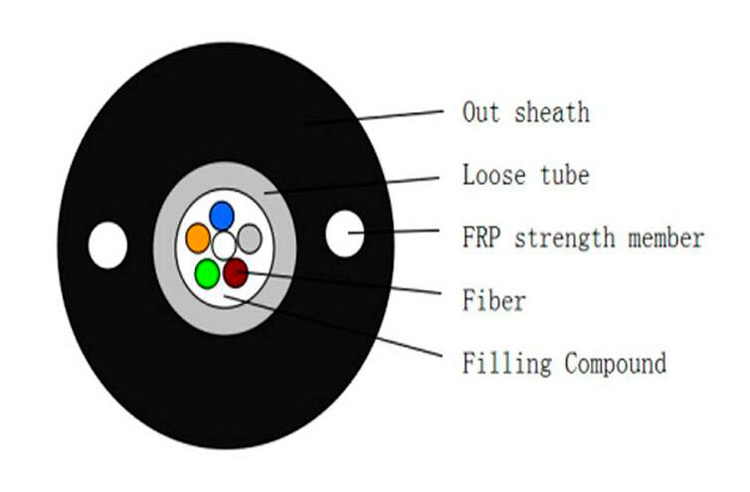

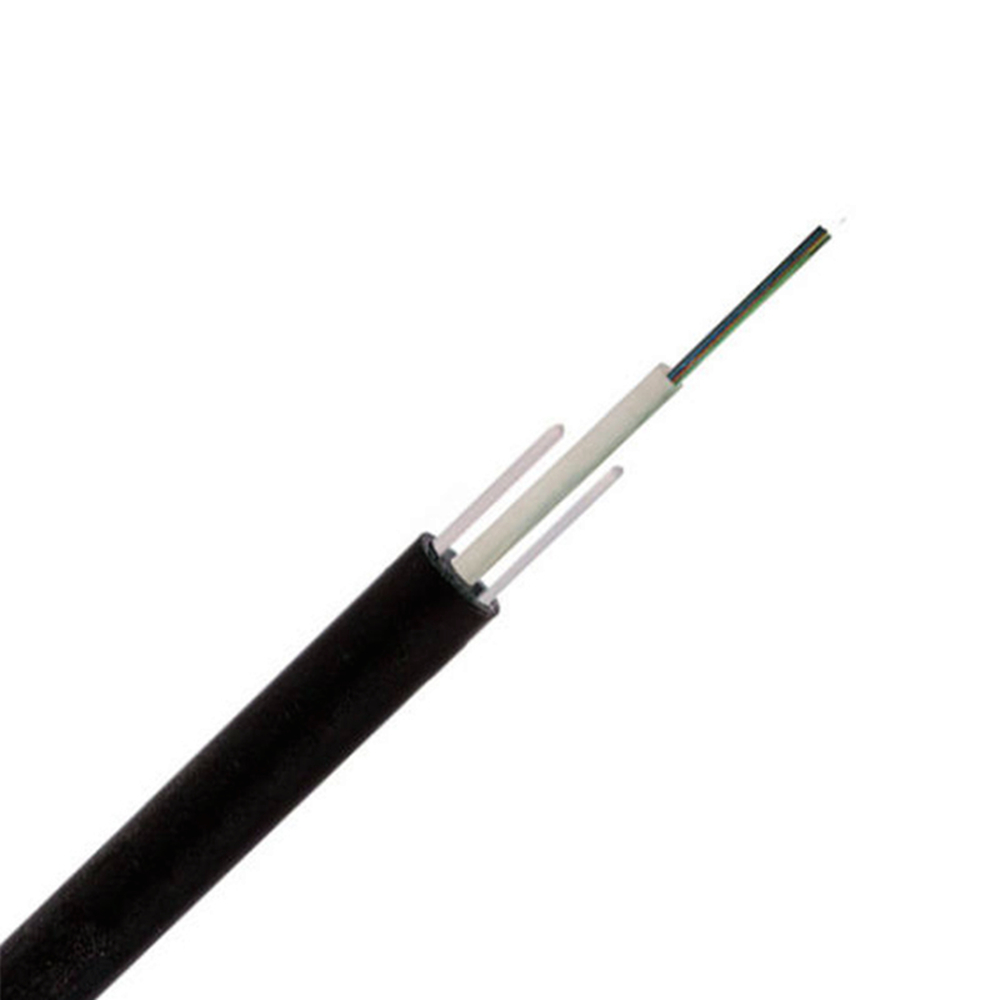

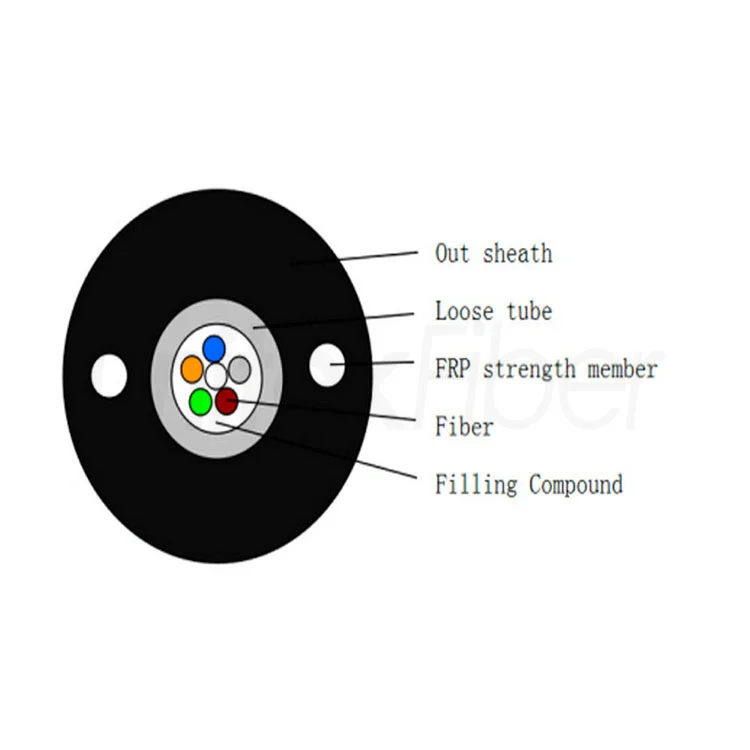

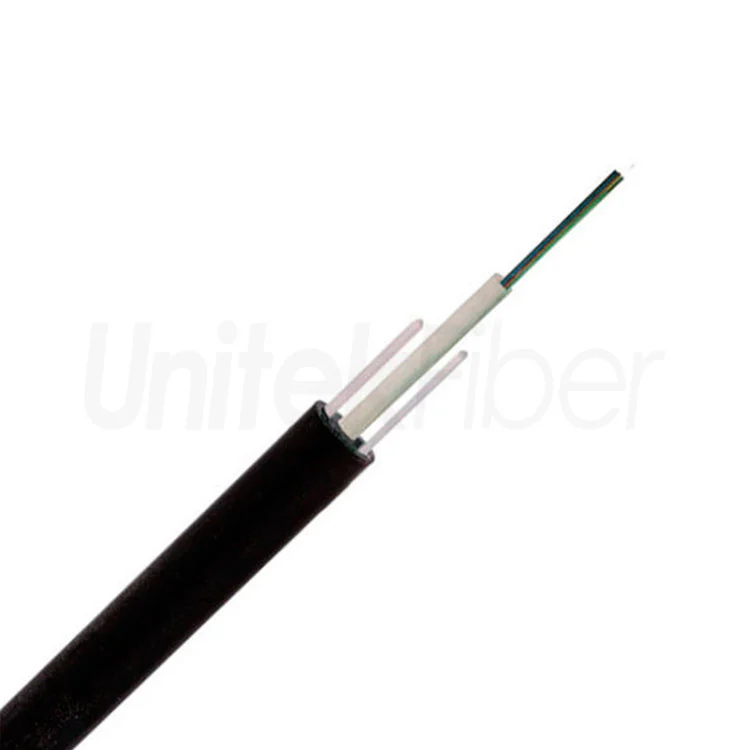

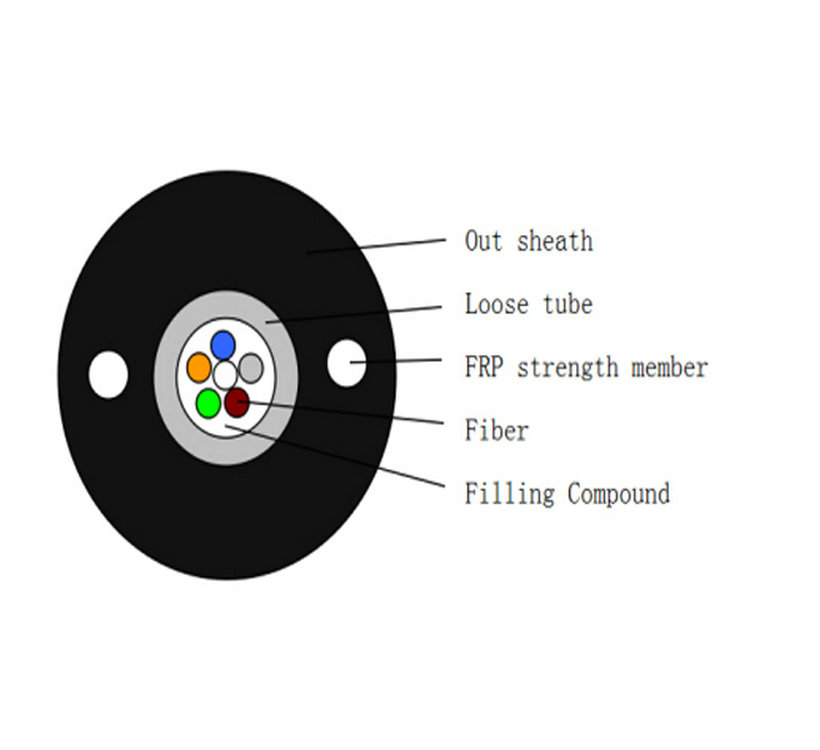

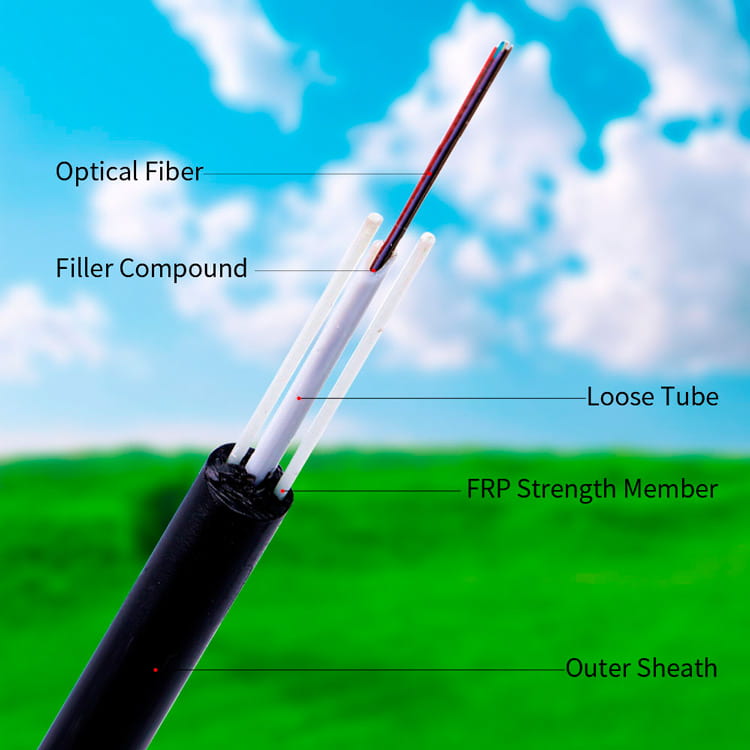

GYFXTY fiber optic cable is a central loose tube non-metallic structure. The 250um optical fibers are positioned in a loose tube made of a high modulus plastic. The tube are ﬁlled with a water-resistant ﬁlling compound. The fiber optic cable loose tube is applied a water-blocking material to keep the cable compact and watertight. Two parallel FRP wires are placed at the two side of the loose tube. The cable is completed with a polyethylene(PE) sheath.
The Fiber Cores of GYFXTY Fiber Cable is from 2 cores to 24 cores
GYFXTY fiber optic cable is good mechanical and temperature performance.High strength loose tube that is hydrolysis resistant. Special tube ﬁlling compound can ensure a circle protection of optical ﬁber, crush resistance and ﬂexibility. PSP enhancing moisture-proof. Two paralle wires can ensure tensile strength. GYFXTY optical fiber cable has the advantages of small diameter, light weight and easy

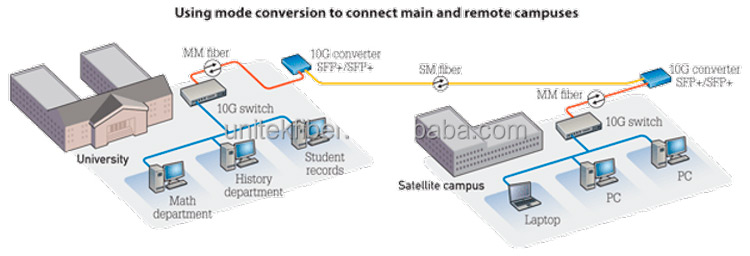

GYFXTY fiber optic cable is suitable for backbone networks, metropolitan area networks, long-distance trunk transmissions and local network systems in high-voltage areas. It can be laid in pipeline or overhead.
|No. of cable||2~12||14~24|
|Strength Member||Material||Water-blocking reinforced glass yarn|
|Outer Sheath||Material||HDPE（low friction outer sheath）|
This cable can work with single mode or multimode LC/SC fast connectors and also can be pre-terminated by LC/SC/ST/FC connectors.
Yes, the optical fiber usually is single mode (9/125) G657. It is also can be G652D. You can use cold splicing tool to add fast connectors LC/SC/ST/FC(UPC/APC) to it.
Yes, UnitekFiber can provide LC fast connectors to terminate FTTH drop cable.
The main application for FTTH drop cable is Fiber to The Home project.
Yes, it is suitable for outdoor application with 70meters pole span.
The strength member for FTTH drop cable can be FRP or steel wire.
FRP is a Fiberglass-Reinforced Plastic material that has the strength of steel at the fraction of the weight, the FRP makes cable strong tension and anti-bend advantages.
Very good service and quality.
The fiber cable was very easy to pull both indoor & outdoor. It's not stiff, went thru conduits nicely.
