Indoor Armored Fiber Optical Cable GJSFJV 2.0mm 3.0mm Simplex G.657A1 Corning Jacket LSZH PVC

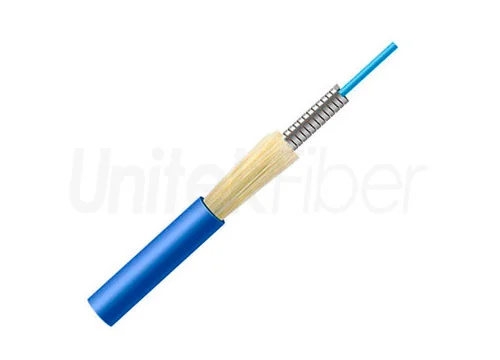

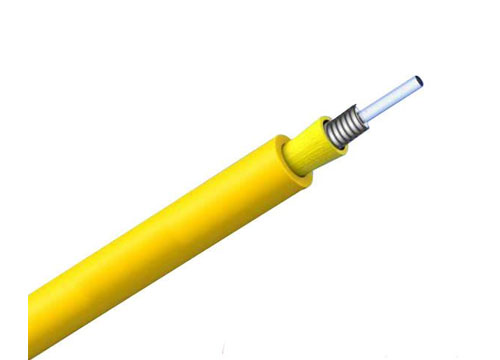

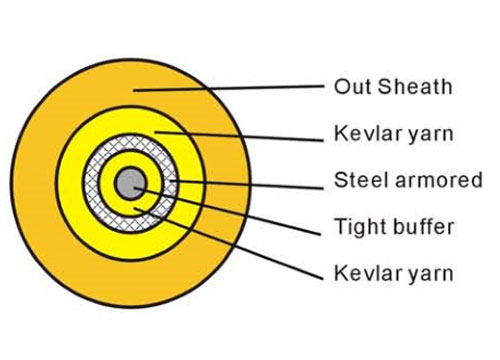

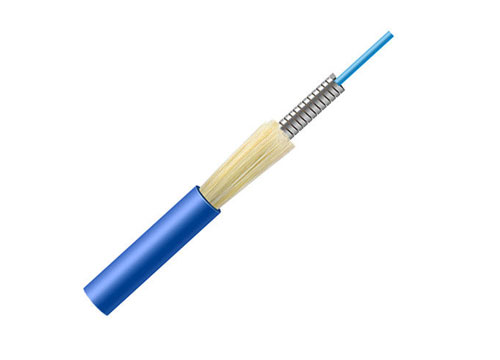

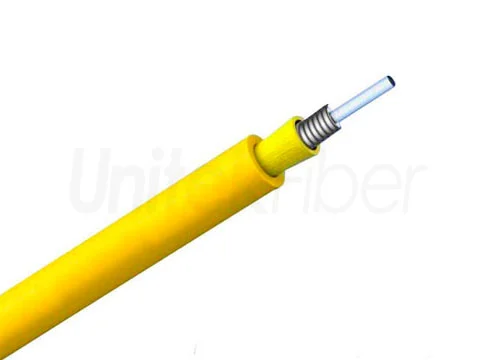

Armored simplex 2.0/3.0mm fiber optical cable is consist of 0.9mm tight buffered cable, a steel armored tape around the tight buffered cable , Kevlar yarn and an outer jacket with LSZH or PVC material.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Indoor Armored Fiber Optical Cable GJSFJV 2.0mm 3.0mm Simplex G.657A1 Corning Jacket

This cable is mainly used for termination assembling.The cable is usually cut at different length and terminated with SC,LC,FC or ST connectors at the sides of the cable to become a patchcord.


Application:


  • Adopted to Indoor distribution

  • As patchcord and pigtail of communication equipment

  • Suitable for communication equipment served

  • Can be installed conveniently and operated simply


Features:


  • High strength Kevlar yarn member

  • Steel armored flexible tube

  • Increase the cable’s twist resistance

  • Small cable volume

  • Light weight

  • Round construction


Packaging & Shipping


Indoor Armored Fiber Optical Cable GJSFJV 2.0mm 3.0mm Simplex G.657A1 Corning Jacket LSZH PVC

Parameter of Indoor Armored Fiber Optical Cable GJSFJV 2.0mm 3.0mm Simplex G.657A1 Corning Jacket LS

No. of Fiber

1

Fiber Model

G.657A1(Corning)

Strength Member

Material

Aramid yarn

Tight buffer

Material

PVC

Diameter(±0.06)mm

0.9

Thickness(±0.03)mm

0.32

Outer Sheath

Material

PVC

Thickness(±0.05)mm

0.30

0.35

Cable Diameter(±0.1)mm

2.0

3.0

Cable Weight(±2)kg/km

4

6

Min. bending radius

Without Tension

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70


1

Allowable Tensile Strength

Short Term

300N

Long Term

150 N

2

Allowable Crush Resistance

Short Term

1000N (/100mm)

Long Term

300N (/100mm)

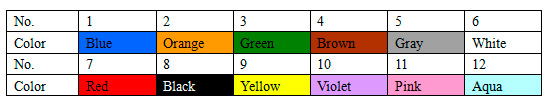

Fiber Colors

Fiber Colors

What is the fiber type for this indoor armored fiber optic cable?

We usually use G652D, G657A1, G657A2 fiber type, also can according to your request.

How many fiber cores for this indoor armored fiber optic cable?

2-24 Cores.

What's the outer jacket material for this indoor armored fiber optic cable?

The cable outer jacket is completed with PVC or LSZH (Low smoke, Zero halogen, Flame-retardant) material.

What's strength member for indoor armored fiber optic cable?

The strength members are usually Kevlar yarn and steel tape to support the whole fiber cable.

Why do indoor optical cables need to be armored?

In order to better protect the optic fiber cable, it has the effect of preventing moisture and anti-rodent.

May I have a sample order?

Yes! You are welcome to place sample order to test our superior quality and services.
