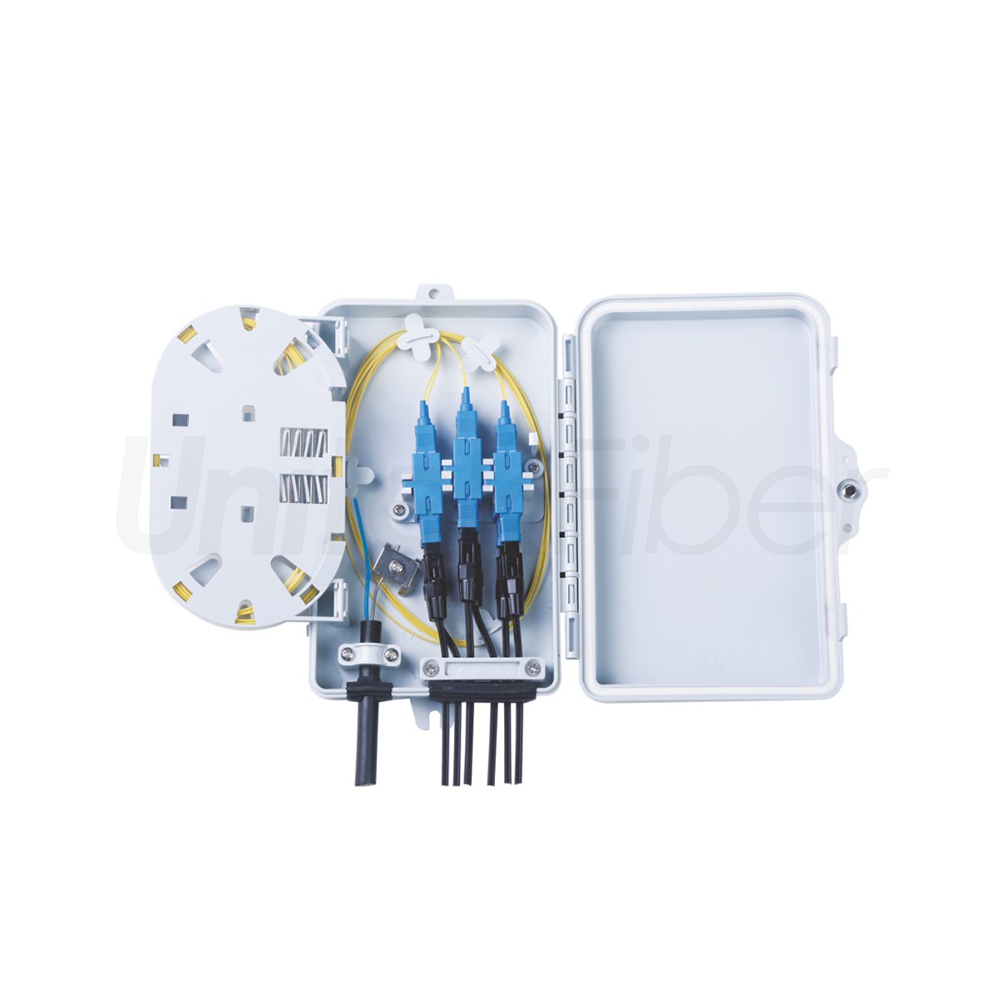

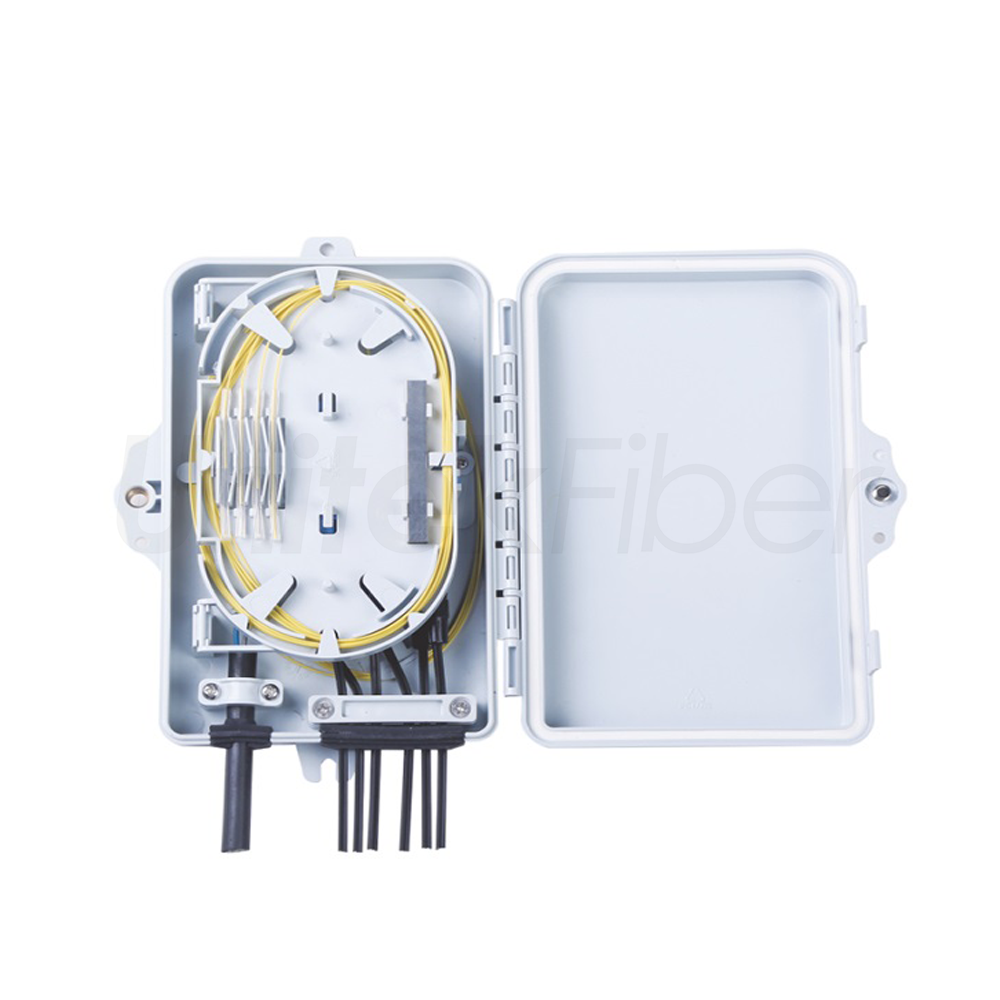

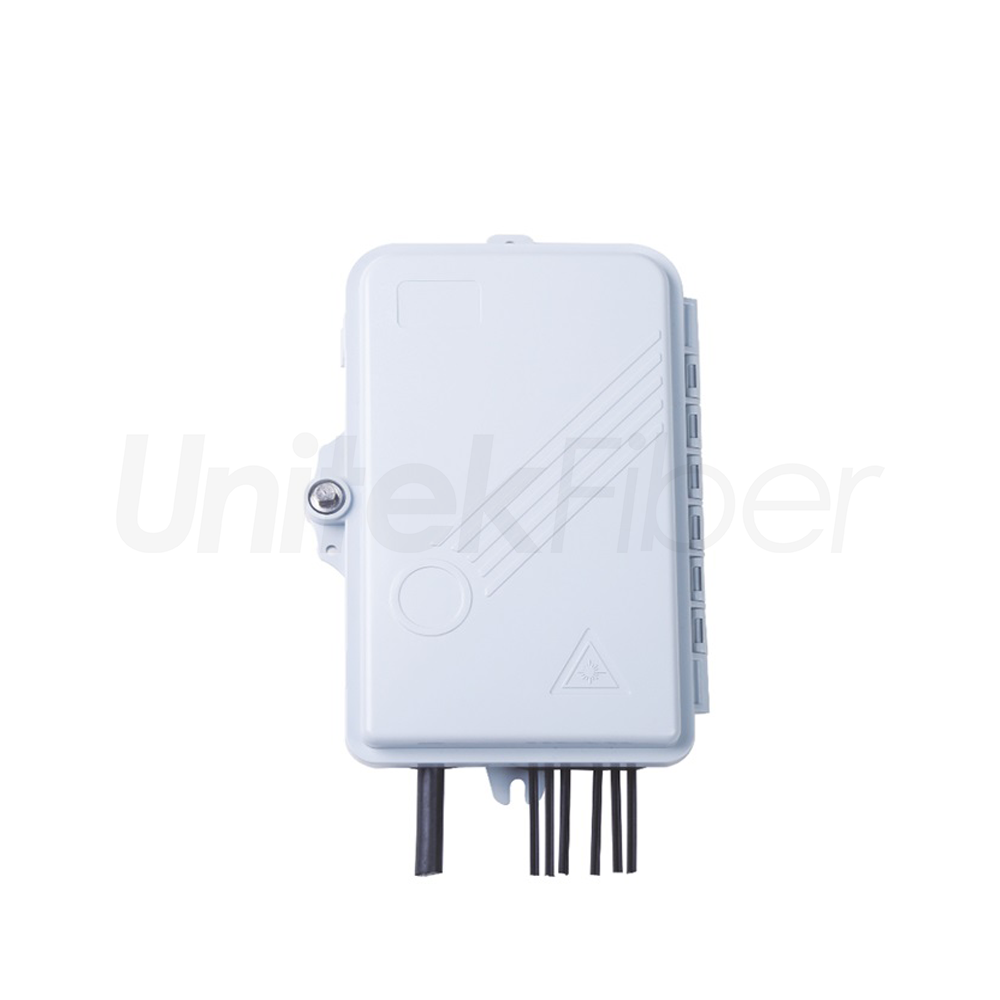

FTTH Plastic Splice Box Mini Fiber Optical Termination Box 4 Ports

Unitekfiber’s mini FTTH fiber optic terminal box is widely used as a termination point for feeder cable to connect with drop cable. The fiber cable splicing, splitting, distribution can be done in the box, it also provides solid protection and managemant for FTTX network.

Contact Us
Fiber Optic
Solutions
Description
Parameter
FAQ
Download
Reviews
Video

FTTH Plastic Splice Box Mini Fiber Optical Termination Box 4 Ports

Application:


  • Widely used in FTTH access network

  • Telecommunication networks

  • CATV networks

  • Data communication networks

  • Local area Networks


Features


  • Industry Standard User Interface, be made of high impact plastic.

  • Can accommodate 1x4 PLC splitter.

  • Indoor or outdoor using, waterproof.

  • Up to 4 FTTH drops.

  • Have 1 inlet ports, 4outlet ports

  • Wet-proof, water-proof, dust-proof, protection level up to IP65

  • Construction-lightweight plastic offers strength

  • Resistance to chemical and U.V attack

  • Wall mounting


Packaging & Shipping


FTTH Plastic Splice Box Mini Fiber Optical Termination Box 4 Ports


Production


FTTH Plastic Splice Box Mini Fiber Optical Termination Box 4 Ports


FTTH Plastic Splice Box Mini Fiber Optical Termination Box 4 Ports

Configuration

Material

Size

Max Capacity

Mounting Way

Color

Weight

PC+ABS

186*116*41mm

4 fibers

Wall Mounting

Grey

0.35kg
