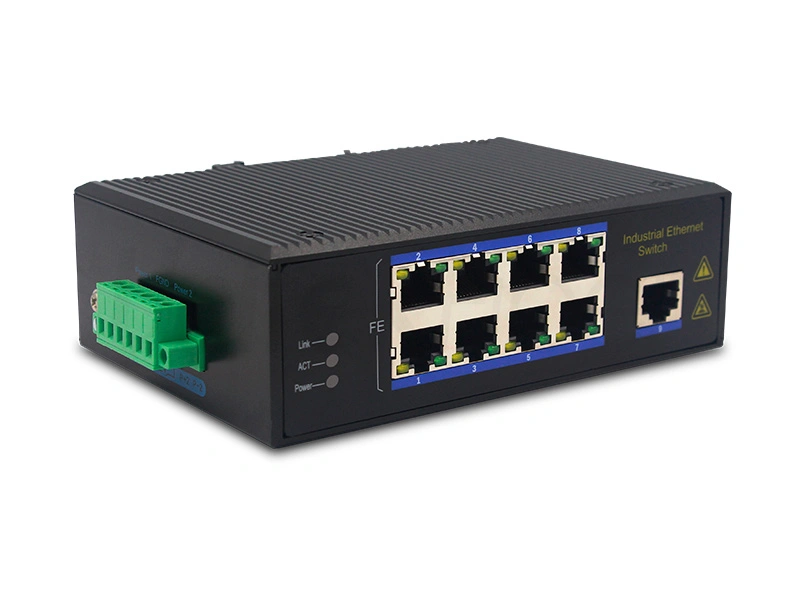

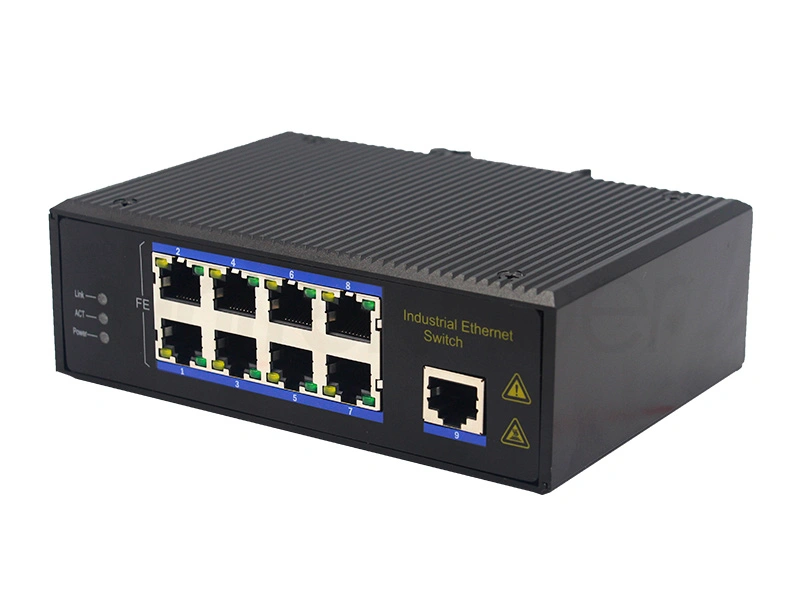

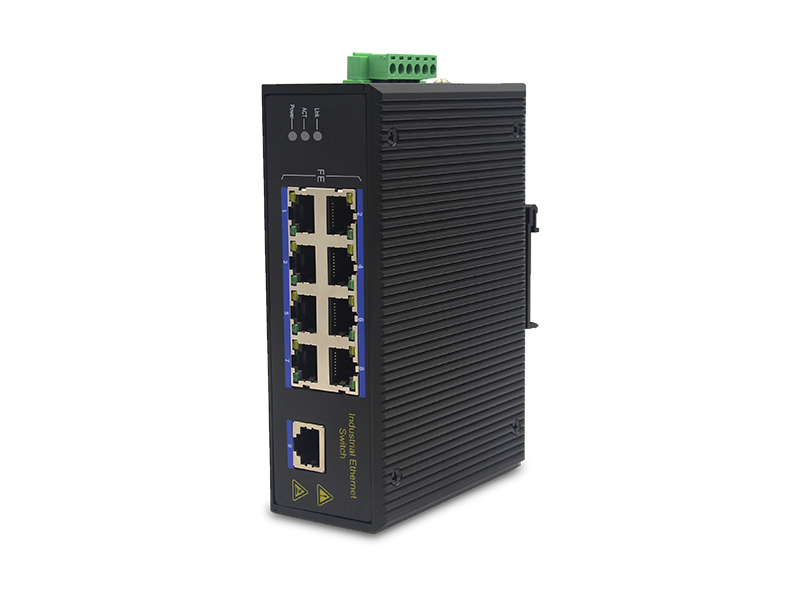

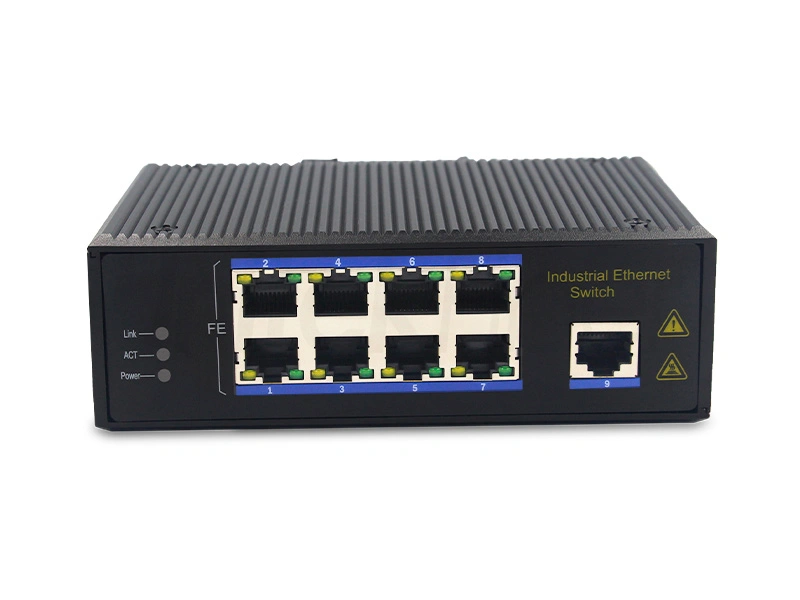

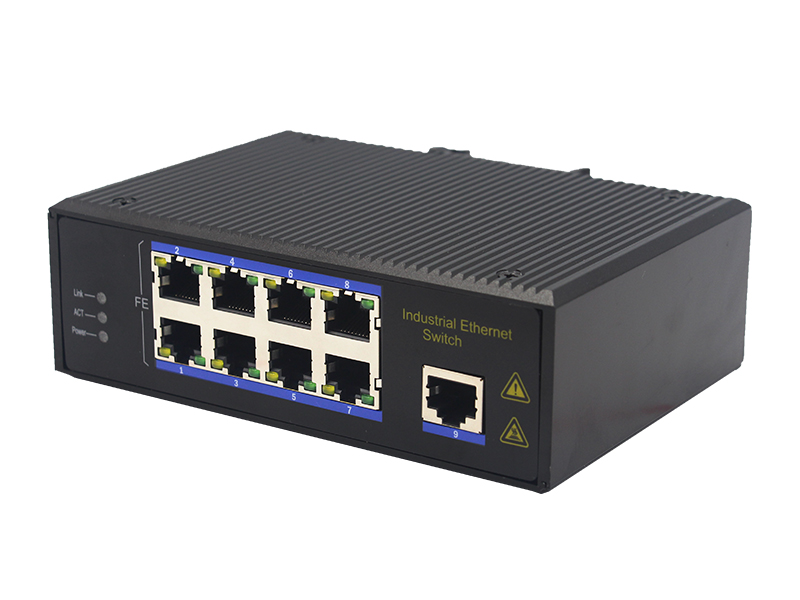

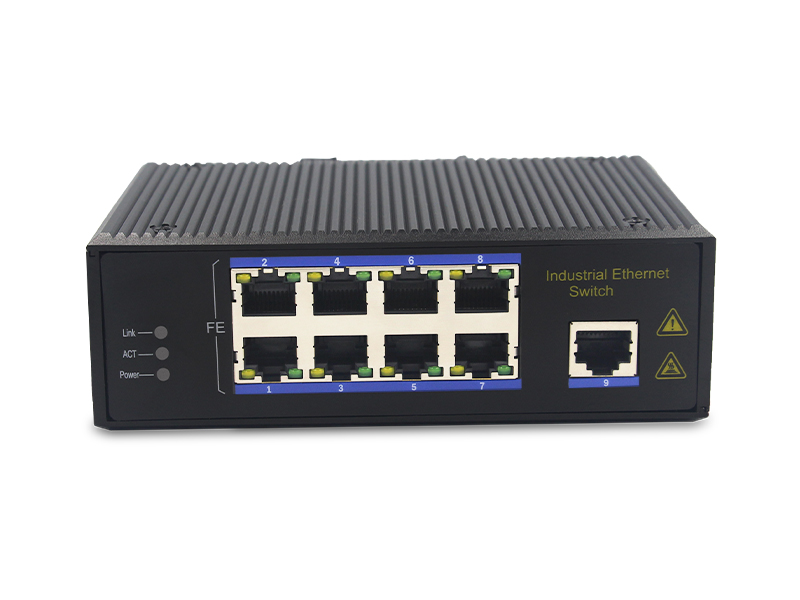

Industrial-grade Ethernet Switch Unmanaged 9-Port 100Mbps High Performance for Data Center

The 100M 9-port industrial Ethernet switch has 9 RJ45 electrical ports. The device adopts a fanless and low-power design, and has the advantages of easy use, small size, and simple maintenance. The product design complies with the Ethernet standard, adding lightning protection and anti-static protection measures.It has a wide range of operating temperature of -40C to +85 C.


Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Industrial-grade Ethernet Switch Unmanaged 9-Port 100Mbps High Performance for Data Center

Features


l9 electrical RJ45 ports, built-in power

lIEEE 802.3, IEEE 802.3u, IEEE 802.3af/at PoE compliant

lSupport PoE IP cameras, PoE WIFI AP, and PoE IP phones

lFluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure

lUp to 30W per port (total power budget: 120W) for powering PoE-enabled devices

lAll ports support wire speed switching, jumbo frame transmission

lSupport upstream ports lightning protection

lDynamic power control to ensure stable output power (Enhanced)

lImproved anti-interference capability, to solve problems in the installation of grounding devices (Enhanced, twice as good as other manufacturers' products)

lReliable short-circuit protection to ensure safety (Enhanced)

lOver-voltage and under-voltage protection (Some other manufacturers' products don't support this


Application:


lThe industrial ethernet switch is applied in Security system, video multiplexers, IP or CCTV Video Applications, Fiber Optic Solutions and so on.

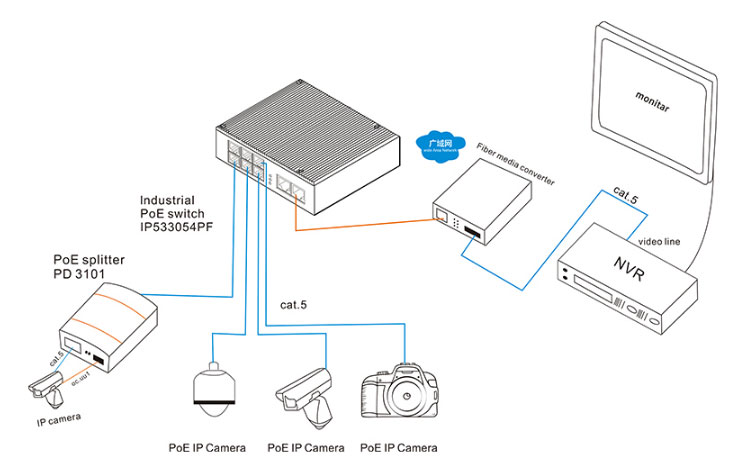

Connection Diagram:


Industrial-grade Ethernet Switch Unmanaged 9-Port 100Mbps High Performance for Data Center

Packaging and Shipping


Industrial-grade Ethernet Switch Unmanaged 9-Port 100Mbps High Performance for Data Center


Production


Industrial-grade Ethernet Switch Unmanaged 9-Port 100Mbps High Performance for Data Center


Industrial-grade Ethernet Switch Unmanaged 9-Port 100Mbps High Performance for Data Center

Product Name

9×100M RJ45 Ports Managed Industrial Ethernet Switch China Wholesal

Product Model

9 Electrical RJ45 Ports 10/100M Industrial Etherine Switch

Product Description

10/100M 9xRJ45 ports

Network Protocols

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X;IEE802.3x; IEEE802.3af;  IEEE802.3at;

RJ45 Interface

10/100BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive

Copper Cable

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100 meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)



Switch properties

MAC address table: 1K

Packet buffer: 512Kbit

Power consumption:<3W

Exchange method: store-forward

Protection Level

IP40

LED indicator

Power indicator: PWR

Interface indicator: electrical port (Link)

Power Supply

Input voltage: 12~52V (dual power supply redundant backup)

Access terminal: Phoenix terminal

Support dual power supply redundancy

Support built-in overcurrent 4.0A protection

Support reverse connection protection

Working Environment

Working temperature: -40~85℃ ;  Storage temperature: -40~85℃

Relative Humidity: 5%~95 %( no condensation)

Industrial Standard

MI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:

IEC(EN)61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge

IEC(EN)61000-4-3(RS): 10V/m(80~1000MHz)

IEC(EN)61000-4-4(EFT): Power cable: ±4kV; Data cable: ±2kV

IEC(EN)61000-4-5(Surge): Power cable: ±4kV CM/±2kV DM; Data cable: ±2kV

IEC(EN)61000-4-6 (Radio Frequency Conduction): 3V(10kHz~150kHz), 10V(150kHz~80MHz)

IEC(EN)61000-4-16 (common mode conduction): 30V cont. 300V, 1s

IEC(EN)61000-4-8

Shock: IEC 60068-2-27

Freefall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Mechanical properties

Shell: metal material

Installation: DIN rail type, wall-mounted installation

Weight: 0.85Kg

Dimensions: 143x 101x 44mm (length x width x height)

MTBF

300,000 hours

Warranty

5 years


Contact UnitekFiber
Contact UnitekFiber

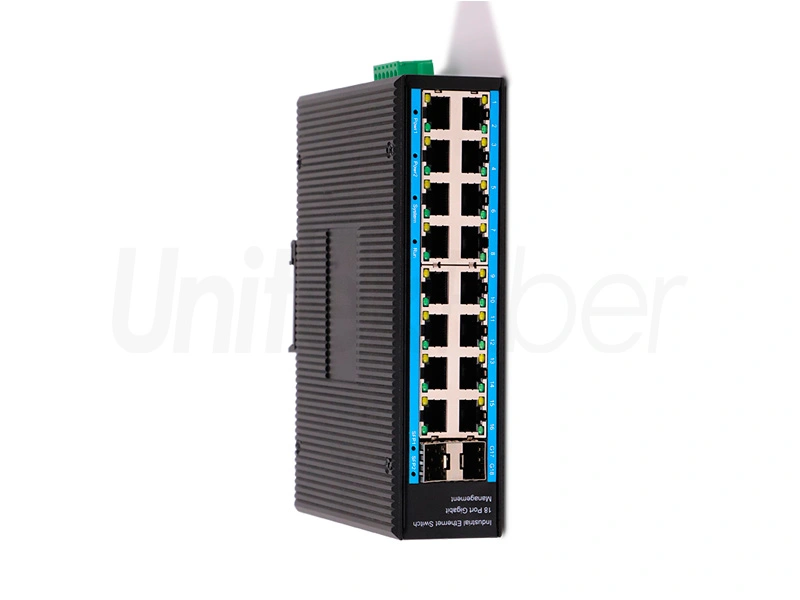

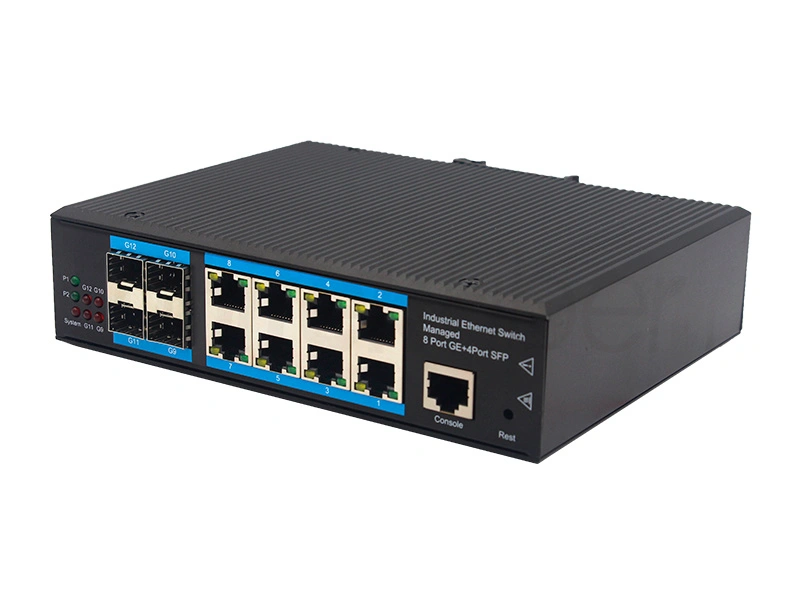

Other Industrial Ethernet Fiber Switch Products
