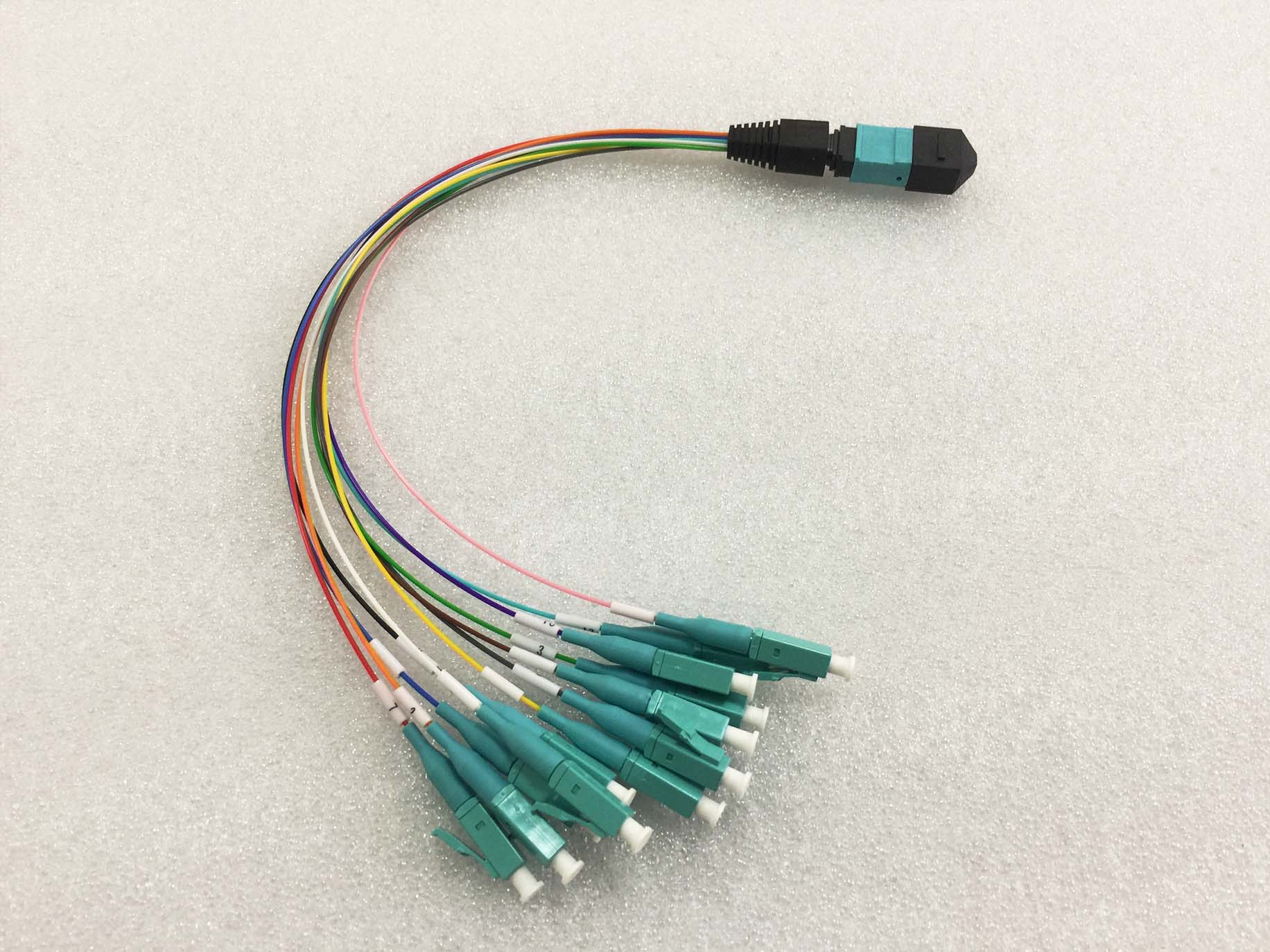

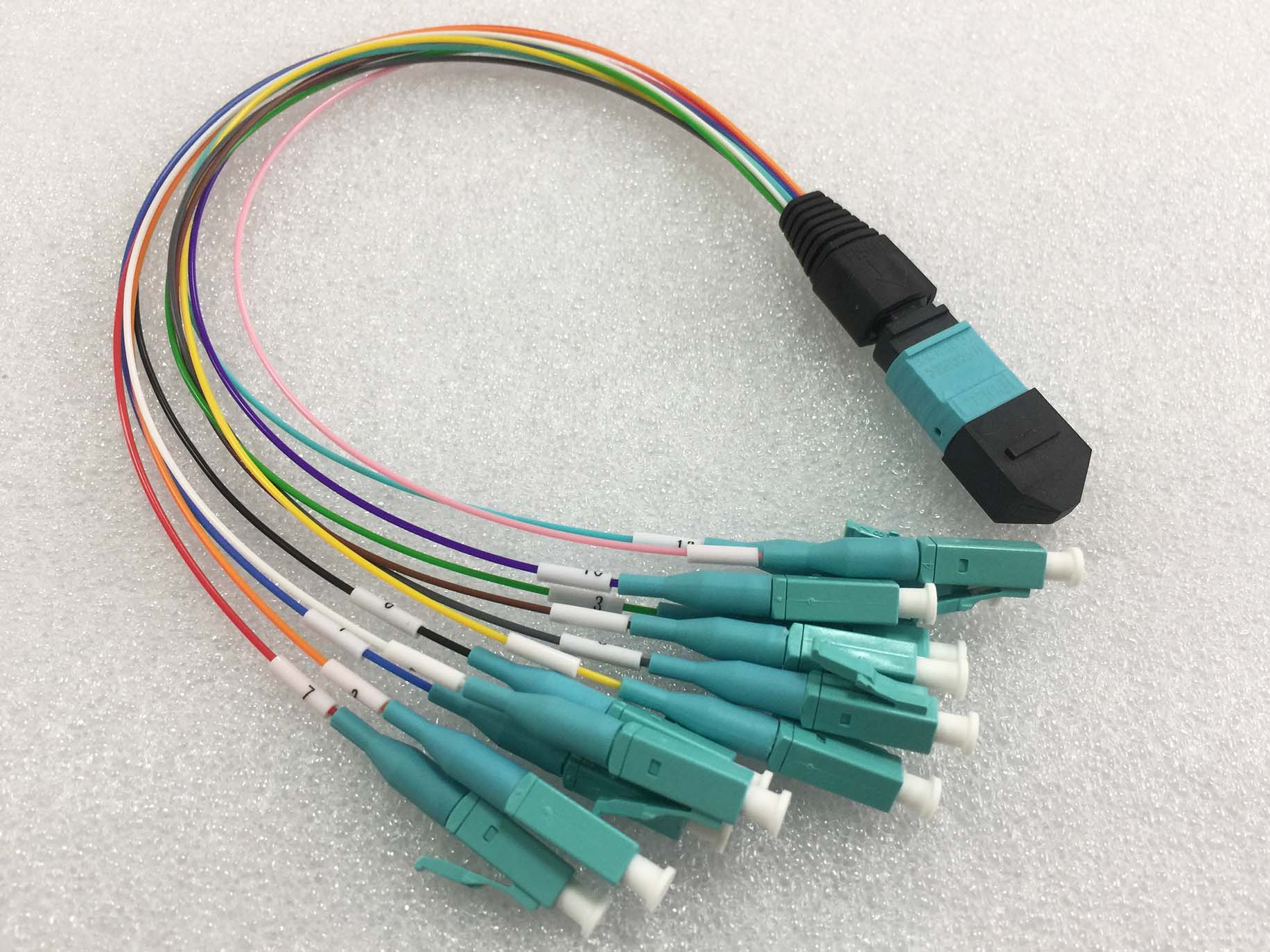

High Quality MTP MPO Cable|MPO-LC Fiber Optic Jumper 12 fibers G657A1 0.9MM 0.3M

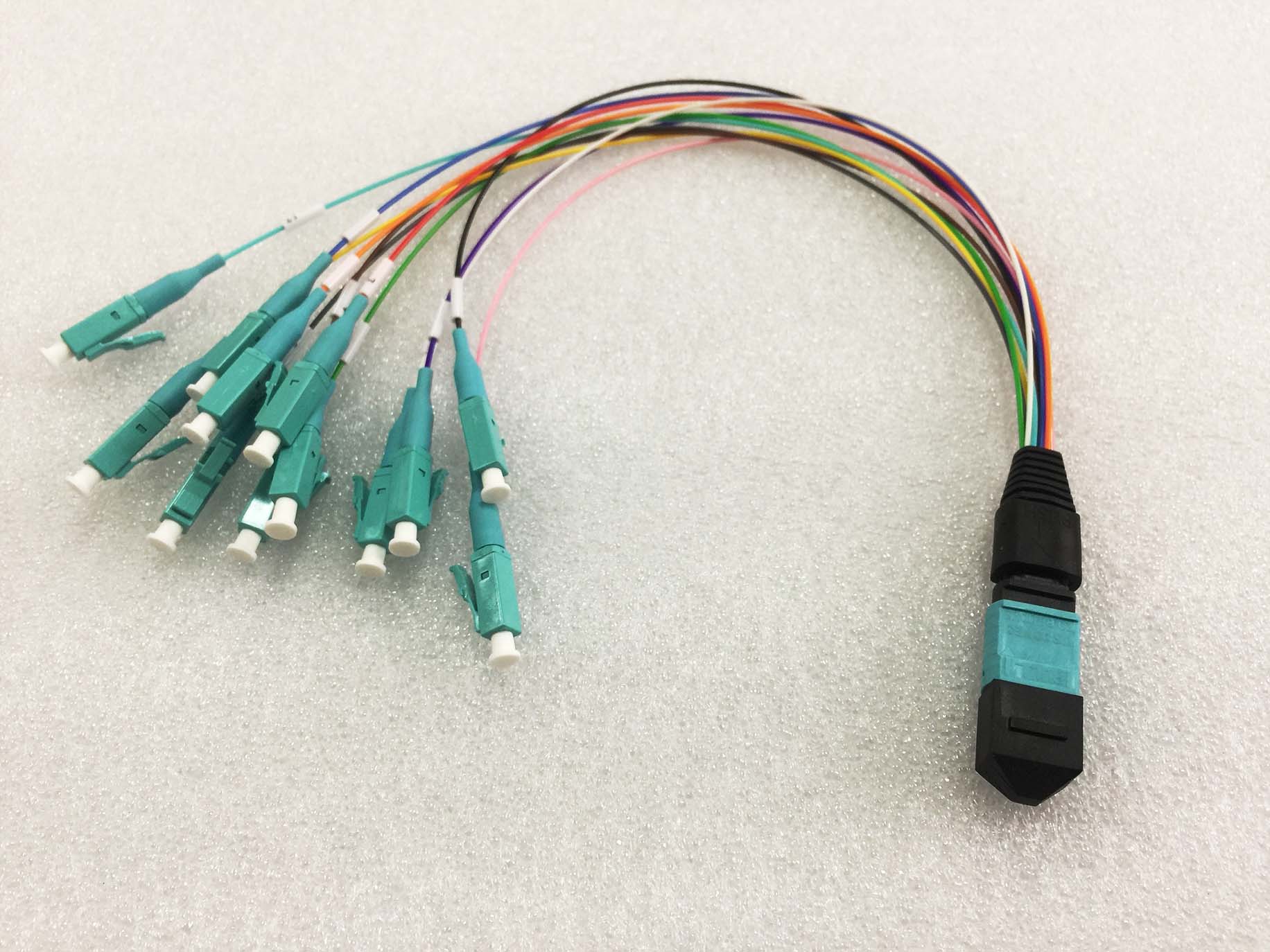

The MPO-LC fiber jumper is equipped with an MPO connector at one end of the optical cable and an LC connector at the other end of the optical cable. MPO jumpers can be designed with 2 to 12 cores, up to 24 cores. At present, the most commonly used MPO connector is 12 cores. The compact design of the MPO connector makes the MPO jumper more cores and small in size.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

High Quality MTP MPO Cable|MPO-LC Fiber Optic Jumper 12 fibers G657A1 0.9MM 0.3M

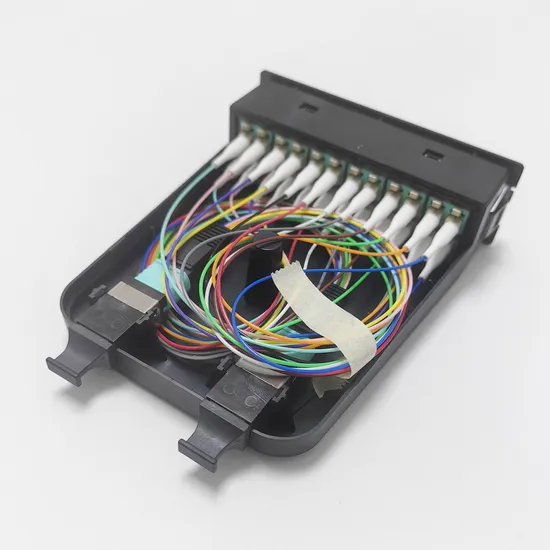

MPO/MTP cables are used in Plug-and-Play cassettes for multi-fiber to single-fiber splitting out interconnects. MTP/MPO fiber cables are fully configurable and available with a variety of cable and connector combinations, including connector type, breakout configurations and jacket material.


Network Connectivity

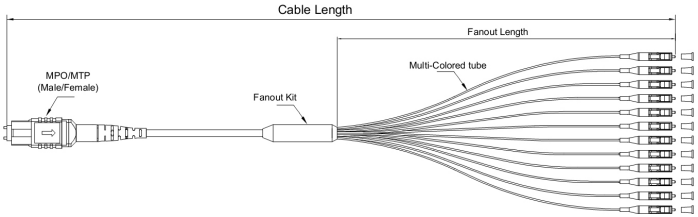

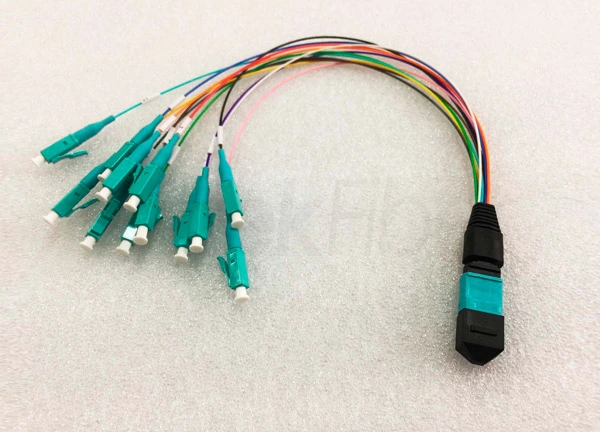

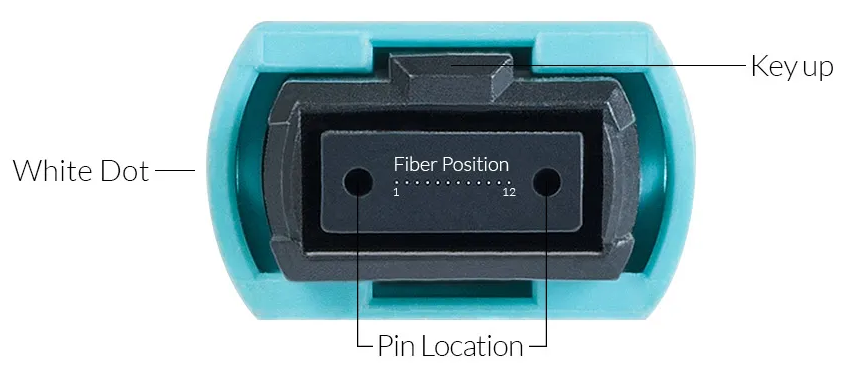

Mtp Optical Connector



MPO/MTP harnesses cables are usually divided into three types of MTP-MTP connector, MTP-Common connector and MTP-Secure Keyed LC connector, according to different colors divided into SM, MM and 10G MM. The fiber cores range from 8 to 144.

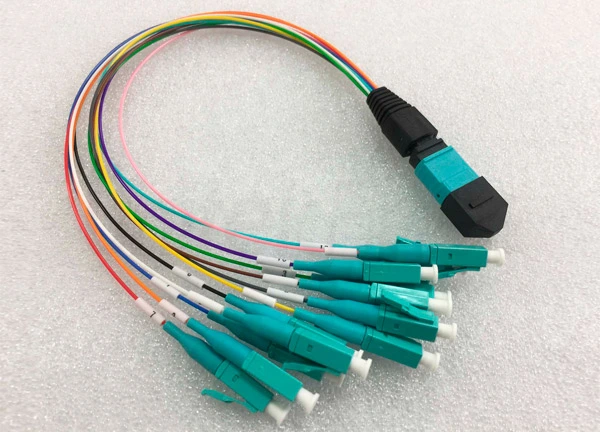

Mtp Trunk Cable


Product Highlights


Superior Workmanship Guarantees Stable Transmission

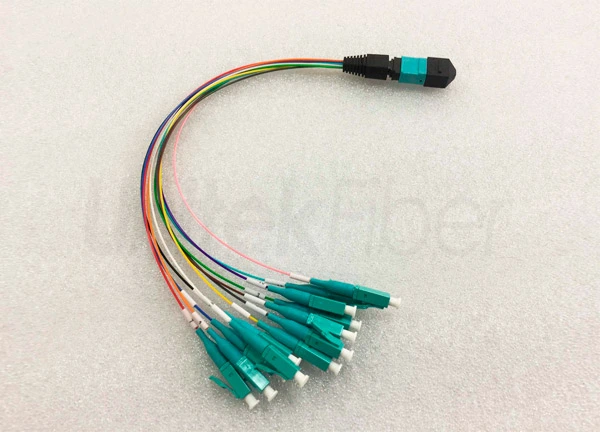

Mpo Fiber Optic Cable


Perfect High-performance Fiber

Excellent bending and compression resistance make it an ideal choice for high density cabling







Custom Standard Connectors



High Quality MTP MPO Cable|MPO-LC Fiber Optic Jumper 12 fibers G657A1 0.9MM 0.3M

Parameter

Unit

Mode Type

PC

UPC

APC

Insertion Loss

dB

SM

≤0.3

≤0.3

≤0.3

MM

≤0.3

≤0.3

-----

Return Loss

dB

SM

≥50

≥50

≥60

MM

≥35

≥35

-----

Fiber cable

Diamete

PVC, LSZH

Material

PVC, LSZH

Connector type


SC, LC. ST. FC

Repeatability

dB

Additional loss<0.1db,return loss< 5 dB

Interchangeability

dB

Additional loss<0.1db,return loss< 5 dB

Connection times

times

>1000

Operating Temperature

-40℃- +75℃

Storage Temperature

-40℃- +85℃


ModelSMMM
Connector A: MPO/MTP
Connector Fiber Count8, 12, 24, 48 Core
PolishPC, APCPC
Insertion LossStandard≤0.70dB≤0.50dB
Elite Low Loss≤0.35dB≤0.30dB
Return LossPC≥50dB, APC≥60dB≥30dB
Durability(500 Matings)≤0.2dB
Test Wavelength1310/1550nm850/1300nm
Connector B: LC, LC Uniboot, SC, FC, ST
PolishPC, APCPC
Insertion Loss≤0.2dB≤0.2dB
Return LossPC≥50dB, APC≥60dB≥35dB
Durability(500 Matings)≤0.2dB
Test Wavelength1310/1550nm850/1300nm

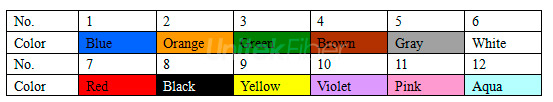

Fiber Color

Fiber Color

Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
