Duct Fiber Optic Cable|GYTA Underground Fiber Optic Cable Aluminum Tape Stranded Loose Tube 12 Cores SM G652D PE

The GYTA fiber optic cable is aluminum sheathed stranded Loose tube lightweight armored fiber cable. GYTA Fiber Cables is great suitable for Duct application. It is especially suitable for situations where high moisture resistance is required.


Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Duct Fiber Optic Cable|GYTA Underground Fiber Optic Cable Aluminum Tape Stranded Loos

Optical Cable for Sale

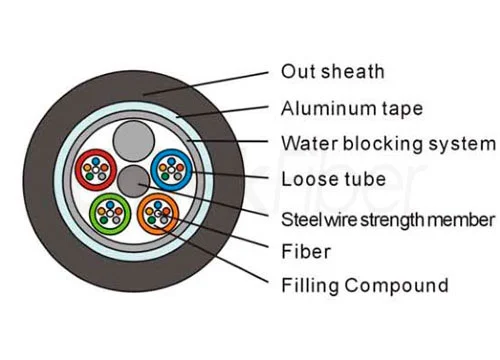

GYTA fiber optic cable is constructed with 250 micron fibers packed into a loose casing made of high-modulus material, filled with a waterproof compound. The center of the cable core is a metal reinforced core, for some fiber optic cable core number, metal reinforced core outside also need to squeeze a layer of polyethylene (PE). Loose casing (and filling rope) is twisted around the center stiffener to form a compact and round cable core, with gaps in the core filled to block water filler.APL coated aluminum strip (APL) longitudinally wrapped and extruded polyethylene sheathed cable.


Optical Cable Price


The Fiber Cores of GYTA Fiber Cable is from 2 cores to 288 cores


Features of GYTA Fiber-optic Cable

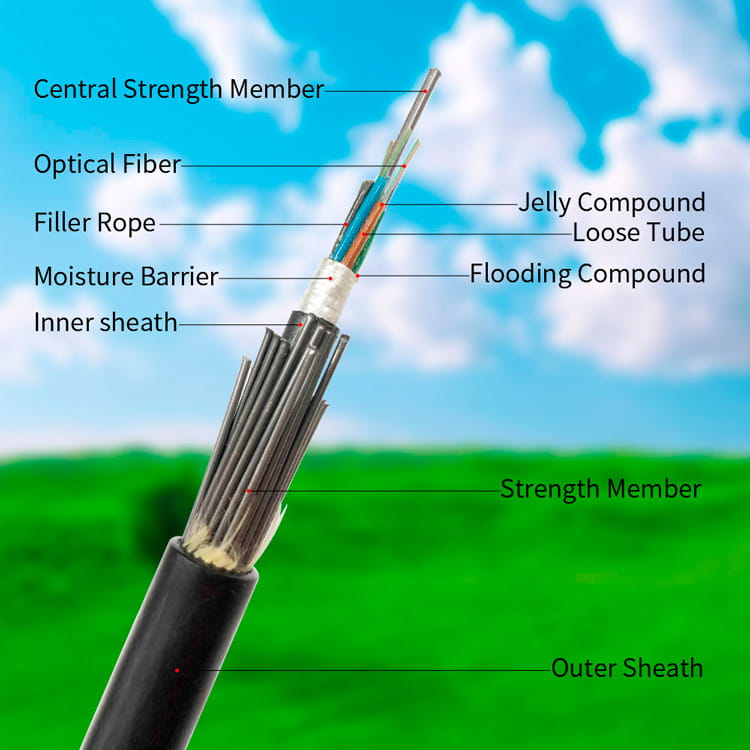

Fiber Optic Wire Cable


GYTA (metal strengthening member, loose tube stranded and filled, aluminum-polyethylene bonded sheathed outdoor optical fiber cable for communication) The structure of the optical cable is to sheath single-mode or multi-mode optical fiber into the inner filling made of high modulus plastic Waterproof compound in loose tube. The center of the cable core is a metal reinforced core. For some fiber optic cables, the metal reinforced core is also extruded with a layer of polyethylene (PE). The loose tube (and filling rope) is twisted around the central reinforcing core to form a compact and circular cable core, and the gaps in the cable core are filled with water blocking compounds. The aluminum-plastic composite tape is longitudinally wrapped and then extruded with a polyethylene sheath.


Applications of GYTA Fiber-optic Cable

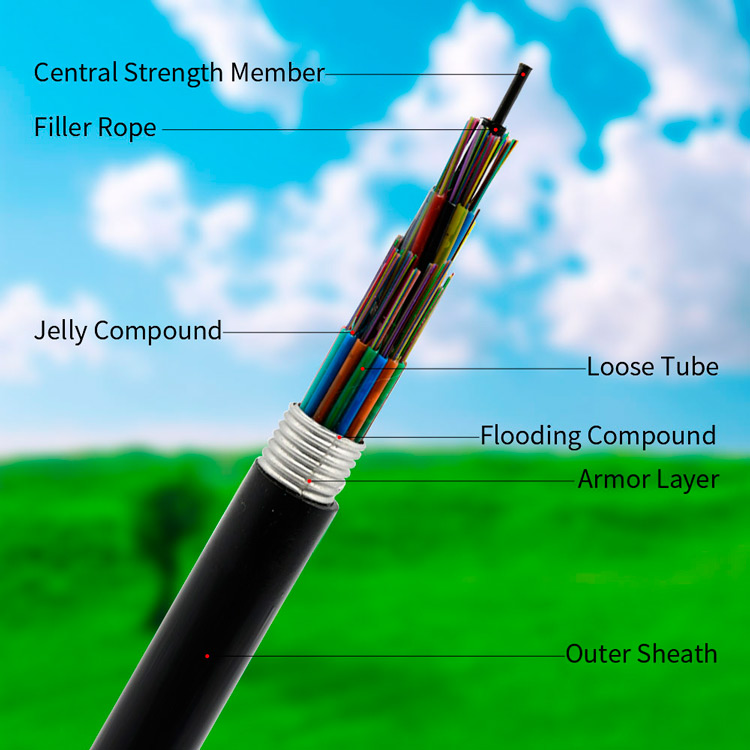

Fiber Optic Wire for Sale


GYTA fiber optic cable is used for duct or aerial fields. These aluminum tape armored cables are suitable for installation for long haul communication and LANs, especially suitable for high requirements of moisture resistance environment.


Professional Assistant For GYTA Fiber Optic Cabling System


Fo Cable Type


Packaging & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre

Parameter of Duct Fiber Optic Cable|GYTA Underground Fiber Optic Cable Aluminum Tape Stranded Loose

No. of cable

24

96

144

Fiber Model

G.652B

Design(StrengthMember+Tube&Filler)

1+5

1+8

1+12

Central Strength Member

Material

Steel Wire

Diameter(±0.05)mm

1.5

2.1

2.1

Additional Sheath

Material

MDPE

Thickness(±0.03)mm

0.7

2.1

Loose Tube

Material

PBT

Diameter(±0.06)mm

1.8

2.1

2.1

Thickness(±0.03)mm

0.32

0.35

0.35

The Max.Core NO./Tube

6

12

12

Filler Rope

Material

LDPE

Colour

White

Diameter(±0.06)mm

1.8

——

Water Blocking layer(Material)

Flooding Compound

Moisture Barrier

Material

Aluminum Tape

Thickness(±0.03)mm

0.20

Outer Sheath

Material

LSZH

Thickness(±0.2)mm

1.8

Cable Diameter(±0.2)mm

9.6

12.2

15.3

Cable Weight(±10)kg/km

107

189

265

Min. bending radius

Without Tension

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70

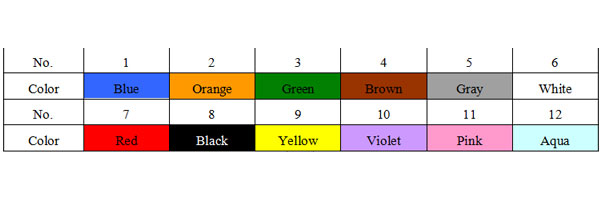

Fibre & Loose Tube Colors

Fibre & Loose Tube Colors


Do you have certificate for raw material?

Yes, with qualified ISO9001, ROHS, UL raw material suppliers.

What is the cable structure for this duct fiber optic cable?

This duct fiber optical cable is usually in Stranded loose tube structure.

How many cores for the duct fiber optical cable?

2-288cores.

What's the MOQ for duct fiber optic cable?

The MOQ of duct fiber optic cable is 2km.

Can you supply customized products and logo?

Yes, we supply OEM&ODM service, please feel free to contact us.
