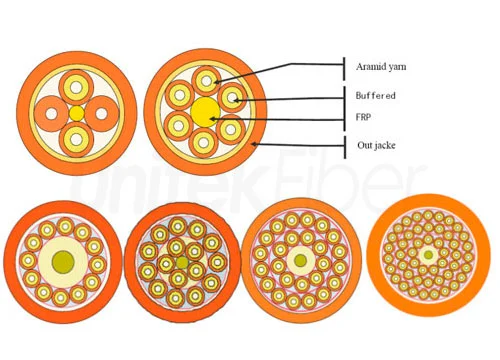

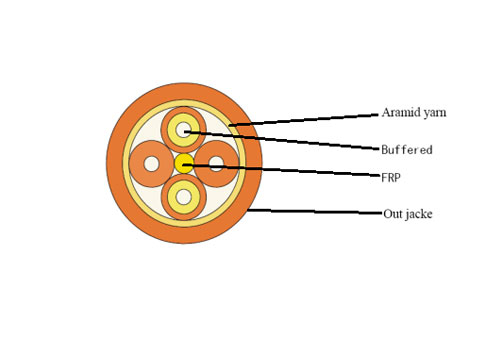

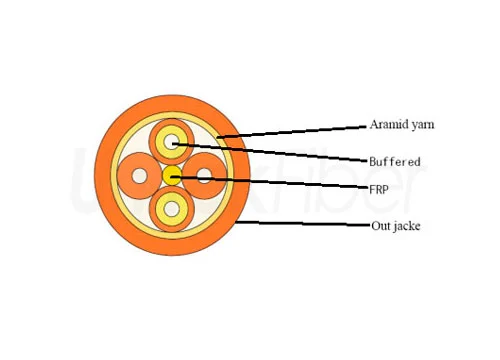

The structure of breakout indoor cable is in side with 2.0/3.0mm simplex cable as sub-unit and a fiber reinforced plastic(FRP) locates in the center of cable as a non-metallic strength member.
The cable outer jacket is completed with PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) material. This fiber core of the breakout cable can be 48cores.
Fiber Type: Single Mode ( SM) & Multi Mode( MM);
Inside Fiber Diameter: 2.0 / 3.0mm
Jacket Material: PVC, LSZH, or Others;
Color of buffer: Yellow, Orange, Aqua, Purple or Others;
Delivery Length: 1km or 2km, or other contracted length;
Used in pigtails and patch cords;
Used as access building cable;
Used in optical connections in optical communication equipment rooms and optical distribution frames;
Used in indoor cabling, especially used as breakout cable;
No. of cable | 6 | |||
Fiber Model | G.652D | |||
Design(StrengthMember+Tube) | 1+6 | |||
Central Strength Member | Material | FRP | ||
Diameter(±0.06)mm | 2.0 | |||
Tight lines | Material | PVC | ||
Thickness(±0.03)mm | 0.32 | |||
Diameter(±0.06)mm | 0.9 | |||
Strength Member | Material | AramidYarn | ||
Inner Sheath | Material | PVC | ||
Thickness(±0.2)mm | 0.4 | |||
Diameter(±0.2)mm | 2.0 | |||
Outer Sheath | Material | PVC | ||
Thickness(±0.2)mm | 1.0 | |||
Cable Diameter(±0.2)mm | 8.0 | |||
Cable Wetght(±10)kg/km | 66 | |||
Attenuation | 1310nm | dB/km | 0.8 | |
1550nm | 0.6 | |||
Allowable Tensile Strength | Short Term | N | 660 | |
Long Term | 200 | |||
Allowable Crush Resistance | Short Term | N/100mm | 1000 | |
Long Term | 300 | |||
Min. bending radius | Without Tension | 10.0×Cable-φ | ||
Under Maximum Tension | 20.0×Cable-φ | |||
Operation Temperature range(℃) | -10~+40 |

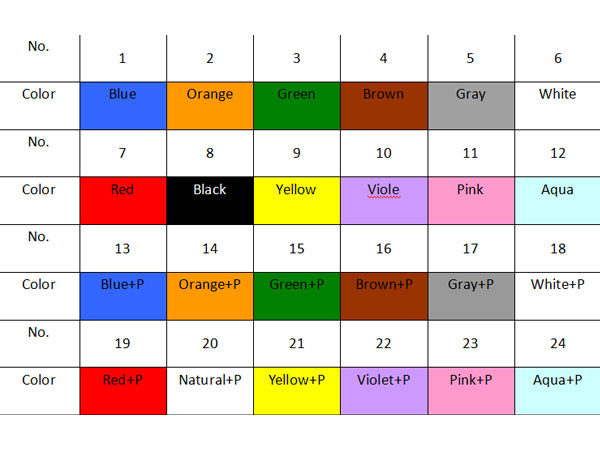

Fiber Colors
Breakout fiber optic cable consist of two or more simplex cables bundled with a strength member and central member covered with an outer jacket.
The sheath material of breakout indoor fiber optic cable is LSZH, PVC, and OFNP.
It has the features of corrosion resistance, waterproof, ultraviolet protection, flame retardant, environmental protection.
The indoor optical cable uses aramid yarn as a reinforcing member to protect the optical fiber.
