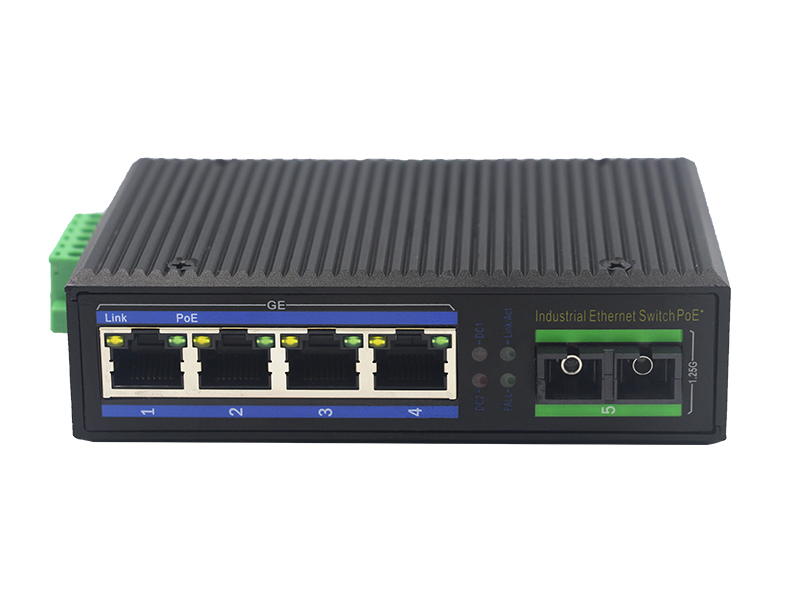

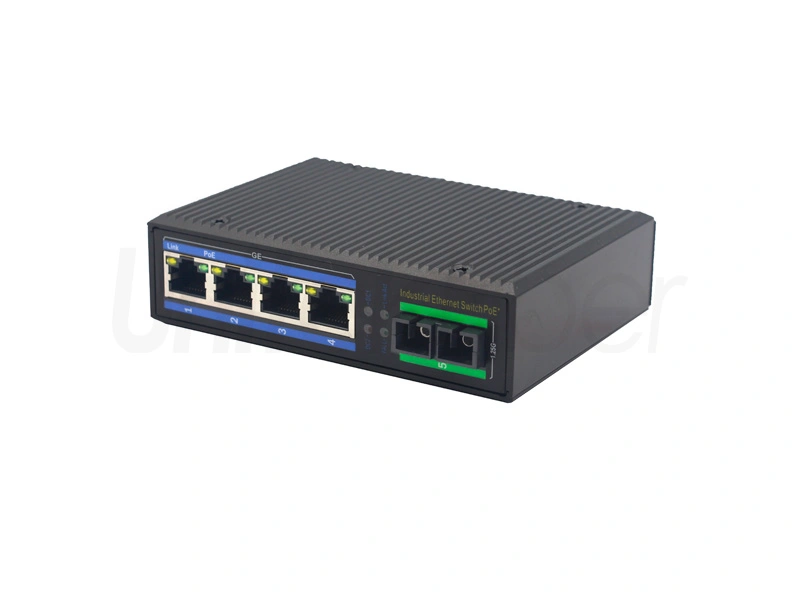

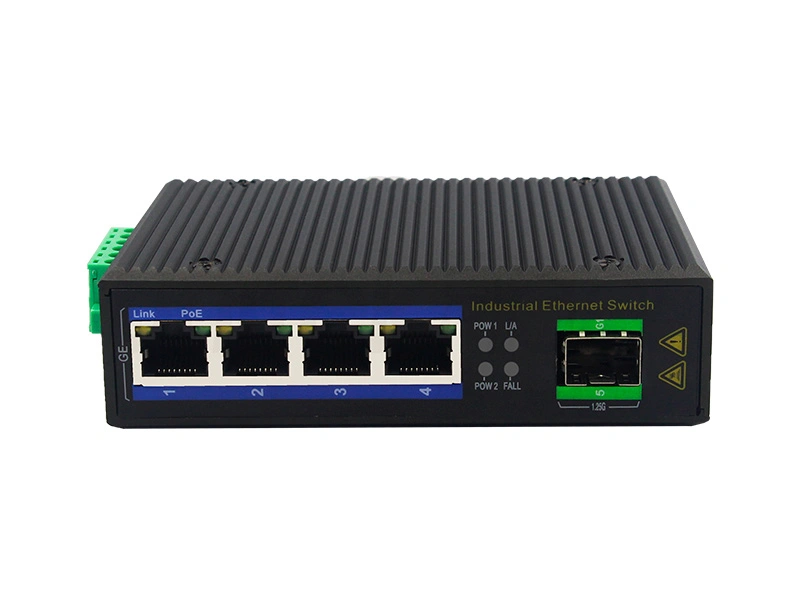

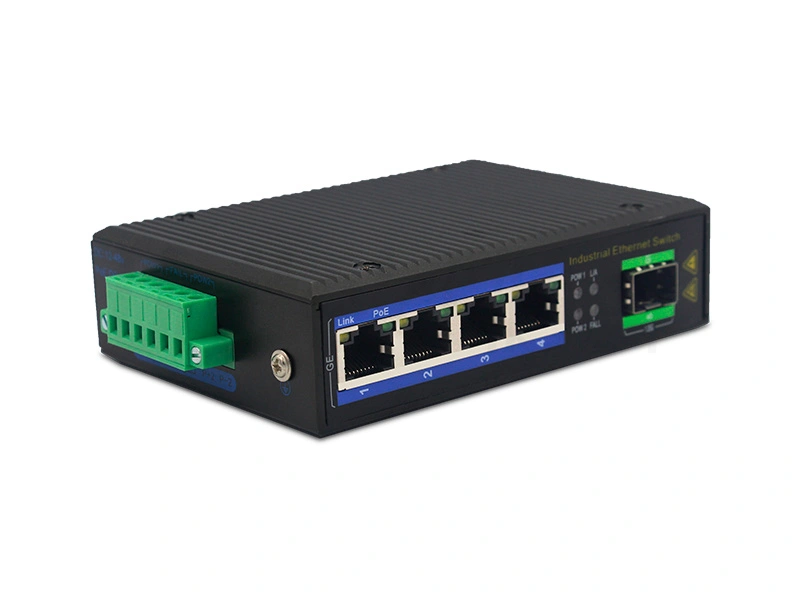

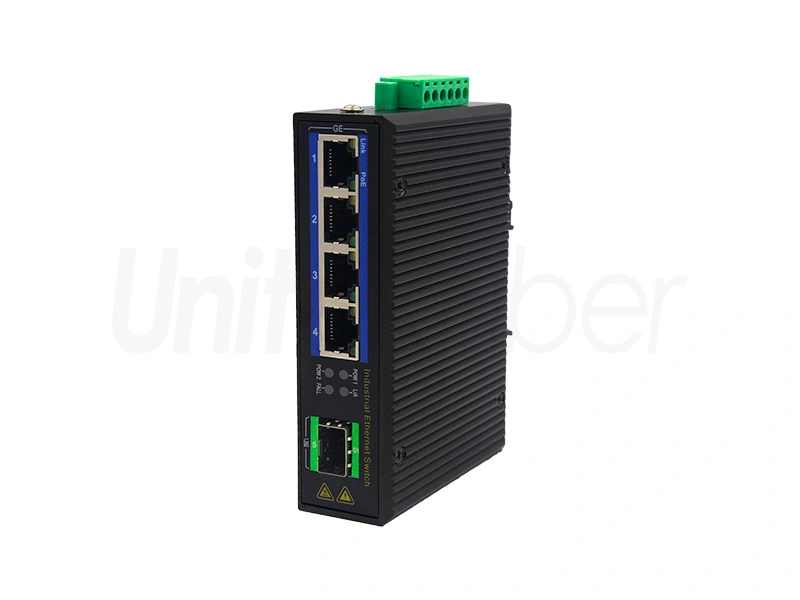

10M 100M 1000M High Reliability Industrial PoE Ethernet Switch with 4 Electrical Ports and 1 SFP Port

1 optical 4 electrical 10/100/1000m industrial Ethernet switch, supports 1 1000M optical port and 4 10/100/1000M electrical ports. The product adopts industrial-grade optical modules and chips, which can run in harsh temperature environments for a long time. The product uses a store-and-forward mechanism and supports automatic identification of the network port.









Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

10M 100M 1000M High Reliability Industrial PoE Ethernet Switch with 4 Electrical Ports and 1 SFP Por

Features


l4 Gigabit electrical PoE ports, and 1 1000Mbps SFP ports, built-in power

lIEEE 802.3, IEEE 802.3u, IEEE 802.3af/at PoE compliant

lSupport PoE IP cameras, PoE WIFI AP, and PoE IP phones

lFluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure

lUp to 30W per port (total power budget: 120W) for powering PoE-enabled devices

lAll ports support wire speed switching, jumbo frame transmission

lSupport upstream ports lightning protection

lDynamic power control to ensure stable output power (Enhanced)

lImproved anti-interference capability, to solve problems in the installation of grounding devices (Enhanced, twice as good as other manufacturers' products)

lPower-on in order of the PoE port, effectively reduce current strike, and reduce the transient voltage surge to PoE switch and other connected devices at the startup (Unique)

lReliable short-circuit protection to ensure safety (Enhanced)

lOver-voltage and under-voltage protection (Some other manufacturers' products don't support this)


Packaging and Shipping


High Quality Fiber Optic Cable


Production


Bulk Single Mode Fiber Optic Cable


10M 100M 1000M High Reliability Industrial PoE Ethernet Switch with 4 Electrical Ports and 1 SFP Por

Product Description

4 channel 100M PoE electrical port + 1 channel 100M FX optical port industrial-grade Ethernet POE switch

Interface

4xRJ45 ports, 1 fiber optic ports

Network Protocols

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;

IEEE802.3ab1000Base-T;IEEE802.3z1000Base-X;IEEE802.3x;IEEE802.3af;

IEEE802.3at;

POE Standards

Standard PoE: IEEE802.3af/ IEEE802.3at


PoE interface:1 port suport PoE


Output power:

Maximum power15.4W (IEEE 802.3af)

Maximum power30W (IEEE 802.3at)

POE port automatic identify af/at


Output voltage: DC48~57V


Power supply mode: 1/2+;3/6-

RJ45 Interface

10/100/1000BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive

Fiber Interface

1000BaseFX port (SC/FC/ST /SFP optional)

Switch properties

Application level: Layer 2

Total backplane bandwidth: 15.2Gbps

Whole machine packet forwarding rate: 11.3088Mpps

MAC address table: 1K

Packet buffer: 512K

Exchange delay:<3µs

Exchange method: store-forward

Power consumption:<3W

Protection Level

IP40

LED indicator

Power indicator: PWR

Interface indicator: electrical port, optical port (Link/ACT)

Power Supply

Input voltage: 48~57V (dual power supply redundant backup)

Access terminal: Phoenix terminal

Support dual power supply redundancy

Support built-in overcurrent 4.0A protection

Support reverse connection protection

Working Environment

Working temperature: -40~85℃ ;

Storage temperature: -40~85℃

Relative Humidity: 5%~95 %( no condensation)

Industrial Standard

MI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:

IEC(EN)61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge

IEC(EN)61000-4-3(RS): 10V/m(80~1000MHz)

IEC(EN)61000-4-4(EFT): Power cable: ±4kV; Data cable: ±2kV

IEC(EN)61000-4-5(Surge): Power cable: ±4kV CM/±2kV DM; Data cable: ±2kV

IEC(EN)61000-4-6 (Radio Frequency Conduction): 3V(10kHz~150kHz), 10V(150kHz~80MHz)

IEC(EN)61000-4-16 (common mode conduction): 30V cont. 300V, 1s

IEC(EN)61000-4-8

Shock: IEC 60068-2-27

Freefall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Mechanical properties

Shell: metal material

Installation: DIN rail type, wall-mounted installation

Weight: 0.36Kg

Size:118 x 86 x 39mm(length×width×height)

MTBF

300,000 hours

Warranty

5 years
