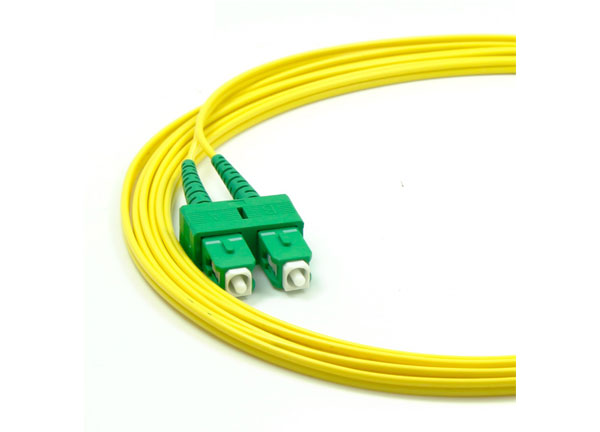

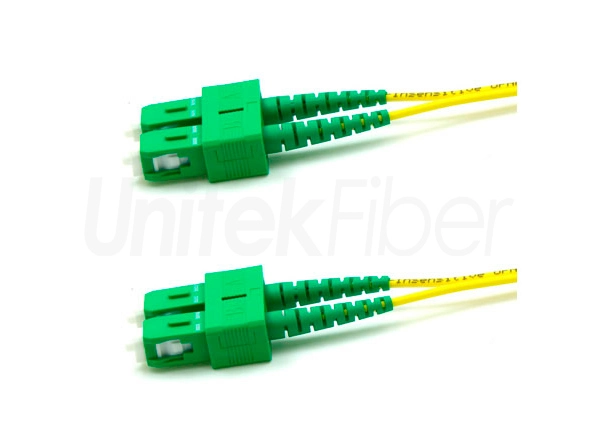

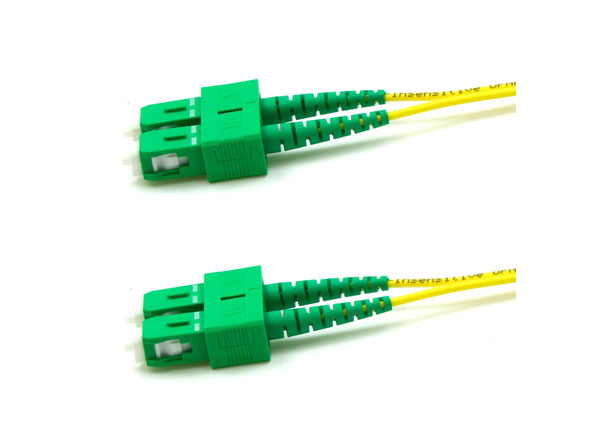

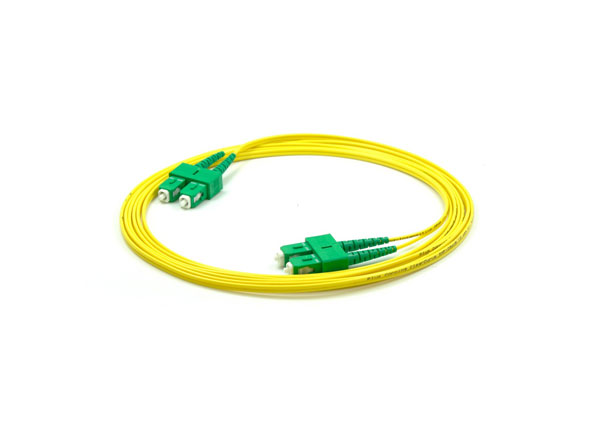

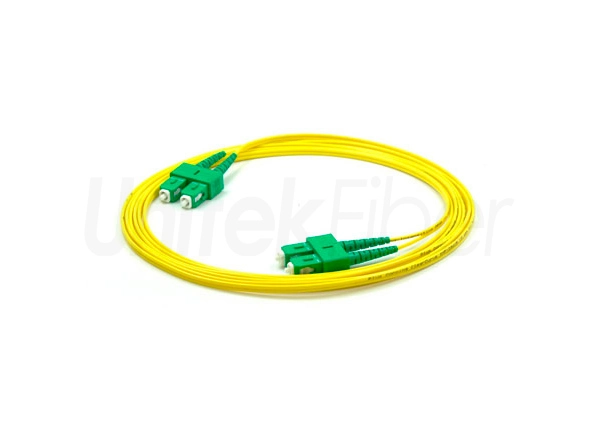

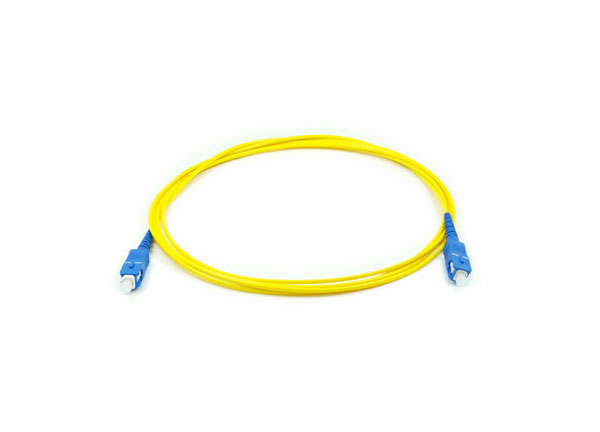

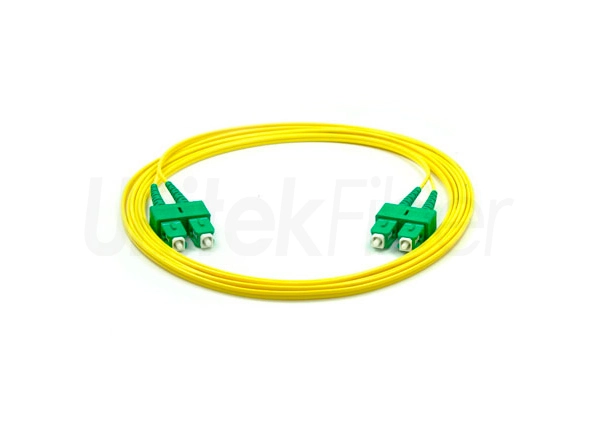

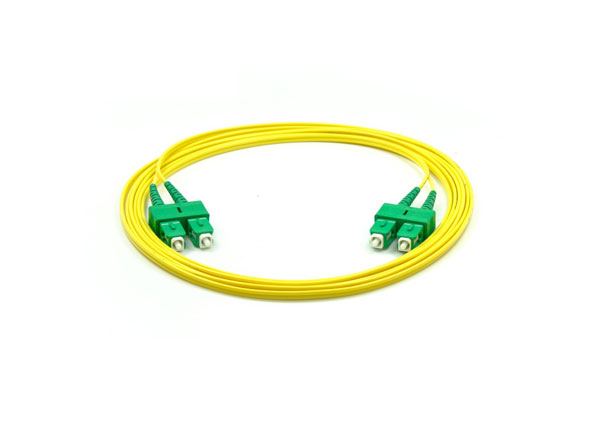

UnitekFiber provides many types of fiber jumpers (also called fiber patchcords). According to the structure of the connector, it can be divided into: FC jumper, SC jumper, ST jumper, LC jumper, MTRJ jumper, MPO jumper, MU jumper, SMA jumper, FDDI jumper, E2000 jumper, DIN4 Jumper, D4 jumper and other forms. The more common fiber jumpers can also be divided into FC-FC, FC-SC, FC-LC, FC-ST, SC-SC, SC-ST, etc..
lHigh reliability;
lCE & RoHS compliant;
l100% connectors tested;
lRepeatability: >1000 times;
lDeliery 100% passed products;
lInsertion Loss(SM): Typical<0.2dB, Max<0.3dB;
lReturn Loss: UPC>50dB, APC>60dB;
lTelecommunications
lLocal Area Network (LAN)
lFiber to the home (FTTH)
lOptical patch panels
lTesting Instruments
lCATV
Item | Unit | FC,SC,LC | ST,MU | MT-RJ, MPO | E2000 | ||||||||
SM | MM | SM | MM | SM | MM | SM | |||||||
PC | UPC | APC | PC | UPC | PC | PC | PC | UPC | PC | PC | UPC | ||
Insertion loss(typical) | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 |
Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
Exchengeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
Cable Diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | ||||||||
Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.
Normally about 7 days after confirmation.
Normally 7-20 days depends on products and order quantities.
Yes, we provide customized service and can do artworks including printing, logo, etc. for you.
YES, OEM is welcomed.
Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
Very good service and quality.
The fiber cable was very easy to pull both indoor & outdoor. It's not stiff, went thru conduits nicely.
