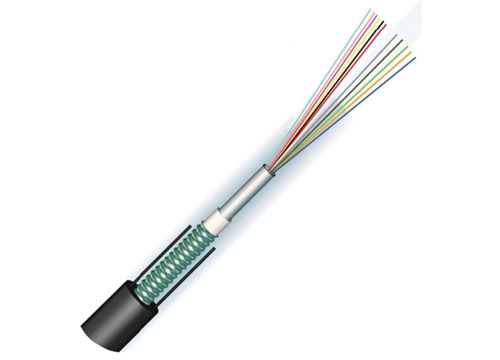

Duct Fiber Optical Cable|Outdoor GYXTW Fiber Optic Cable 4 Core Single Mode G652D Central Loose Tube PE

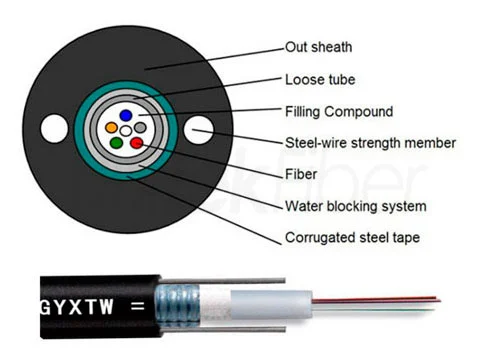

GYXTW fiber cable is central loose tube armored fiber optic cable. The fiber cores can be 2-24 fibers. The loose tube is covered with a water blocking compound and a steel tape. The outer sheath is made of high quality black polyethylene(PE).

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Duct Fiber Optical Cable|Outdoor GYXTW Fiber Optic Cable 4 core Single Mode G652D Cen

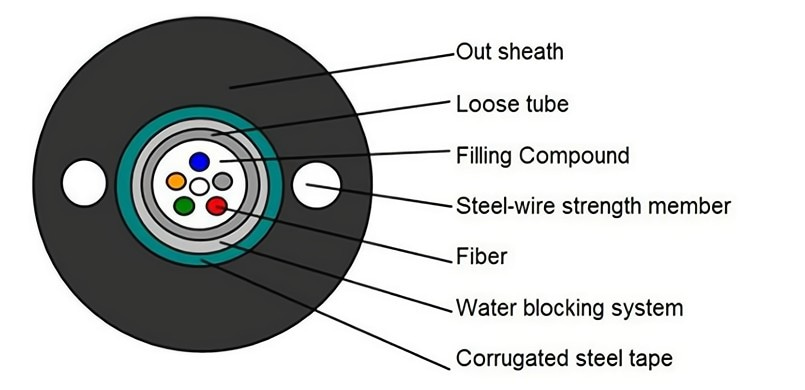

Two steel wires are arranged in parallel at the two sides of the fiber cable. The fiber cable has full-section water blocking, compact structure, small outer diameter and light weight and good mechanical properties, low loss, low dispersion. GYXTW fiber optic cable is suitable for overhead and duct of digital transmission communication systems.


Features:


  • Steel-wire parallel member

  • Filler protect loose tube fiber

  • Steel tape armored

  • Excellent mechanical and environmental performance

  • Compact structure

  • Light weight

  • Working temperature: -40℃~+60℃

  • Bend radius: Static 10 times the cable diameter

  • Dynamic 20 times optical cable diameter


Application:


  • Adopted to Outdoor distribution

  • Suitable for aerial, pipeline laying method

  • Long distance and local area network communication

  • Can be installed conveniently and operated simply.

  • Polyethylene sheath makes the cable have good UV resistance

  • Double armored jacket makes cable better side pressure resistant

  • Product life more than 30 years


Packaging & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre


Parameter of Duct Fiber Optical Cable|Outdoor GYXTW Fiber Optic Cable 4 core Single Mode G652D Centr

No. of cable

2~8

10~12

14~24

Fiber Model

G.652D

Strength Member

Material

Steel Wire

Diameter(±0.05)mm

1.0

1.0

1.2

Loose Tube

Material

PBT

Diameter(±0.06)mm

2.1

2.4

3.0

Thickness(±0.03)mm

0.32

0.35

0.4

The Max.Core NO./Tube

8

12

24

Water Blocking layer(Material)

Water Blocking Tape

Armoring

Material

Steel Strip

Thickness(±0.03)mm

0.25

Outer Sheath

Material

MDPE

Thickness(±0.2)mm

2.0

Cable Diameter(±0.2)mm

8.1

8.3

9.6

Cable Wetght(±5)kg/km

63

65

95

Min. bending radius

Without Tension

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70

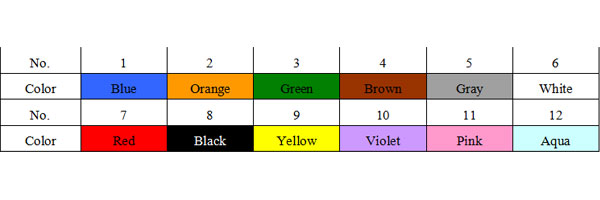

Fibre & Loose Tube Colors

Fibre & Loose Tube Colors


Do you have certificate for raw material?

Yes, with qualified ISO9001, ROHS, UL raw material suppliers.

What is the cable structure for this duct fiber optic cable?

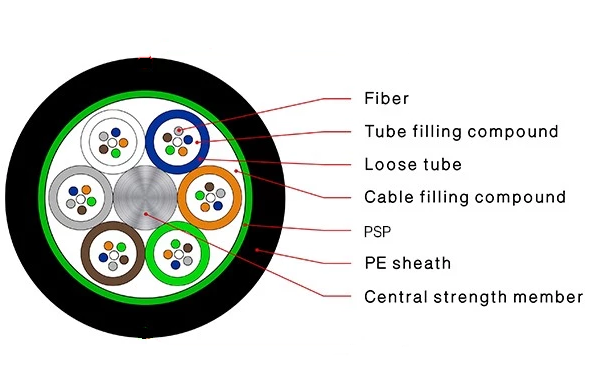

This duct fiber optical cable is usually in Stranded loose tube structure.

How many cores for the duct fiber optical cable?

2-288cores.

What's the MOQ for duct fiber optic cable?

The MOQ of duct fiber optic cable is 2km.

Can you supply customized products and logo?

Yes, we supply OEM&ODM service, please feel free to contact us.
