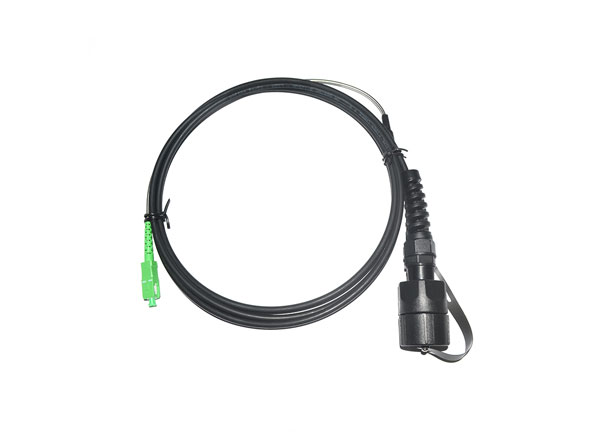

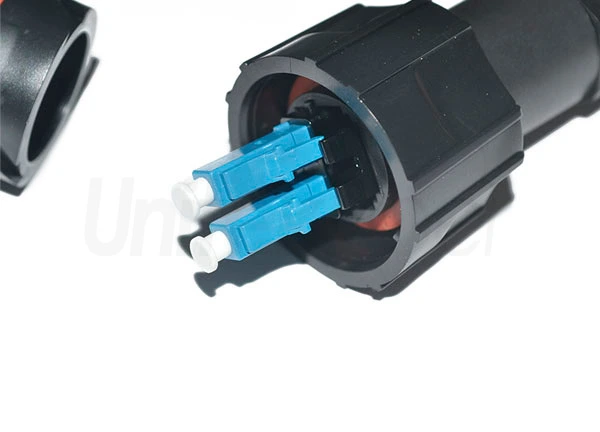

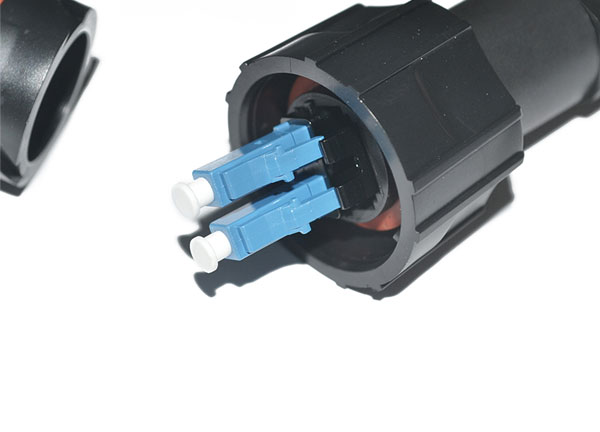

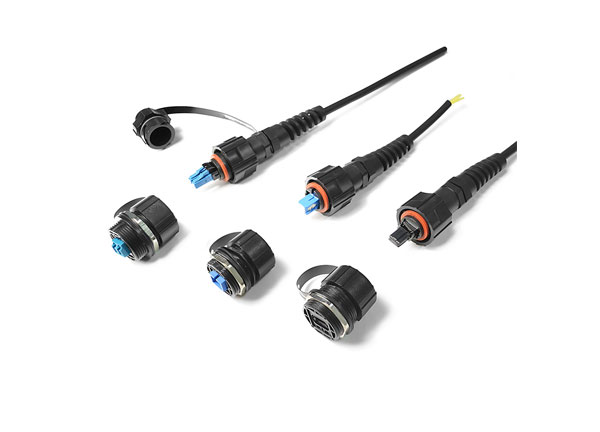

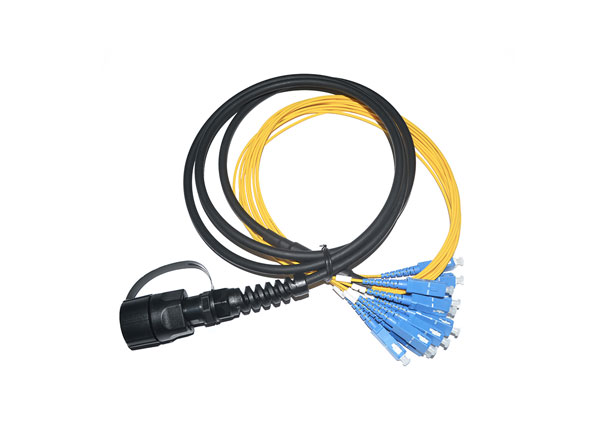

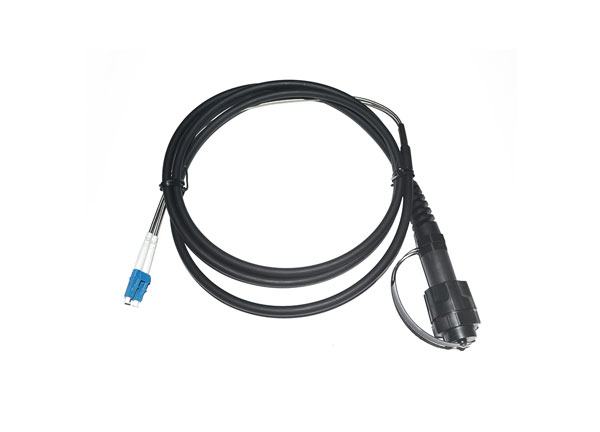

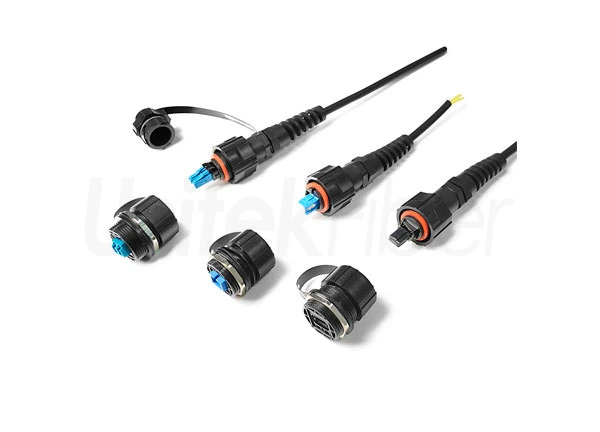

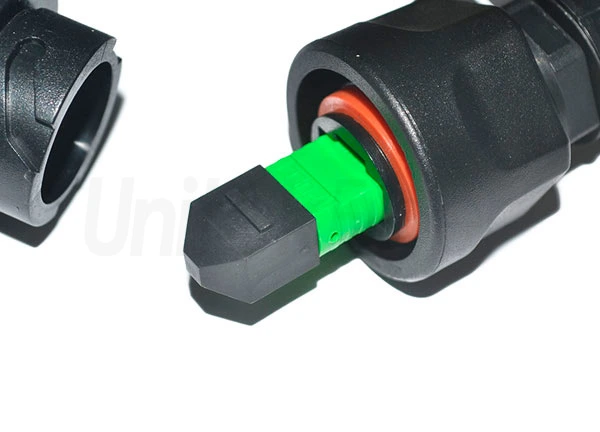

Waterproof IP68 Outdoor ODVA-LC/SC/MPO Fiber Optic Jumper for RRH System

Outdoor fiber optic jumper is also called waterproof patchcord. It is assembled with waterproof boot to meet the harsh environment when laid outside network system. Waterproof IP68 is qualified. All our products meet the requirements of dust protection and flame retardant characteristics.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Waterproof IP68 Outdoor ODVA-LC/SC/MPO Fiber Optic Jumper for RRH System

Features:


  • Low Insertion Loss and high return loss

  • Rugged fiber cable structure

  • Excellent link and crush resistant

  • Stainless steel tube

  • Available for MPO,LC, SC, ST, FC, etc standard connectors

  • ROHS, REACH and SVHC compliant

  • Operational temperature for outside plant -40 to +85°C


Application:


  • Multi-purpose Outdoor

  • For connection between distribution box and RRH

  • Deployment in Remote Radio Head cell tower applications

  • Backbone installation

  • Data center cabling

  • Support 40G and 100G network

  • Telecommunication network

  • Industrial&Military


Packaging & Shipping


Waterproof IP68 Outdoor ODVA-LC/SC/MPO Fiber Optic Jumper for RRH System

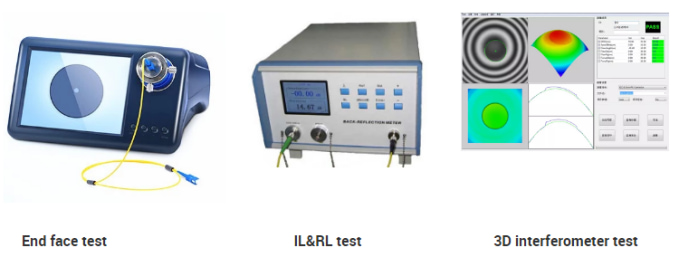

Production


Waterproof IP68 Outdoor ODVA-LC/SC/MPO Fiber Optic Jumper for RRH System


Parameter of Waterproof IP68 Outdoor ODVA-LC/SC/MPO Fiber Optic Jumper for RRH System

Model

SM

MM

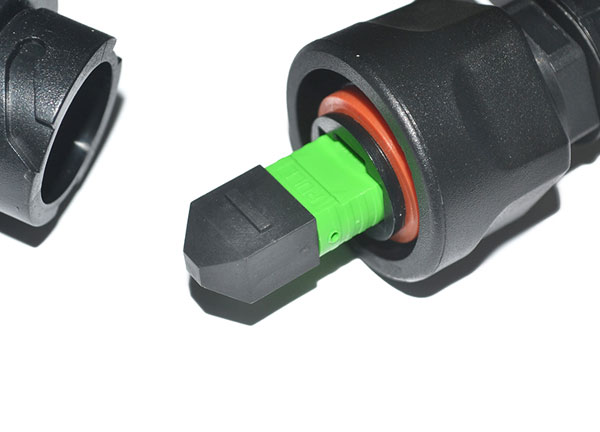

Connector A:MPO/MTP

Connector Fiber Count

8,12,24,48 Core

Polish

PC,APC

PC

Insertion Loss

Standard

≤0.70dB

≤0.50dB

Elite Low Loss

≤0.35dB

≤0.30dB

Return Loss

PC≥50dB,APC≥60dB

≥30dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

Connector B:LC,LC Uniboot,SC,FC,ST

Polish

PC,APC

PC

Insertion Loss

≤0.2dB

≤0.2dB

Return Loss

PC≥50dB,APC≥60dB

≥35dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm


Fiber Color Code

Fiber Color Code


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

Reviews

Bradley
Jul 25, 2022

Great fiber. Keep me regular. Worked as intended.

Verified Purchase
Helpful 0

Video
Contact UnitekFiber
Contact UnitekFiber

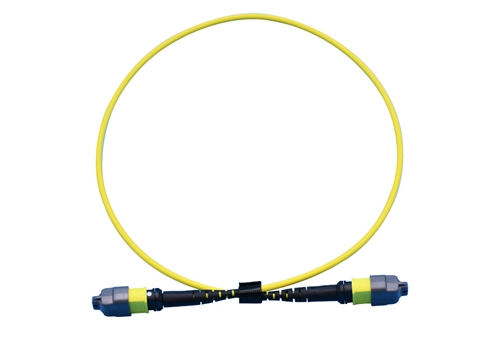

Other MTP/MPO Fiber Cable Products
