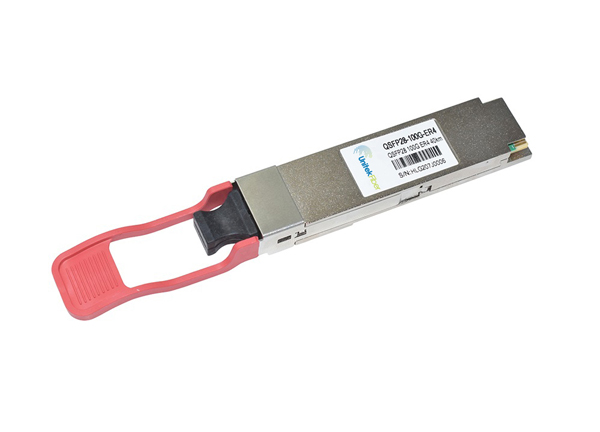

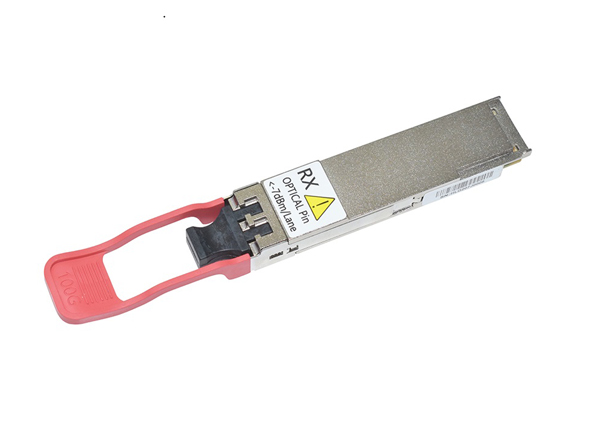

100G QSFP28 ER4 Optical Transceiver 40km 1310nm Compatible With Alcatel-Lucent Nokia

The 100G optic transceiver standard used for long-distance transmission is mainly 100GBASE-ER4. Its representative optic transceiver is 100G QSFP28-ER4, and its maximum transmission distance can go to 40km. The working principle of 100G QSFP28 ER4 optical transceiver is to convert 4x25Gbps electrical signals into 4 LAN WDM optical signals, and then use MUX or WDM to multiplex them into a single channel.

Distance
SFP Types
Fiber Optic
Description
Parameter
FAQ
Download
Review
Video

Details of 100G QSFP28 ER4 Optical Transceiver 40km 1310nm Compatible With Alcatel-Lucent Nokia

100G QSFP28 ER4 Optical Transceiver 40km 1310nm Compatible With Alcatel-Lucent Nokia


The HW QSFP-100G-iSR4 Compatible QSFP+ Transceiver adopts 12 Fibers MTP/MPO Male connectors, reaching a link up to 150m over OM4 MMF (100m over OM3). This optical transceiver is compliant with QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4 and breakout to 4x10GBASE-SR standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, campus and computing networks, interconnections within and between switches, routers, NICs and transport equipment.


Network Connectivity

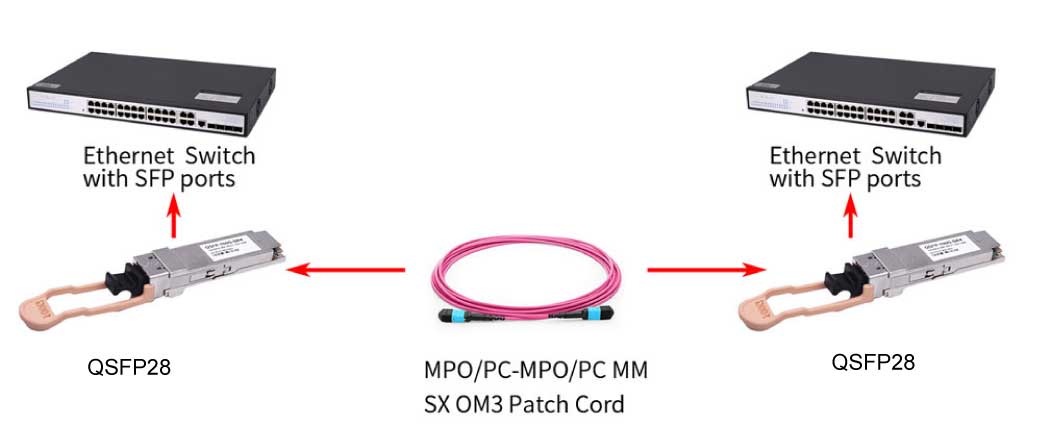

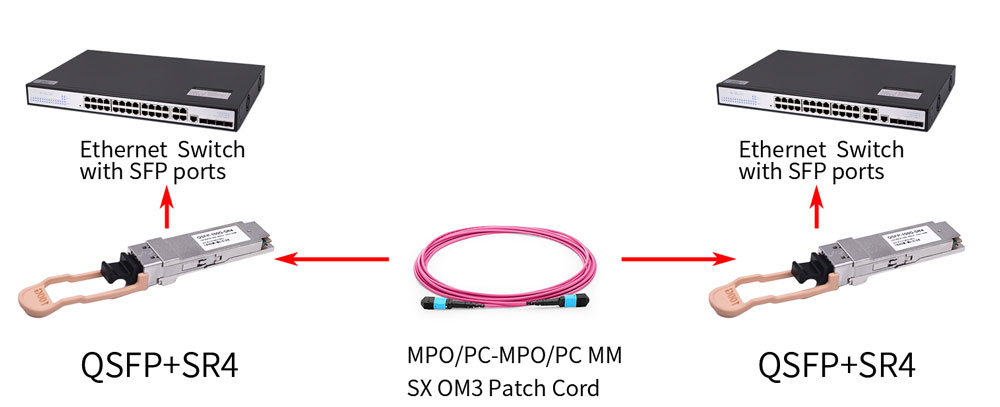

Direct Connection for 100GBASE-SR4 QSFP+ Transceivers


100G QSFP28 ER4 Optical Transceiver 40km 1310nm Compatible With Alcatel-Lucent Nokia

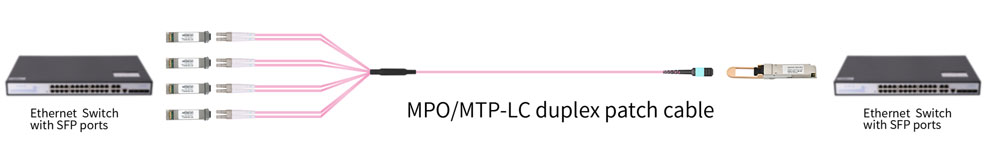

Direct Connection for 100GBASE-SR4 QSFP+ Optics to 4x 100G SFP+ Optics with MTP Harness Cable


100G QSFP28 ER4 Optical Transceiver 40km 1310nm Compatible With Alcatel-Lucent Nokia

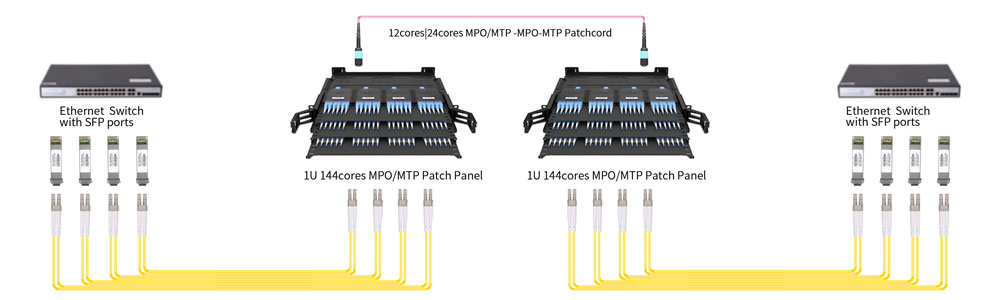

Connection for 100G QSFP+ SR4 Transceivers with FAPs and Fiber Enclosures


100G QSFP28 ER4 Optical Transceiver 40km 1310nm Compatible With Alcatel-Lucent Nokia


Product Highlights

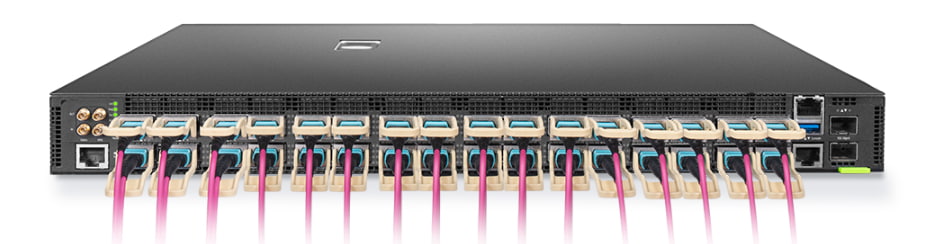

100G Connectivity for Data Center

Commonly used in data centers to connect Ethernet switches with OM3/OM4 fiber optic cables. SFP+100G transceiver interface has better transmission performance, lower loss and higher pair size.


100G QSFP28 ER4 Optical Transceiver 40km 1310nm Compatible With Alcatel-Lucent Nokia


Tested in Host Devices for Proven Interoperability

QSFP+100G optical modules are mainly used to realize the connection between network devices in the data center, and are suitable for short-distance transmission.


100G QSFP28 ER4 Optical Transceiver 40km 1310nm Compatible With Alcatel-Lucent Nokia


10G QSFP+ DOM optical transceiver module is individually tested to be used on a series of switches, routers, servers, network interface card etc. In data centers, high-performance computing networks, enterprise core layer and distribution layer application scenarios, 100G QSFP+ optical modules provide high-density and low-power 40G Ethernet connection transmission applications.

Parameter of 100G QSFP28 ER4 Optical Transceiver 40km 1310nm Compatible With Alcatel-Lucent Nokia

PART NUMBER

FORM FACTOR

DATA RATE

WAVELENGTH

LASER

DISTANCE

MEDIUM

CONNECTOR

TEMPERATURE

UFQP28-100G-SR4

QSFP28

103G

850nm

VCSEL/PIN

100m

MMF

MPO

0℃~70℃

UFQP28-100G-LR4

QSFP28

103G

1310nm

DML/PIN

10km

SMF

Duplex LC

0℃~70℃

UFQP28-100G-LR4-A

QSFP28

112G

1310nm

EML/PIN

10km

SMF

Duplex LC

0℃~70℃

UFQP28-100G-LR4-B

QSFP28

112G

1310nm

DML/PIN

10km

SMF

Duplex LC

0℃~70℃

UFQP28-100G-CWDM4

QSFP28

103G

1310nm

DML/PIN

2km

SMF

Duplex LC

0℃~70℃

UFQP28-100G-PSM4

QSFP28

103G

1310nm

DML/PIN

500m

SMF

MPO

0℃~70℃


What is a QSFP28 Optic Transceiver Module?

QSFP28 is a hot-pluggable transceiver module designed for 100G data rate.

What are the main application scenarios of 100G optical modules?

100G connectivity for switches and routers in the data center.

What connection ports do 100G optical modules have?

Usually, QSFP28 100G optical modules have MPO port and LC port.

What is the farthest transmission distance of a 100G optical module?

QSFP28-ZR4 100G optical transceiver module can transmit 80KM.

Which brands of equipment are 100G QSFP28 optical modules compatible with?

Unitekfiber's optical modules are compatible with Fiberhome, Huawei, ZTE, Cisco, Ericsson, Nokia and other brands.

Can this 100G QSFP28 module be used in temperatures other than commercial temperature?

Usually, the optical transceiver modules we produce are commercial temperature, suitable for 0-70 degrees.
