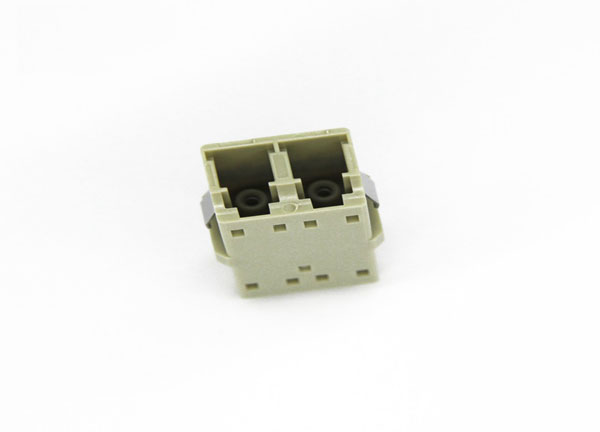

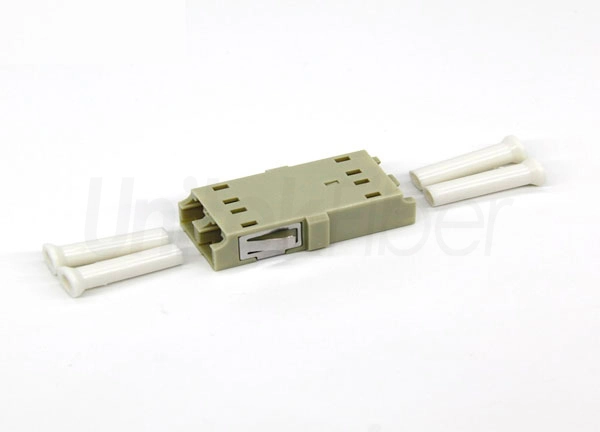

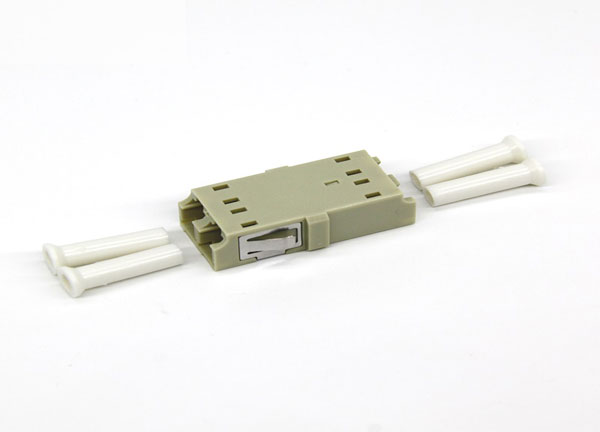

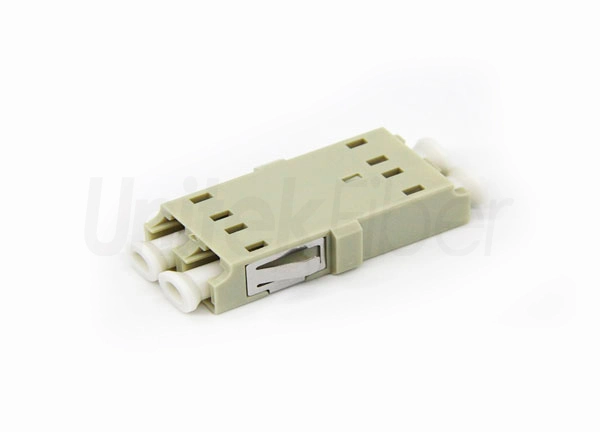

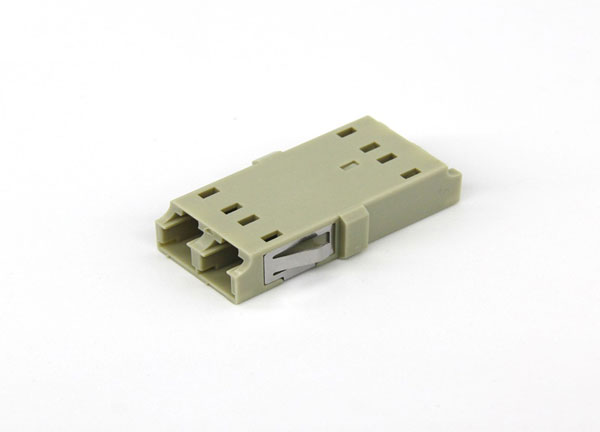

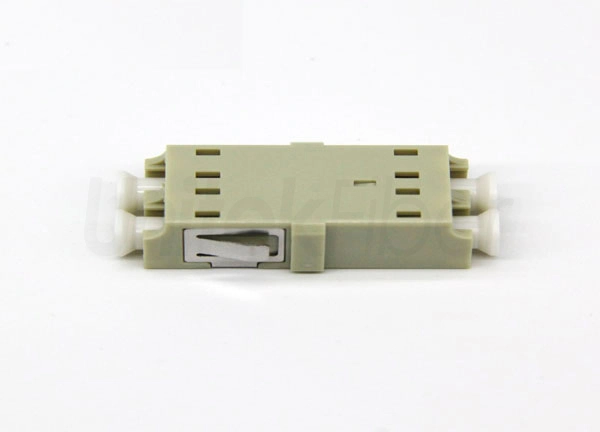

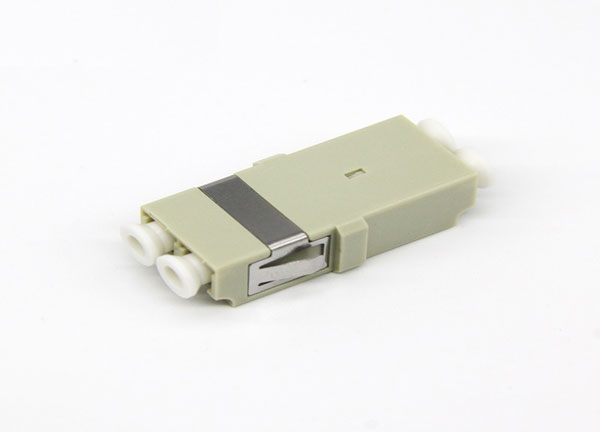

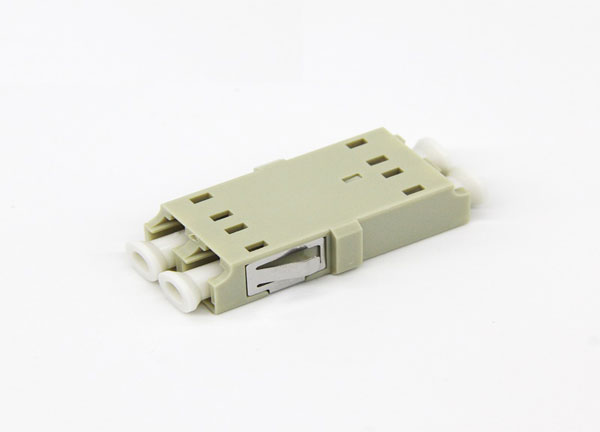

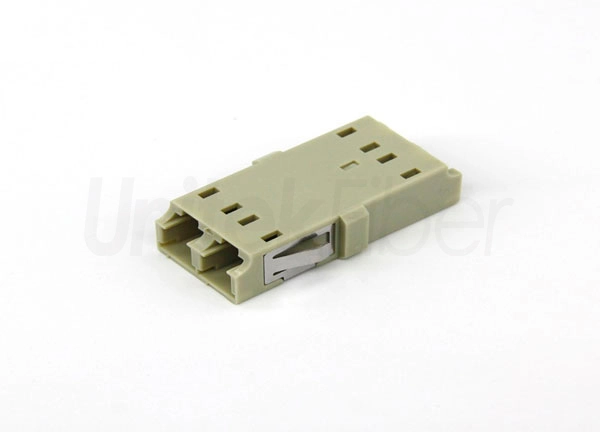

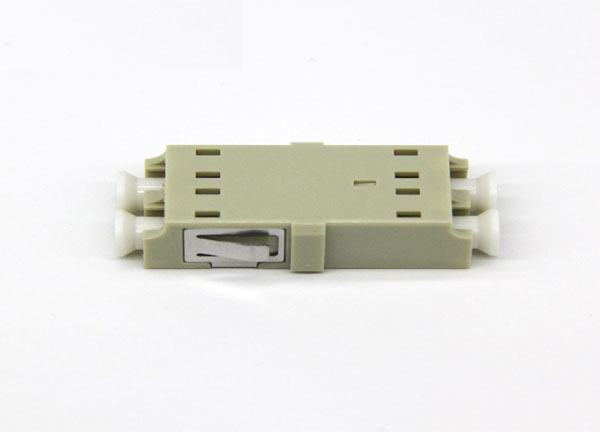

LC/PC to LC/PC Fiber Adapter Dupplex Beige OM1
Fiber optic adapter is detachable connections between fiber optic lines and equipment. It is a device that realizes precise connection of fiber end faces, and is a bridge for connector connection. The optical fiber adapter can form a continuous optical path; can be repeatedly use; can be actively connected with active or passive devices and can be actively connected with the instruments.
Low insertional loss and back reflection loss
High prcision alignment
Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
Compact design
Plastic housing
CATV
Telecommunication networks
Test equipment
Metro
Local Area Networks(LANs)
Data processing networks
Multimedia
Gigabit Ethernet
Active device/Transceiver
Optical adapters were developed for connecting and mating two identical or two different (hybrid) connector plugs. The main function of the adapters are for connection between various fiber optic connectors, fiber optic patch cords, fiber optic pigtails and fiber optic equipments, it offers the point-to-point connection in the fiber optic network.
Fiber adapters are widely used in optical communications, optical sensors, and other optical fiber applications such as long-distance trunk networks, metropolitan area networks, access networks, optical fiber CATV networks, optical fiber data networks, and DWDM systems.
Specification | ||
Data | Unit | |
Adapter Type | SC/LC/FC/ST | |
Insertion Lose | ≤0.2 | dB |
Interchangeability | ≤0.2 | dB |
Repeatability | ≤0.1 | dB |
Temperature | -40～+85 | ℃ |
