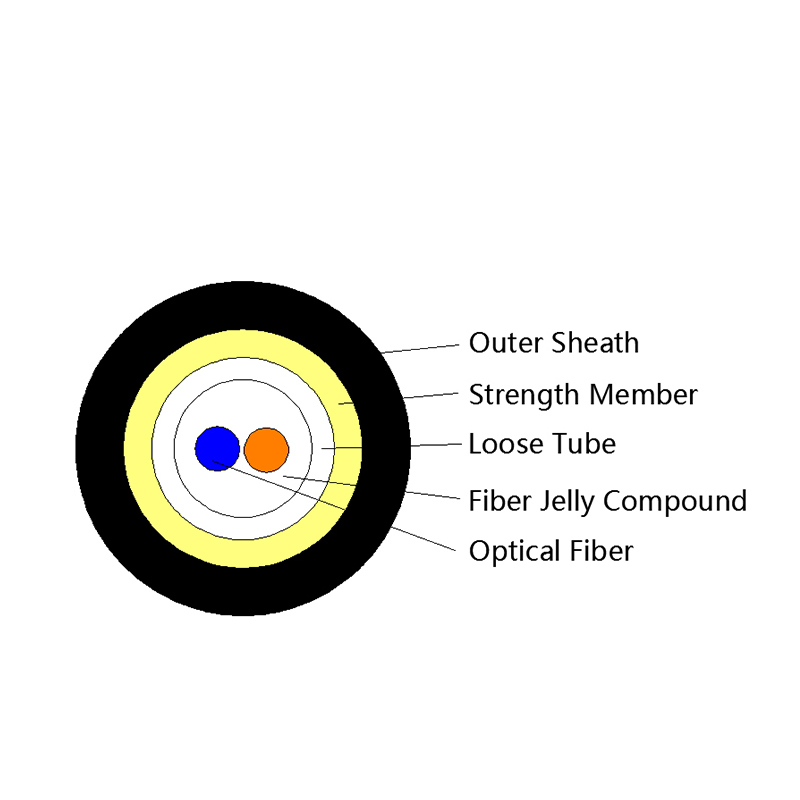

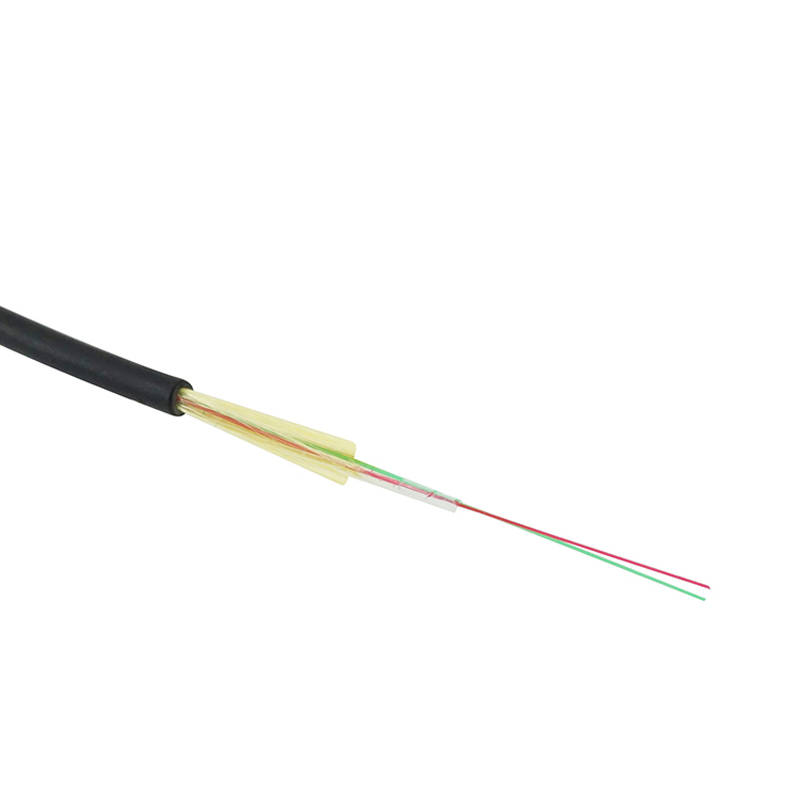

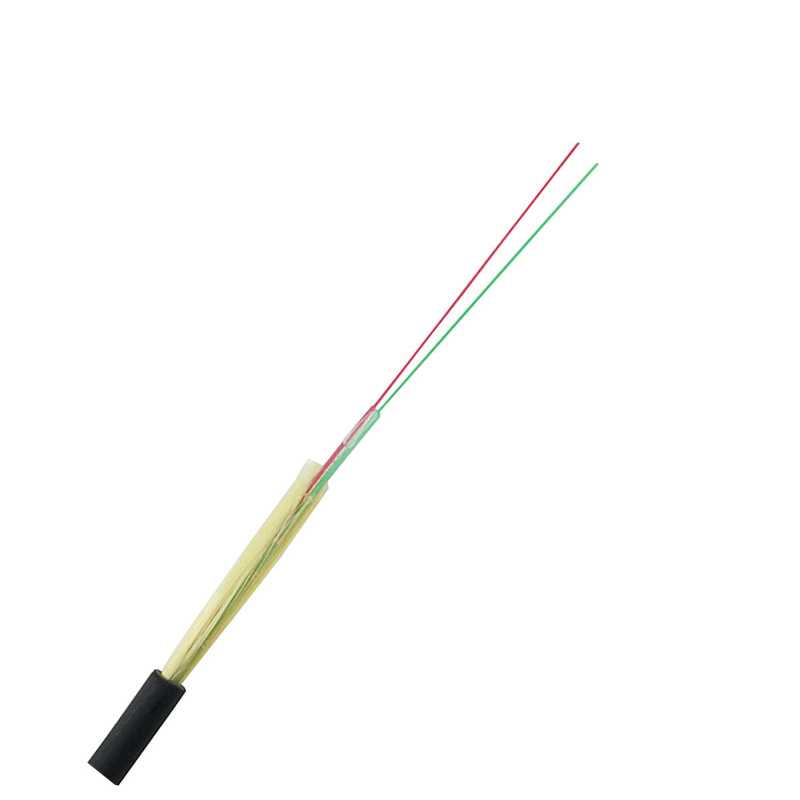

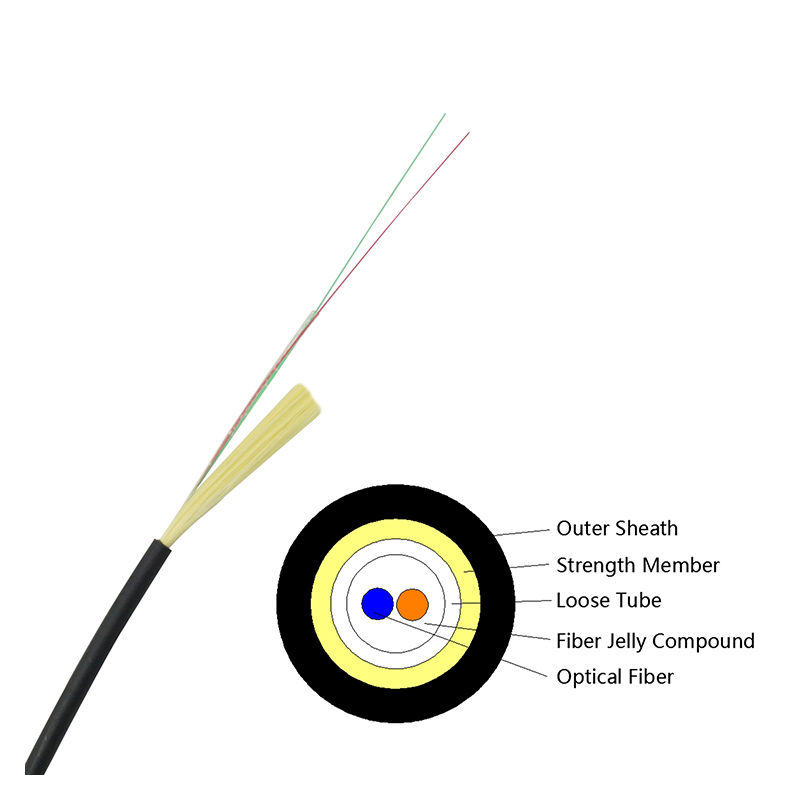

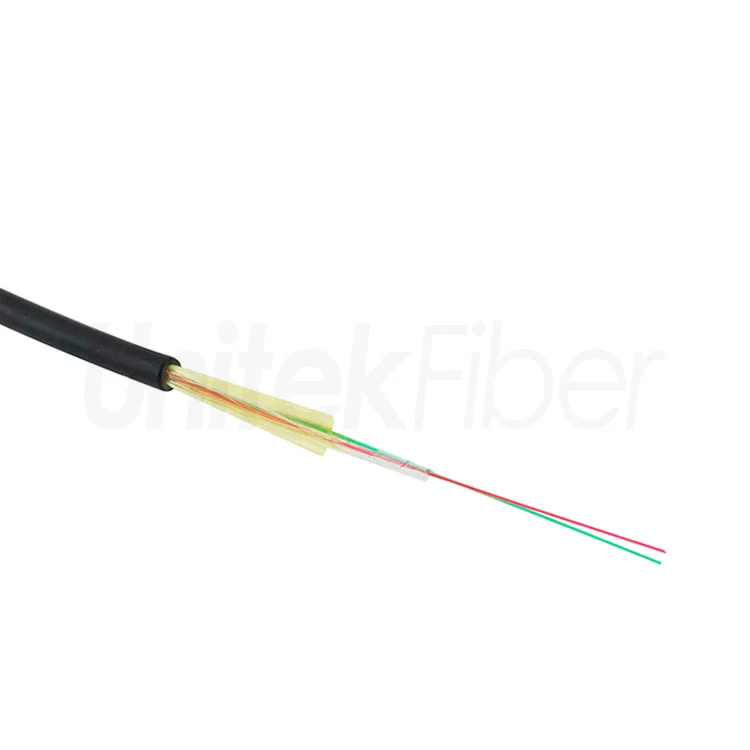

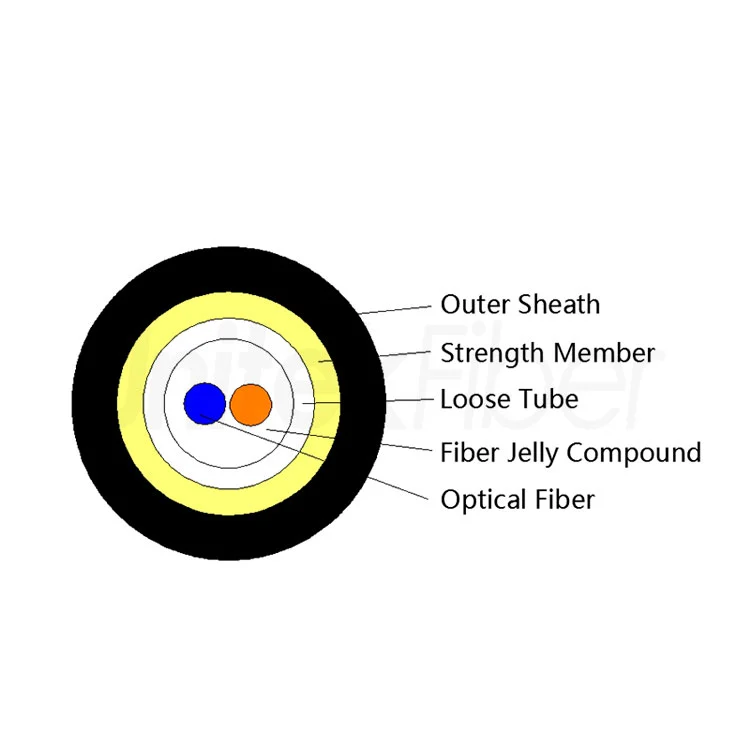

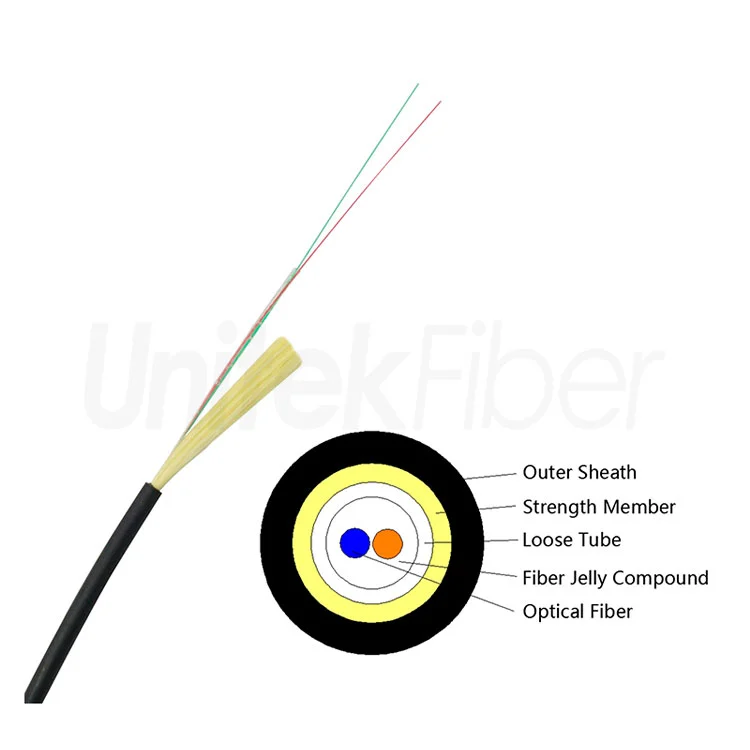

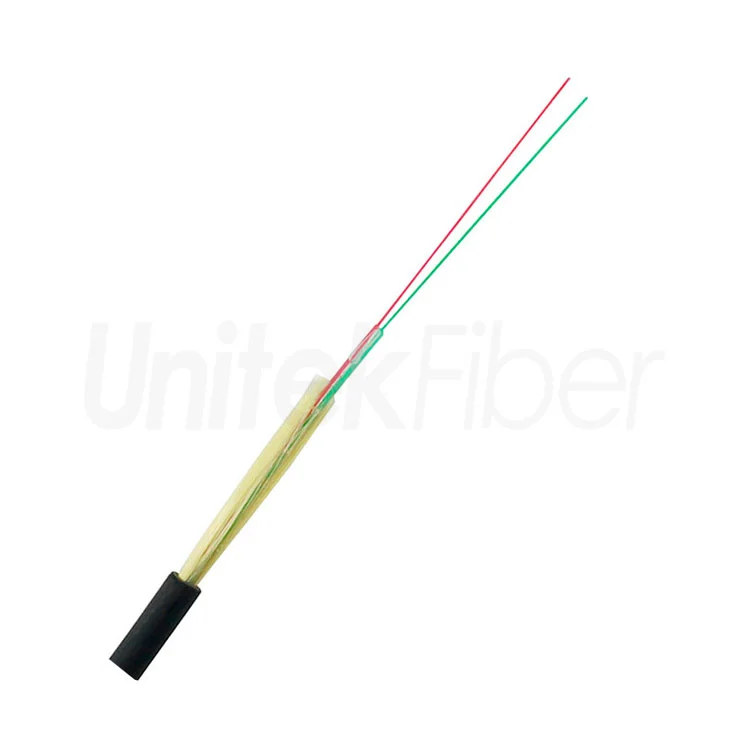

Indoor/outdoor fiber optic cable is not only meet the flame retardant requirements of indoor use, but also meet the needs of outdoor use. The structure of this fiber optic cable is putting 2-24 of 250um bare fibers in a PBT loose tube. And the Kevlar yarn is requested as reinforcement to enhance tensile resistant.The standard sheath is made of low-smoke, halogen-free, flame-retardant materials.
Fiber type: ITU-T- G652D, G657A fiber, G657B fiber
Up to 24 fibers.
Uni-tube gel-filled construction for superior fiber protection.
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
Good performance of tensile strength and temperature
UV stablized and Flame-retardent LSZH outer jacket
Small size, Low cost.
This fiber cable is applied in Duct, Aerial FTTx, Access installations.
Used in access network or as access cable from outdoor to indoor in customer premises network.
Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.
No. of cable | 24 | |
Fiber Model | G.652D | |
Material | PBT | |
Diameter（±0.03）mm | 0.35 | |
Thickness（±0.06）mm | 3.0 | |
Material | LSZH | |
Thickness（±0.1）mm | 1.3 | |
Cable Diameter（±0.2）mm | 6.4 | |
Cable Weight（±5）kg/km | 49 | |
Min. bending radius | Without Tension | 15.0×Cable-φ |
Under Maximum Tension | 20.0×Cable-φ | |
Temperature range | Installation | -5~+50 |
Transport&Storage | -30~+70 | |
Operation | -20~+70 | |
Fibre Colours
No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Red | Blue | Green | Yellow | Violet | White | Orange | Gray | Brown | Light Green | aqua | pink |
No. | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 |
Color | Red | Blue | Green | Yellow | Violet | White | Orange | Gray | Brown | Light Green | aqua | pink |
This cable can work with single mode or multimode LC/SC fast connectors and also can be pre-terminated by LC/SC/ST/FC connectors.
Yes, the optical fiber usually is single mode (9/125) G657. It is also can be G652D. You can use cold splicing tool to add fast connectors LC/SC/ST/FC(UPC/APC) to it.
Yes, UnitekFiber can provide LC fast connectors to terminate FTTH drop cable.
The main application for FTTH drop cable is Fiber to The Home project.
Yes, it is suitable for outdoor application with 70meters pole span.

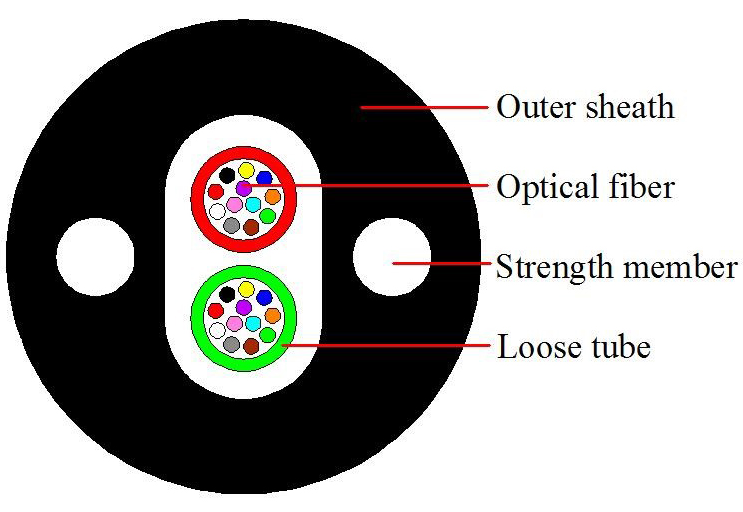

The strength member for FTTH drop cable can be FRP or steel wire.
FRP is a Fiberglass-Reinforced Plastic material that has the strength of steel at the fraction of the weight, the FRP makes cable strong tension and anti-bend advantages.
