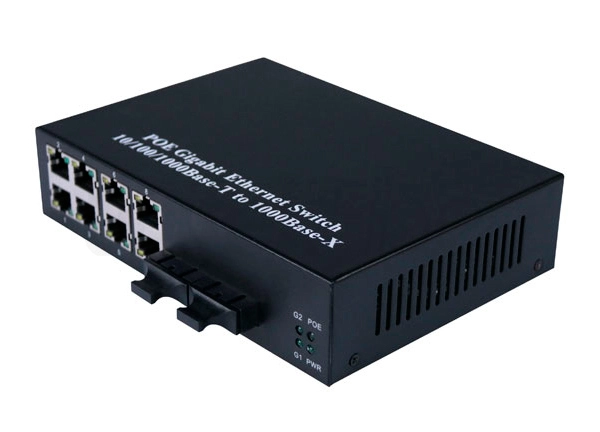

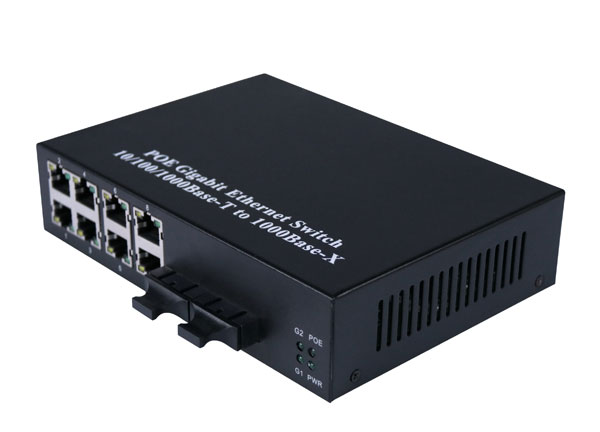

High Quality Gigabit Ethernet Network 8 Port PoE Fiber Switch With 1000M 2 Fiber Ports

UnitekFiber’s Fiber Ethernet switch has 8 RJ45 ports and 2 1000M fiber ports. It converts 10/100/1000BASE-TX Fast Ethernet twisted-pair signals to 1000BASE-FX Fast Ethernet fiber signals. This converter has the ability to transmit up to 2 kilometers for multi-mode fiber and up to 120 kilometers for long-haul single mode fiber between a LAN switch, file server and another networking device. In addition, LED indicator lights fully monitor the converter's operational status making observation and diagnoses easy.


Fiber Optic
Details
Parameter

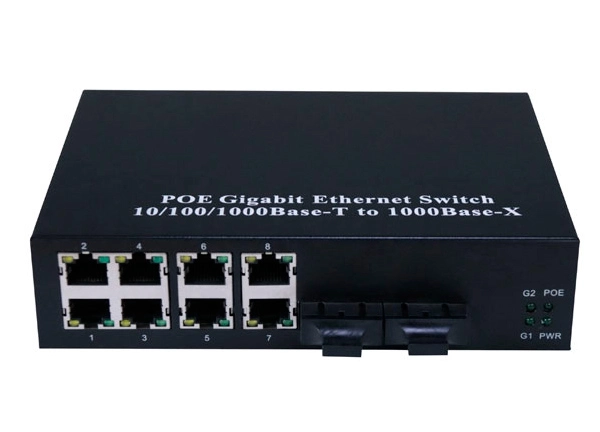

Details of High Quality Gigabit Ethernet Network 8 Port PoE Fiber Switch With 1000M 2 Fiber Ports

Features


  • 2 fiber ports, single or multi-mode, 8 RJ45 ports

  • 1 or 2 fiber design

  • Converts optical/electrical Ethernet signals between 10/100/1000M UTP ports and 1000M optical fiber ports

  • 10/100/1000M auto-negotiation in TP port, maximum speed to 20/200M (full-duplex)

  • Supports IEEE 802.3x full-duplex flow control and back pressure half-duplex flow control

  • Store and forward switching mechanism

  • Supports MAC self-learning

  • Automatic MDI/MDI-X configuration

  • LED link status indicator for activity, full/half duplex, speed, and power on diagnostic function

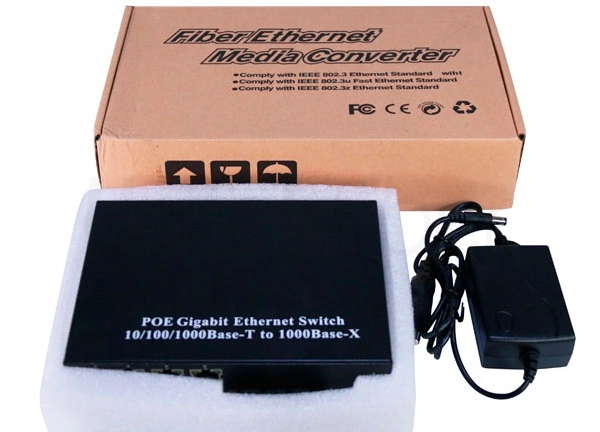

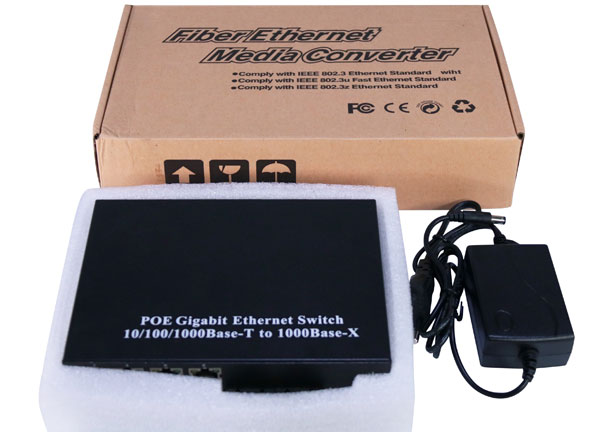

Packaging and Shipping


High Quality Gigabit Ethernet Network 8 Port PoE Fiber Switch With 1000M 2 Fiber Ports

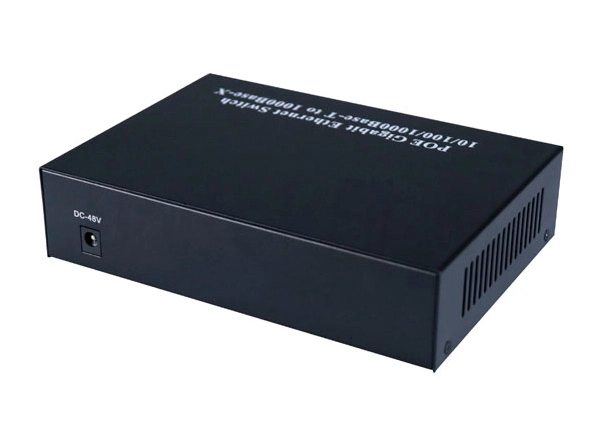

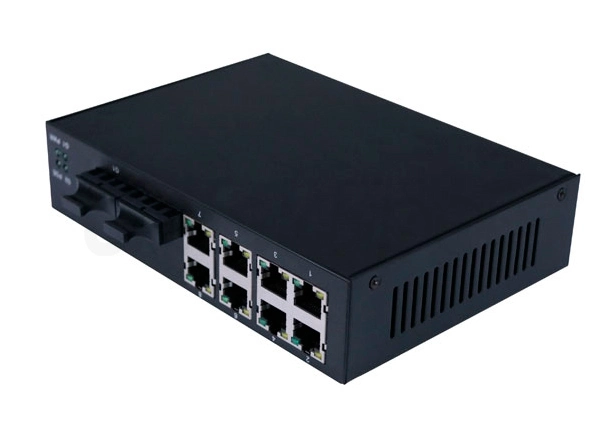

Production


High Quality Gigabit Ethernet Network 8 Port PoE Fiber Switch With 1000M 2 Fiber Ports


Parameter of High Quality Gigabit Ethernet Network 8 Port PoE Fiber Switch With 1000M 2 Fiber Ports

Model

UFZX-2G8MWS33-53OC-POE

Product

Fast Ethernet 8+2 POE Switch

Fixed Port

8*10/100Base-TX RJ45 port (Data)

2*1000M Optical Fiber Port (1000M Dual Fiber Optical Module)

PoE Ports

1-8 port supports PoE

Network Protocol

IEEE802.3

IEEE802.3i 10BASE-T

IEEE802.3u100BASE-TX

IEEE 802.3ab1000BASE-T

IEEE802.3x

IEEE 802.3z 1000BASE-X

IEEE802.3af/at (optional order HiPoE  PoE++)

PoE Standard

IEEE802.3af/at(optional order HiPoE  PoE++)

Port Specification

10/100BaseT(X)Auto

Transmission Mode

Store and Forward(full wirespeed)

Packet Forwarding

8.64Mpps

MAC Address

2K

Buffer

2.5M

Transmission Distance

10BASE-T : Cat3,4,5 UTP(≤250 meter)

100BASE-TX : Cat5 or later UTP(150 meter)

1000BASE-TX : Cat6 or later UTP(150 meter)

Single mode single fiber(MAX 20km)

Single mode double fiber(MAX 20 km)

Multiple mode double fiber(MAX 850meter/2km)

Optional 3-100km ptical Fiber Module

Power Pin

Default 1/2(+),3/6(-); Optional order 4/5(+),7/8(-)

Single port power

Average 15W;MAX25.5W

Total power/Input voltage

MAX 104W

Watt

Standby Power Consumption:≤5W;

LED Indicator

PWR :Power LED

G1/G2:(Optical fiber LED)

POE: Network Port LED

Port:(Orange=PoE LED+Green=Link LED)

Power Input

External power DC 52V 2A

Operating Temperature/Humidity

-15~+65°C;5%~90% RH Non coagulation

Storage Temperature/Humidity

-40~+75°C;5%~95% RH Non coagulation

Product size/Packing size(L*W*H)

169mm*120mm*40mm

270mm*162mm*55mm

N.W/G.W(kg)

0.8kg/1.3kg

Installation

Desktop (optional wall+machine hanger parts)

Lightning protection level

3KV 8/20us;

IP30

Certificate

CE mark, commercial;CE/LVD EN60950;
FCC Part 15 Class B;RoHS; MA ;CNAS

Warranty

Whole device for 2 year
