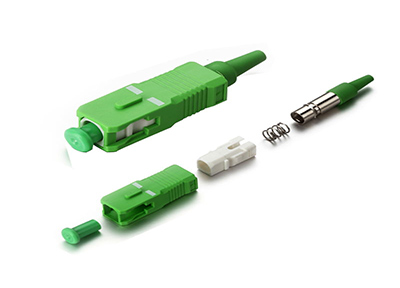

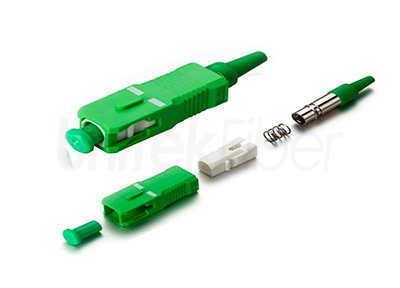

Supply SC APC Fiber Optical Connector Single Mode 0.9mm 2.0mm 3.0mm

Supply 0.9mm 2.0mm 3.0mm SC APC Optical Fiber Connector.


Fiber Optic
Details
Parameter

Details of Supply SC APC Fiber Optical Connector Single Mode 0.9mm 2.0mm 3.0mm

Features:


  • Low insertion loss and back reflection loss

  • Ferrule end surface pre-domed

  • Precision anti-rotation key and corrosion resistant body

  • Telcordia style boots

  • Free-floating ceramic ferrule


Applications:


  • Fiber Optic Telecommunications

  • FTTH (Fiber To The Home)

  • CATV & CCTV

  • Data Processing Networks

  • Telecom Equipment

  • Local Area Networks


Packaging & Shipping


Packaging & Shipping

Production


Supply 0.9mm 2.0mm 3.0mm SC APC Optical Fiber Connector


Parameter of Supply SC APC Fiber Optical Connector Single Mode 0.9mm 2.0mm 3.0mm


Insertion loss

SM

≤0.30 dB

MM

≤0.3dB



Return loss

MM

≥35dB

PC/UPC

≥50 dB

APC

≥60dB

Durability

<0.20 dB typical change, 1000 mating




Ferrule hole sizes

SM: 125.0+1/-0um

concentricity:≤1.0um

125.5+1/-0um

≤1.0um

126.0+1/-0um

≤1.0um

MM:125 um

Concentricity :1≤3 um

127 um

≤3 um

128 um

≤3 um

Operating temperature

-40~85
