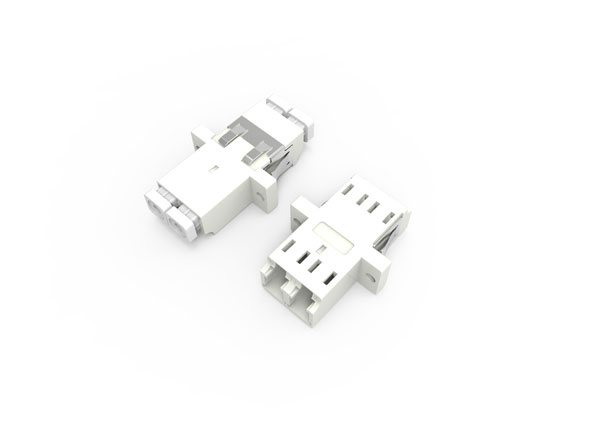

Fiber Optic Adapter Coupler LC - LC Duplex for High Density Network Solutions

The optical fibers are connected by the fiber optic adapter couplers through the internal open sleeve to ensure the highest connection performance between the optical fiber jumpers. In order to fix on various panels, a variety of fine fixing flanges are also designed.
LC fiber optic coupler adopts small sizh pins and sleeves, which increases the density of fiber cores in fiber distribution frames.


Fiber Optic
Details
Parameter

Details of Fiber Optic Adapter Coupler LC - LC Duplex for High Density Network Solutions

Features


  • Low insertional loss and back reflection loss

  • High prcision alignment

  • Telcordia, ANSI, TIA/EIA, NTT and JIS compliance

  • Compact design

  • Plastic housing


Application


  • CATV

  • Telecommunication networks

  • Test equipment

  • Metro

  • Local Area Networks(LANs)

  • Data processing networks

  • Multimedia

  • Gigabit Ethernet

  • Active device/Transceiver


The Application of Fiber Optic Adapter in Fiber Network Cabling

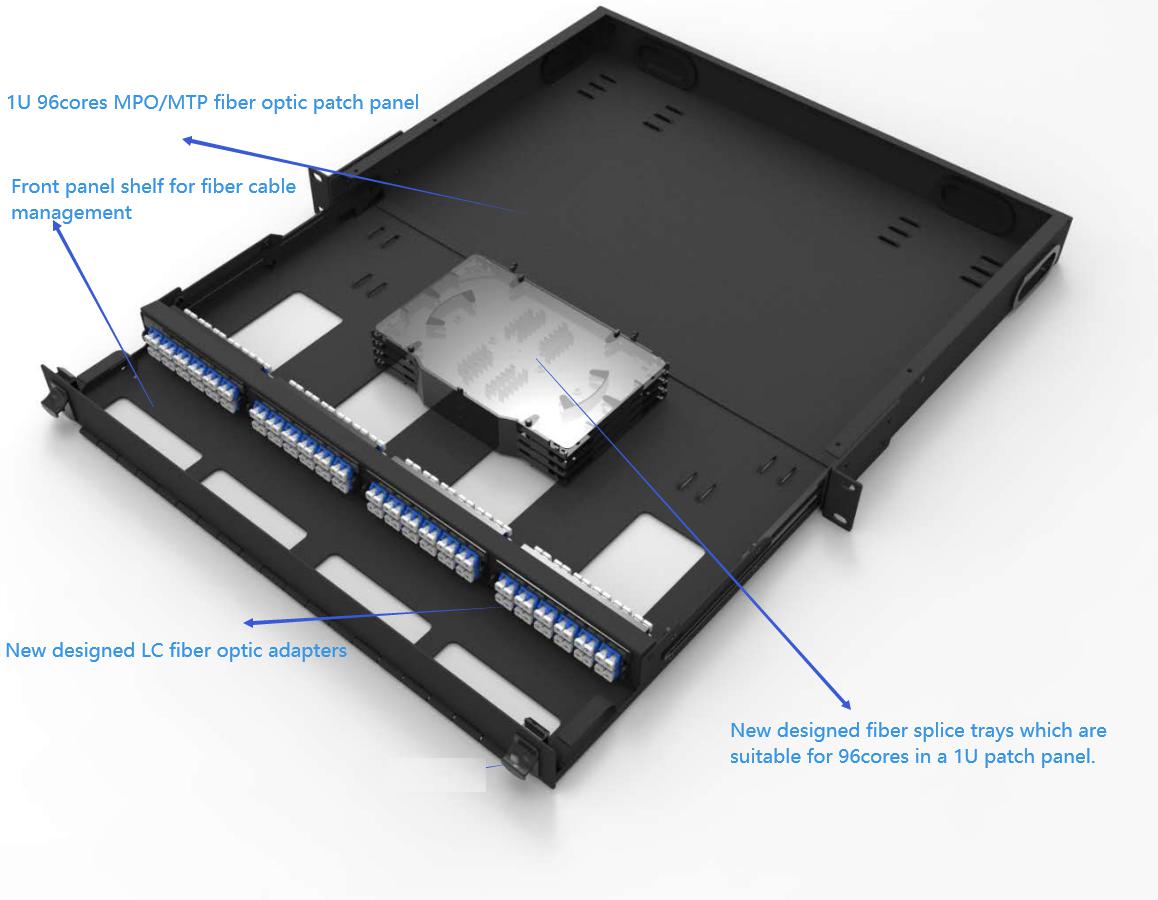

Unitekfiber provides 1U fiber optical panel with 96cores. There are 4pcs of dismounted adapter plates with 48pcs of duplex LC fiber optical mating sleeves. This designe of patch panel is suitable for high density data center solutions.


The Application of Fiber Optic Adapter in Fiber Network Cabling

Packaging and Shipping:


Packaging and Shipping

Production


Production


Parameter of Fiber Optic Adapter Coupler LC - LC Duplex for High Density Network Solutions

Specification


Data

Unit

Adapter Type

SC/LC/FC/ST


Insertion Lose

≤0.2

dB

Interchangeability

≤0.2

dB

Repeatability

≤0.1

dB

Temperature

-40~+85
