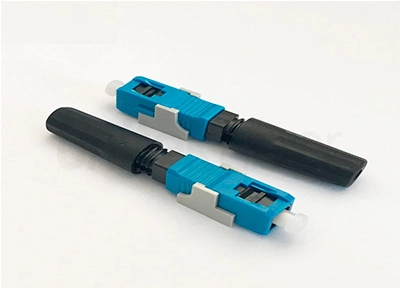

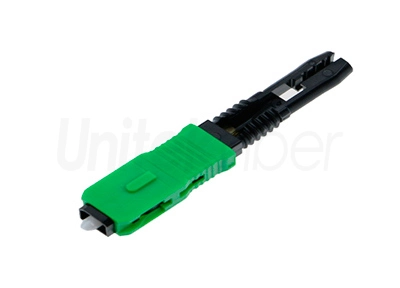

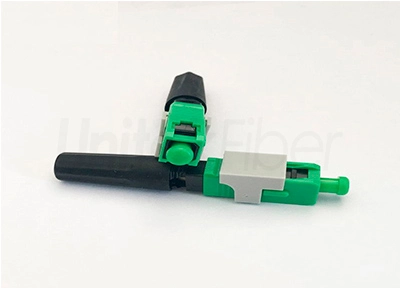

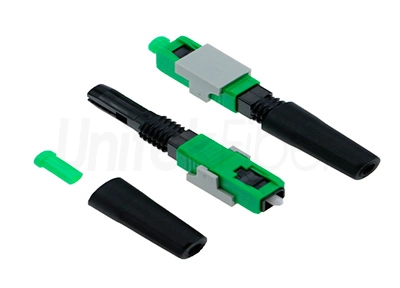

UnitekFiber Field Field Assembly Fiber Optic Connector also called fast connector. It is possible to improve the flexibility of optical cabling design as well as reducing the time on fiber termination. The Fast connector series are already a popular solution for optical cabling in indoors and floors for LAN & CCTV applications and FTTH.
Factory-installed fiber stub
No epoxy or polishing required
Quick and easy fiber termination in the field
Eliminates cable excess length and pigtail splicestorage
Cost effective
Applicable to bow-type drop cable and 2.0/3.0 indoor cable ,telecom cable
Used to open the FTTH fiber terminal end.
In the box, cabinet, such as wiring into the box.
Off the back of the accidents such as fiber, maintenance.
LAN, wan, data and video transmission.
The construction of the fiber end user access and maintenance.
Optical fiber access of mobile base station.
ITEM | Technical Parameters |
Applicable for | Drop cable / Indoor cable 0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable |
Optical fiber diameter | SM(9/125), MM(50/125, 62.5/125) 125μm ( 657A & 657B ) |
Tight buffer diameter | 250μm |
Fiber mode | Single mode |
Operation time | About 100s(no fiber cut) |
Insert loss | ≤ 0.3dB(1310nm & 1550nm) |
Return loss | > 50db(PC), > 55db(UPC), > 65db(APC) |
Fastening strength of naked fiber | >5 N |
Fastening strength of naked fiber holder | >10 N |
Tensile strength | >50 N |
Using temperature | -40~+75°C |
On-line tensile strength (20 N) | IL ≤ 0.5dB RL ≤ 5dB |
Mechanical durability (500 times) | IL ≤ 0.5dB RL ≤ 5dB |
Drop-off test (drop-off height 4m,once per direction, totally 3 times) | IL ≤ 0.5dB RL ≤ 5dB |
