Fiber Optic Bare PLC Splitter 1x4 1x8 1x16 1x32 1x64 1x128 Way

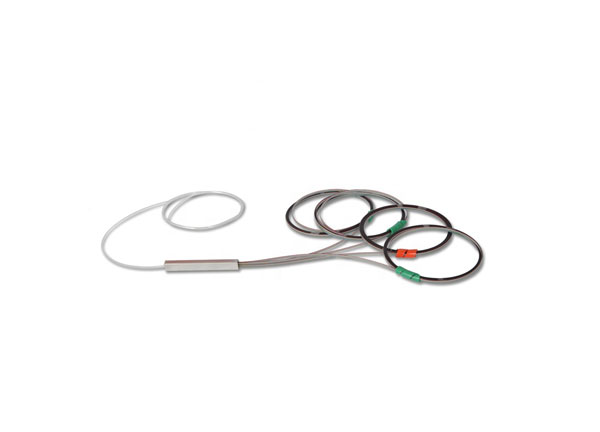

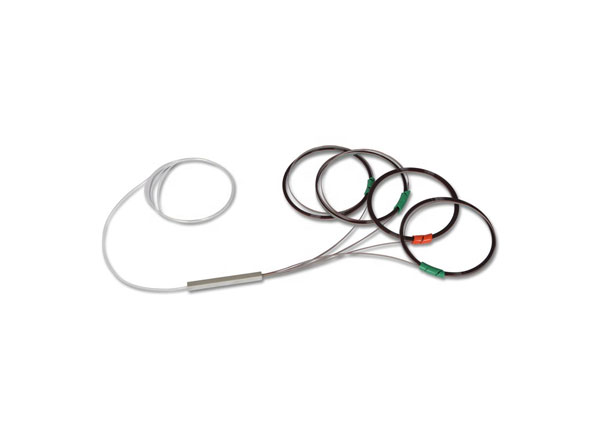

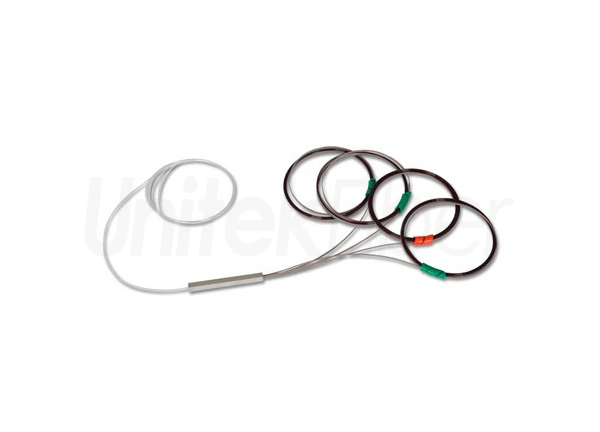

Bare fiber PLC splitter consists of PLC splitter chip and input, output optical fiber array in a square metal tube. The input and output parts are with 0.9mm or 250um bare fibers. The bare fiber part can be connected with various types of optical fiber connector, such as SC, LC, FC and ST connectors.


Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Fiber Optic Bare PLC Splitter 1x4 1x8 1x16 1x32 1x64 1x128 Way

Features:


  • Low Insertion loss

  • Low PDL

  • Compact Design

  • Good channel-to-channel uniformity

  • Wide Operating Wavelength:

  • From 1260nm to 1650nm

  • Wide Operating Temperature:

  • High Reliability and Stability


Applications:


  • FTTX Systems

  • PON Networks

  • CATV Links

  • Optical Signal Distribution

Compliance:

  • Telcordia GR-1209-CORE

  • Telcordia GR-1221-CORE


LGX Box PLC Spltter


Packaging and Shipping:


Fiber Optic Bare PLC Splitter 1x4 1x8 1x16 1x32 1x64 1x128 Way


Production:


Fiber Optic Bare PLC Splitter 1x4 1x8 1x16 1x32 1x64 1x128 Way


Fiber Optic Bare PLC Splitter 1x4 1x8 1x16 1x32 1x64 1x128 Way

Table 1 – 1×N PLC Splitter

Parameters

1×2

1×4

1×6

1×8

1×12

1×16

1×32

1×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G657A or customer specified

Insertion Loss (dB)(Min/Max)

3.8/4.0

7.2/7.4

9.5/9.8

10.5/10.7

12.1/12.6

13.5/13.7

16.5/16.9

20.5/21.0

Loss Uniformity (dB)

0.6

0.6

1.0

0.8

1.1

1.2

1.5

2.5

Return Loss (dB)

55

55

55

55

55

55

55

55

Polarization Dependent Loss(dB)

0.2

0.2

0.3

0.3

0.3

0.3

0.3

0.4

Directivity (dB)

55

55

55

55

55

55

55

55

Operating Temperature(℃)

-40~+85

Storage Temperature(℃))

-40~+85

Operating Humidity

5% ~ 85% RH

Storage Humidity

5% ~ 85% RH

Device Dimension (mm)   (L×W×H)

40×4×4

40×4×4

40×4×4

40×4×4

50×4×4

50×4×4

50×7×4

60×12×4

Module Dimension (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

100×80×10

120×80×18

120×80×18

140×115×18

140×115×18

Mini-Module Dimension (mm)   (L×W×H)

50×7×4

50×7×4

60×7×4

60×7×4

60×12×4

60×12×4

80×20×6

N/A


Table 2 – 2×N PLC Splitter

Parameters

2×2

2×4

2×8

2×16

2×32

2×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G657A or customer specified

Insertion Loss (dB)(Min/Max)

3.9/4.2

7.5/7.8

11.2/11.5

14.2/14.5

17.2/17.7

21.0/21.5

Loss Uniformity (dB)

0.8

1.5

1.5

1.8

2.0

2.5

Return Loss (dB)

55

55

55

55

55

55

Polarization Dependent Loss(dB)

0.2

0.2

0.4

0.4

0.4

0.4

Directivity (dB)

55

55

55

55

55

55

Operating Temperature(℃))

-40~+85

Storage Temperature(℃))

-40~+85

Operating Humidity

5% ~ 85% RH

Storage Humidity

5% ~ 85% RH

Device Dimension (mm)   (L×W×H)

40×4×4

50×4×4

50×4×4

50×7×4

60×7×4

60×12×4

Module Dimension (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

120×80×18

140×115×18

140×115×18

Mini-Module Dimension (mm)   (L×W×H)

60×7×4

60×7×4

60×7×4

60×12×4

80×20×6

N/A
