High-density MPO|MTP Patch Cords are currently mainly used in three major areas: high-density applications in data centers, FTTB applications, and 40G, 100G, 200G, 400G and 800G SFP transceiver connection applications. UnitekFiber is a professional factory producing fiber Optic MTP®|MPO trunk cables, breakout MPO|MTP® fiber patch cord, Fan-out MPO|MTP®-LC patch cables. Available in 8 to 288 fiber strands and OFNR, OFNP, LSZH jacket.
In the field of communication and data transmission, the development of optical fiber connectors is far more abundant than that of optical cable joints. With the rapid development of data centers, applications such as cloud computing and cloud storage have gradually penetrated various industries. In order to meet the requirements of multi-core use, optical fiber connectors began to develop in the direction of MU, MPO/MTP. An MPO/MTP cable can accommodate 8C, 12C, 24C or more. The MTP/MPO patch cord is the best solution for high density and high bandwidth.

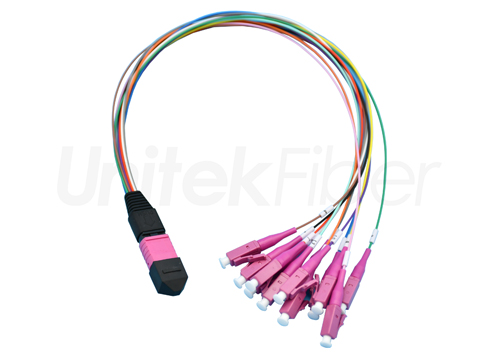

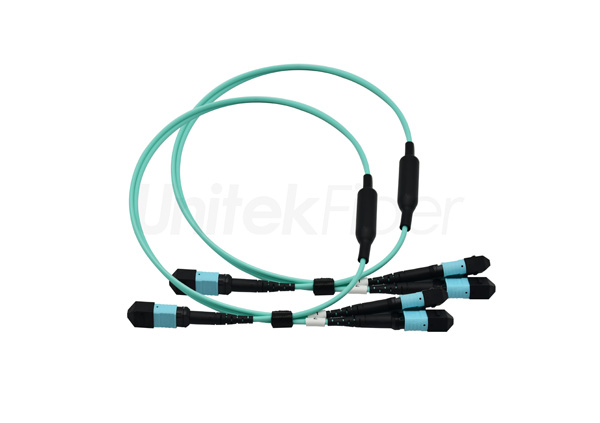

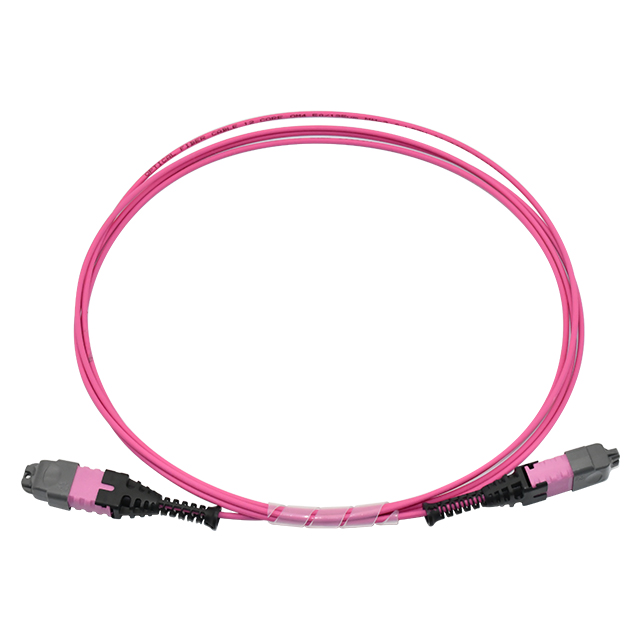

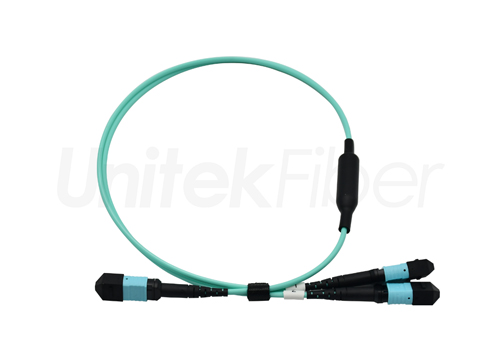

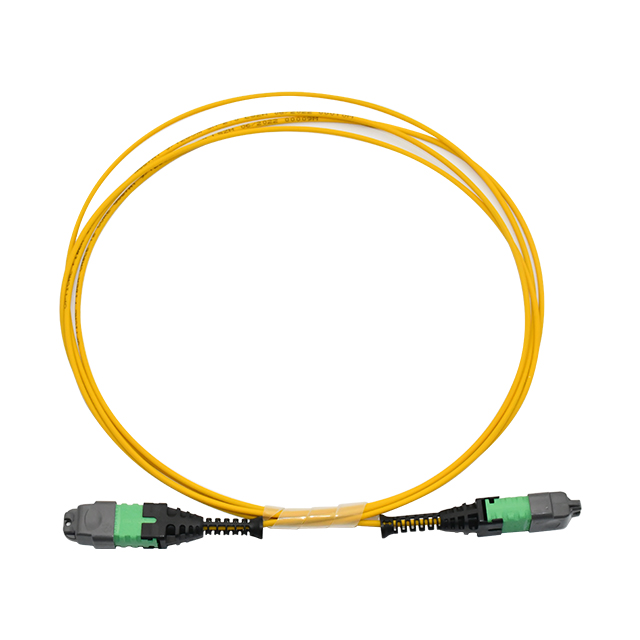

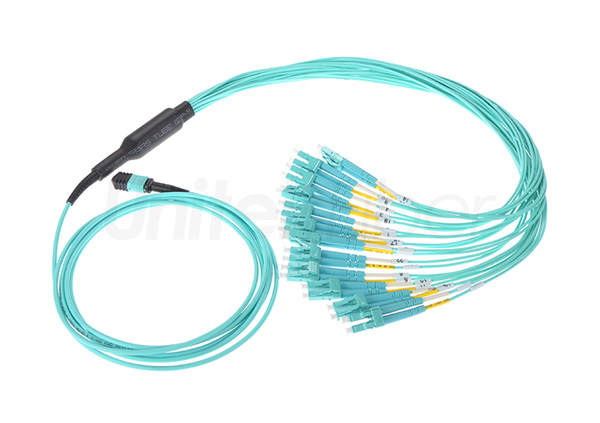

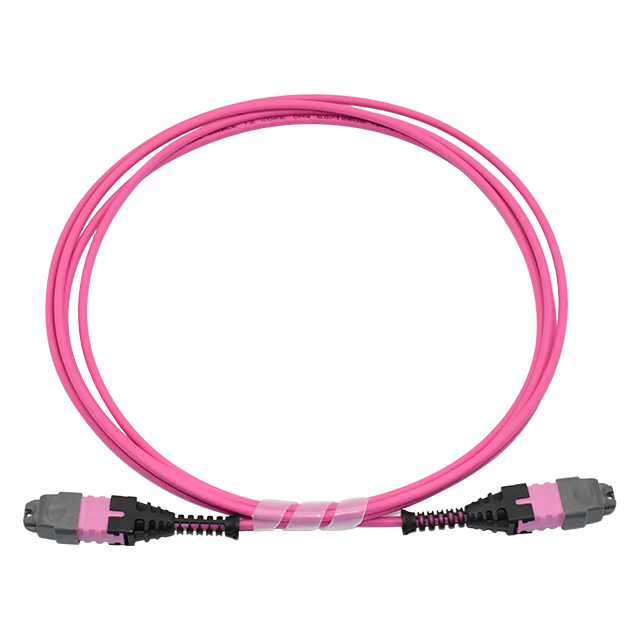

MTP/MPO fiber patch cables are divided into MTP/MPO trunk cables and MTP/MPO breakout patch cables, MPO-LC distribution patch cables. There are different types, different core numbers, and different polarities. The main MPO/MTP fiber cables can be 8 core, 12 cores, 24 cores, 48 cores, 72 cores, 96 cores and 144 cores.

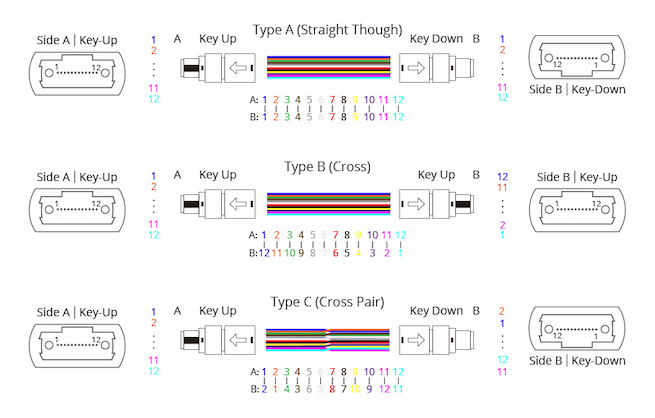

The polarity of MTP/MPO fiber types refers to the difference between the optical transmitters and receivers at both ends of the fiber link. Due to the unique design of MTP/MPO connectors, the polarity issues must be addressed in high-density MTP/MPO cable systems. There are three types of MPO/MTP fiber cable polarity: Type A, Type B, and Type C. Make sure which type you need, it could help the data center’s equipment work better.

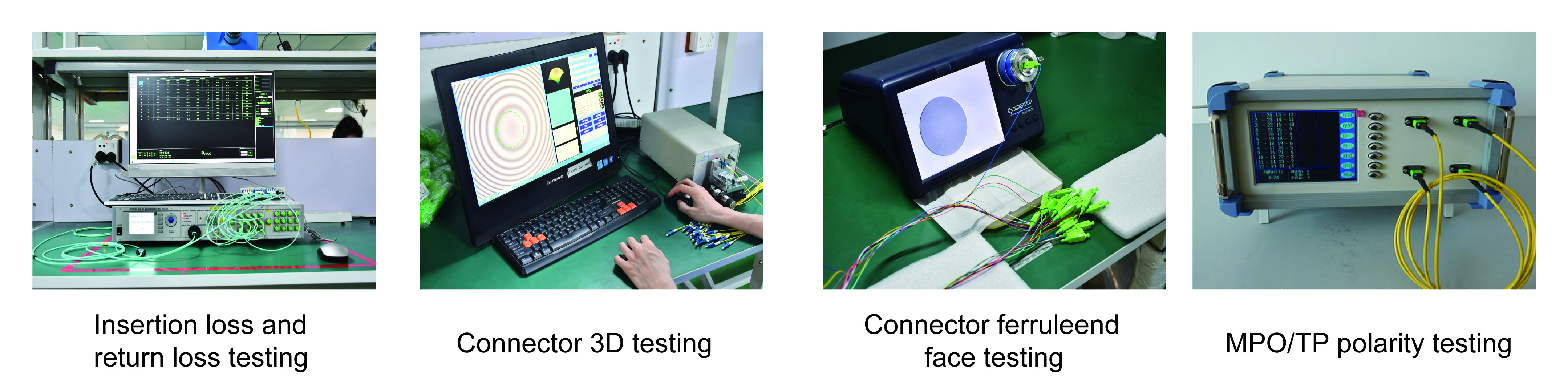

UnitekFiber provides high-quality 100% testing of MPO/MTP fiber optic jumpers, which meet product standards and satisfy customer needs. In order to ensure the high quality of the product, we will perform insertion loss and return loss testing, MPO/MTP polarity testing, connector 3D testing, and connector ferrule end face testing. The MPO/MTP fiber optic patch cord we provide can meet GR 326 or IEC61300-2; comply with ROHS, IEC61754-7, IEC 61753-1, IEC61300-3-4 and other standards.
UnitekFiber is a professional fiber optic products manufacturers, in addition to producing MPO/MTP cables, we also produce fiber optic pigtails, optical patch panel, optical cables, optical transceivers, etc for data center. Please contact us at Email sales@unitekfiber.com for more competitive prices.
