Self-supporting Aerial Fiber Cables|GYXTC8Y Fiber Optic Cable 2 Core G652D Figure 8 Center Loose Tube PE Jacket

The GYXTC8Y figure 8 fiber cable is a self-supporting structure that integrates the fiber cable core portion and the steel wire suspension into an "8" shaped PE jacket.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Self-supporting Aerial Fiber Cables|GYXTC8Y Fiber Optic Cable 2 core G652D Figure 8 C

Optical Cable for Sale

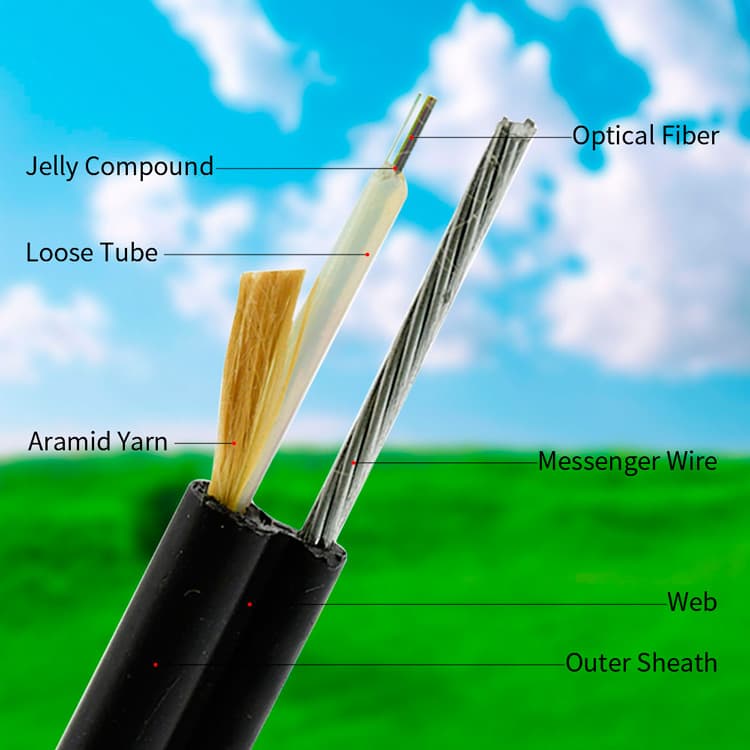

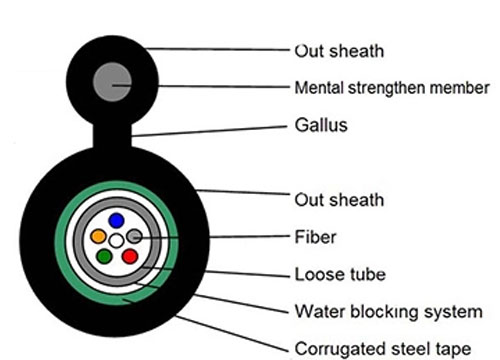

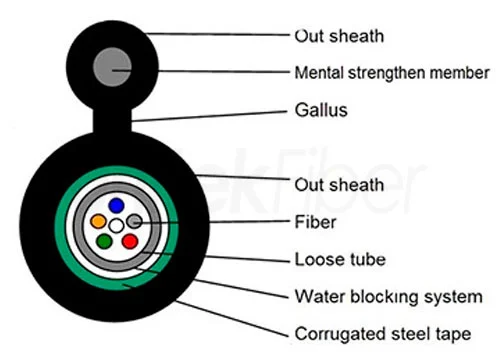

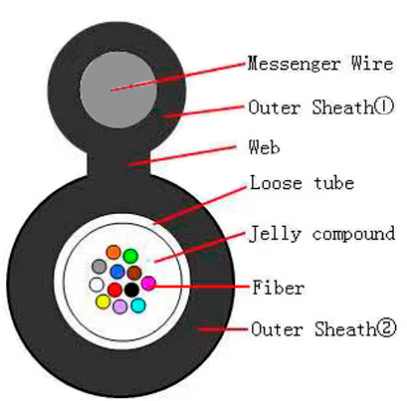

GYXTC8Y is a central loose tube structure of figure 8 self-supporting aerial outdoor single jacket steel wire strength fiber optic cables. GYXTC8Y figure 8 fiber optic cable is a self-supporting structure that integrates the fiber cable core portion and the steel wire suspension into an “8” shaped PE jacket.


Optical Cable Price


The Fiber Cores of GYXTC8Y Fiber Cable is from 2 cores to 24 cores


Features of GYXTC8Y Fiber optic Cable


Fiber Optic Wire Cable



GYXTC8Y aerial fiber optic cable is high tensile strength of stranded wires meet the requirement of self-supporting. Good mechanical and temperature performance. High strength loose tube of fiber optic cable that is hydrolysis resistant. Special tube filling compound ensure a critical protection of fiber. The following measures are taken to ensure the figure 8 cable watertight. Loose tube of optical cable filling compound. 100% cable core filling. Steel tape moisture barrier.


Applications of GYXTC8Y Fiber optic Cable


Fiber Optic Wire for Sale

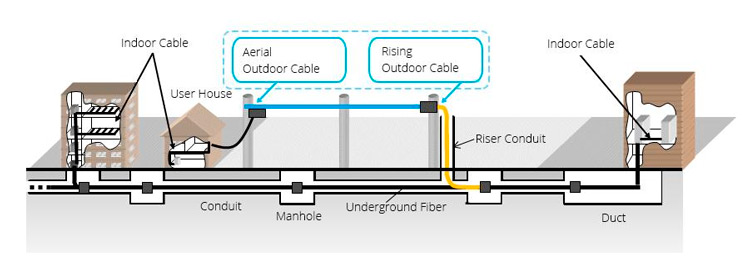

GYXTC8Y fiber optic cable is no need to erect hanging wires and hooks during the laying process, and the operation efficiency is high and the laying cost is low. The GYXTC8Y fiber cable is very easily laid overhead between poles and poles, between poles and buildings, between buildings and buildings.


Professional Assistant For GYXTC8Y Fiber Optic Cabling System.


Fo Cable Type


With the rapid development of the demand for optical fibers, the optical fiber cabling system will become the development direction. Distance constraints are an inevitable choice for floor connections and intra-campus interconnects using fiber cable.


Packaging & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre

Parameter of Self-supporting Aerial Fiber Cables|GYXTC8Y Fiber Optic Cable 2 core G652D Figure 8 Cen

No. of cable

12

Fiber Model

G.652D

Loose Tube

Material

PBT

Diameter(±0.06)mm

2.0

Thickness(±0.03)mm

0.32

The Max.Core NO./Tube

12

Strength Member(Material)

Aramid Yarn

Ripcord(Material)

Nylon

Outer Sheath

Material

MDPE

Thickness(±0.1)mm

1.2

Web

Material

MDPE

Size(±0.1)mm

2.0*1.5

Messenger Wire

Material

Galvanized steelwire

Size(±0.1)mm

2.77

Cable Diameter(±0.2)mm(W×H)

5.3x12.5

Cable Weight(±10)kg/km

82

Attenuation

1310 nm

£0.35

1550 nm

£0.21

Min. bending radius

Without Tension

10×Cable-φ

Under Maximum Tension

20×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70

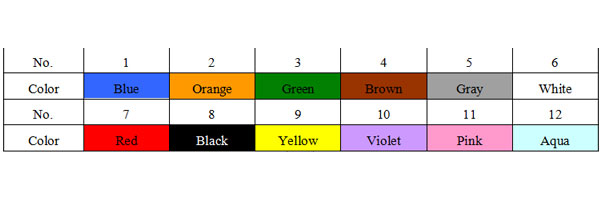

Fibre & Loose Tube Colors

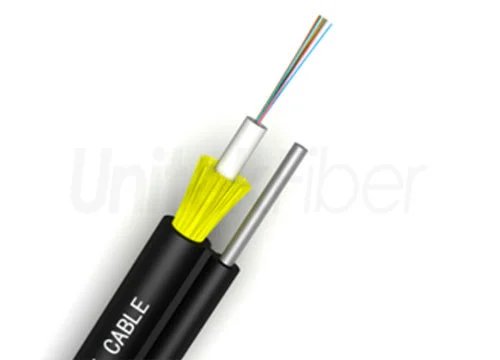

Self-supporting Figure 8 Center Tube Fiber Optical Aerial Cable(GYXTC8Y)


Can you supply OEM products under our brand?

Yes, we are manufacturer, we accept OEM service, we can print your LOGO on fiber cable and fiber cable drums.

How many types of Aerial fiber optic cable you can provide?

The Figure 8 fiber optic cable, GYXTW fiber optic cable, ADSS cable are all strong outdoor fiber cables for Aerial Application.

Can your fiber optic cable be bent without damaging the fiber?

Our fiber cable can be bent with diameters of 2.5cm or less.

What are the main products in your company?

We provides fiber optic cables, ADSS Fiber optic cable, Aerial fiber optic cable of GYTA, GYTC8S, GYFTY, GYTS, underground fiber cable and so on.

Where is the aerial fiber optic cable used?

Mostly used in Local Area Network (LANs), high density data center, FTTH Telecommunication.

If the high temperature will damage the aerial fiber optic cable?

Don't worry, the aerial fiber optic cable can handles the most challenging telecommunications data transmission requests.
