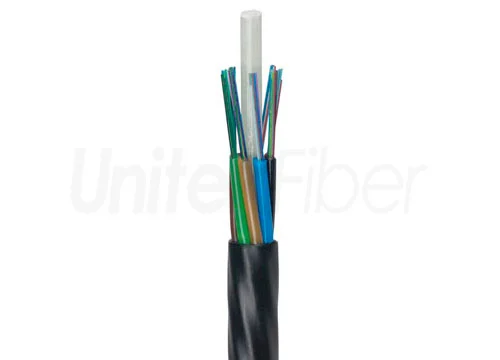

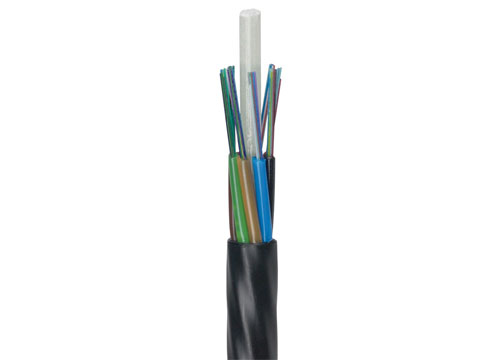

Micro Air Blown Cable|GCYFTY Duct Fiber Optic Cable 144 Cores Single Mode G652D Jacket PE

The air-blown micro cable is ultra-lightweight and small in diameter and is designed for subway feeders or access networks. The air blown micro cable is blown into micro-channe by air blowing devices.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Micro Air Blown Cable|GCYFTY Duct Fiber Optic Cable 144 Cores Single Mode G652D Jacke

Optical Cable for Sale

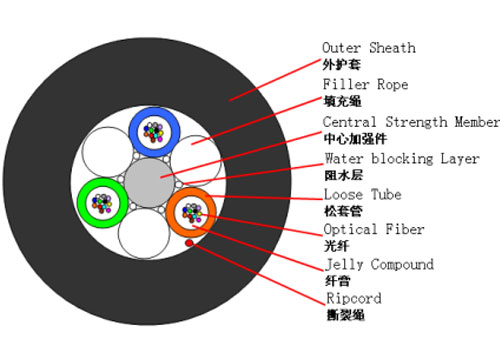

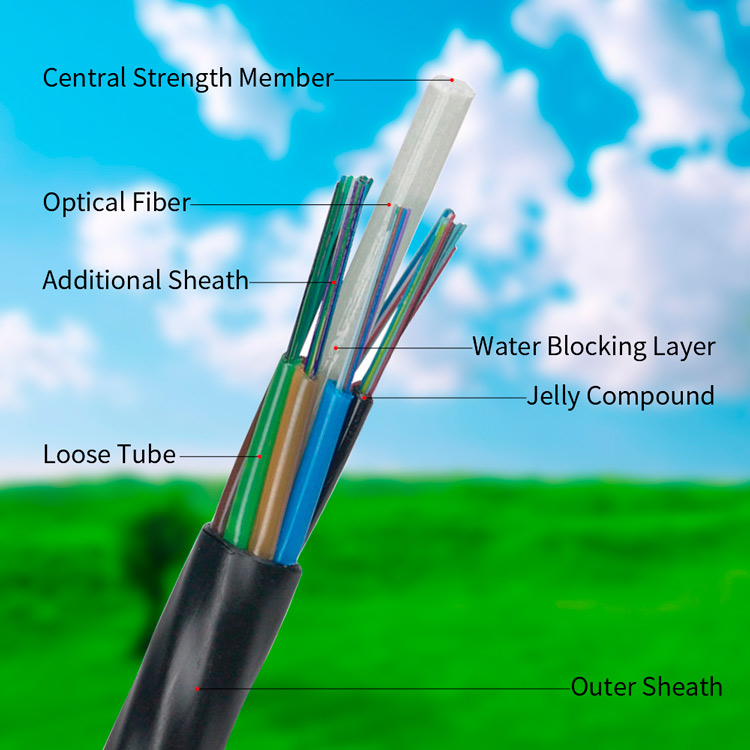

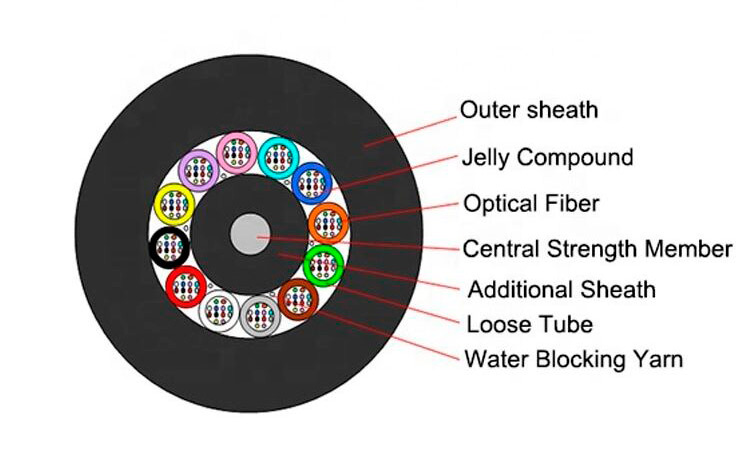

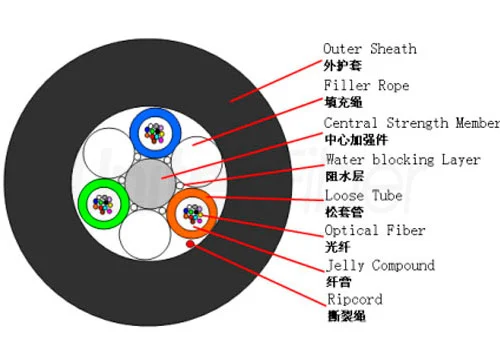

GCYFTY Air Blown micro fiber optic cable is a technology that minimizes the size of optical cables and pipes by optimizing materials, processes and structures, and laying them by air-blowing method to maximize the use of pipe space. Air-blown fiber optic cable (GCYFTY) is a 250μm optical fiber sheathed in a loose tube made of high-modulus material, and the loose tube is filled with a waterproof compound. The center of the cable core is a non-metallic reinforcement core (FRP). The structure requires that the MDPE material cushion may be coated on the outer layer. The sleeve is twisted around the center reinforcement core to form a compact and round cable core, and the gap in the cable core is filled with resistance. Water filled, the outer sheath is extruded into HDPE and then formed into a cable.


Optical Cable Price


The Fiber Cores of GCYFTY Air Blown Fiber Cable is from 2 cores to 288 cores


Features of GCYFTY Fiber optic Cable

Fiber Optic Wire Cable


The air-blown optical cable adopts a non-metallic structure design, which can effectively prevent radio frequency interference and electromagnetic wave interference. The structure design of the optical cable is particularly tight, which effectively prevents the sleeve from retracting. The loose tube material has good hydrolysis resistance and high strength. This kind of fiber optical cable is made of HDPE sheath to meet the air pressure strength during air blowing construction; complete cable core filling measures are used to ensure the waterproof performance of the optical fiber cable. Double-sided corrugated steel tape (PSP) improves the moisture resistance of the optical cable.


Applications of GCYFTY Fiber optic Cable


Fiber Optic Wire for Sale


GCYFTY fiber optic cable can be used as the drop cable of feeder segments in FTTH networks and can be laid by air blowing to connect the branch point with the access point for subscribers. The type optical fiber cable is also applicable in backbone networks, metropolitan area networks and access networks.


Professional Assistant For GCYFTY Fiber Optic Cabling System


Fo Cable Type


Packing & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre

Parameter of Micro Air Blown Cable|GCYFTY Duct Fiber Optic Cable 144 Cores Single Mode G652D Jacket

No. of cable

/

2-24

36

48

60

72

96

144

216

288

Fiber type

/

G.652D

Central Strength Member

Material


mm

FRP

Diameter

(±0.05mm)


1.4

1.4

1.4

1.4

1.4

1.4

2.3

1.4

1.4

Additional Sheath

Material



MDPE

Size

(±0.05mm)


2.7

3.8

3.2

Loose Tube

Material


mm

PBT

Diameter

(±0.05mm)


1.4

Thickness

(±0.03mm)


0.15

MAX.NO./per


12

Filler Rope

Material



LDPE

Diameter

(±0.05mm)


1.3

NO.


4

3

2

1

Water Blocking Layer


Material


/

Water Blocking Yarn


Ripcord


Material


/

Kevlar


Outer Sheath

Material


mm

H DPE

Thickness


0.5(nominal)0.40(min.)


Colour


Black.


Cable Diameter(±0.2mm)

mm

5.0

5.0

5.5

5.5

5.5

6.5

8.5

8.5

9.8

Cable Wetght(±10.0kg/km)

kg/km

25

25

25

25

25

35

60

60

78

Attenuation coefficient

1310nm


dB/km

≤0.35

1550nm


≤0.21

MAX. Tensile Strength


N

500

500

500

500

500

1000

500

1000

MAX.Crush Resistance


N/

100mm

800

Min. bending radius


Without Tension


mm

10.0×Cable-φ


Under Maximum Tension


20.0×Cable-φ


Temperature range

(℃)


Installation


-10~+40

Transport&Storage


-40~+70

Operation


-40~+70

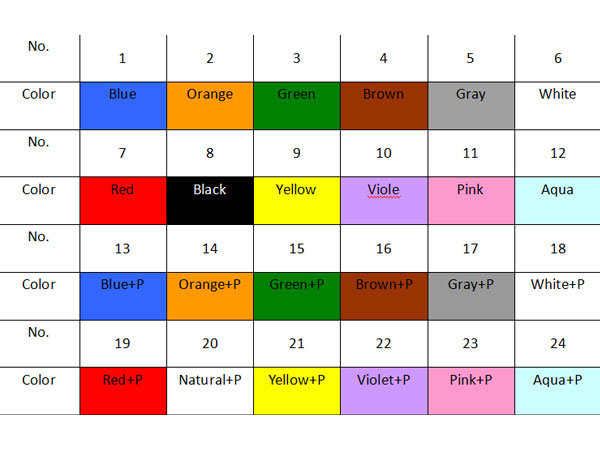

Fibre Colors

Fibre Colors
* "P" means Point mark


Do you have certificate for raw material?

Yes, with qualified ISO9001, ROHS, UL raw material suppliers.

What is the cable structure for this duct fiber optic cable?

This duct fiber optical cable is usually in Stranded loose tube structure.

How many cores for the duct fiber optical cable?

2-288cores.

What's the MOQ for duct fiber optic cable?

The MOQ of duct fiber optic cable is 2km.

Can you supply customized products and logo?

Yes, we supply OEM&ODM service, please feel free to contact us.
