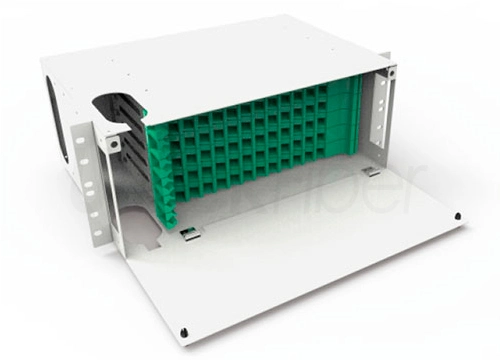

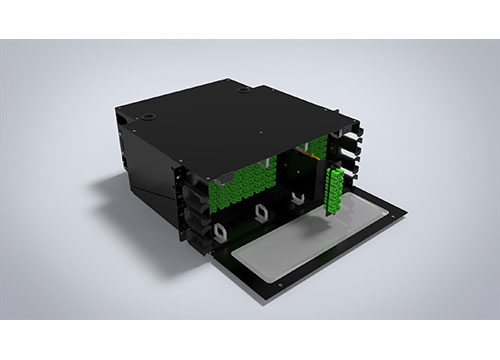

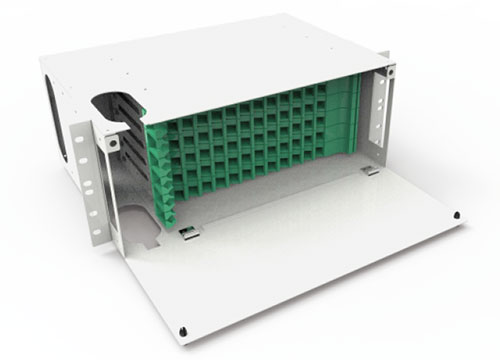

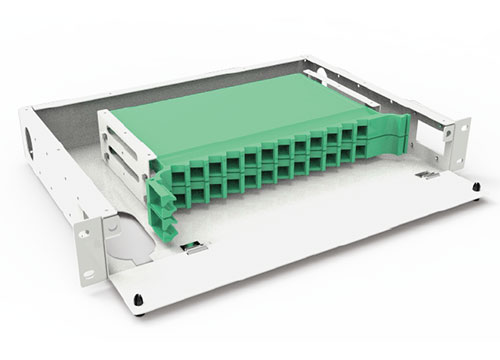

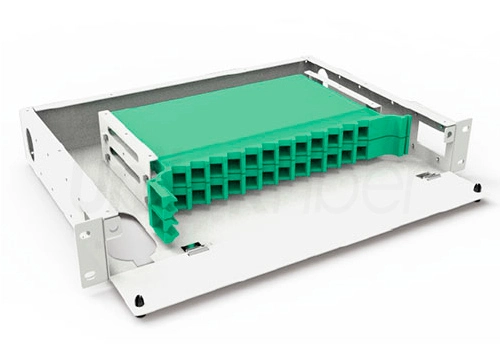

19 Rack Mount Optical Distribution Frame ODF Fiber Optical Patch Panel

The function of the ODF unit is fiber cable splicing, fixation and storage, fiber cable terminating, wiring, distribution and protection of the fiber cables and pigtails.It can be used as a fiber distribution frame in a 19-inch cabinet, or it can be used in a cabinet similar to a digital distribution unit and an audio distribution unit to form an integrated distribution frame. The device is flexible in configuration, simple in installation, and easy to maintain. It is an indispensable device for fiber-optic communication cable network terminals or relay stations to realize cable splicing and fiber-optic cable splicing and access.


Features:


lStandard size, light weight and reasonable structure

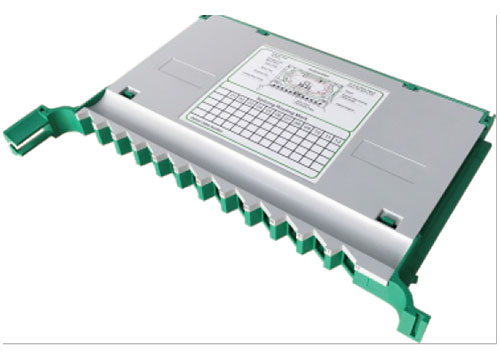

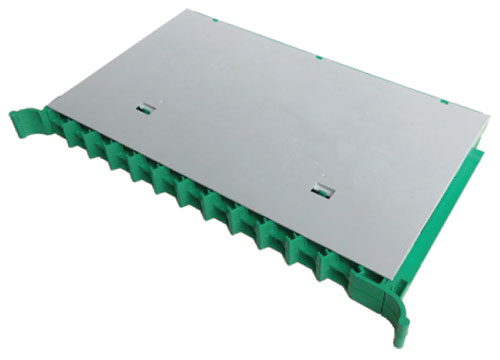

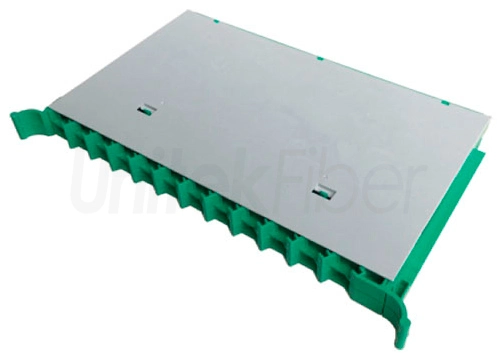

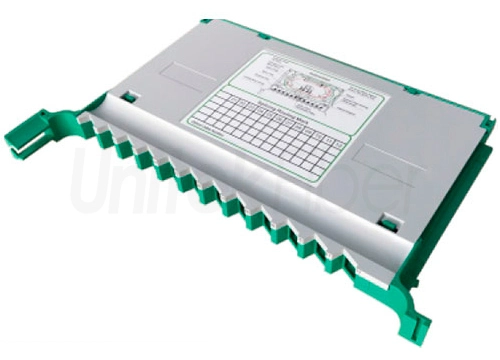

lSplice tray inside changeable

lCan be used in 19'', 23'' standard distribution frame

lSuitable for ribbon and single fiber

lVarious panel plate to fit different adapter interface

l24C, 36C, 48C, 72C, 96C optional, with or without fiber optic pigtails and adapters

lEasy for management and operation

lCustomizable color and LOGO


Applications:


lTelecommunications subscriber loop

lFiber to the home (FTTH)

lLAN/WAN

lCATV

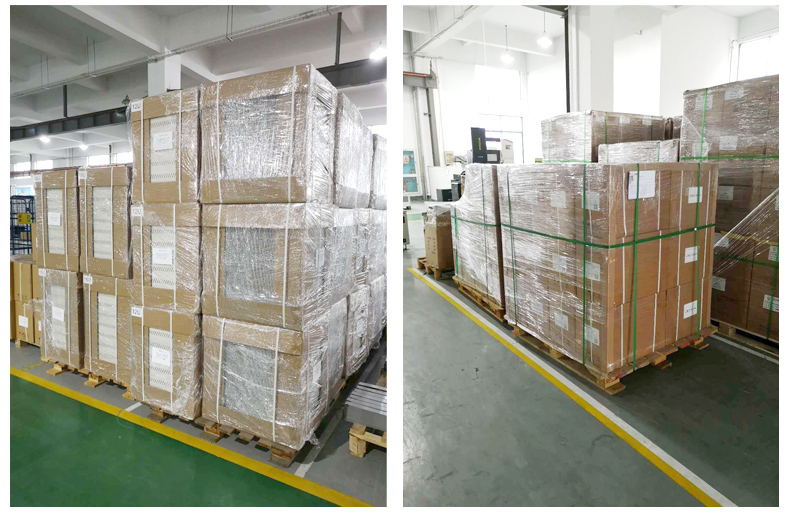

Packaging & Shipping


19 Rack Mount Optical Distribution Frame ODF Fiber Optical Patch Panel

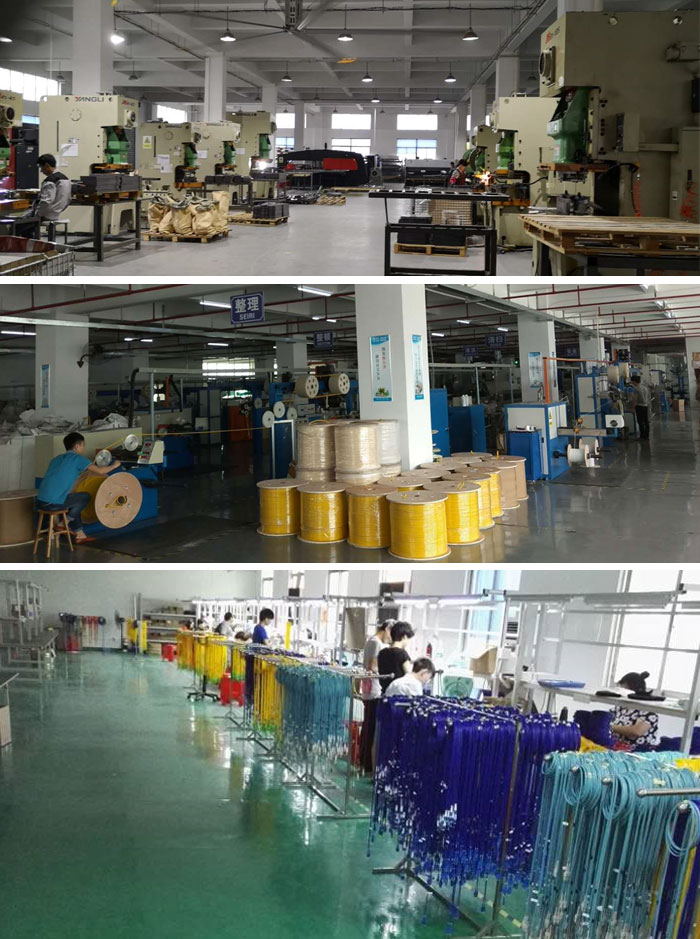

Production


19 Rack Mount Optical Distribution Frame ODF Fiber Optical Patch Panel

19 Rack Mount Optical Distribution Frame ODF Fiber Optical Patch Panel

Packing Information

Type

Size(cm)

Max capacity for 12cores/ tray

Suitable Adapters

Max capacity for 24cores/ tray

Suitable Adapters

Color

UFR1U1

48.2*31*43.5

12

SC/ST/FC/LC

24

SC/FC

Black(RAL9005) Beige(RAL1001)

UFR2U2

48.2*31*69

24

SC/ST/FC/LC

48

SC/FC

Black(RAL9005) Beige(RAL1001)

UFR4U3

48.2*31*12.5

48

SC/ST/FC/LC

96

SC/FC

Black(RAL9005) Beige(RAL1001)

UFR6U4

48.2*31*17.5

72

SC/ST/FC/LC

144

SC/FC

Black(RAL9005) Beige(RAL1001)

UFR8U5

48.2*31*24

96

SC/ST/FC/LC

193

SC/FC
