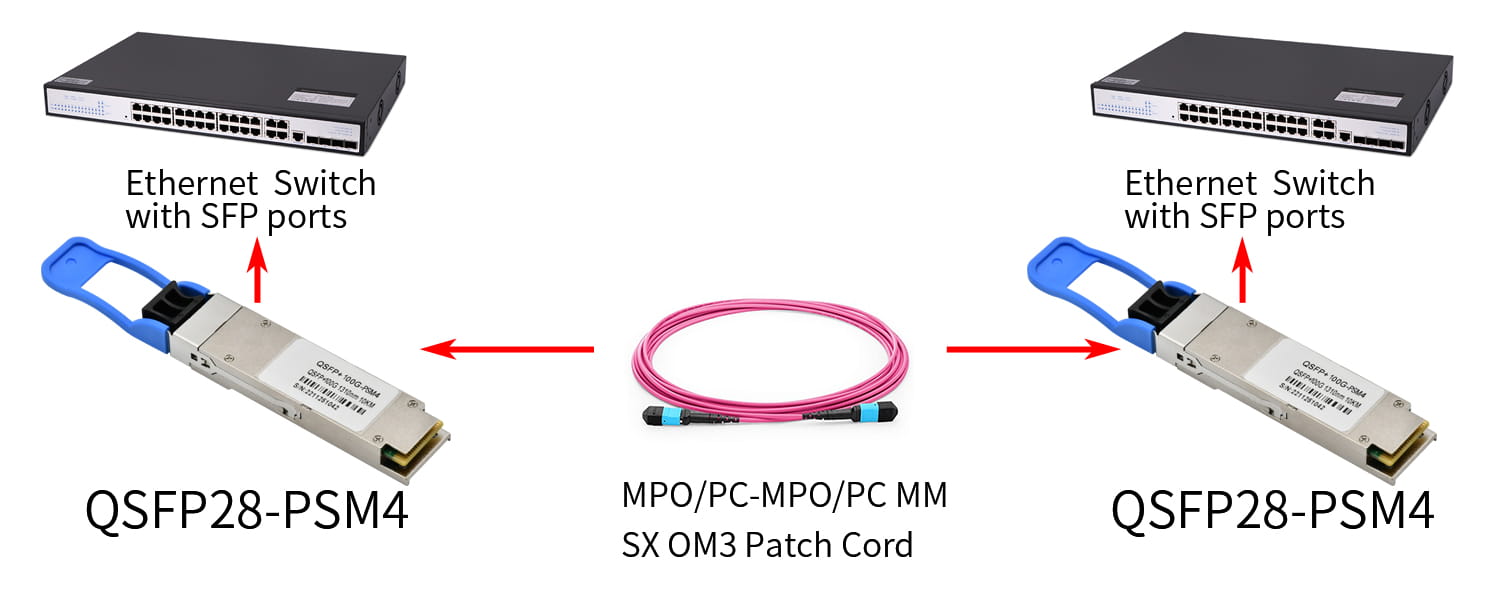

The compact design of the MPO|MTP connector enables the MPO|MTP fiber jumper to have a large number of cores and a small size. It is widely used in connection applications within FTTX and 40G|100G SFP, SFP+ and other transceiver equipment in the environment that requires high-density integrated optical fiber lines during the fiber wiring process.

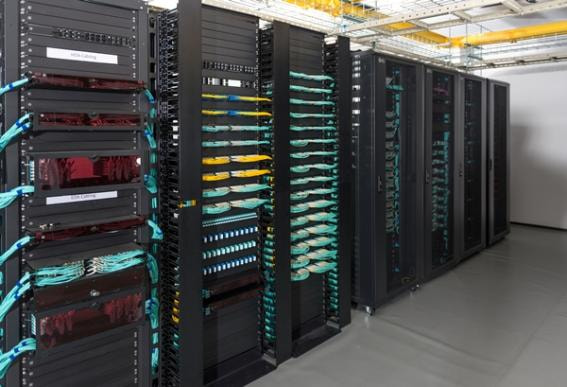

A cost-effective alternative to time-consuming field termination, MPO|MTP trunk cables are designed for high-density in data centers where space saving and cable management hassle are required. At the same time, the high performance of the connection can be guaranteed.

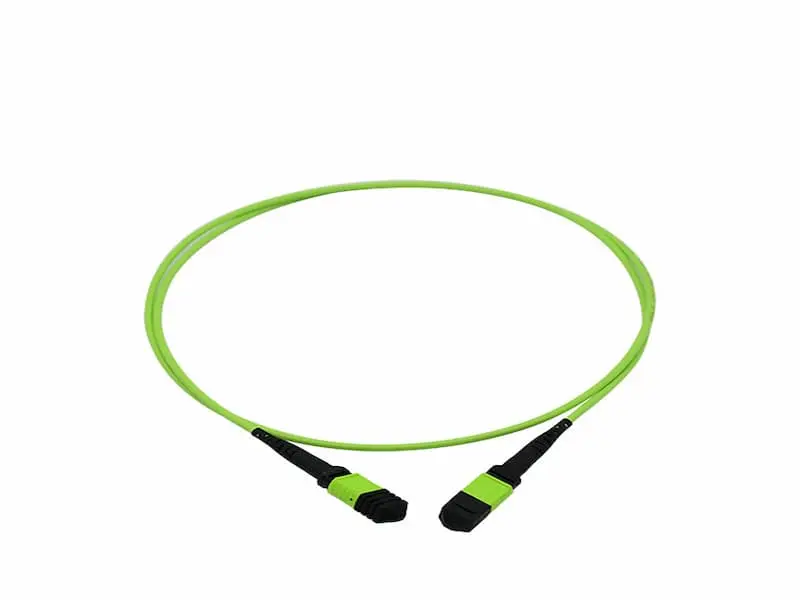

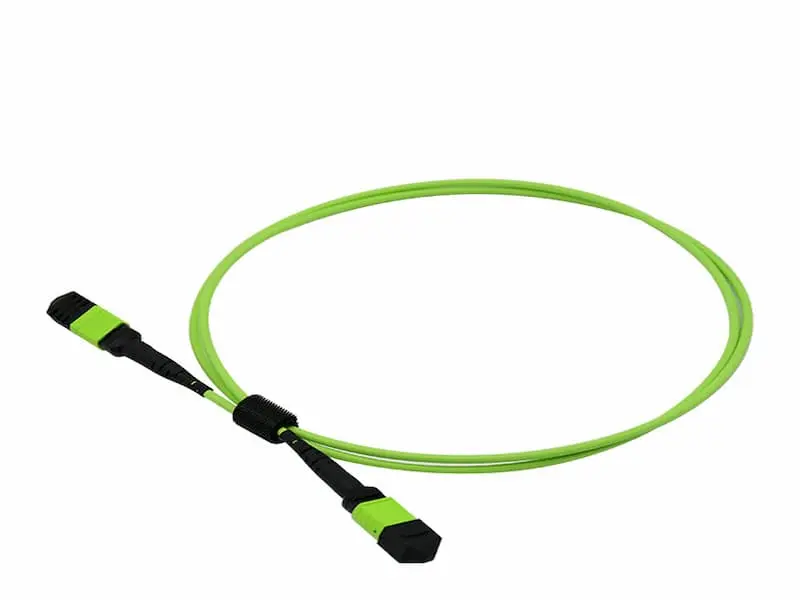

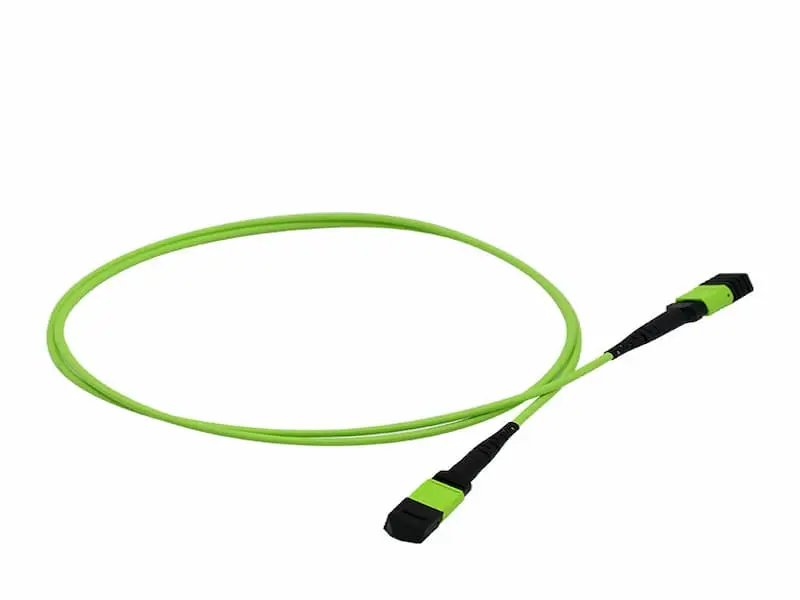

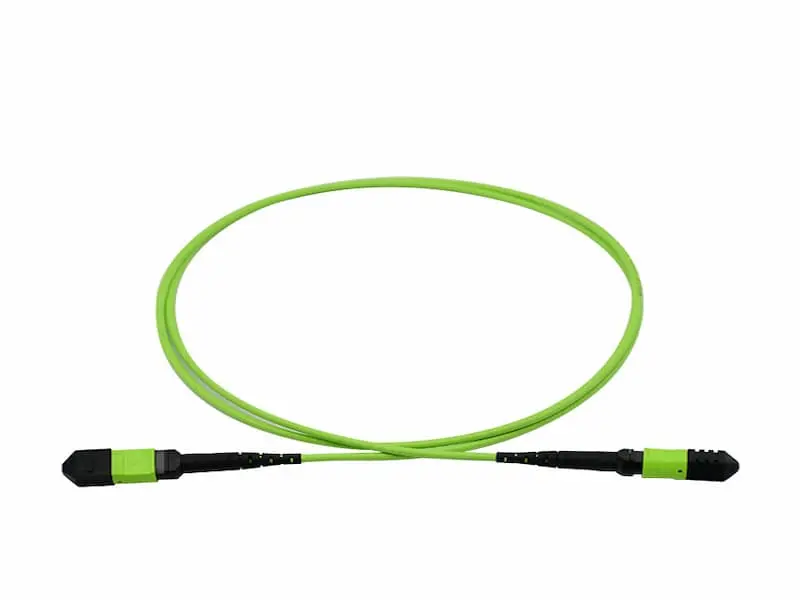

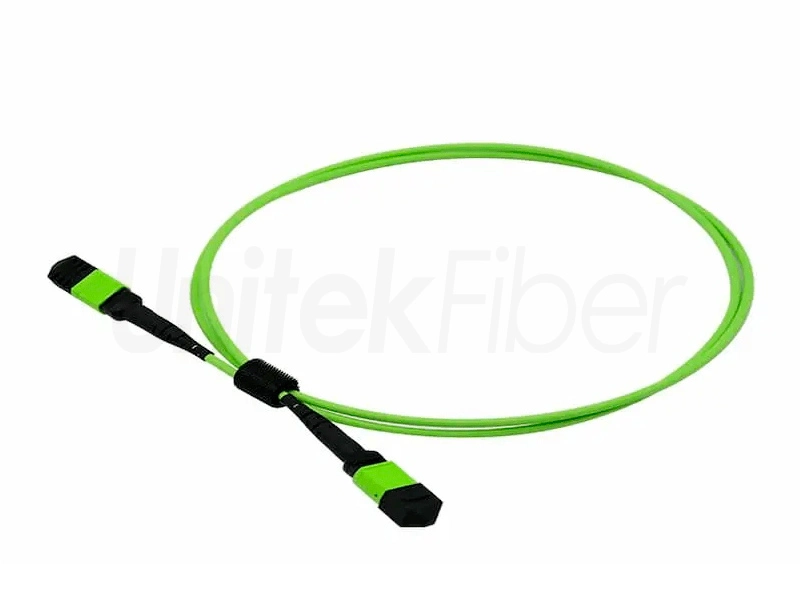

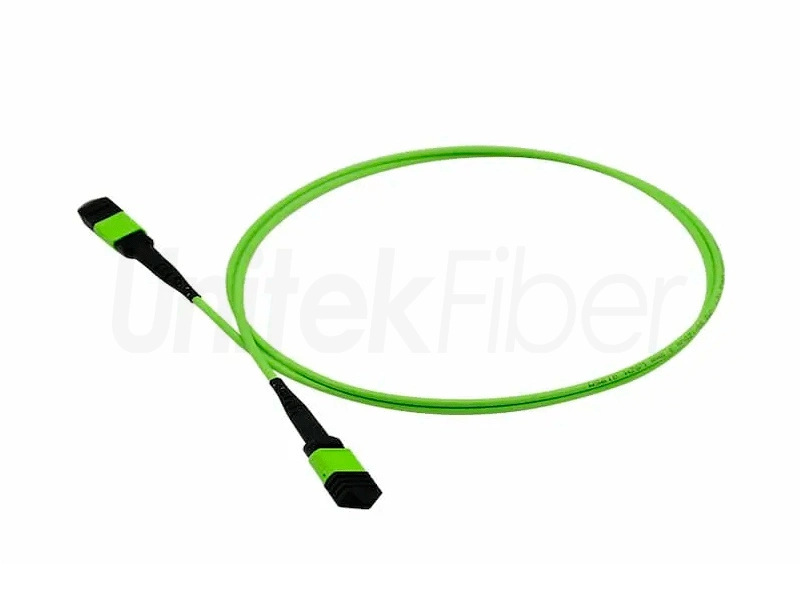

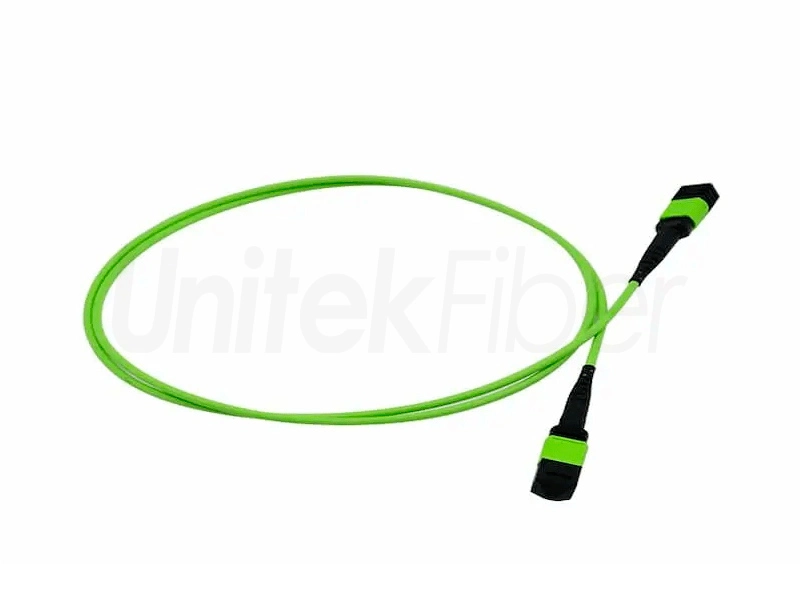

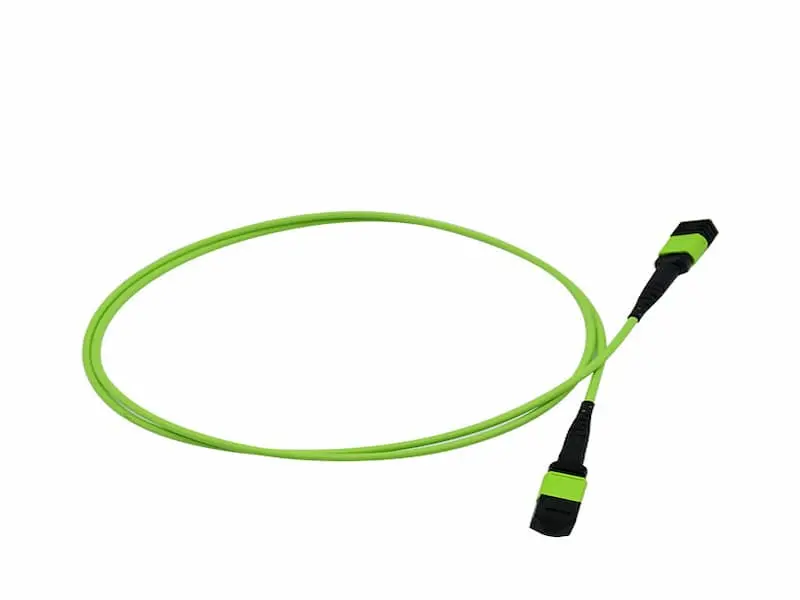

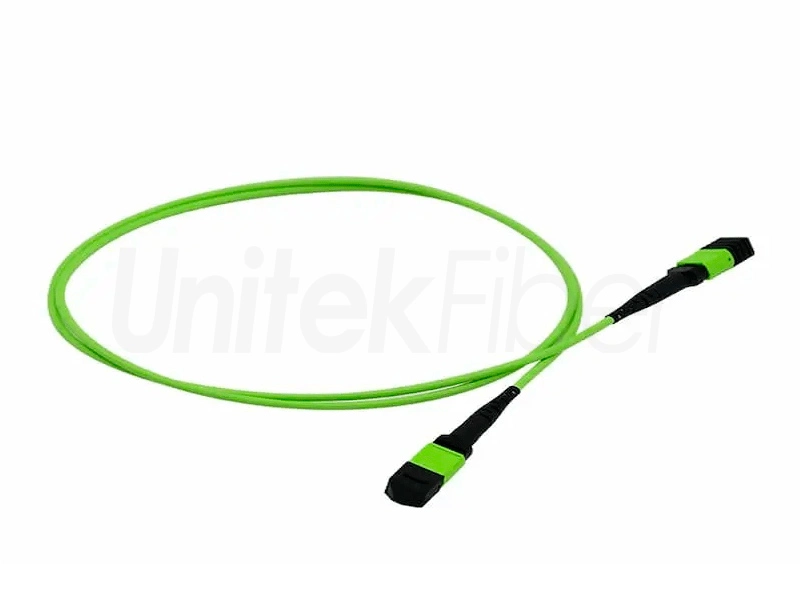

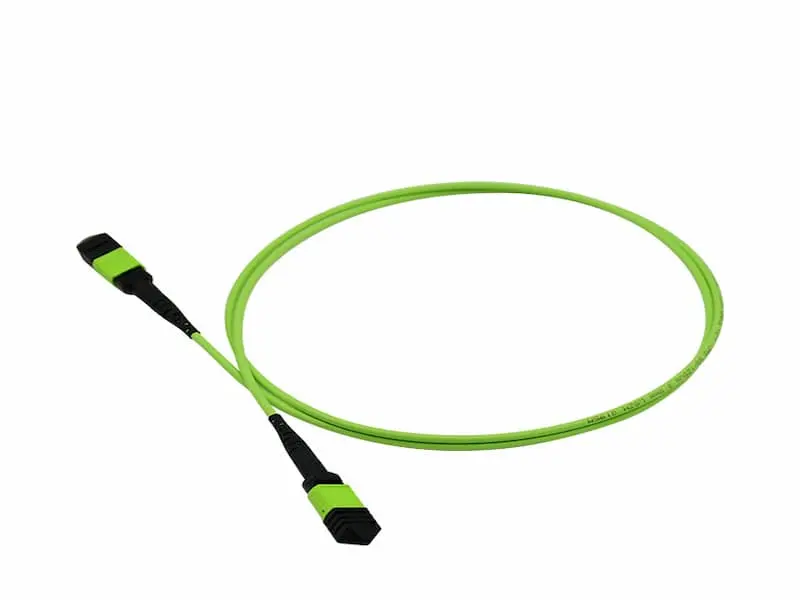

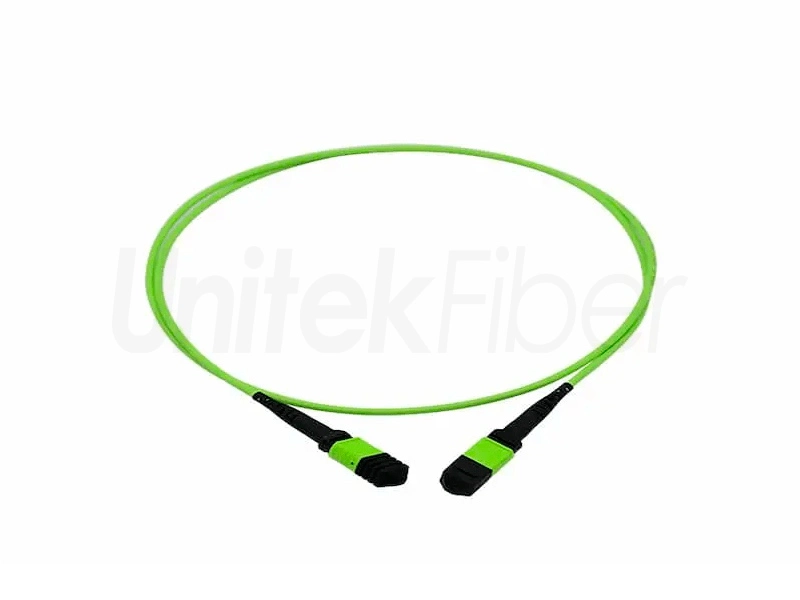

Base-8 MTP|MPO fiber optic jumper is a fixed MTP backbone jumper with polarity type B. It uses an MTP|MPO connector based on 8 core to increase the fiber link. The 8 core connection can easily achieve 100% fully utilized in the backbone network, and no other losses will occur. In addition, its fiber wiring is simpler and more flexible.

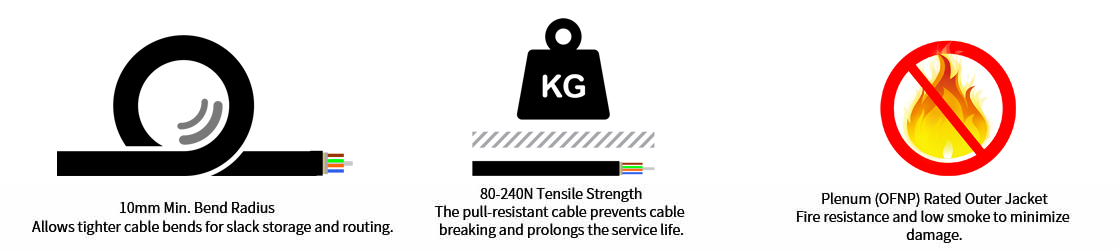

OFNR Riser Rated fiber cable and OFNP Plenum fiber cable can be choose for your network cabling.

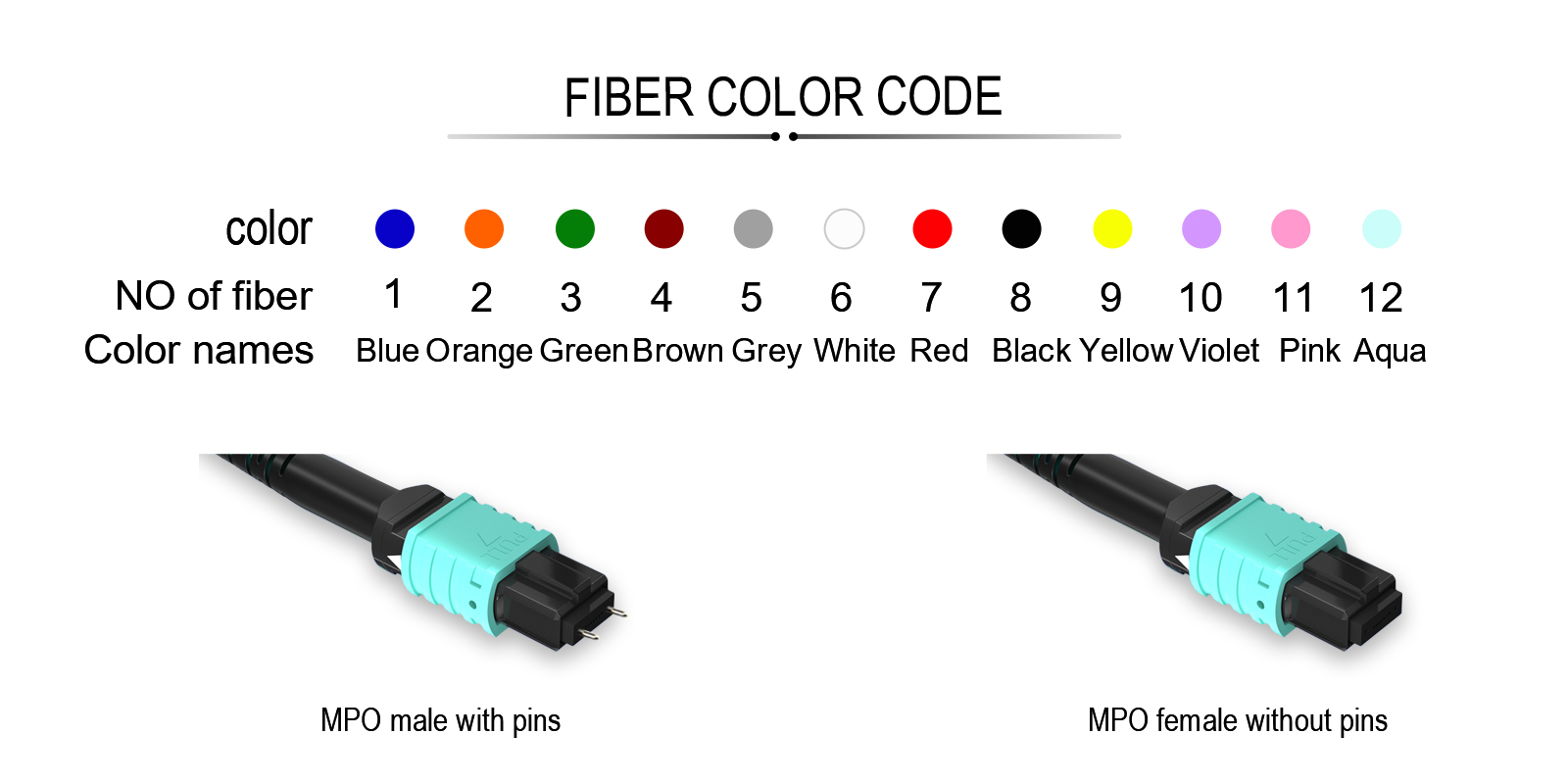

In general, tight buffered multi-core fiber require experienced technicians to terminate both ends. The advanced version of the MTP|MPO cable is pre-terminated, with MTP|MPO connectors at both ends, which can accommodate multiple fibers. These pre-terminated MTP|MPO fiber jumpers are currently the most common 12 core and 24 core, up to 72 core, male (with pins) and female (without pins). The emergence of MTP|MPO cable technology meets the requirements of large-capacity optical fiber systems, and is an ideal choice for data centers to achieve high density and high performance.

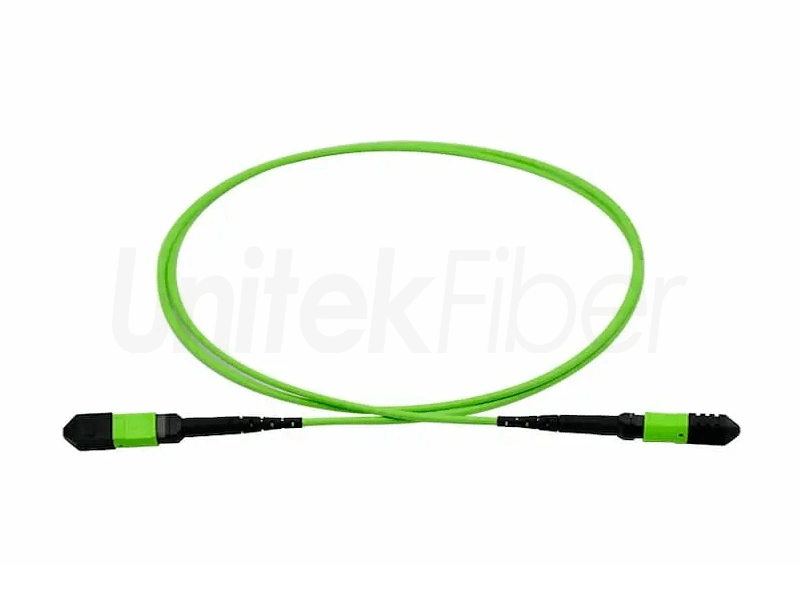

.jpg "MTP MPO Fiber CableFiber Optic Jumper MTP MPO Cable 8 Cores MM OM5 3.0mm LSZH")
Model | SM | MM | ||
Connector A:MTP | ||||
Connector Fiber Count | 12 Cores | |||
Polish | MTP/APC | MTP/PC | ||
Insertion Loss | Standard | ≤0.70dB | ≤0.70dB | |
Elite Low Loss | ≤0.35dB | ≤0.35dB | ||
Return Loss | ≥60dB | ≥30dB | ||
Durability(500 Matings) | ≤0.2dB | ≤0.2dB | ||
Test Wavelength | 1310nm&1550nm | 850/1300nm | ||
Connector B:MTP | ||||
Polish | MTP/APC | MTP/PC | ||
Insertion Loss | Standard | ≤0.70dB | ≤0.70dB | |
Elite Low Loss | ≤0.35dB | ≤0.35dB | ||
Return Loss | ≤60dB | ≤30dB | ||
Durability(500 Matings) | ≤0.2dB | ≤0.2dB | ||
Test Wavelength | 1310nm&1550nm | 850/1300nm | ||
We have professional QC to control quality before shipment.
Our factory has dug in this industry for many years and sold to many countries in the world.
If you need sample to test, please contact our sales team or email us sales@unitekfiber.com.
The samples will be ready for delivery in 3-7days after we receive the payment.
Yes. We supply OEM service. You can send us your drawing.
