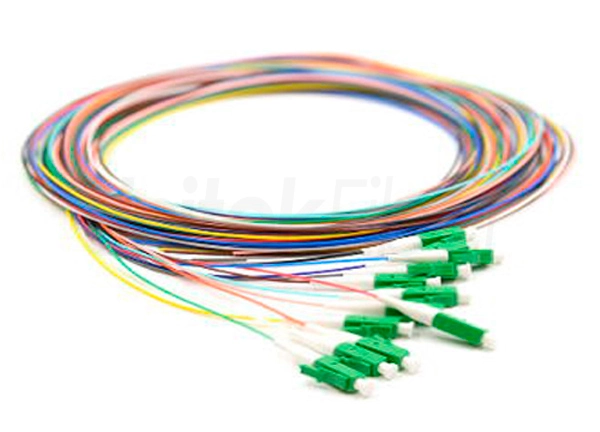

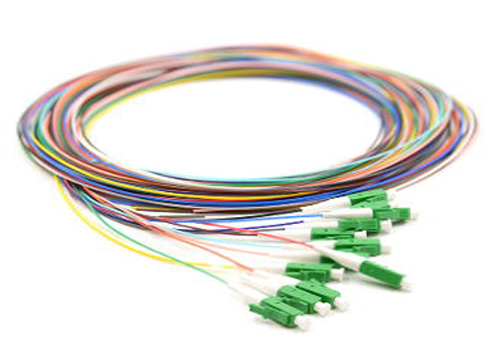

LC APC 12 Colorful Bulk Fiber Optic Pigtails Single Mode Multi Mode Corning Fiber

UnitekFiber provides Corning 12 colorful bulk fiber pigtails. The fiber pigtail is ususally using 0.9mm fiber cable. The cable can be 12 colors.
Installed LC, SC, FC or ST connector at the one end of the cable, the become a pigtail. Our colorful bulk pigtails is with low insertion loss, IEC, TIA/EIA, Telcordia compliant.
We offer customized fiber optic cable lengths and jacket colors.

Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of LC APC 12 Colorful Bulk Fiber Optic Pigtails Single Mode Multi Mode Corning Fiber

Characteristics:


  • Low Insertion loss

  • High return loss

  • Good Repeatability

  • Good Interchange

  • Excellent Environmental Adaptability


Application:


  • Communication rooms

  • FTTH (Fiber to The Home)

  • LAN (Local Area Network)

  • FOS (fiber optic sensor)

  • Fiber Optic Communication System

  • Optical fiber connected and transmitted equipment

  • Defense combat readiness

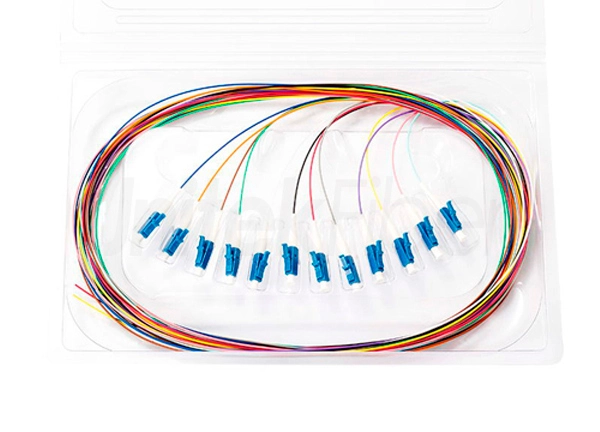

Packaging and Shipping


LC APC 12 Colorful Bulk Fiber Optic Pigtails Single Mode Multi Mode Corning Fiber


Production


LC APC 12 Colorful Bulk Fiber Optic Pigtails Single Mode Multi Mode Corning Fiber


Parameter of LC APC 12 Colorful Bulk Fiber Optic Pigtails Single Mode Multi Mode Corning Fiber

Parameter

Unit

Mode Type

PC

UPC

APC

Insertion Loss

dB

SM

≤0.3

≤0.3

≤0.3

MM

≤0.3

≤0.3

-----

Return Loss

dB

SM

≥50

≥50

≥60

MM

≥35

≥35

-----

Fiber cable

Diamete

PVC, LSZH

Material

PVC, LSZH

Connector type


SC, LC. ST. FC

Repeatability

dB

Additional loss<0.1db,return loss< 5 dB

Interchangeability

dB

Additional loss<0.1db,return loss< 5 dB

Connection times

times

>1000

Operating Temperature

-40℃- +75℃

Storage Temperature

-40℃- +85℃


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

Reviews

Delbert
Jul 25, 2022

Good service, products came quickly and were exactly what I needed. Thank you!

Verified Purchase
Helpful 0
